Year |
2016 |
|---|---|
Make |
Winton |
Model |
OB-23 |
Description |
Orbital Tube Bender |
Reference # |
8070956 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

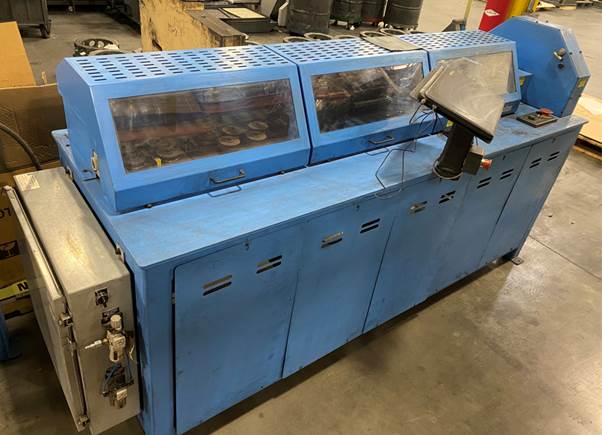

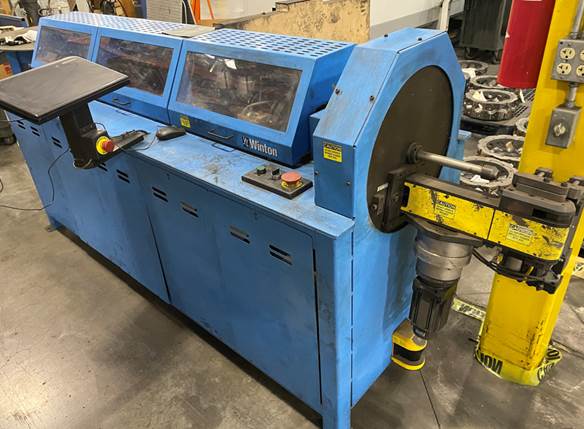

Winton OB-23
Specifications
| Maximum Number of Bends |
64 Bends Per Part |
|---|---|
| Machine Capacity |
Ø1/8 - Ø7/8 x .05 Wall Copper |
| Machine Repeatability |
Length ± 0.004”, Rotation ± 0.25°, Angle ± 0.1° |
| Minimum DBB |
.50” (distance between bends) |
| Max Speeds; L:R:A |
18”/Second: 90°/Second: 135°/Second |
| Min/Max Bend Radius |
0.50”/2.20” Centerline Radius / (1.5D of bend) |
| Maximum Part Length |
Unlimited |
| Maximum R Axis Rotation |
± 200° |
| Input (Mains) Power |
208/220 VAC, 50/60Hz, Single Phase |
| Pneumatic Pressure |
80 psi minimum |
| Control Panel/Display |
High Resolution Color Display |
| Working Height |
38.5” |
| Machine Dimensions |
32” wide x 105” long x 51” tall |
| Machine Weight |
2200 pounds |
*
