Year |
2005 |
|---|---|
Make |
Hines |
Model |
NC 600 |
Description |
Tube Bender |
Reference # |
8077472 |
Price |
Activate Pricing |

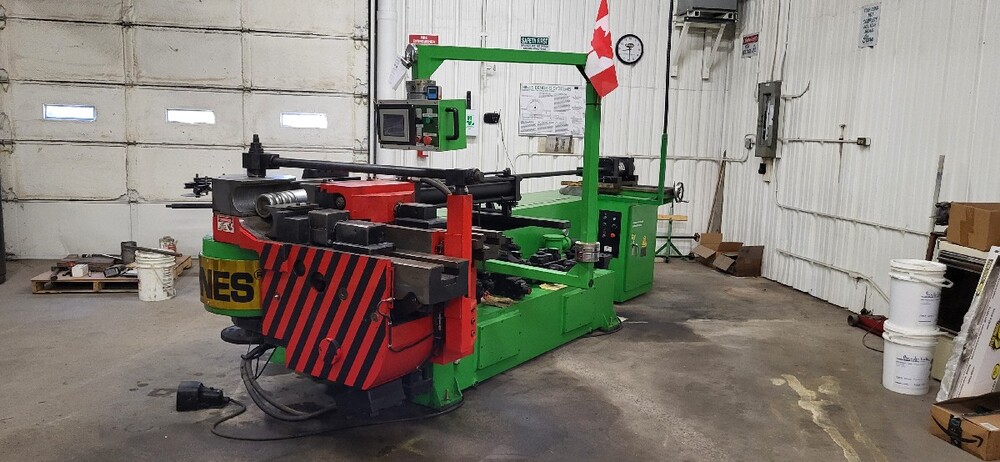

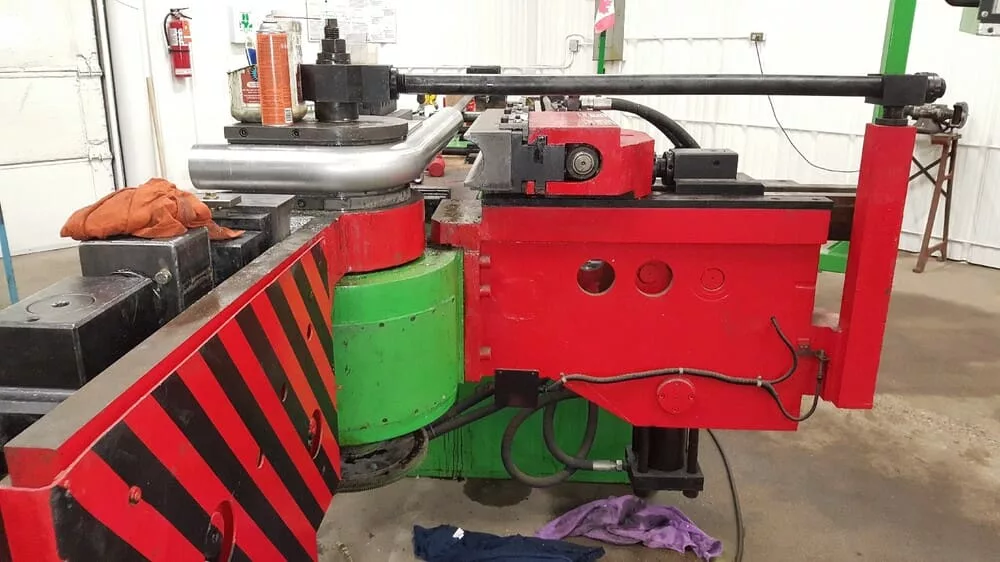

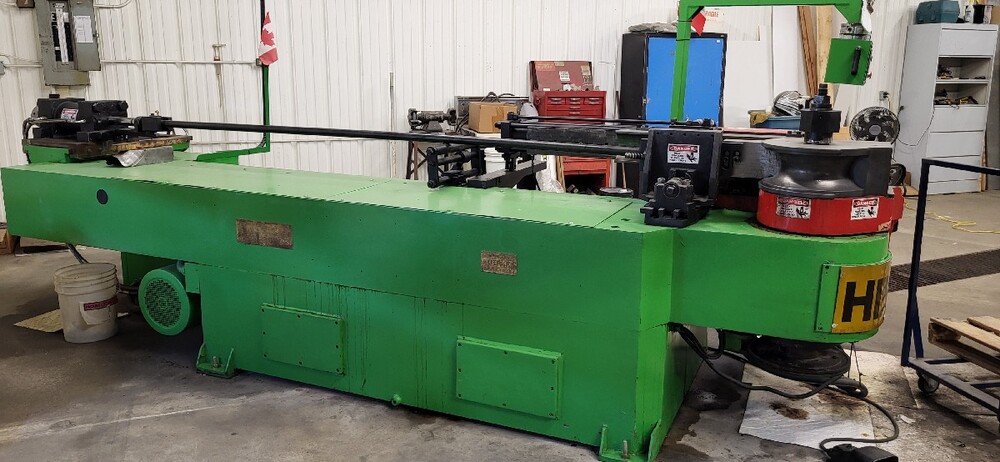

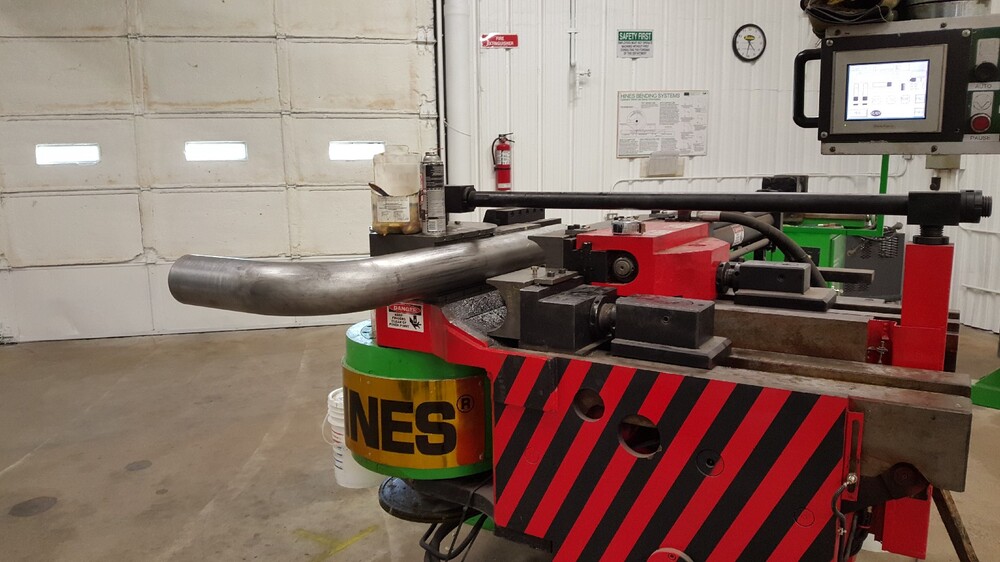

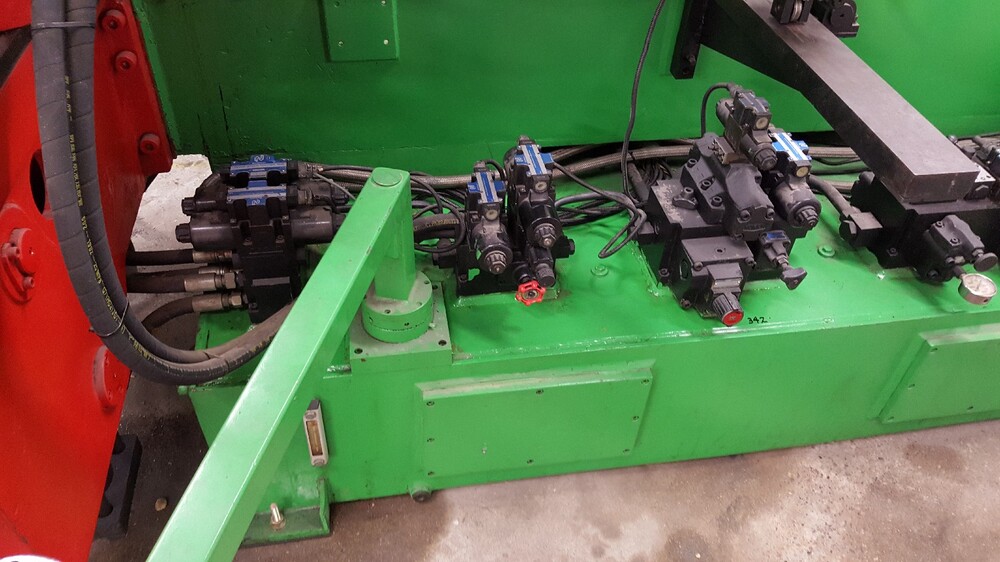

Used Hines NC 600 (2005) Tube/Pipe Bender for Sale. This hydraulic mandrel bender has a capacity of 6″ OD x .200″ wall, a standard maximum radius of 18″, and a maximum bend angle of 190 degrees with bend angle accuracy of +/- 0.1 degree. Bend arm speed is 0.4 RPM, and maximum tube length over the mandrel is 14′. The machine is driven by a 30 HP motor with an operating pressure of 2,300 PSI. The main cylinder was rebuilt in 2021. It is equipped with 3 mandrel rods, 5.00 x .065 die sets, and 4.00 x .065 die sets. The bender can be seen under power for an inspection prior to purchase. Request a Quote for further details and availability.
Specifications
| Capacity |
6" OD x .200" Wall |
|---|---|
| Standard Max Radius |
18" |
| Max Bend Angle |
190 Degrees |
| Bend Angle Accuracy |
+/- 0.1 Degree |
| Bend Arm Speed |
0.4 RPM |
| Max Tube Length Over Mandrel |
14' |
| Motor |
30 HP |
| Operating Pressure |
2,300 PSI |
| Note |

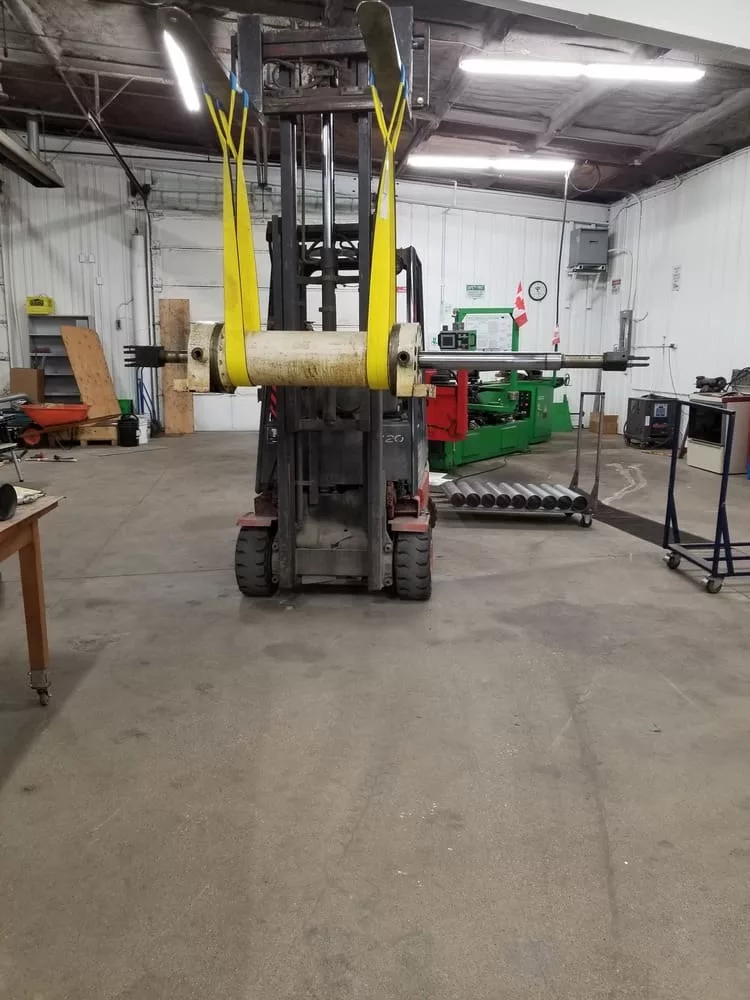

Main Cylinder Rebuilt in 2021 |
Features
|
3 Mandrel Rods |

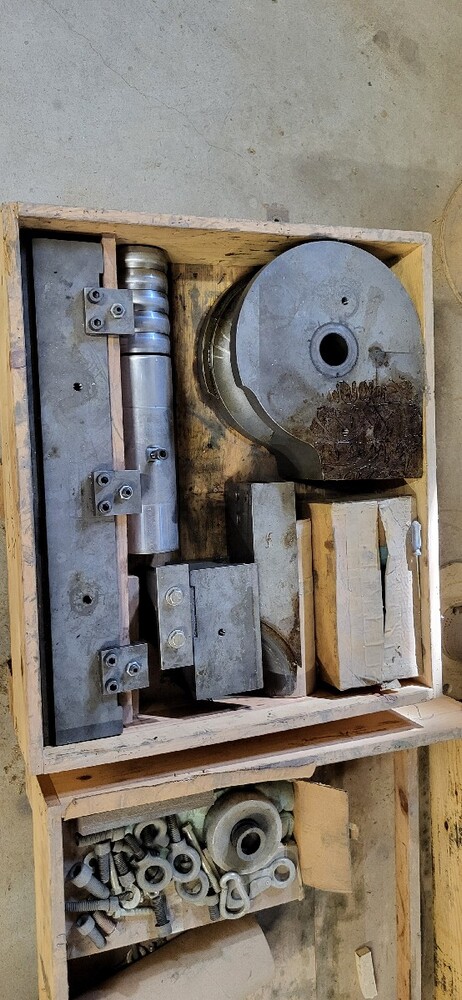

5.00x.065 Die Sets and 4.00 x .065 Die Sets |
