Year |
2001 |
|---|---|
Make |
Keins |
Model |
KB-45ND |
Description |
Horizontal Hydraulic CNC Tube Bender |
Reference # |
8076189 |
Price |
Activate Pricing |

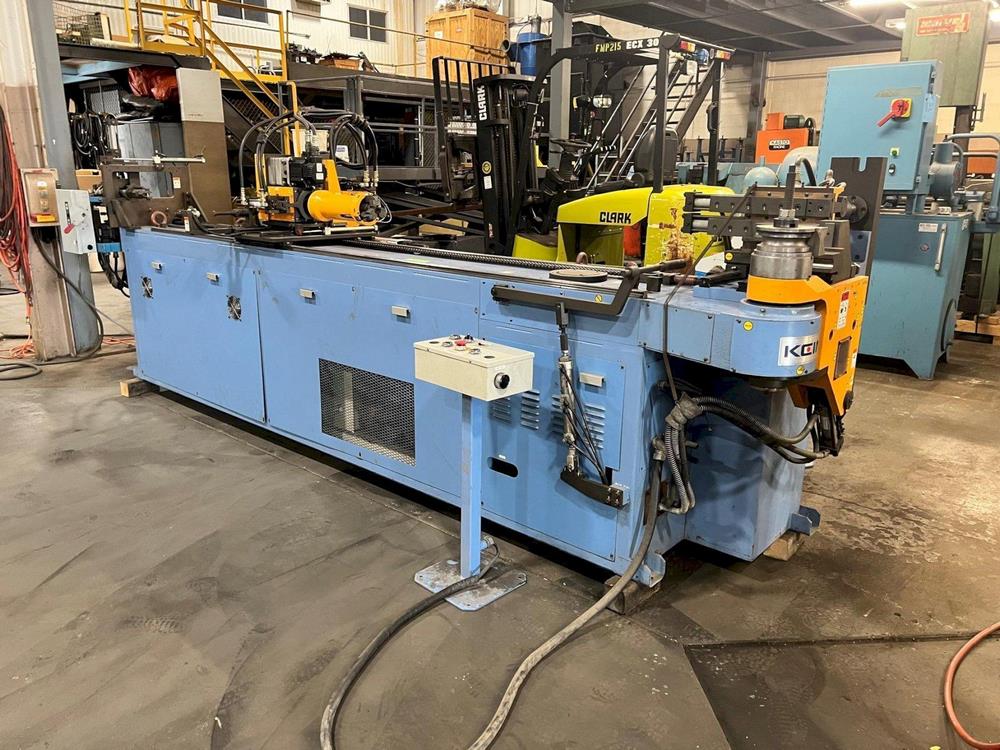

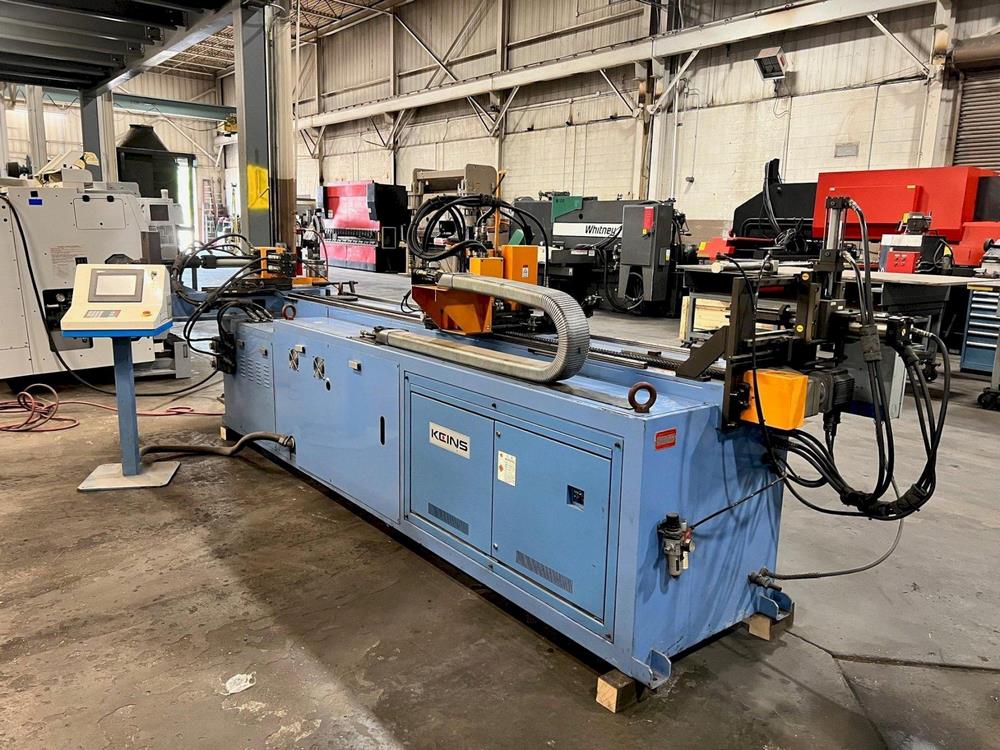

Used Keins KB-45ND (2001) Tube/ Pipe Bender for Sale. This 3-axis bender handles up to 2″ capacity, with a thin wall metal capacity of 1.77″ x .07″ wall (45mm x 2mm) and a thick wall metal capacity of 1.68″ x .1″ wall (42.7mm x 2.6mm). Aluminum capacity is 2″ x .07″ wall (50.8mm x 2mm), stainless 1.5″ x .07″ wall (38.1mm x 2mm), steel bar .70″ (18mm), and square pipe 1.18″ x 1.18″ x 06″ wall (30mm x 30mm x 1.5mm). Max bending radius is 7.87″ (200mm) with a 2″ (50mm) max bend radius differential and 98″ (2500mm) max tube length. Feed speed runs 4.72 – 47.2 IPS, plane speed 36 – 360 degrees per second, and bending speed 25 – 125 degrees per second. Dimensions are 171″ X 56″ X 64″; weight 6,400 lbs. The machine can be seen under power for an inspection. Request a Quote for further details.
Specifications
| Number of Axis |
3 |
|---|---|
| Capacity |
2" |
| Thin Wall Metal Capacity |
1.77" x .07" wall (45mm x 2mm) |
| Thick Wall Metal Capacity |
1.68" x .1" wall (42.7mm x 2.6mm) |
| Aluminum Capacity |
2" x .07" wall (50.8mm x 2mm) |
| Stainless Capacity |
1.5" x .07" wall (38.1mm x 2mm) |
| Steel Bar Capacity |
.70" (18mm) |
| Square Pipe Capacity |
1.18" x 1.18" x 06" wall (30mm x 30mm x 1.5mm) |
| Max Bending Radius |
7.87" (200mm) |
| Max Bend Radius Differential |
2" (50mm) |
| Max Tube Length |
98" (2500mm) |
| Feed Speed |
4.72 - 47.2 IPS (120 - 1200 mm/sec) |
| Plane Speed |
36 - 360 degrees per second |
| Bending Speed |
25 - 125 degrees per second |
| Dimensions |
171" X 56" X 64" |
| Weight |
6,400 Lbs. |
