Year |
2012 |
|---|---|
Make |
Eaton Leonard |
Model |
VB152HP |
Description |
3-Axis CNC Hydraulic Tube Bender |
Reference # |
8072529 |
Price |
Activate Pricing |

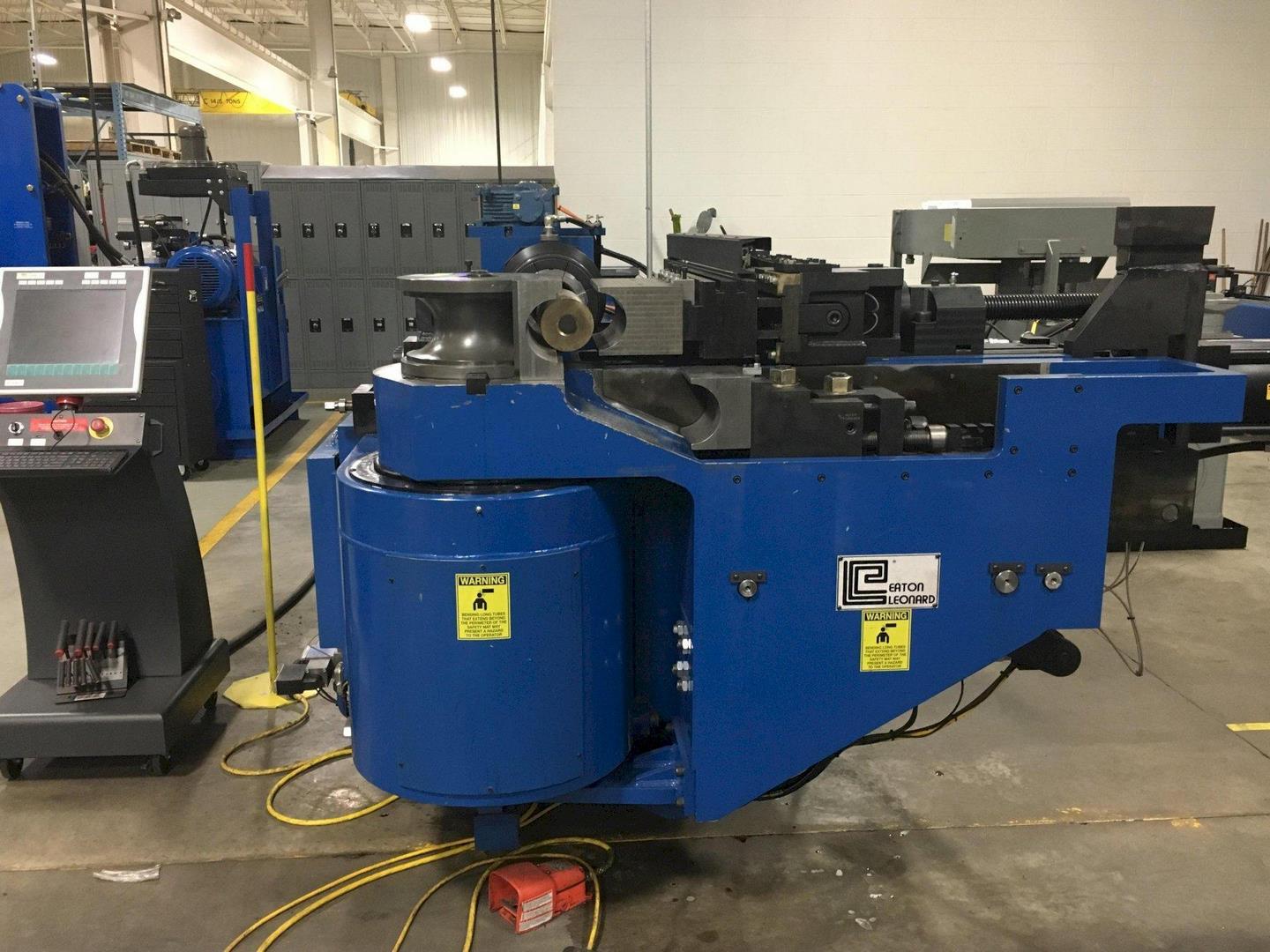

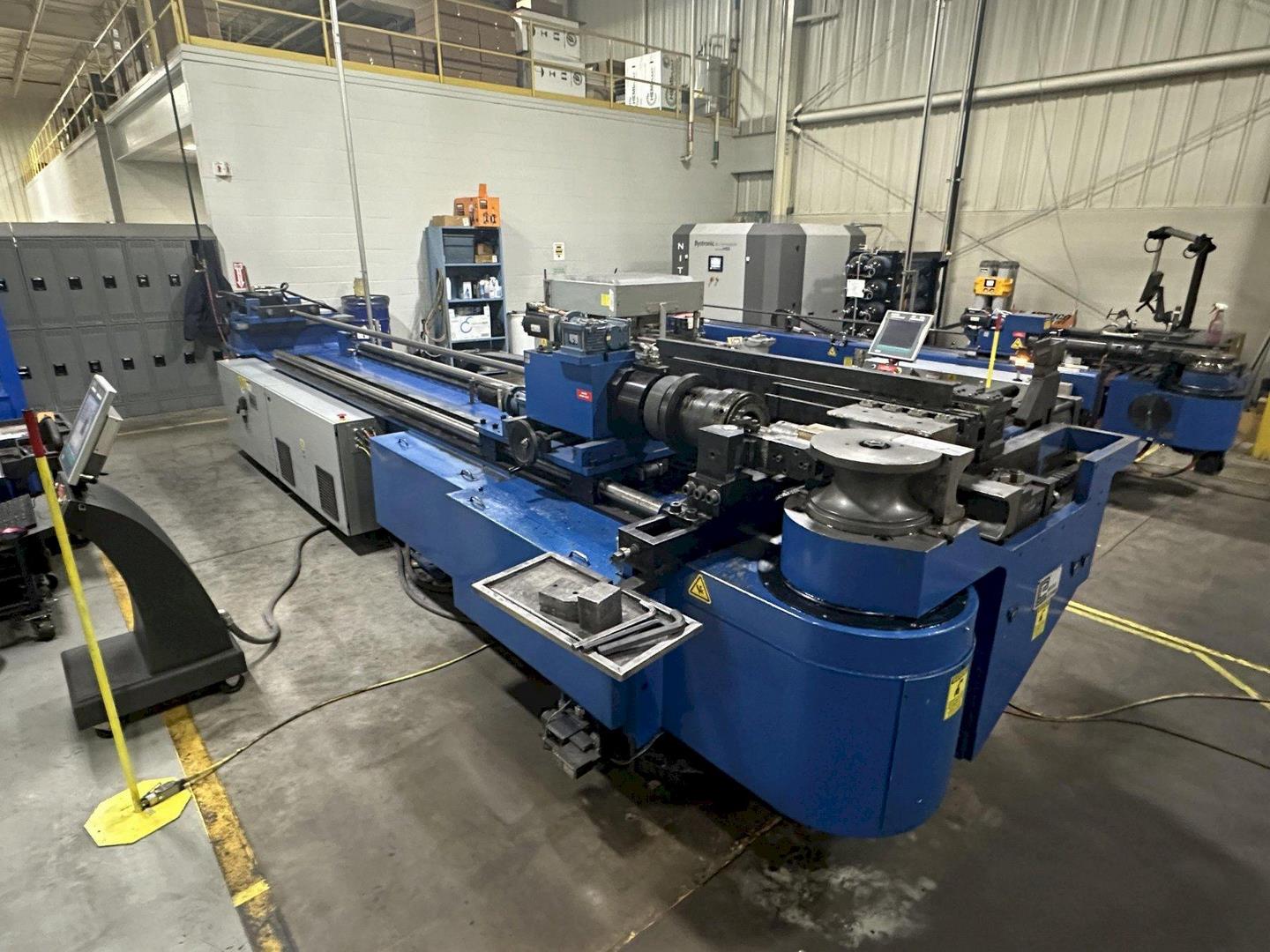

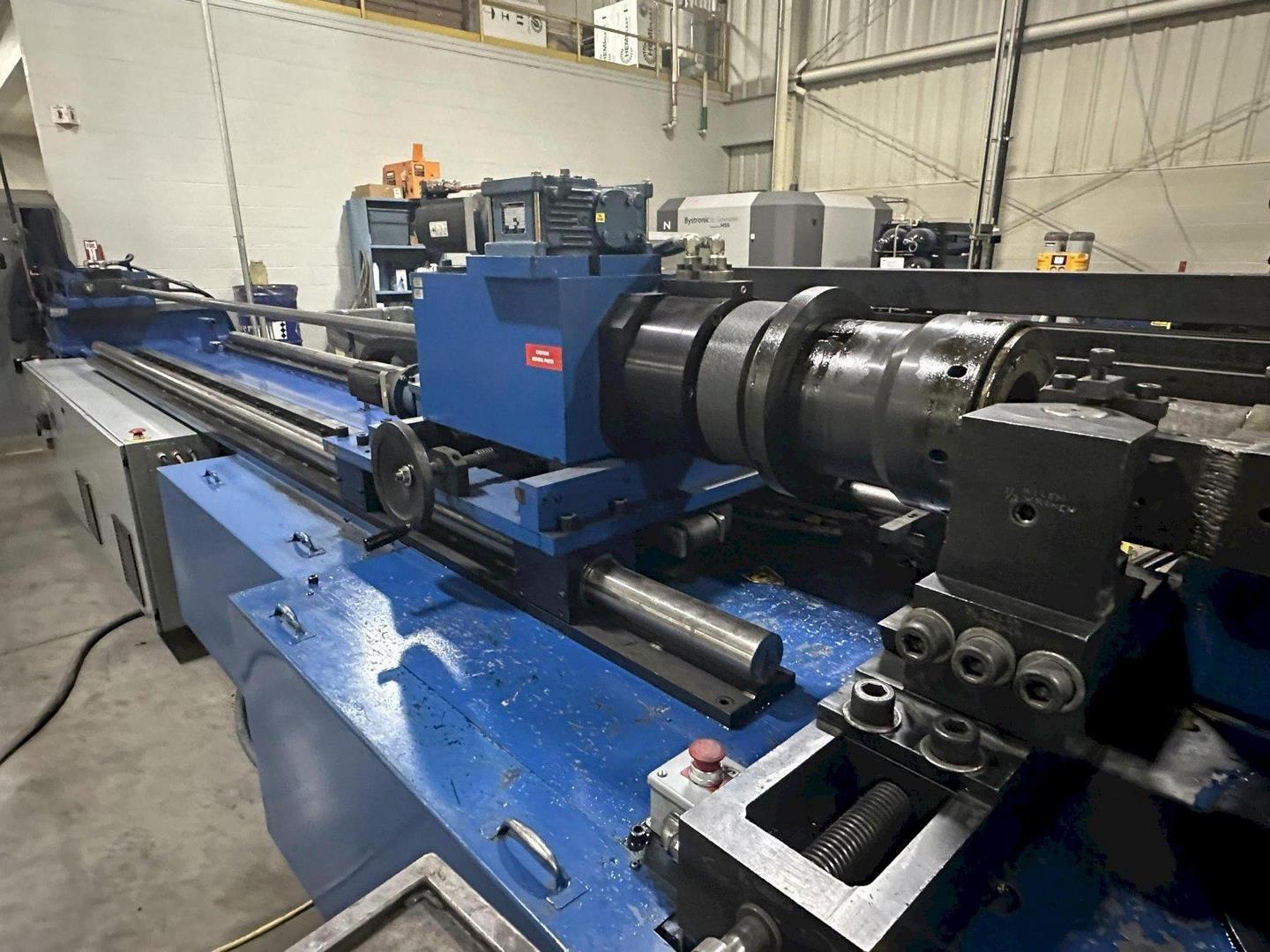

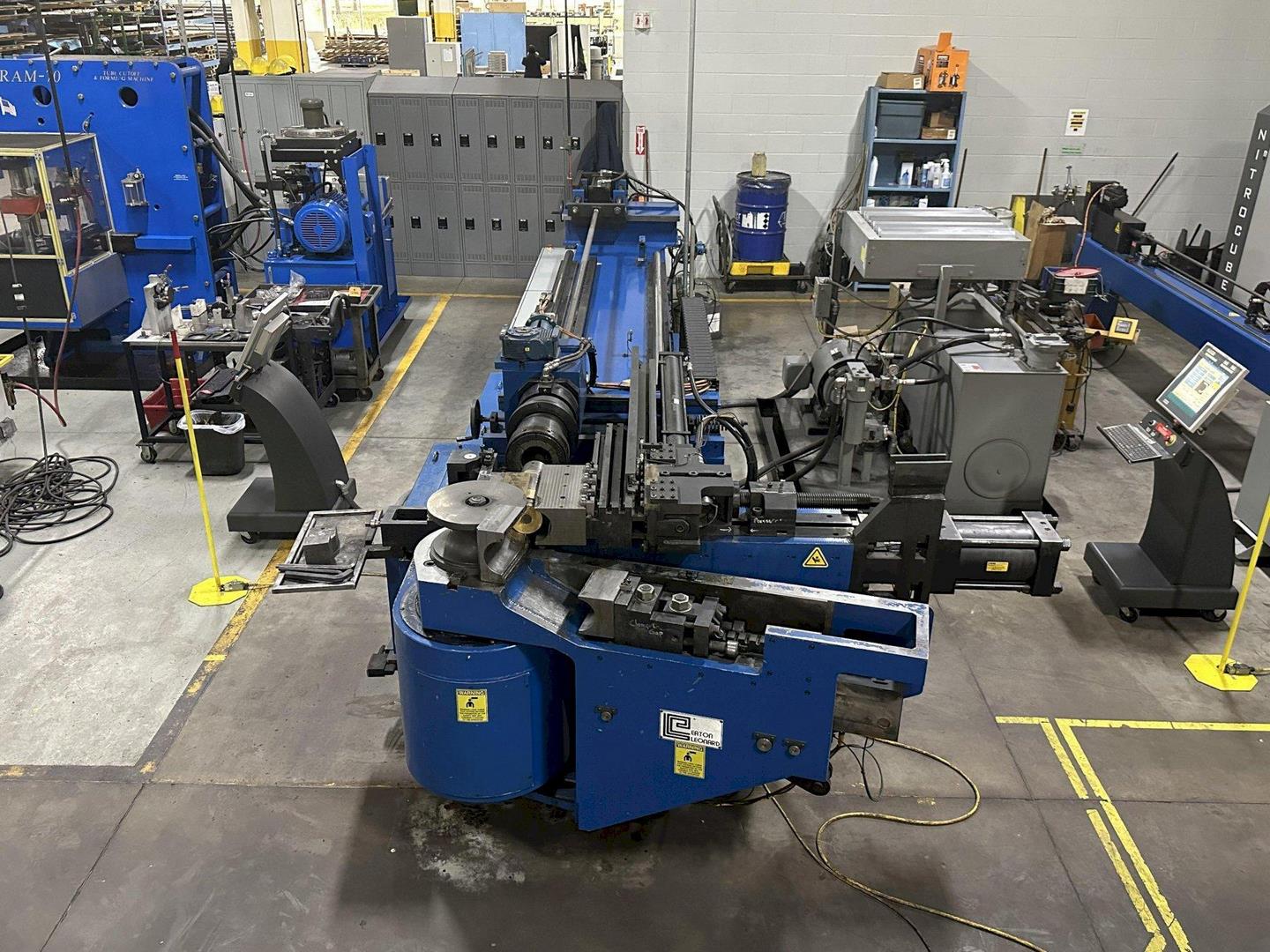

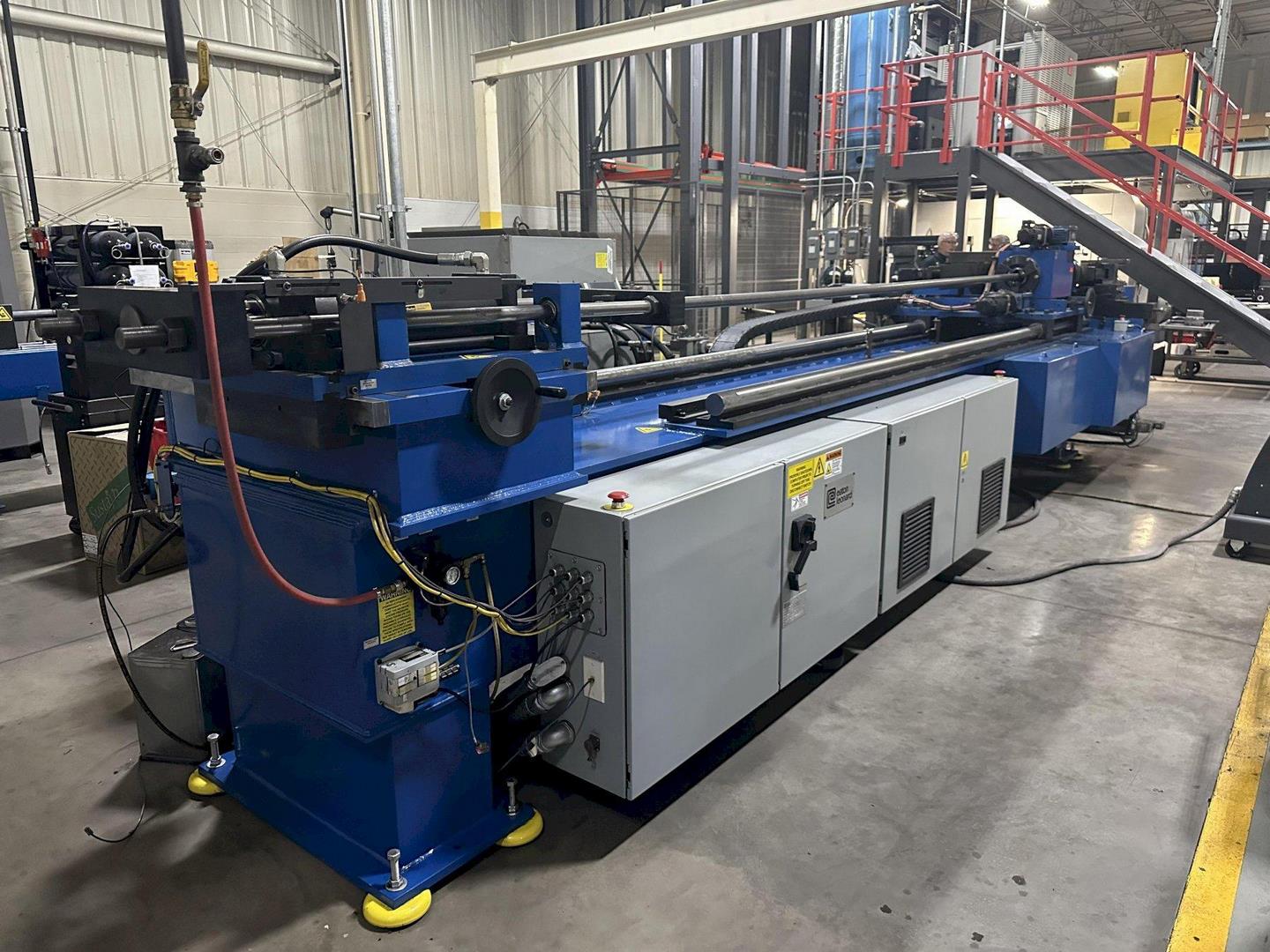

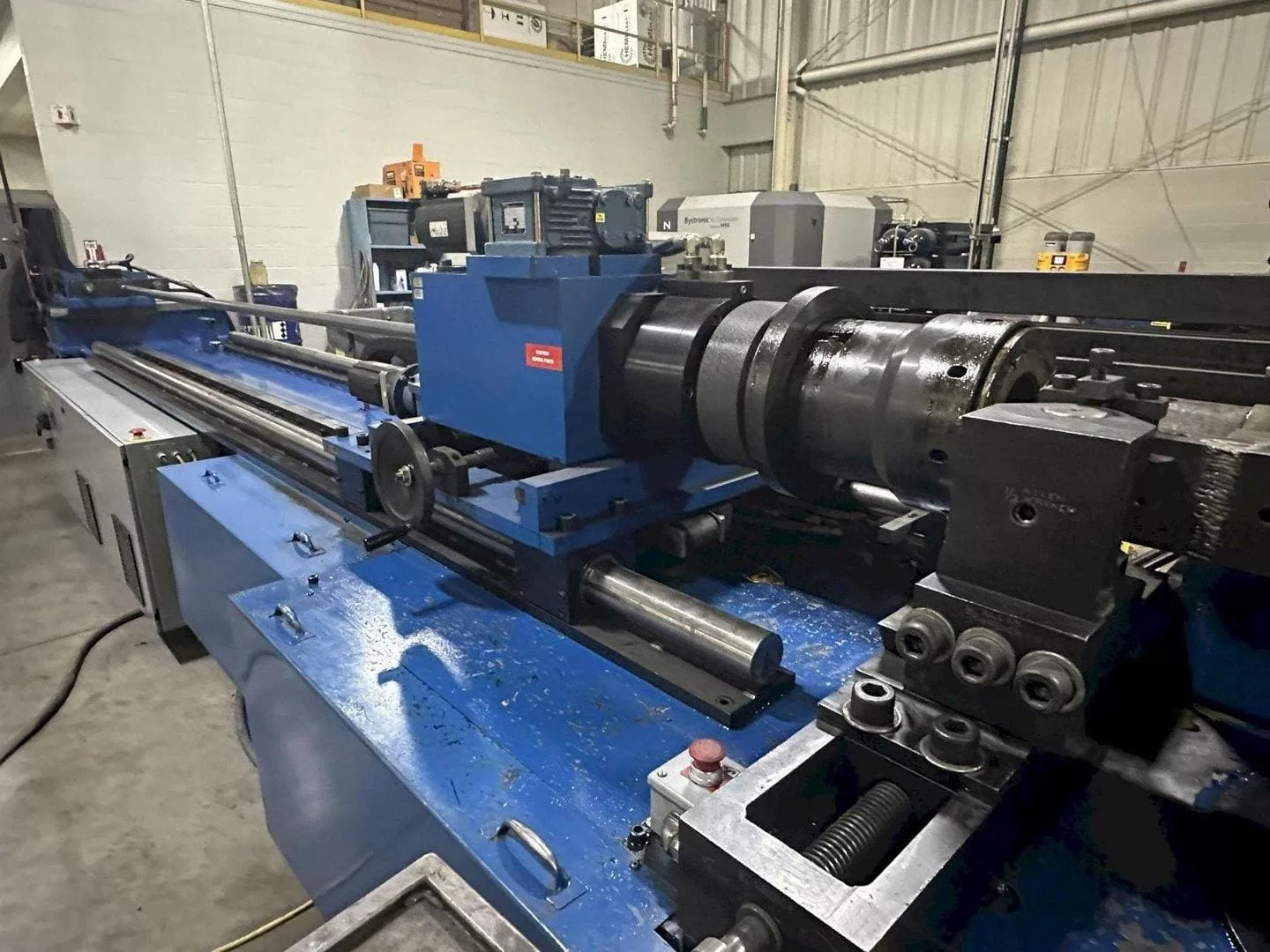

Used Eaton Leonard VB152HP (2012) Tube/ Pipe Bender for Sale. This CNC bender handles tube lengths to 531″ over mandrel and bends up to 6″ OD — 6″ x .18″ stainless steel, 6″ x .22″ mild steel, 6″ x .50″ aluminum, and 6″ x .337″ carbon. Bend angle is 190 degrees with a centerline radius range of 2″ to 25″. Bend speed is 2 RPM on the C-axis, DBB speed is 900 IPM on the Y-axis, and POB runs 15 RPM on the B-axis. The motor is 480/60/3, 125 Amps, 60 HP. See photos for more specs. The machine can be seen under power for an inspection. Additional used tube and pipe benders are available. Use Activate Pricing or Request a Quote for details. This machine is located in Ohio.
Specifications
| Tube Length |
531" (Tube Over Mandrel) |
|---|---|
| Max Tube OD Stainless Steel |
6" x .18" |
| Max Tube OD Mild Steel |
6" x .22" |
| Max Tube OD Aluminum |
6" x .50" |
| Max Tube OD Carbon |
6" x .337" |
| Bend Angle |
190 Degrees |
| Centerline Radius |
2" to 25" |
| Bend Speed |
2 RPM (C-Axis) |
| DBB Speed |
900 IPM (Y-Axis) |
| POB |
15 RPM (B-Axis) |

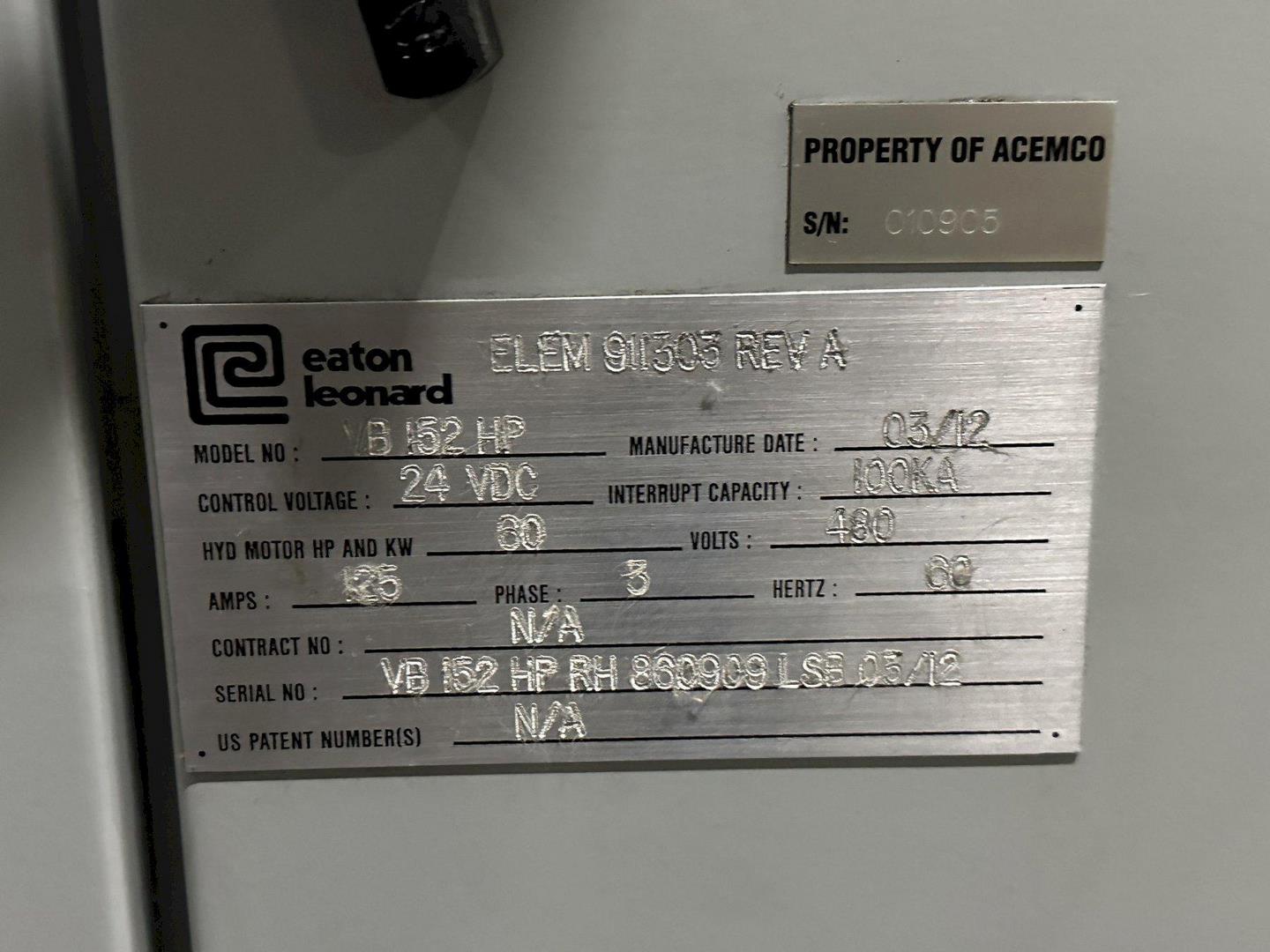

| Motor |
480/60/3, 125 Amps, 60 HP |
| Note |
See Photos for More Specs |
