Year |
2020 |
|---|---|
Make |
HGG |
Model |
PC600 |
Description |
Pipe Profiling Machine |
Reference # |
8078558 |
Price |
Activate Pricing |

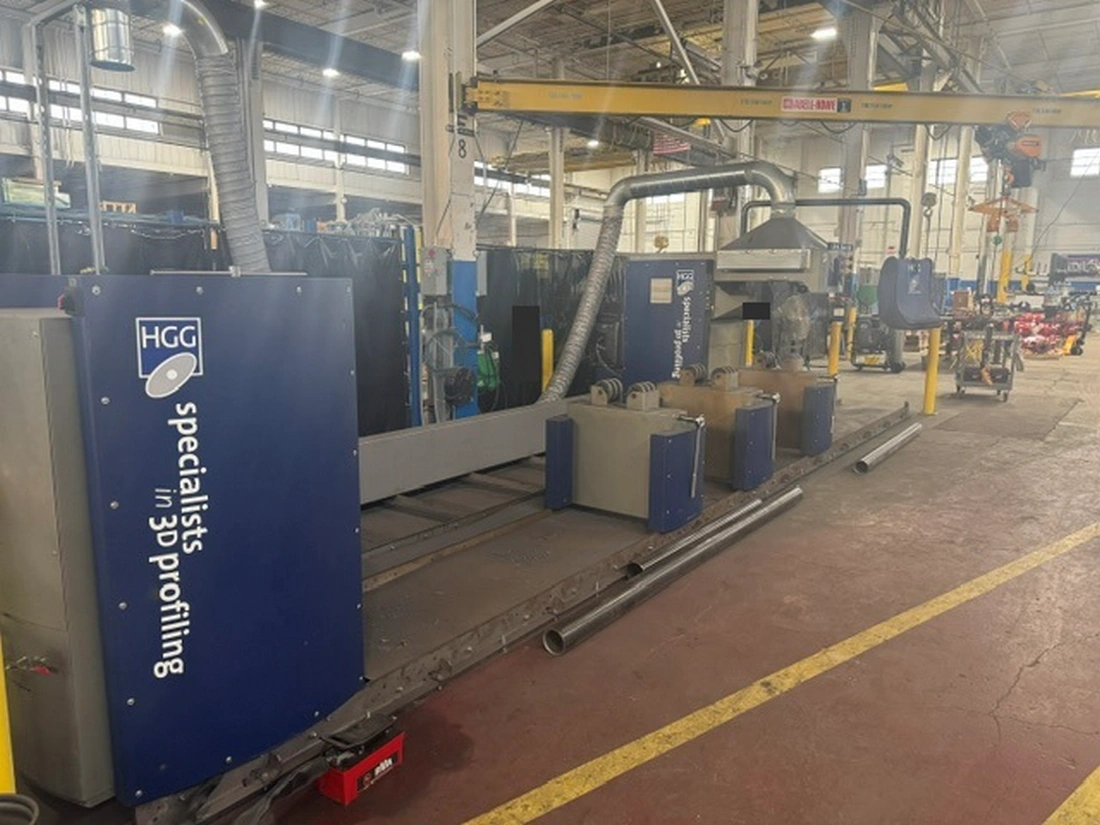

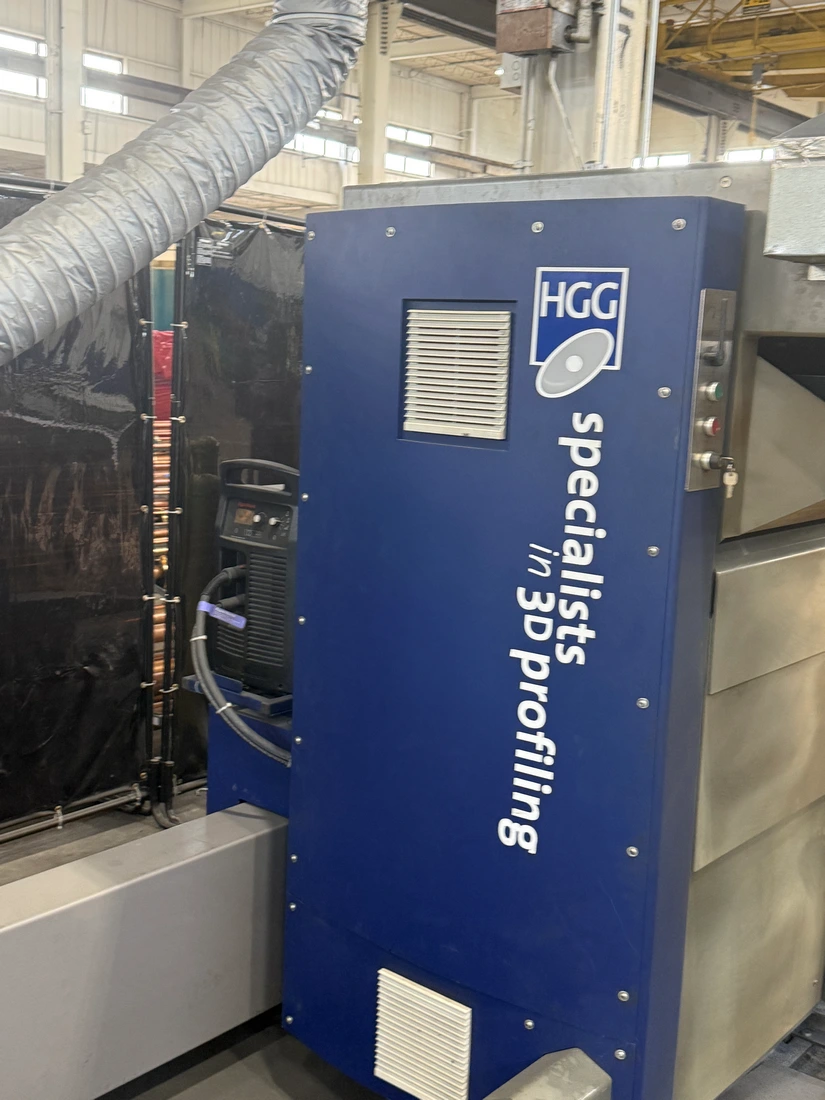

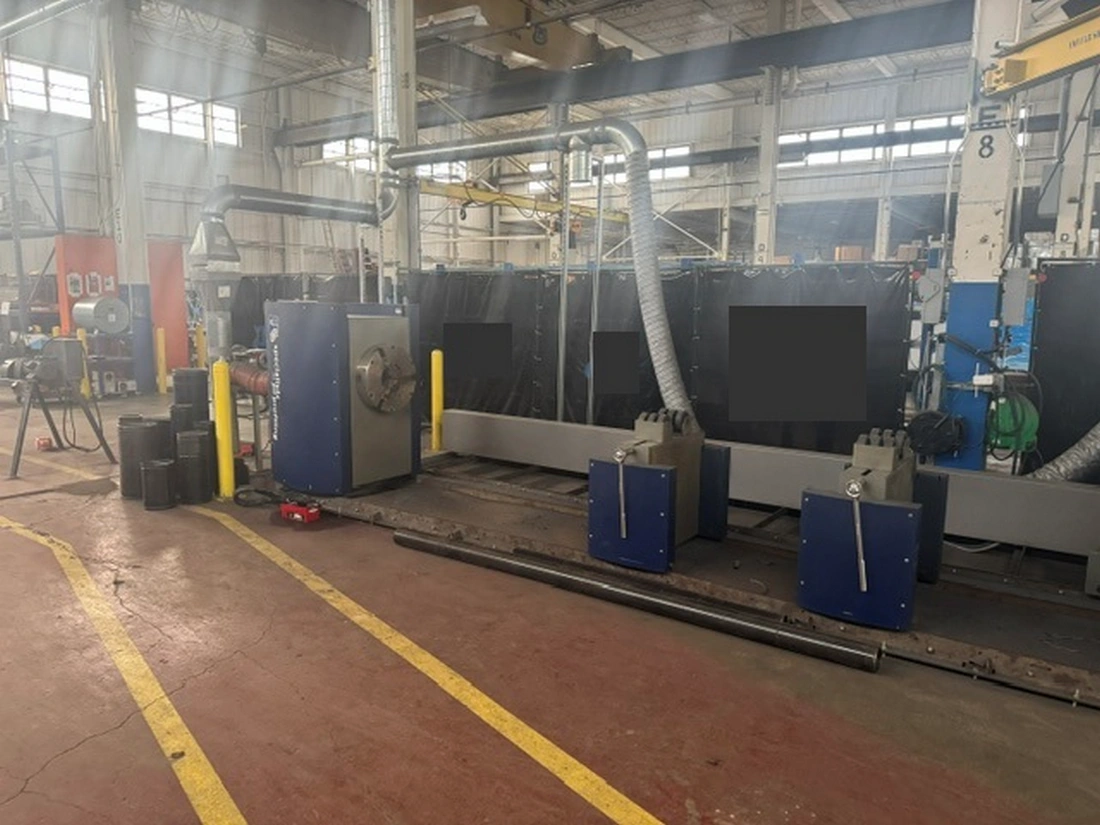

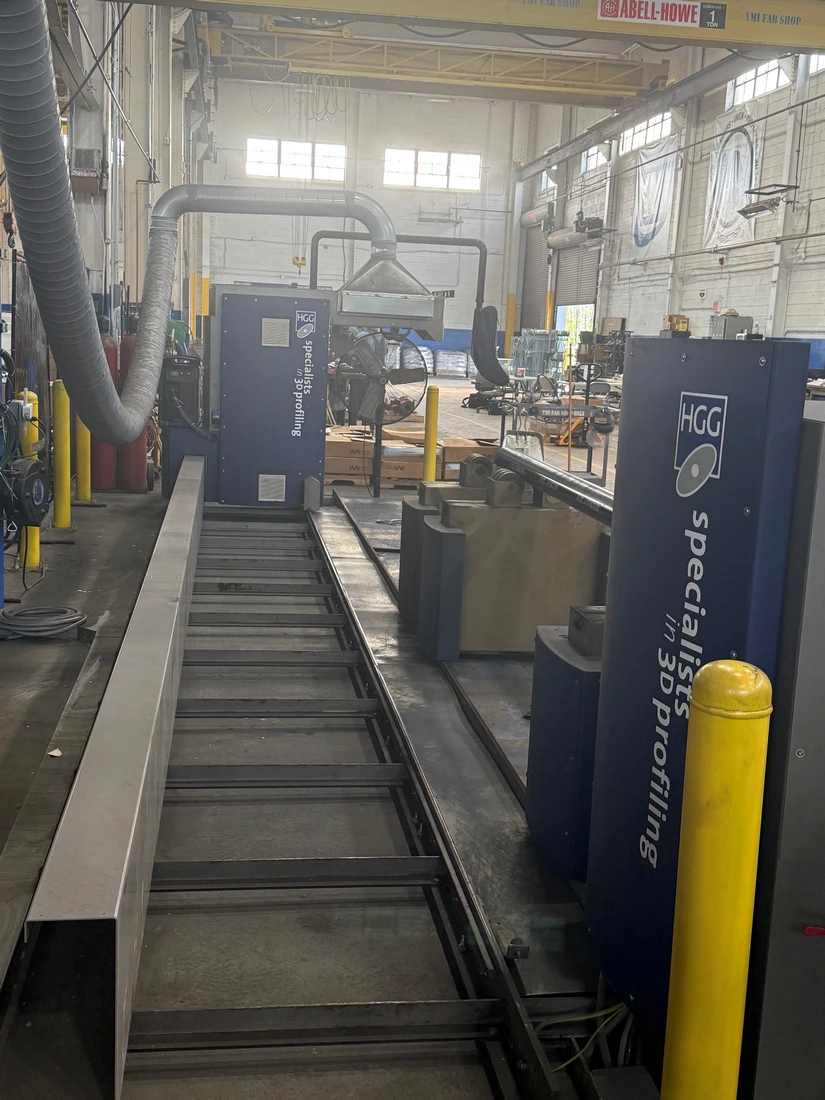

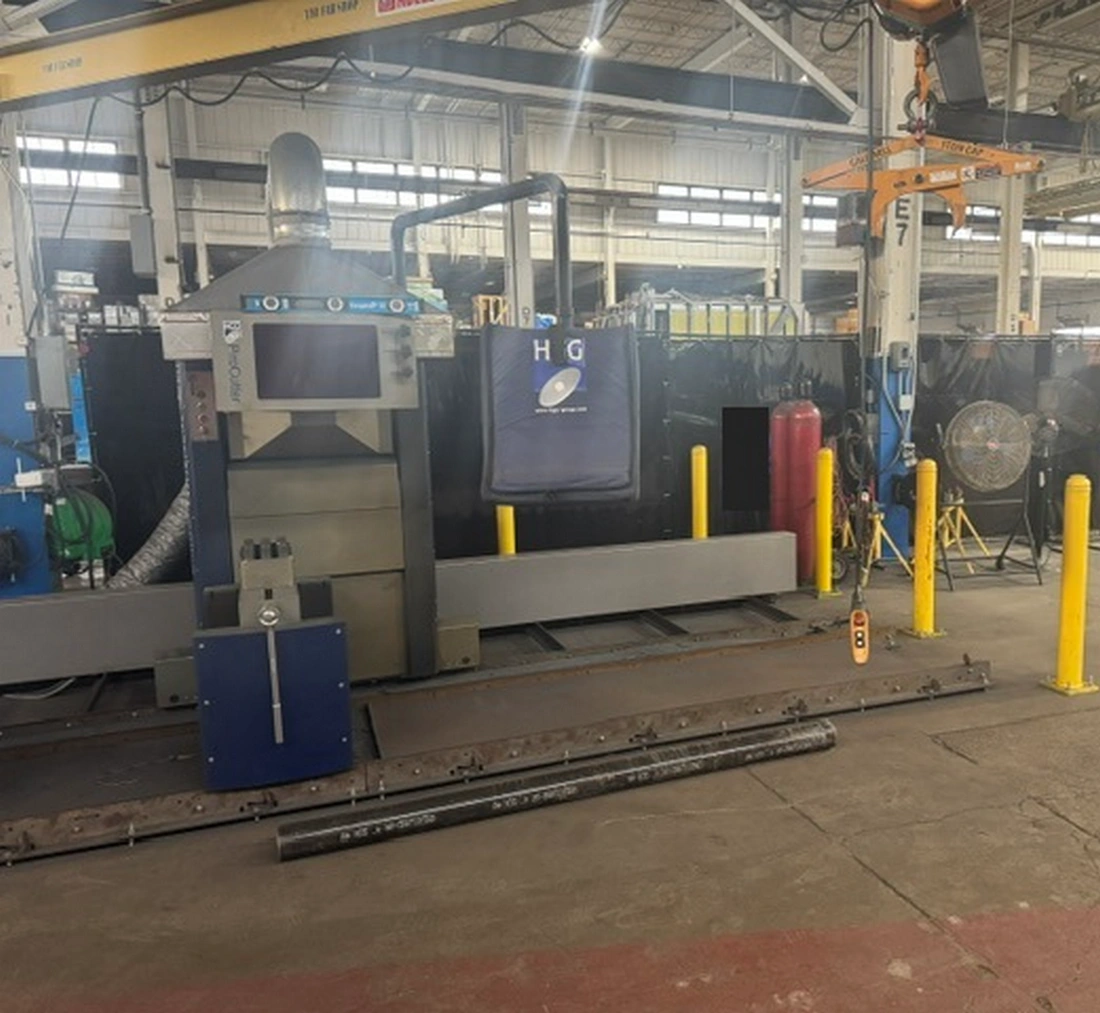

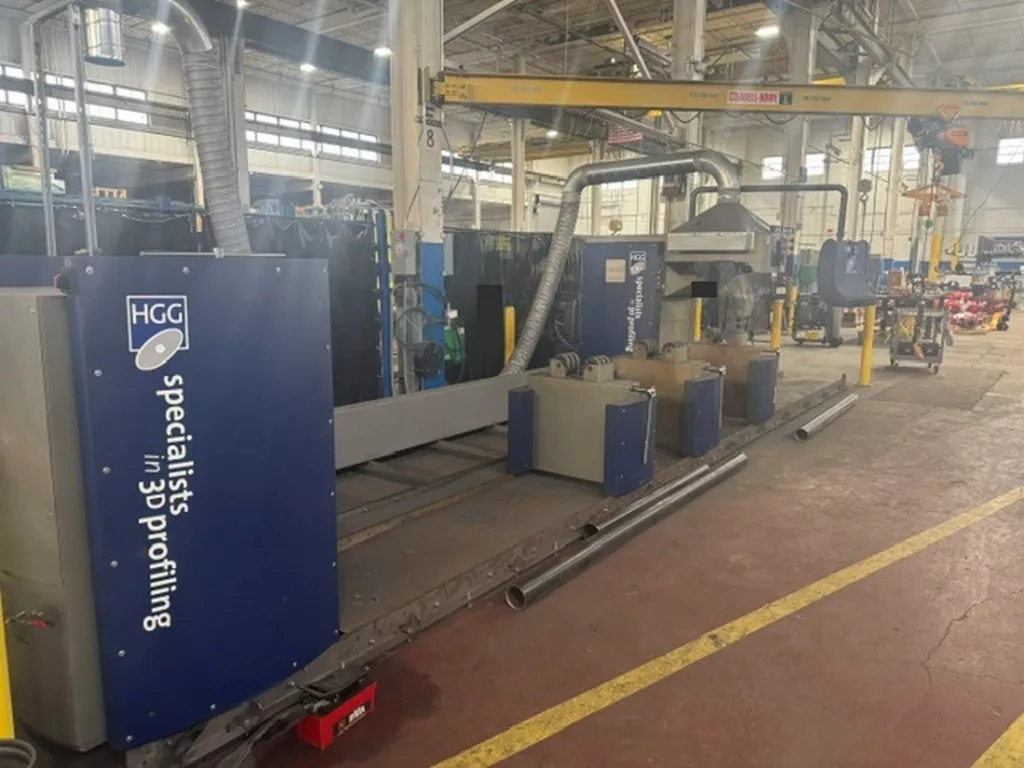

Used HGG PC600 (2020) Tube/ Pipe Benders for Sale. This HGG PC600 handles pipe from 2″ to 24″ O.D., up to 20′ in length and 3 tons in weight. Pitch angle adjusts from -45 to 45 degrees, with roll angle also running -45 to 45 degrees. Power is supplied by a Hypertherm PowerMax 125 ProCutter. The machine is equipped with a cutting trolley, fume extraction system, mechanical 3-jaw chuck, an oxyfuel acetylene low volume ProCutter, and a spindle operated pipe support rated at 1.5 tons. See photos for more specs. The machine can be seen under power for an inspection prior to purchase. If this HGG PC600 suits your work, Request a Quote and we will follow up with details.

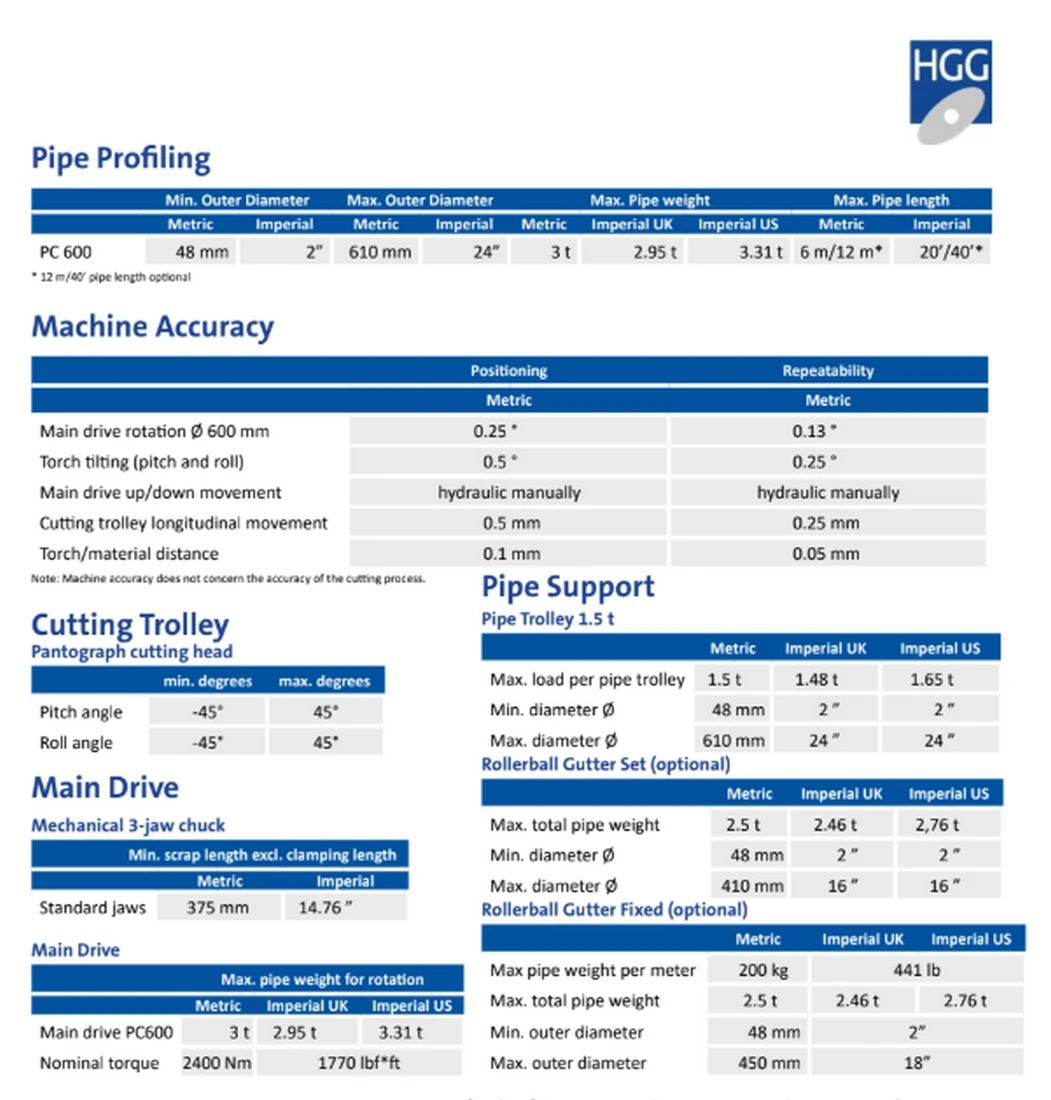

Specifications
| O.D Size |
2" - 24" |
|---|---|
| Pipe Weight |
3 Ton |
| Pipe Length |
20' |
| Pitch Angle |
-45 to 45 Degree |
| Roll Angle |
-45 to 45 Degree |
| Power Source |

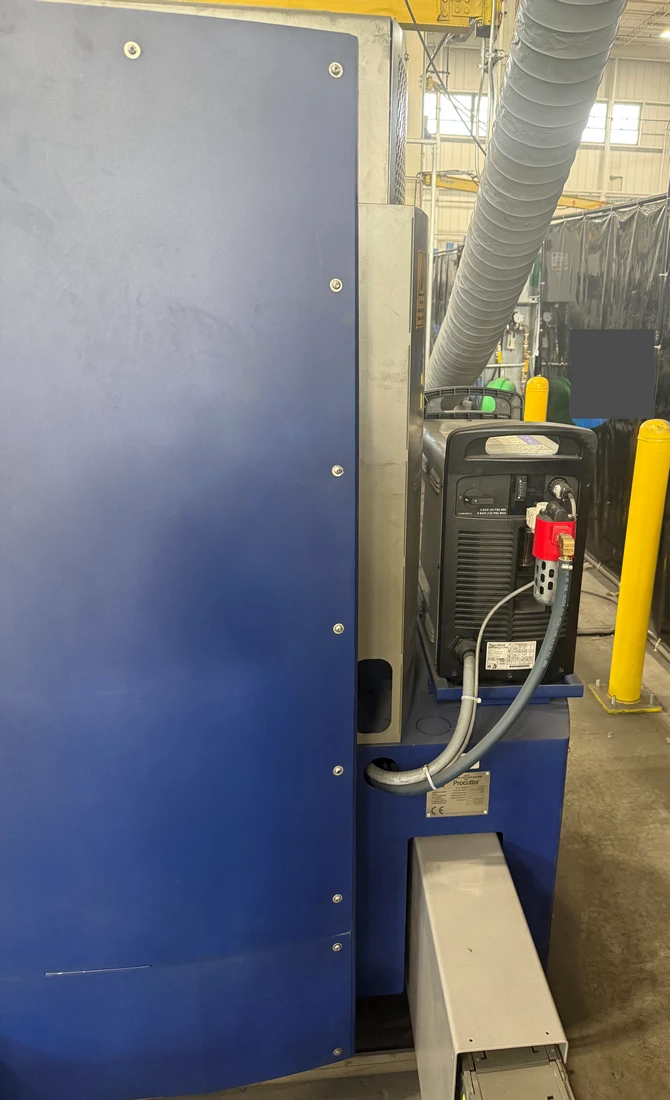

Hypertherm PowerMax 125 ProCutter |
Features
|
Cutting Trolley |
Fume Extraction System |
|
Mechanical 3-Jaw Chuck |
Oxyfuel Acetylene Low Volume ProCutter |
|
Spindle Operated Pipe Support (1.5 ton) |

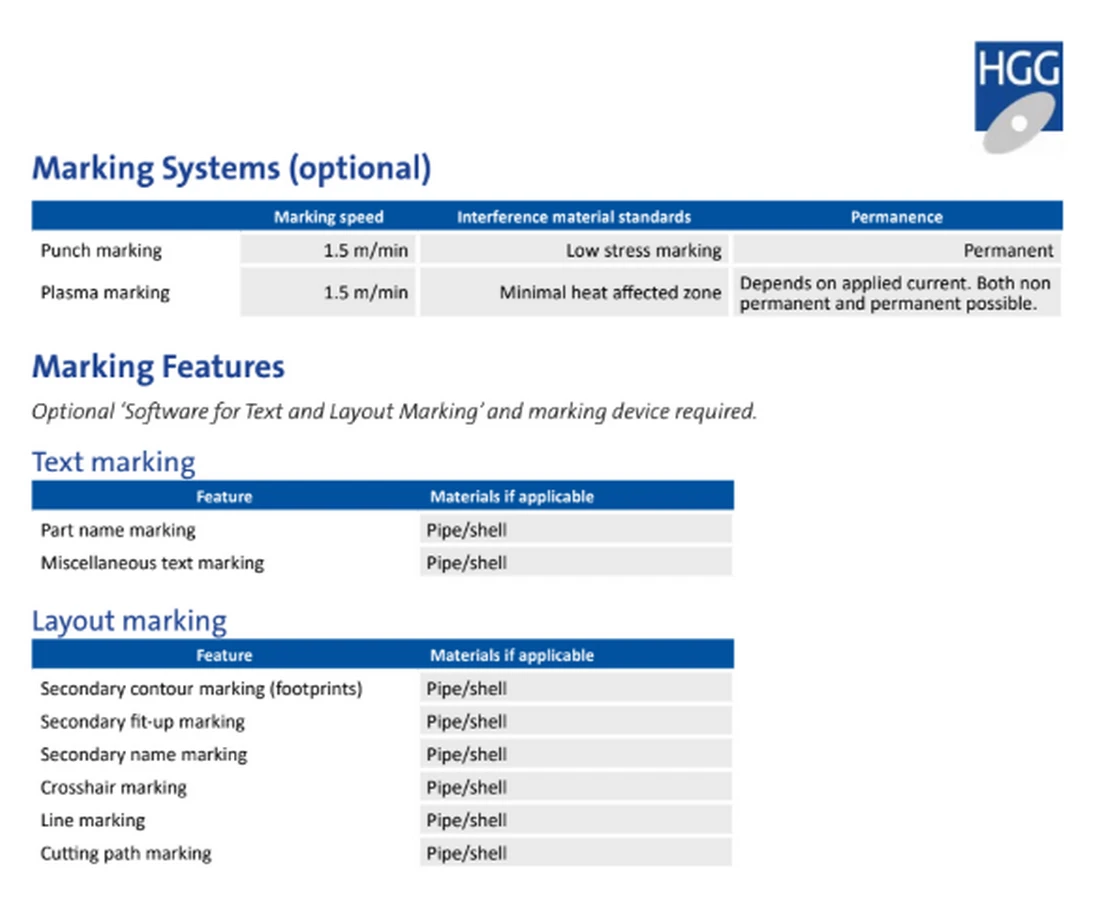

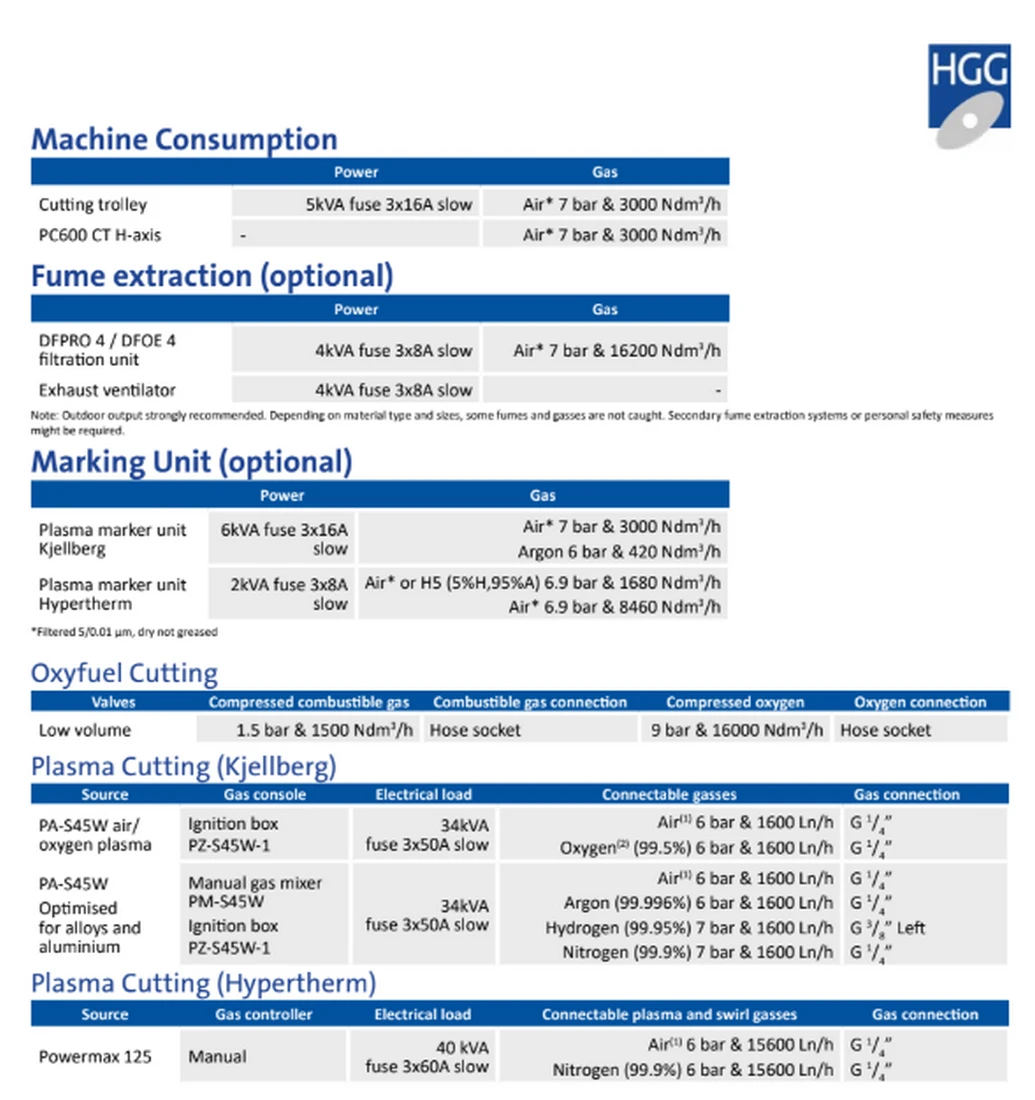

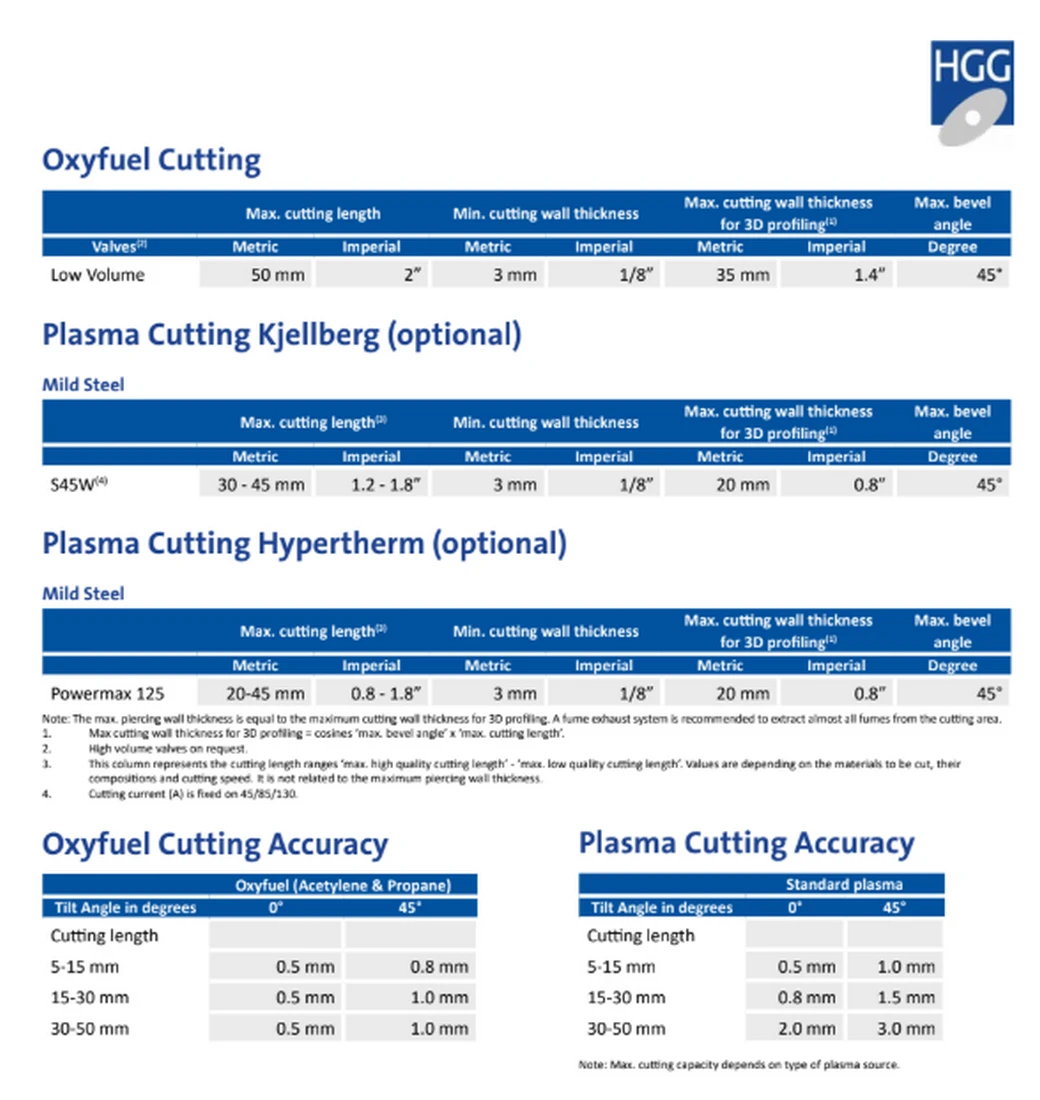

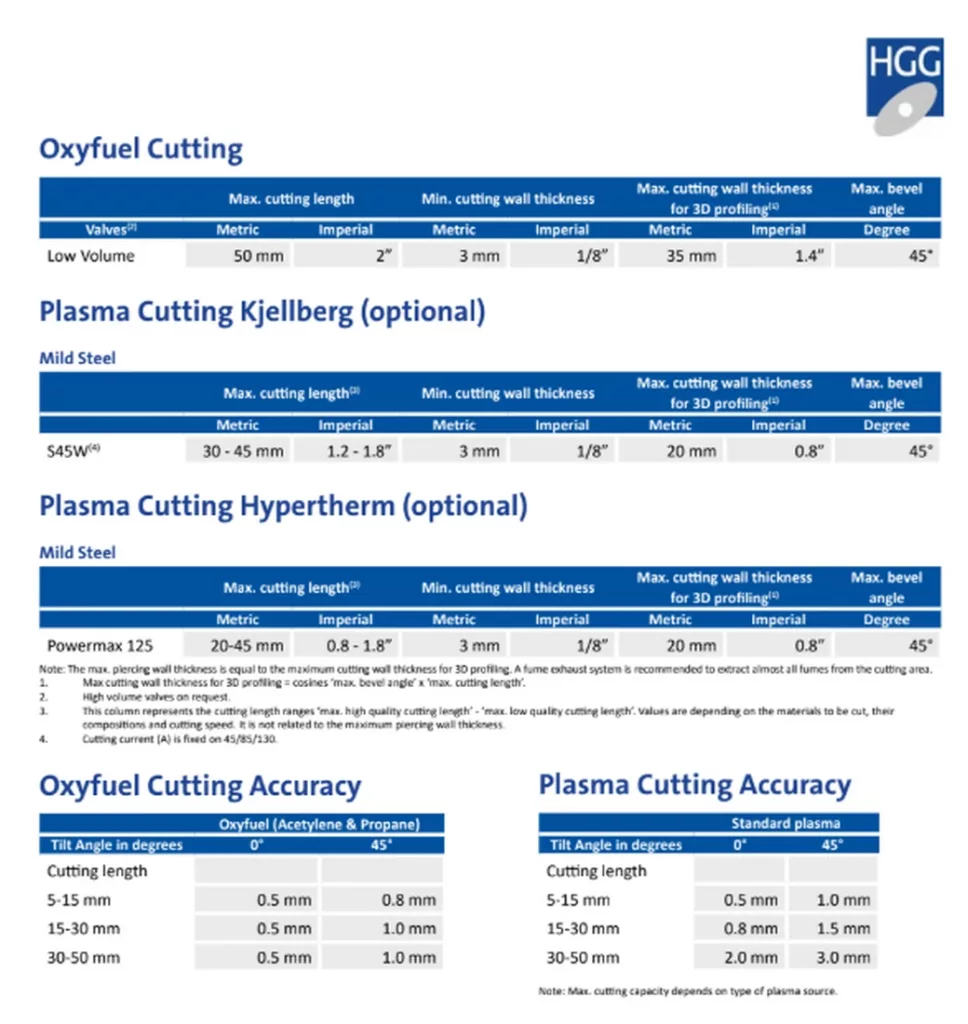

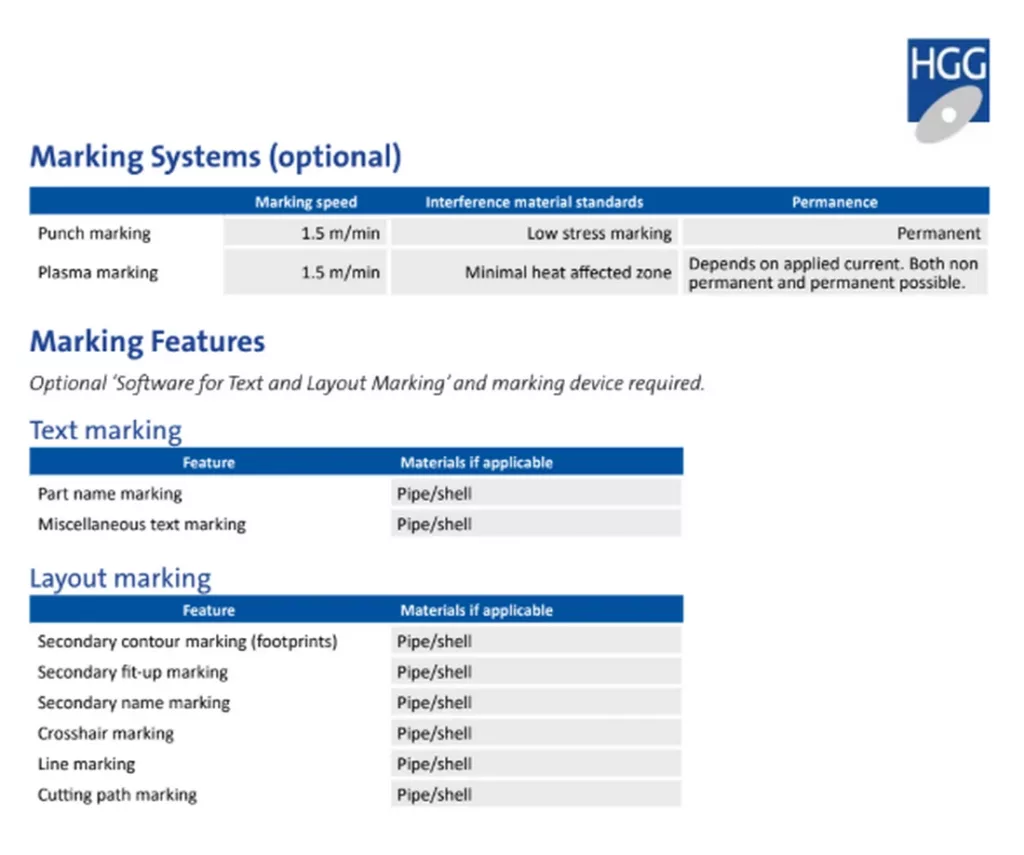

See Photos for More Specs |
