Year |
2016 |
|---|---|
Make |
Nissei |
Model |
FNX180IIIA-36A |
Description |
198 Ton 14.9 oz Shot Size Injection Molding Machine |
Reference # |
8078778 |
Price |
Activate Pricing |

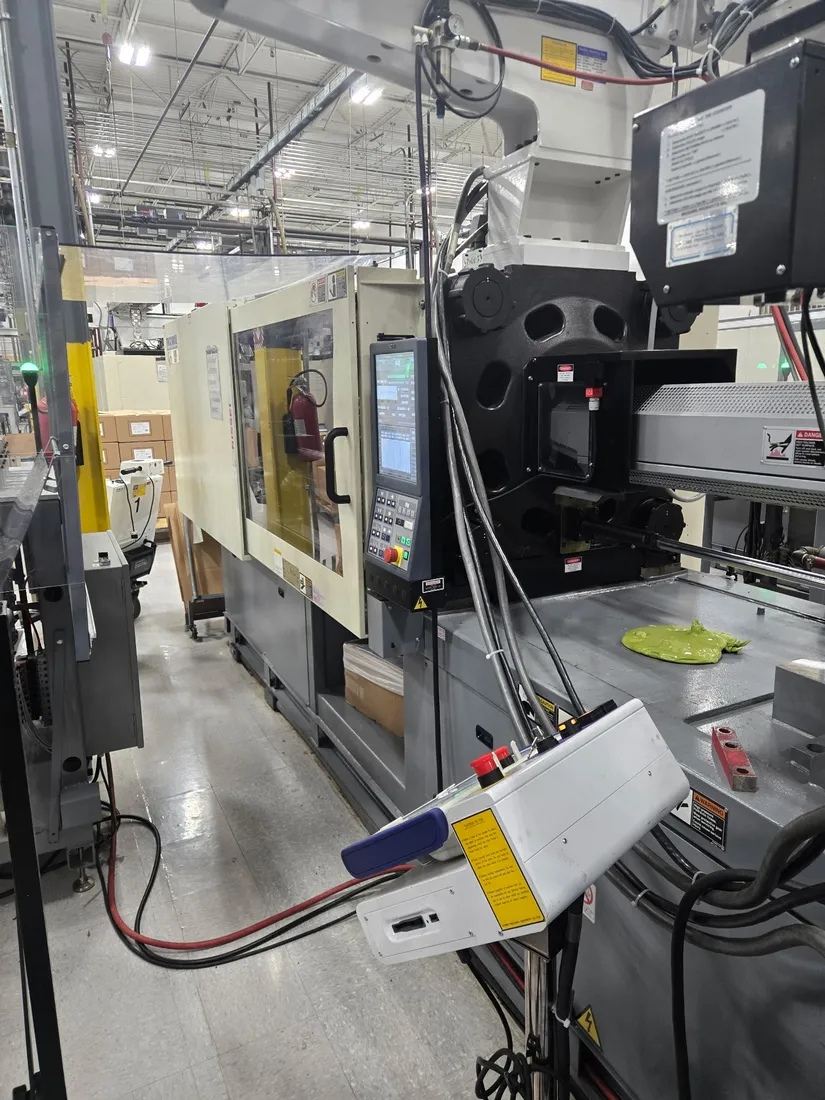

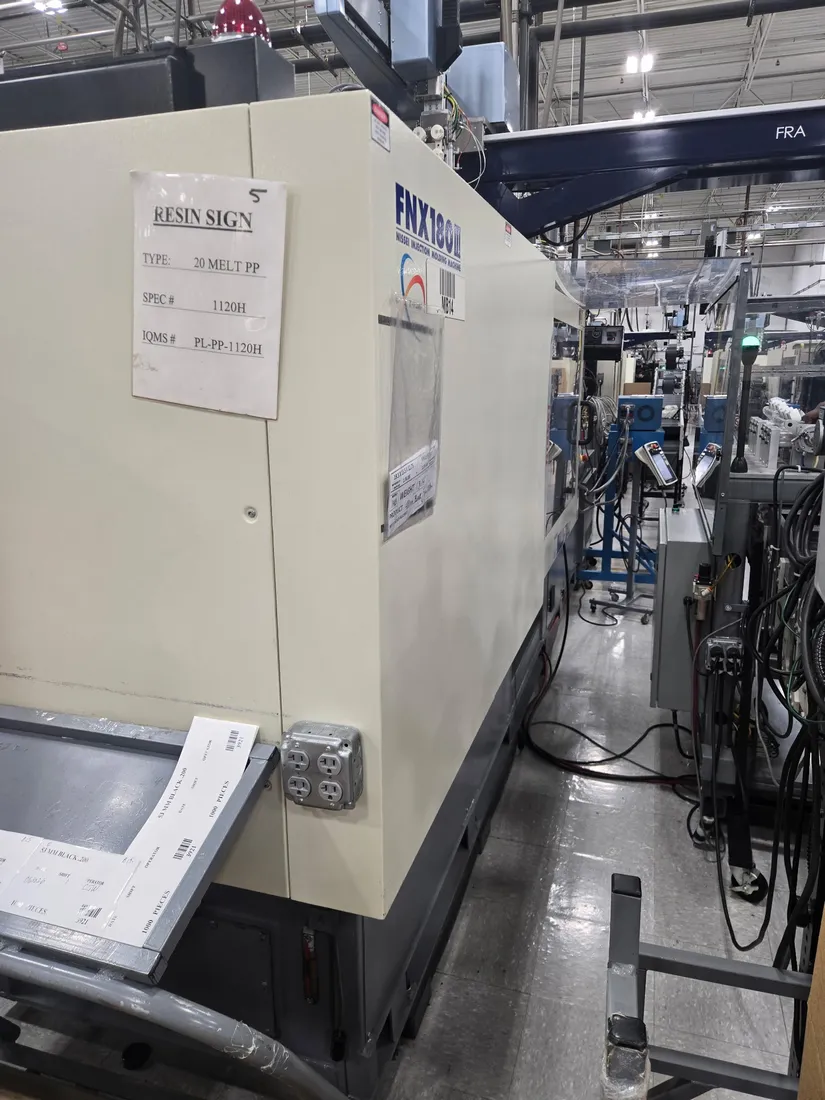

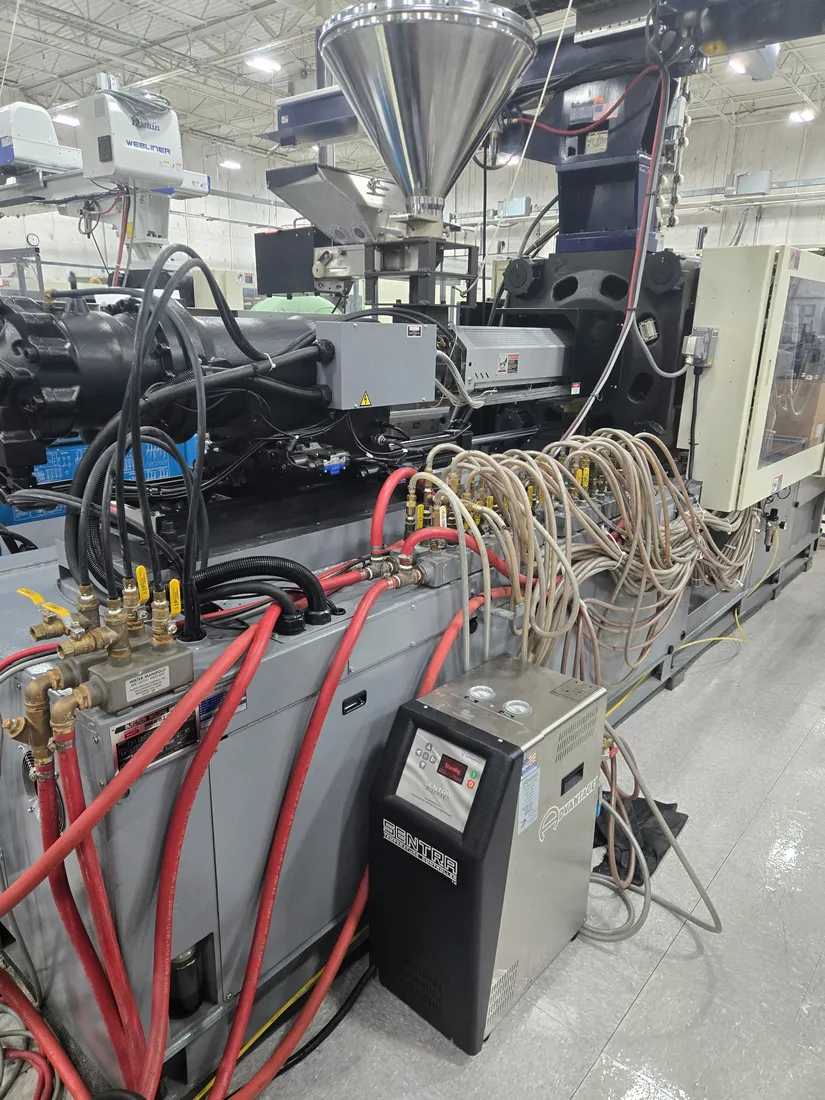

Used Nissei FNX180IIIA-36A (2016) Injection Molding Machine for Sale. This all-electric press is rated at 198 tons of clamp force with a 14.9 oz shot size, 22″ x 22″ tie bar spacing, and 31.5″ x 31.5″ platens. Maximum daylight is 37.4″, with a 27.6″ clamp stroke and 4.3″ ejector stroke, running under a Tact IV control. Equipped with Super Clean, dual air blow, SPI robot interface, and a hardened screw and barrel. Two machines are available and the price shown is per machine. The machine is under power and can be seen running for an inspection. See more injection molding machines or browse our Nissei inventory. Activate Pricing to view the figure, then Request a Quote and we will follow up with details. This machine is located in Michigan.
Specifications
| Capacity |
198 Ton |
|---|---|
| Shot Size |
14.9 oz |
| Tie Bar Spacing |
22" x 22" |
| Platen Size |
31.5" x 31.5" |
| Max Daylight |
37.4" |
| Clamp Stroke |
27.6" |
| Ejector Stroke |
4.3" |
| Control |
Tact IV |
| Note |
(2) Machines Available, Price Per Machine |
Features
|
Super Clean |
Dual Air Blow |
|
SPI Robot Interface |
Under Power |
|
Hardened Screw and Barrel |
