Year |
2002 |
|---|---|
Make |
Toshiba |
Model |
EC180V21-8 |
Description |
180 Ton 11.5 oz Shot Size Injection Molding Machine |
Reference # |
8079283 |
Price |
Activate Pricing |

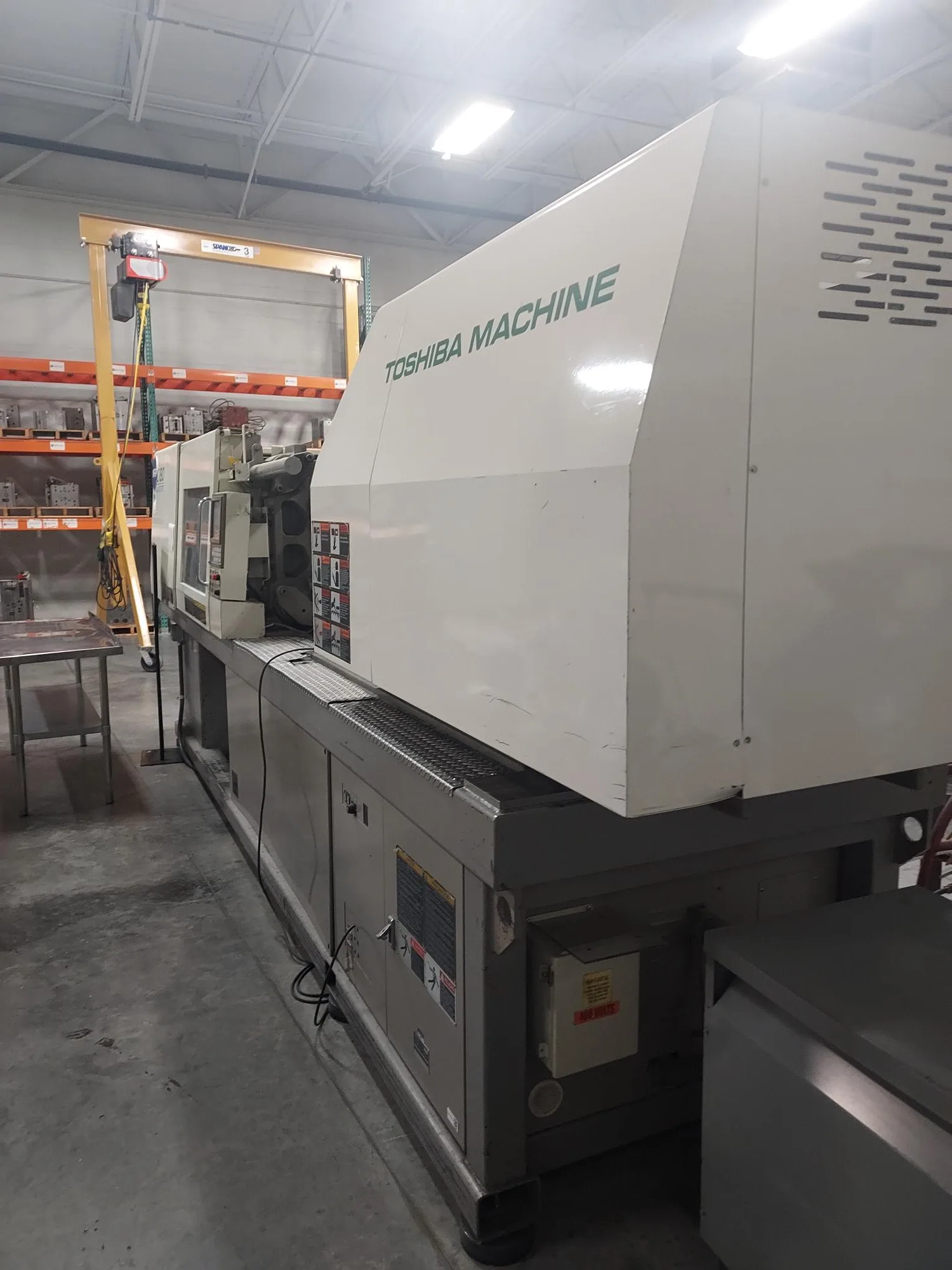

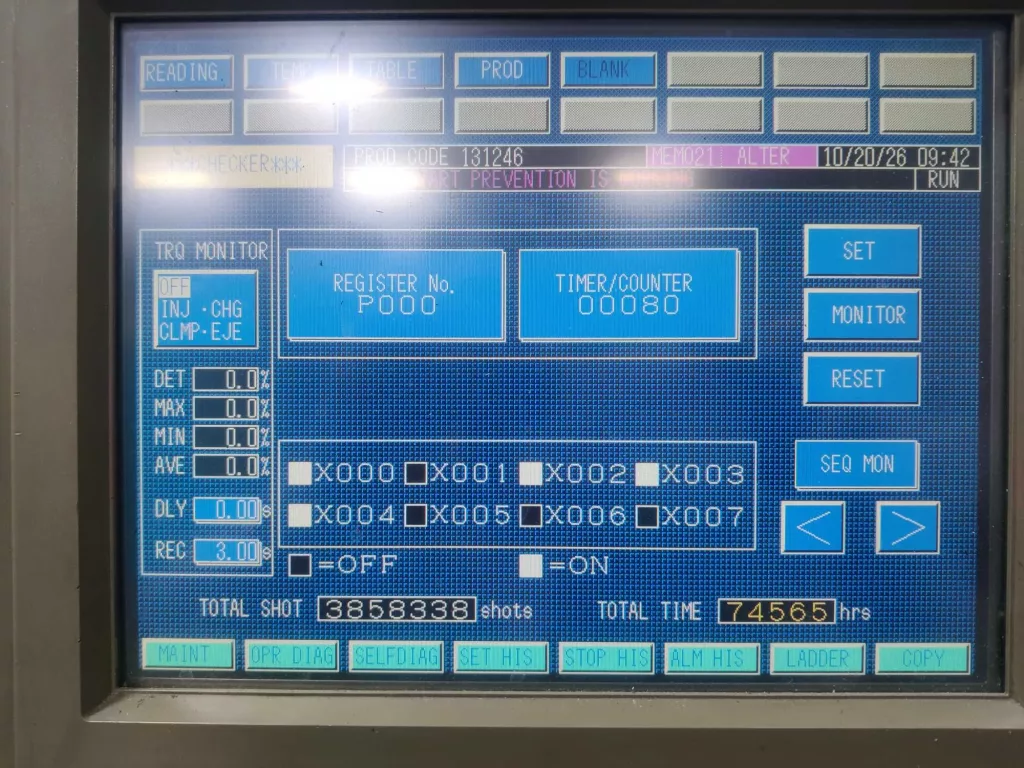

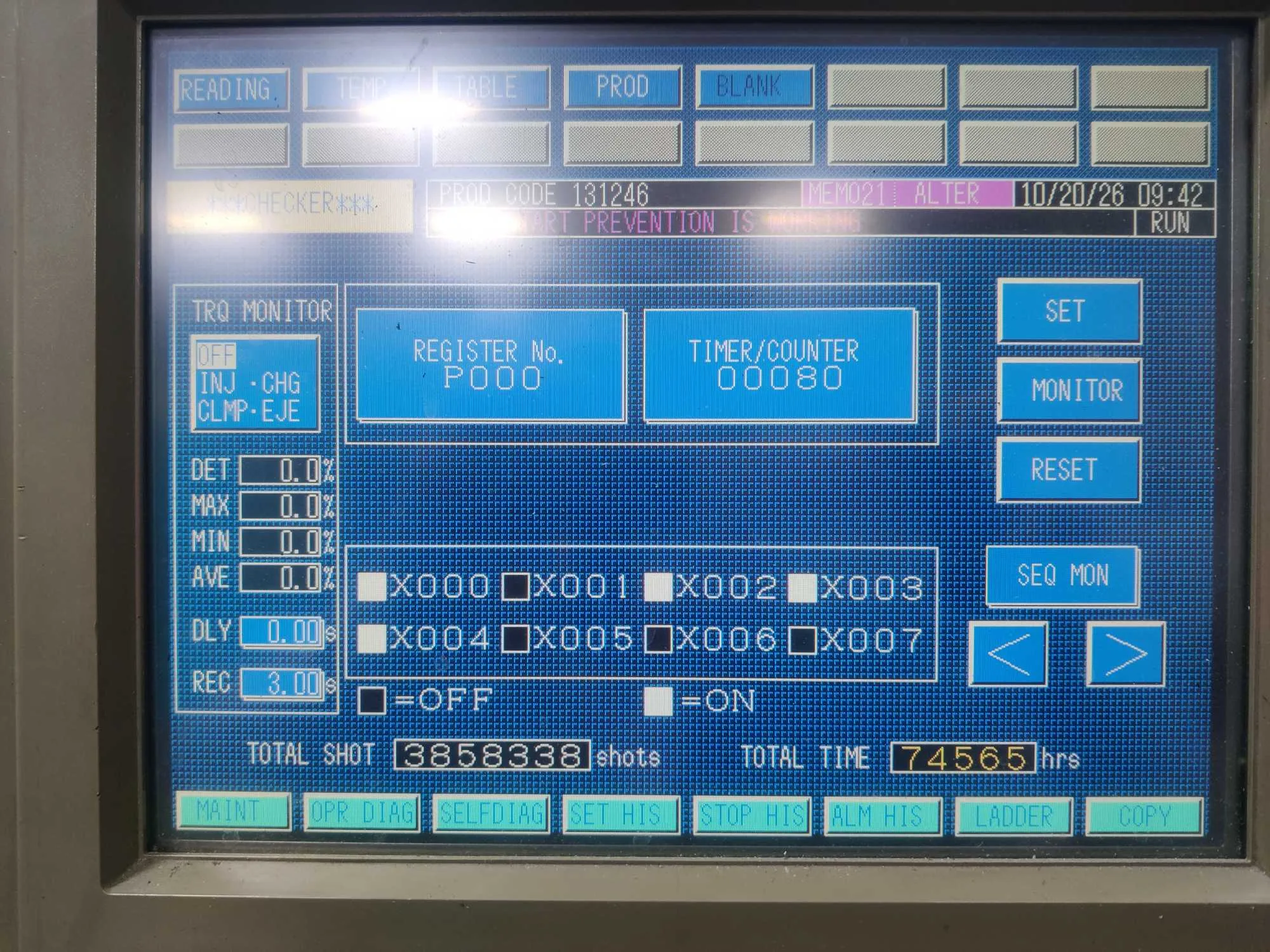

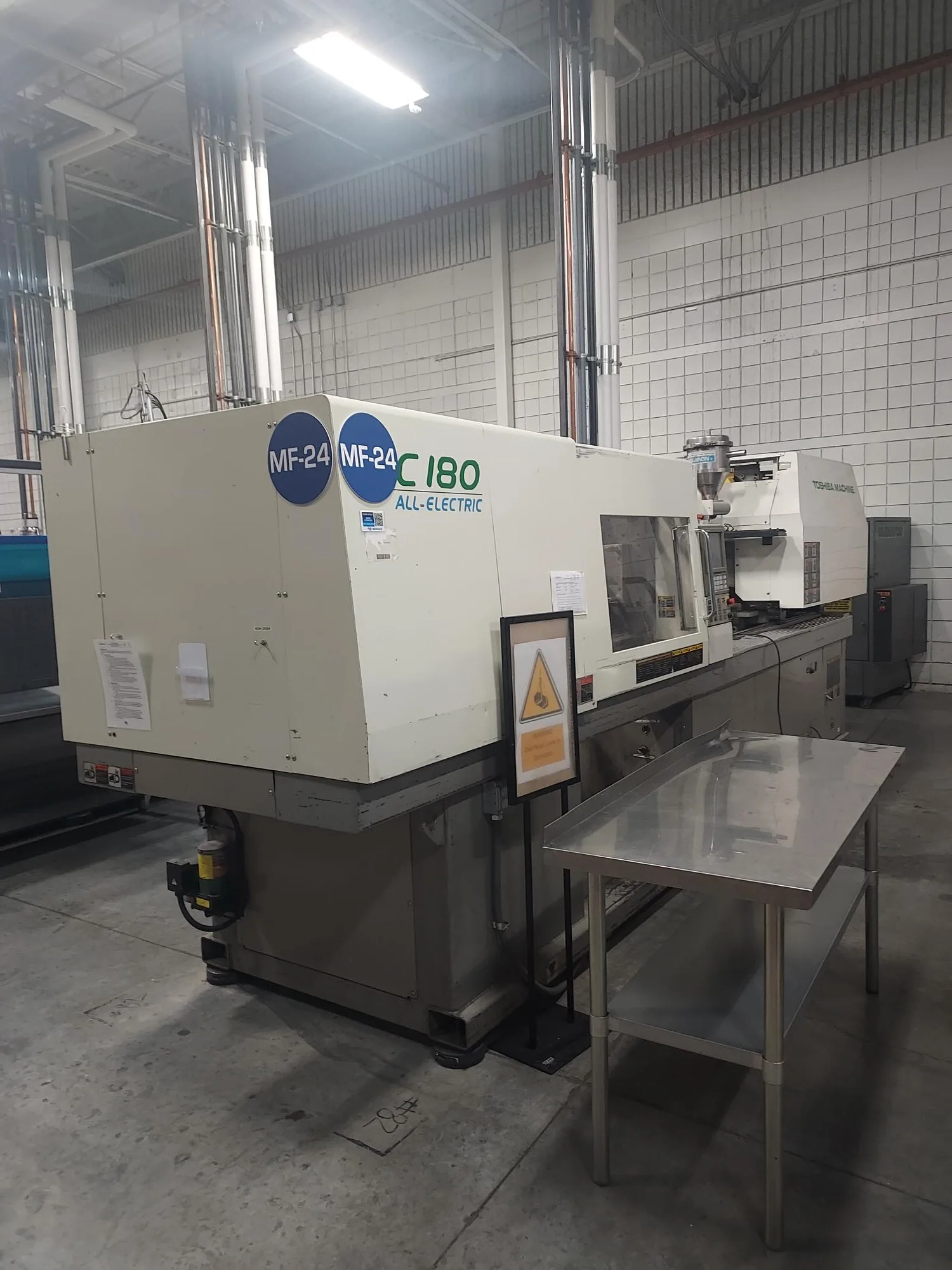

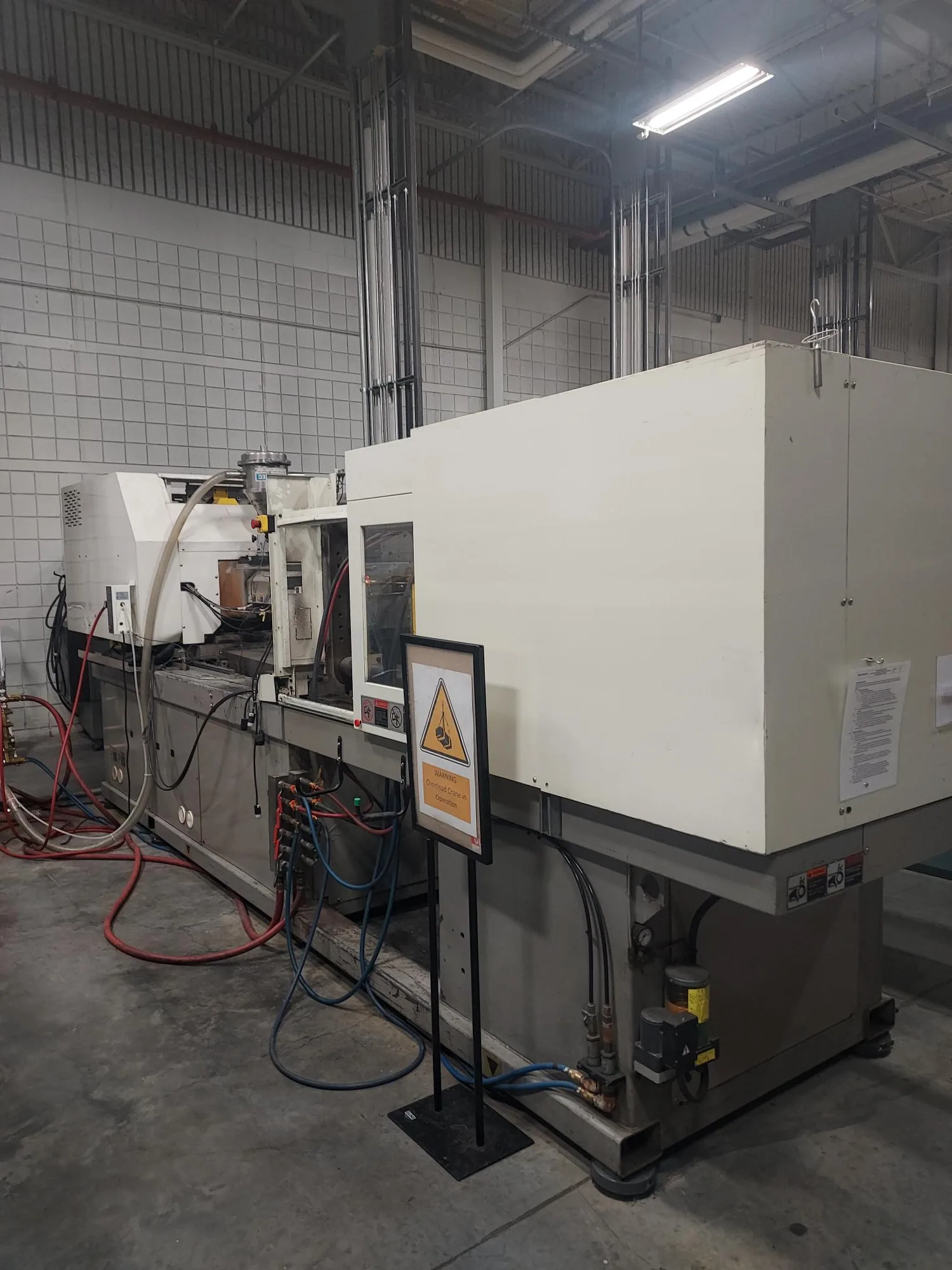

Used Toshiba EC180V21-8 (2002) Injection Molding Machine for Sale. This all-electric press is rated at 180 ton clamping capacity with an 11.5 oz shot size. Tie bar spacing measures 20.1″ x 20.1″ and platens are 29.1″ x 29.1″, with 37.4″ maximum daylight, a minimum mold height of 7.9″ and a maximum of 19.7″, and 17.7″ of clamp stroke. The machine runs an Injectvisor V21 control and is equipped with air blow. Weight is 16,000 lbs with overall dimensions of 17′ x 5′ x 6’3″. The press is under power and can be inspected running. See our other used plastic injection molding machines and additional used Toshiba machines. Activate Pricing or use the Inquire Now button for details.
Specifications
| Capacity |
180 Ton |
|---|---|
| Shot Size |
11.5 oz |
| Tie Bar Spacing |
20.1" x 20.1" |
| Platen Size |
29.1" x 29.1" |
| Max Daylight |
37.4" |
| Min /Max Mold Height |
7.9"/19.7" |
| Clamp Stroke |
17.7" |
| Control |
Injectvisor V21 |
| Machine Weight |
16,000 Lbs |
| Machine Dimensions |
17' x 5' x 6'3" |
Features
|
Air Blow |
Under Power |
