Year |
2001 |
|---|---|
Make |
Cincinnati Milacron |
Model |
MM880-178 |
Description |
880 Ton 178 oz Shot Size Injection Molding Machine |
Reference # |
8077397 |
Price |
Activate Pricing |

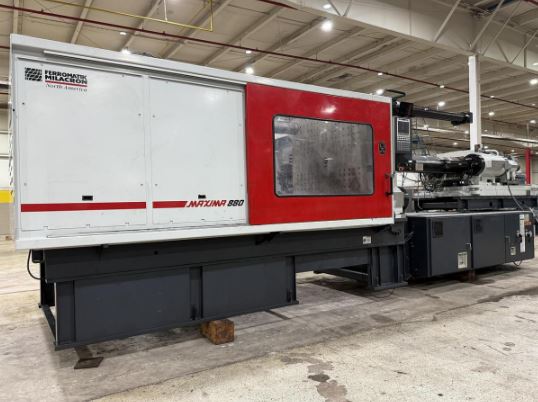

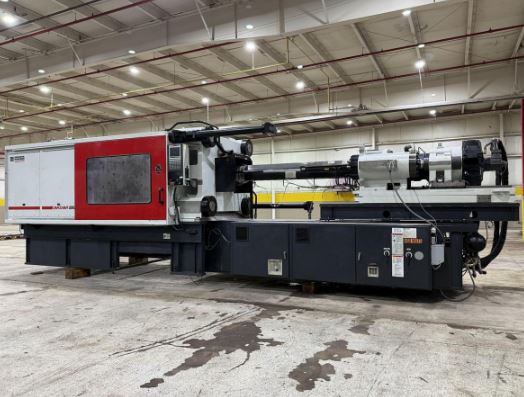

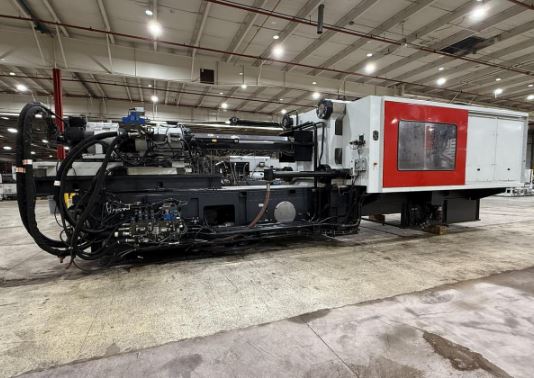

Used Cincinnati Milacron MM880-178 (2001) Injection Molding Machine for Sale. This 880 ton press offers a 178 oz shot size, tie bar spacing of 55.1″ x 42.5″, and platen size of 70.9″ x 58.3″. Maximum daylight is 88.6″, with minimum and maximum mold heights of 11.8″ and 45.3″. Clamp stroke is 76.8″ and ejector stroke is 9.8″. Running the XTREEM Control from the Maxima Series, the machine is equipped with core pull and hydraulic knockout, and has been completely rebuilt. It can be seen under power for an inspection. Browse more plastic injection molding machines or other Cincinnati Milacron equipment in our inventory. Use Activate Pricing to see the figure on this press, or Request a Quote and we will follow up with details.
Specifications
| Capacity |
880 Ton |
|---|---|
| Shot Size |
178 oz |
| Tie Bar Spacing |
55.1" x 42.5" |
| Platen Size |
70.9" x 58.3" |
| Max Daylight |
88.6" |
| Min /Max Mold Height |
11.8"/45.3" |
| Clamp Stroke |
76.8" |
| Ejector Stroke |
9.8" |

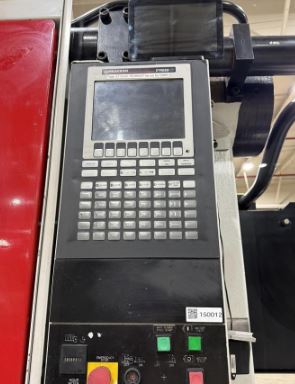

| Control |
XTREEM Control - Maxima Series |
| Notes |
Completely Rebuilt |
Features
|
Core Pull |
Hydraulic Knockout |
