Year |
2015 |
|---|---|
Make |
Mitsubishi |
Model |

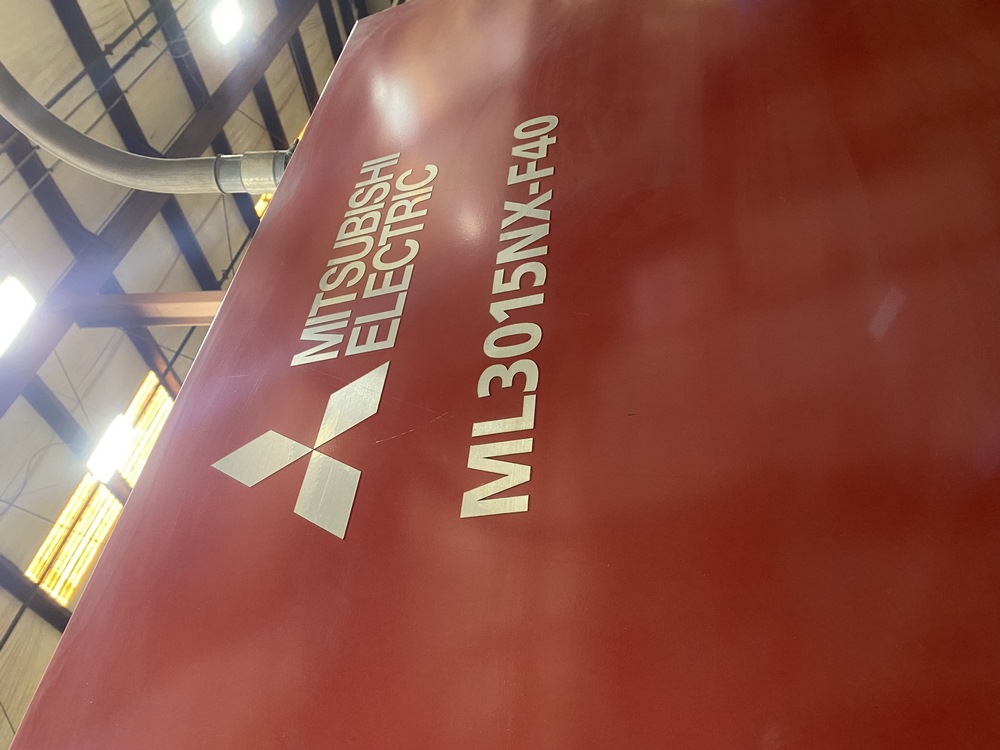

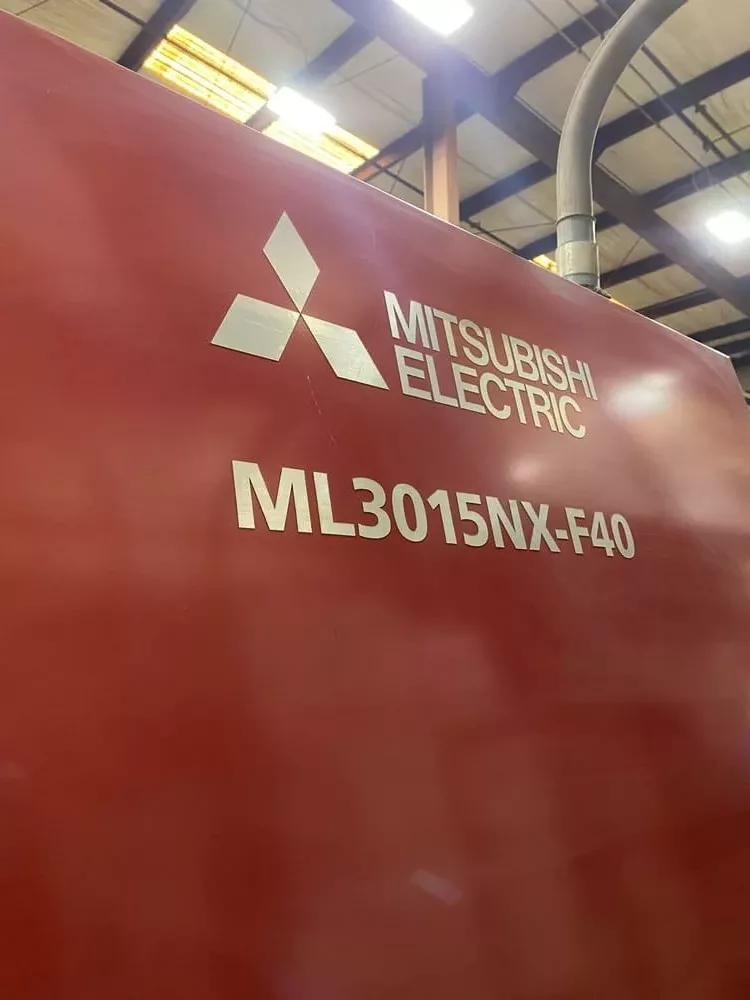

ML3015NX-F40 |
Description |
5' x 10' 4kW CNC Fiber Laser |
Reference # |
8075219 |
Price |
Activate Pricing |

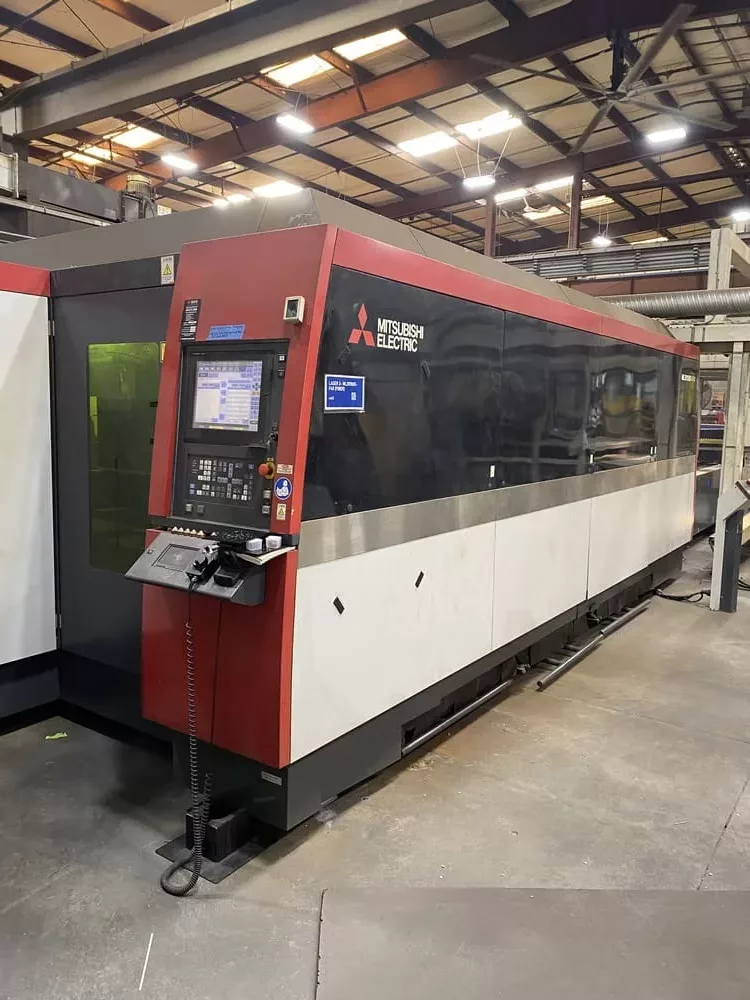

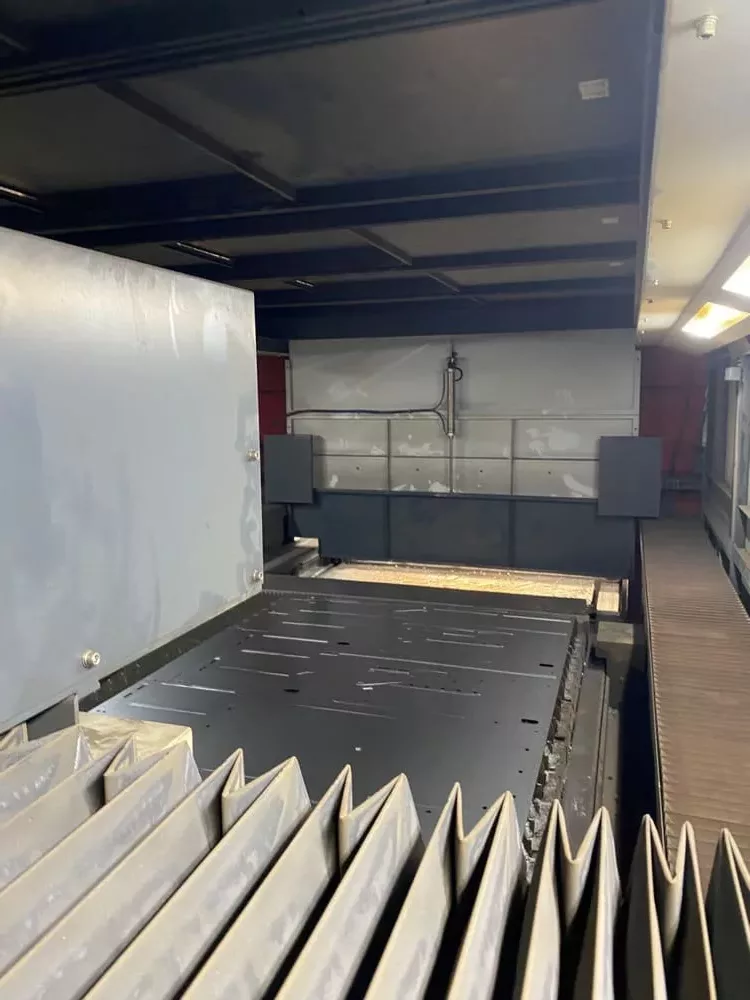

Used Mitsubishi ML3015NX-F40 (2015) Laser for Sale. This flying optic fiber laser carries a 4,000 watt maximum wattage with a 5′ x 10′ table and maximum workpiece size of 60″ x 120.1″. Travels measure 125.98″ in X, 62.99″ in Y and 4.7″ in Z, with a table pass height of 34.6″. Rapid travel is 4,724 ipm single axis and 6,680 ipm simultaneous, with a maximum processing feedrate of 2,360 ipm and positioning precision of 0.0019/20. Maximum cutting thickness is 1″ mild steel, .50″ stainless and .50″ aluminum. Equipped with manual door access, rack and pinion X/Y drive, precision ball screw Z axis and intelligent AC servo drive motors under Mitsubishi control. Available to see under power for inspection. Browse more used laser cutting machines and Mitsubishi equipment, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4,000 |
| X-Axis Travel |
125.98" |
| Y-Axis Travel |
62.99" |
| Z-Axis Travel |
4.7" |
| Control |
Mitsubishi |
| Laser Type |
Fiber |
| Machine Type |
Flying Optic |
| Max. Workpiece Size |
60" X 120.1" |
| Table Pass Height |
34.6" |
| Rapid Travel Speed X/Y Single Axis |
4,724 Ipm |
| Rapid Travel Speed X/Y Simultaneous |
6,680 Ipm |
| Max. Processing Feedrate |
2,360 Ipm |
| Positioning Precision |
0.0019/20 |
| Max. Cutting Thickness Mild Steel |
1" |
| Max. Cutting Thickness Stainless Steel |
.50" |
| Max. Cutting Thickness Aluminum |
.50" |
Features
|
Manual Door Access |

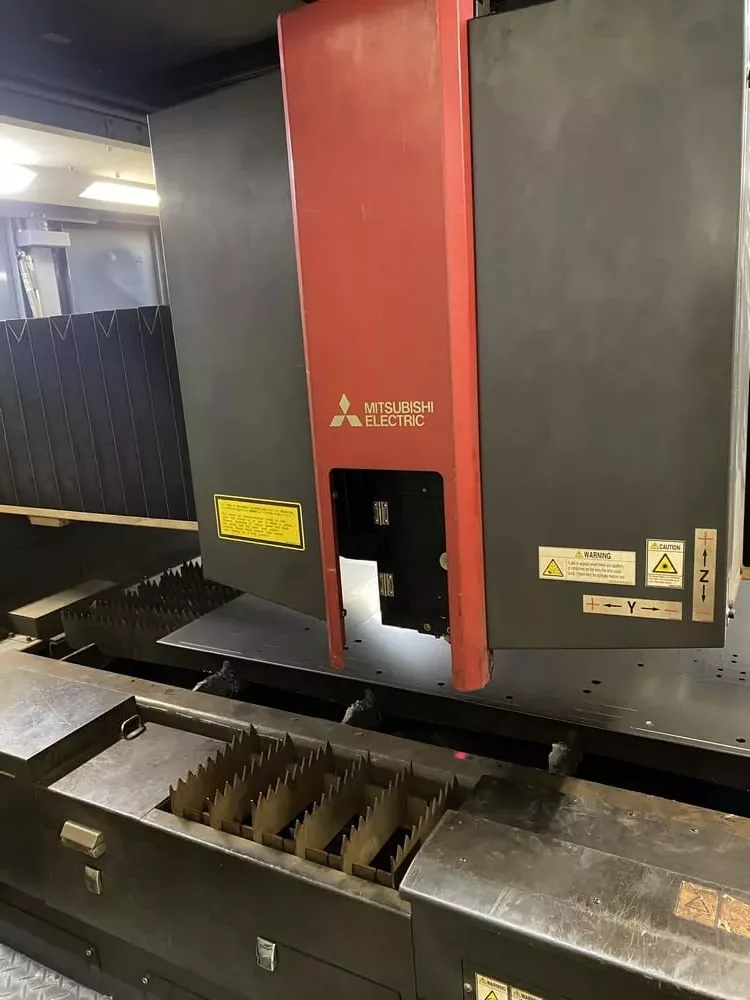

Drive Type X/Y Axis Rack and Pinion Drive |
|
Drive System Z Axis Precision Ball Screw |
Intelligent Ac Servo Drive Motor Type |
