Year |
1999 |
|---|---|
Make |
Amada |
Model |
Lasmac LC-2415 |
Description |
5' x 10' 2kW CNC Laser |
Reference # |
8076884 |
Price |
Activate Pricing |

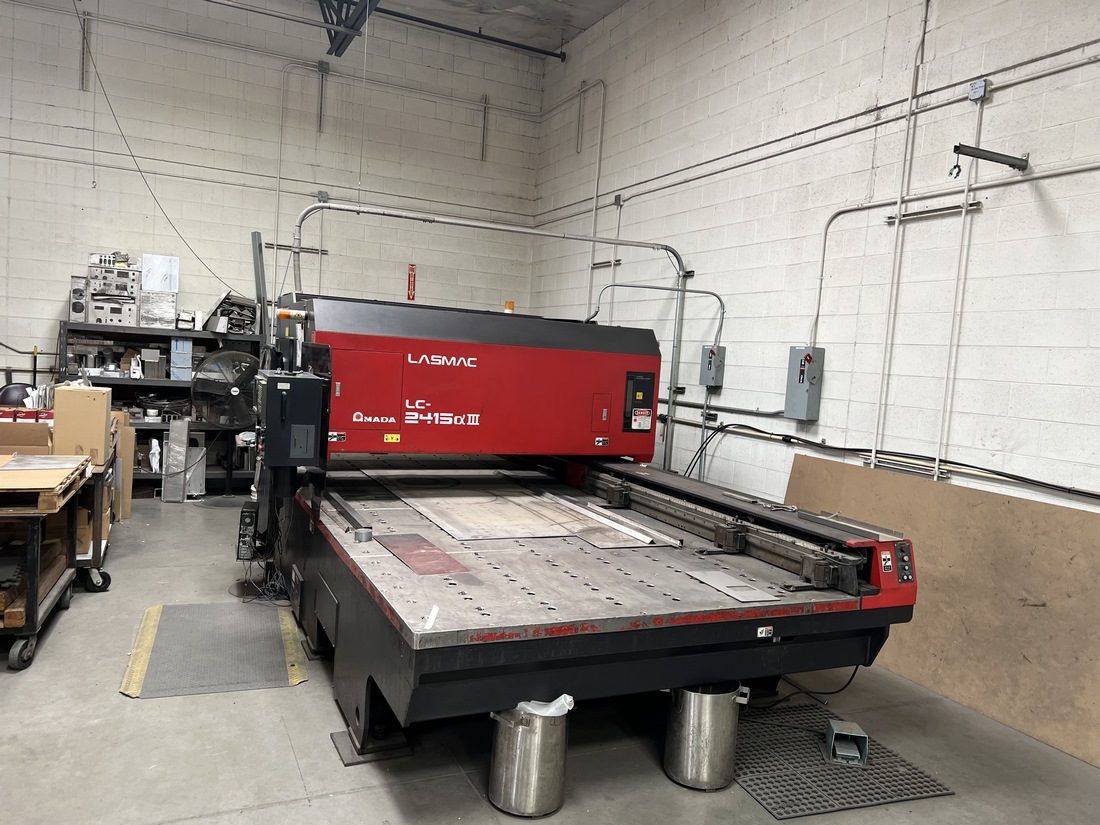

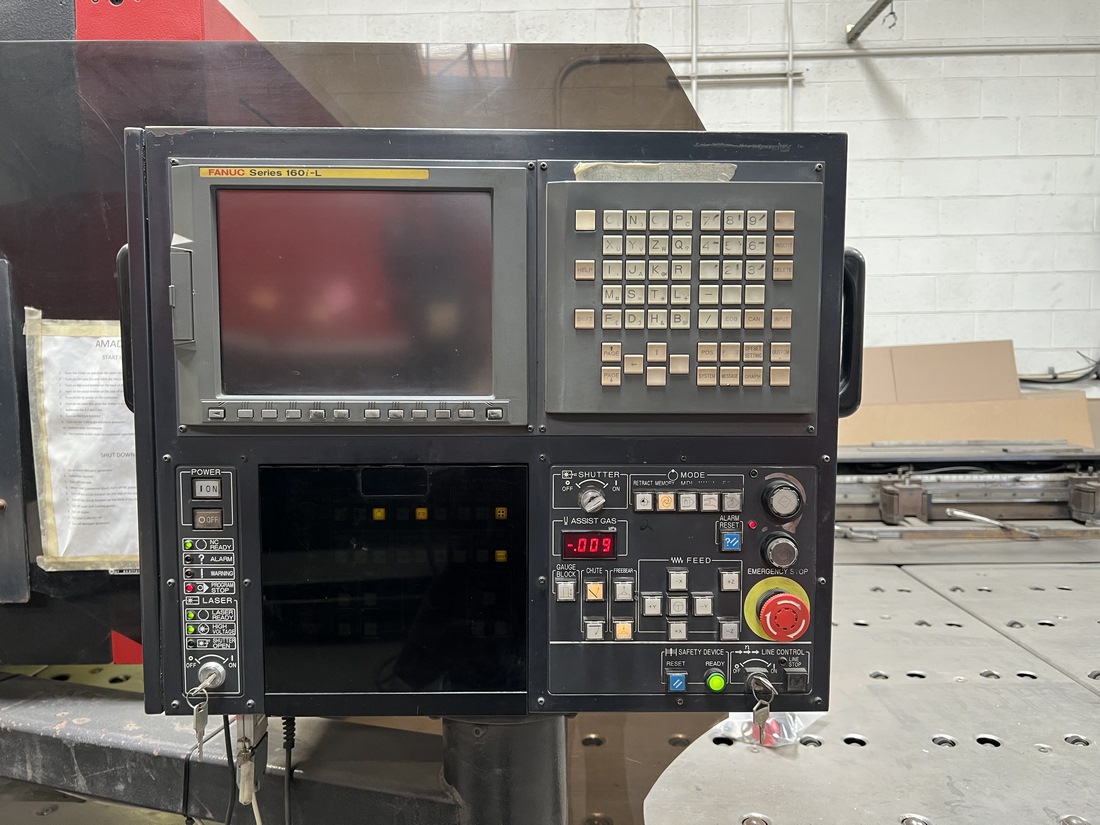

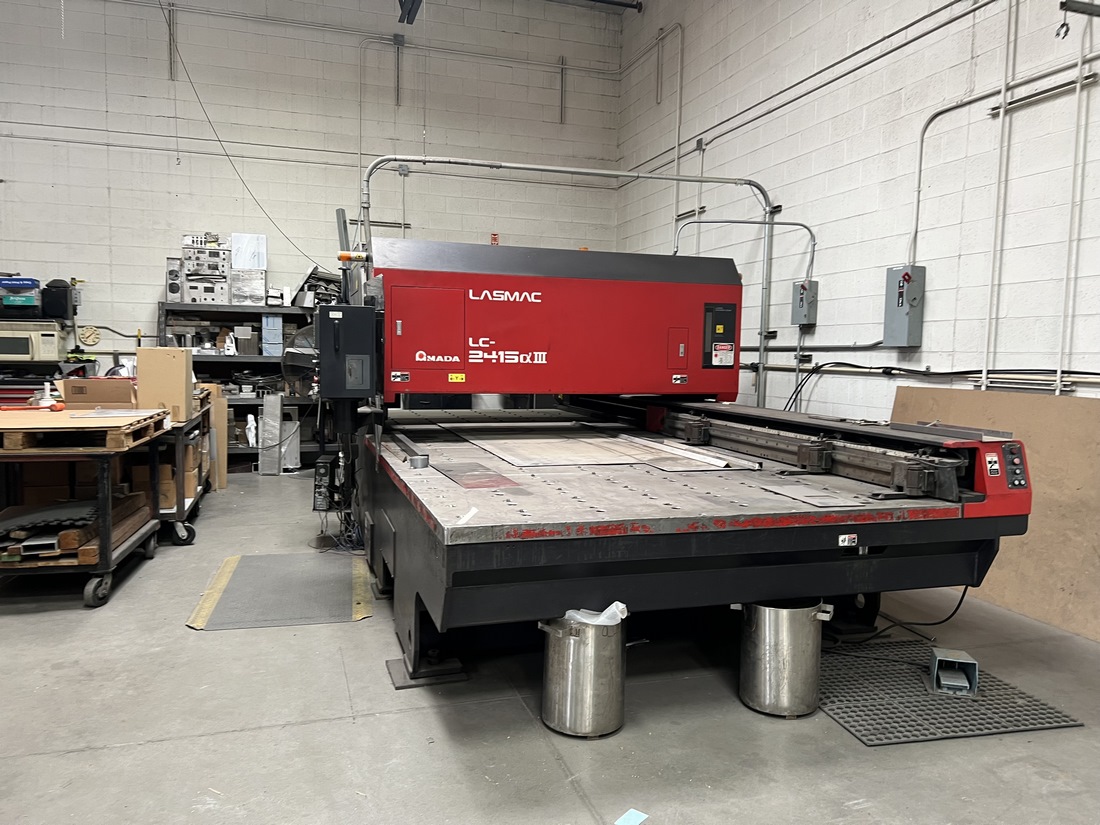

Used Amada Lasmac LC-2415 (1999) Laser for Sale. This CNC laser is built around a Fanuc 160i-L control and a Fanuc C2000 resonator with a maximum output of 2,000 watts. The table measures 5′ x 10′ and handles material weighing up to 727 lbs. Axis travels are 61″ X, 99″ Y, 11.8″ Z and 0.78″ B, with a maximum cutting speed of 2,362 IPM, maximum table speed of 3,149 IPM and maximum Z axis speed of 2,362 IPM. Positioning accuracy is .0004″ / 20″ with .0002″ repeatability. Power requirement is 220/3/60. The machine can be seen under power for an inspection. See our other used laser cutting machines and Amada equipment, click Activate Pricing, or Request a Quote.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
2,000 |
| Control |
Fanuc 160i-L |
| Max Axis Travel (X/Y/Z/B) |
61" x 99" x 11.8" x 0.78" |
| Max Cutting Speed |
2,362 IPM |
| Max Table Speed |
3,149 IPM |
| Max Z Axis Speed |
2,362 IPM |
| Positioning Accuracy |
.0004" / 20" |
| Repeatability |
.0002" |
| Power Requirement |
220/3/60 |
| Max Material Weight |
727 Lbs |
Features
|
Fanuc C2000 Resonator |
