Year |
2014 |
|---|---|
Make |
BLM |
Model |
LT8 |
Description |
3.5kW CNC Tube Laser |
Reference # |
8076390 |
Price |
Activate Pricing |

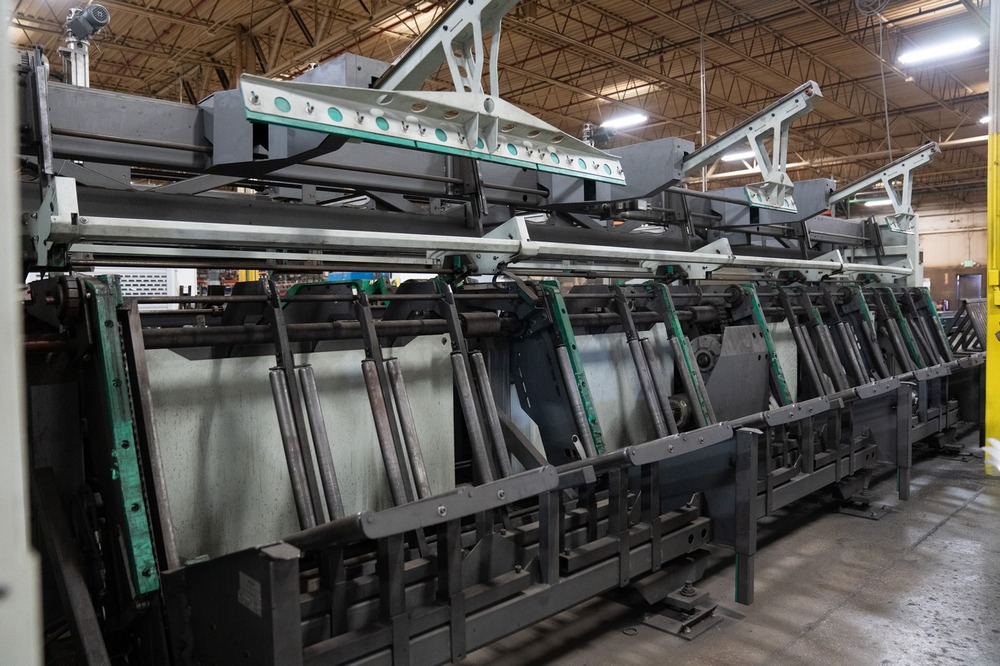

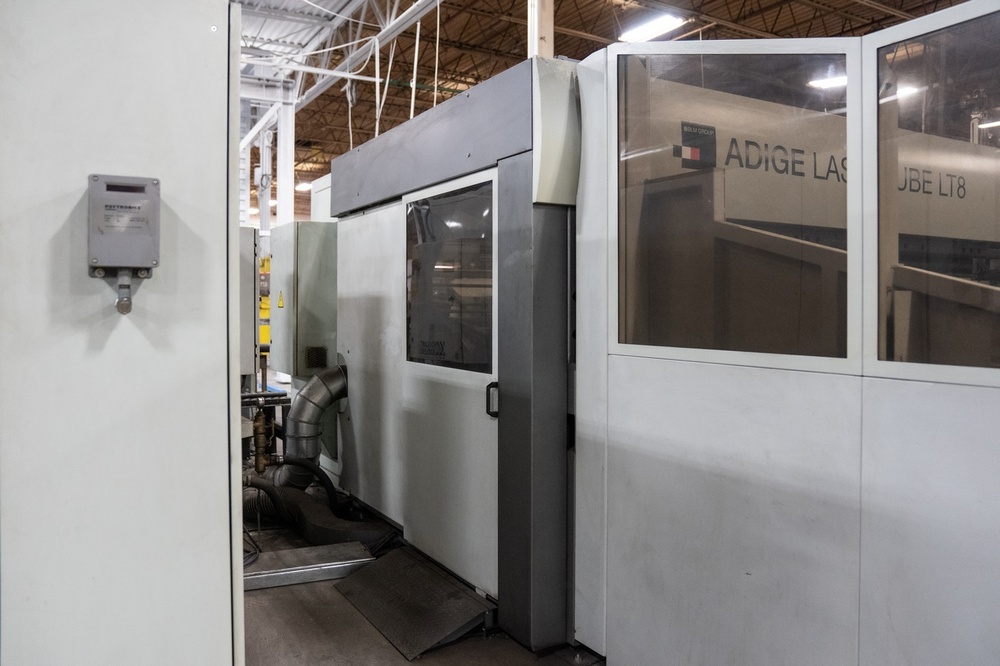

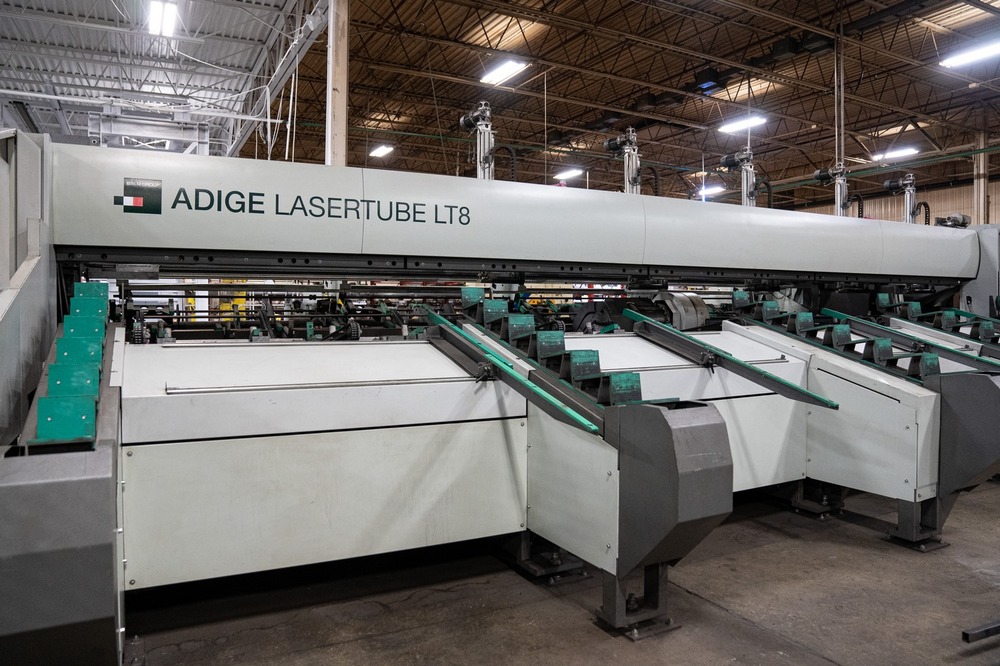

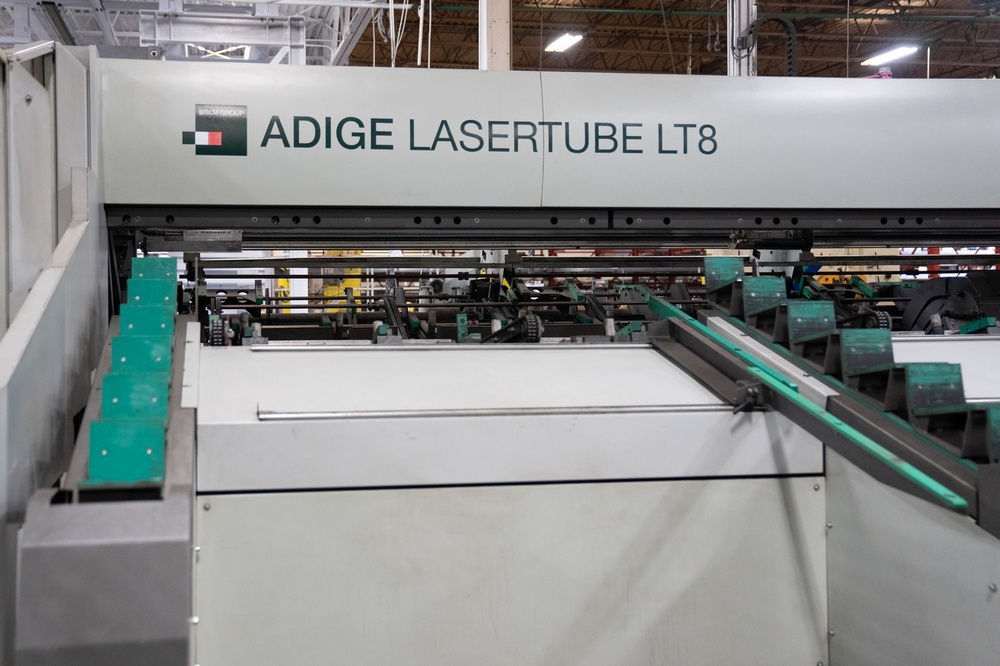

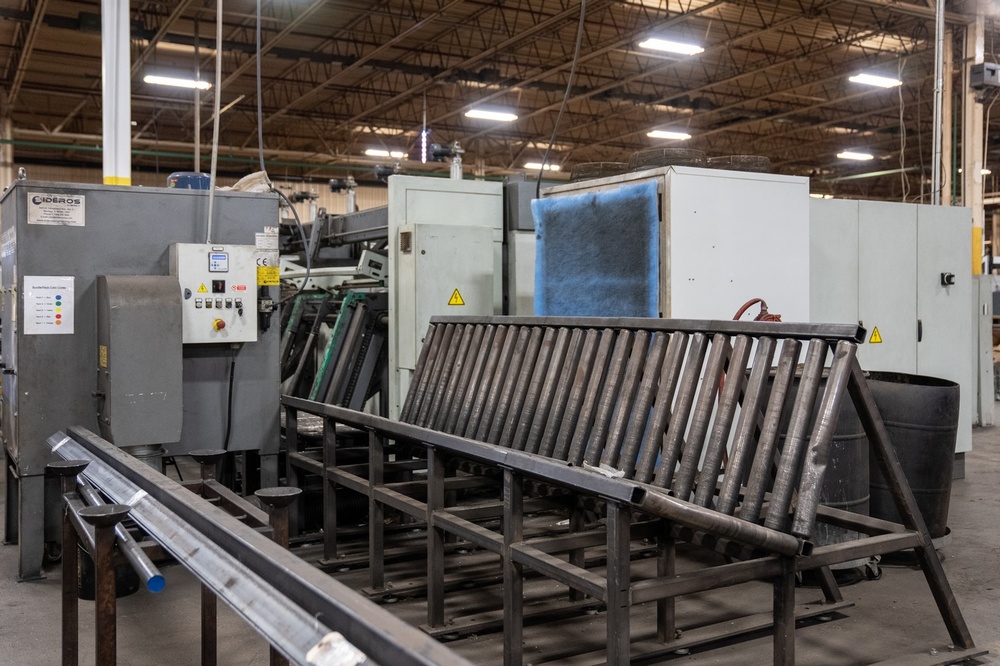

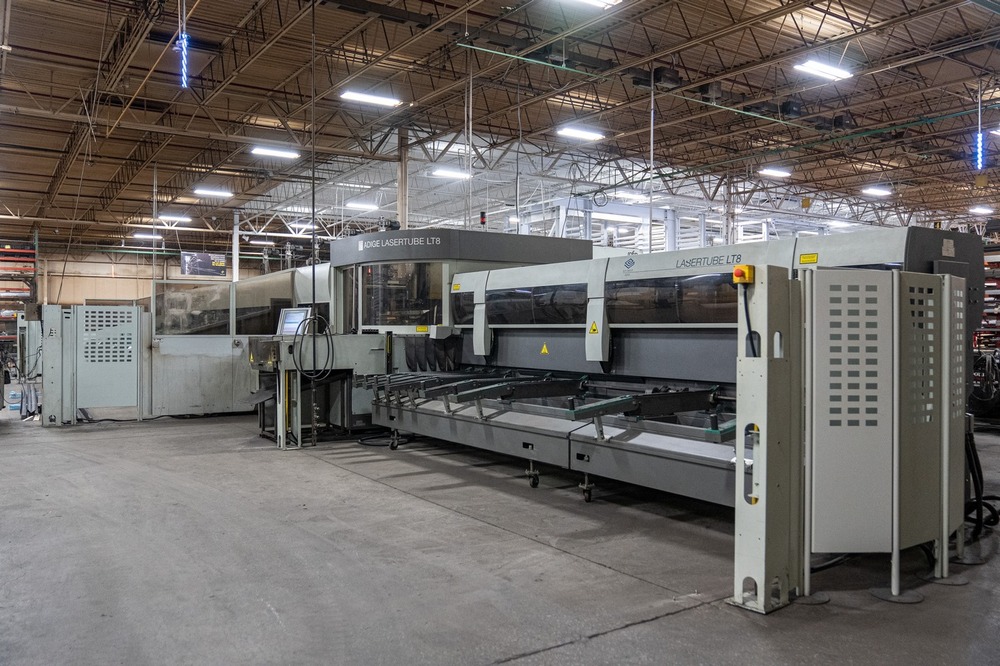

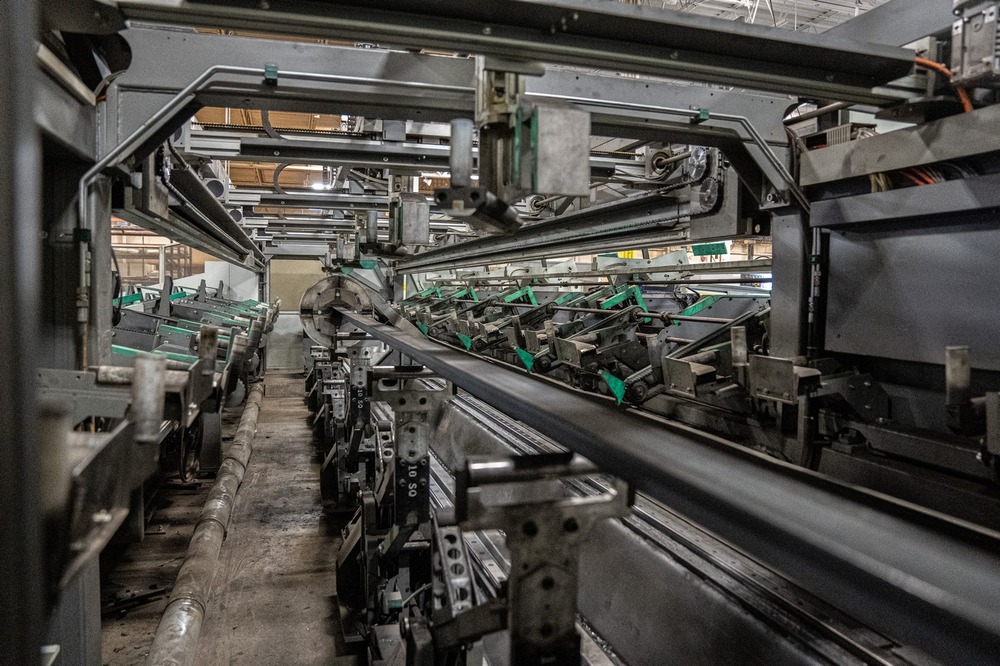

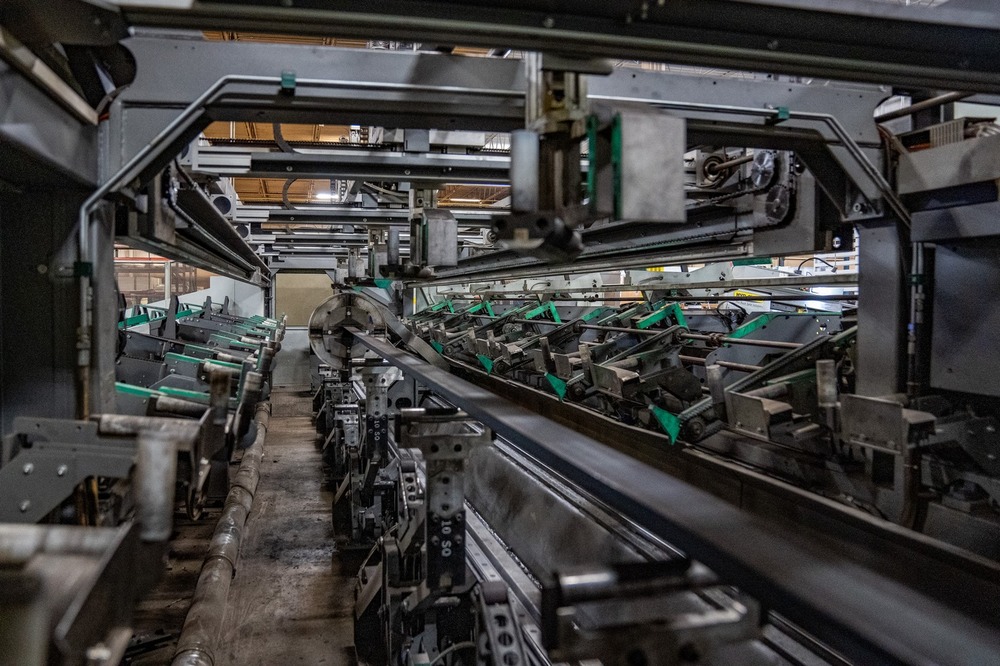

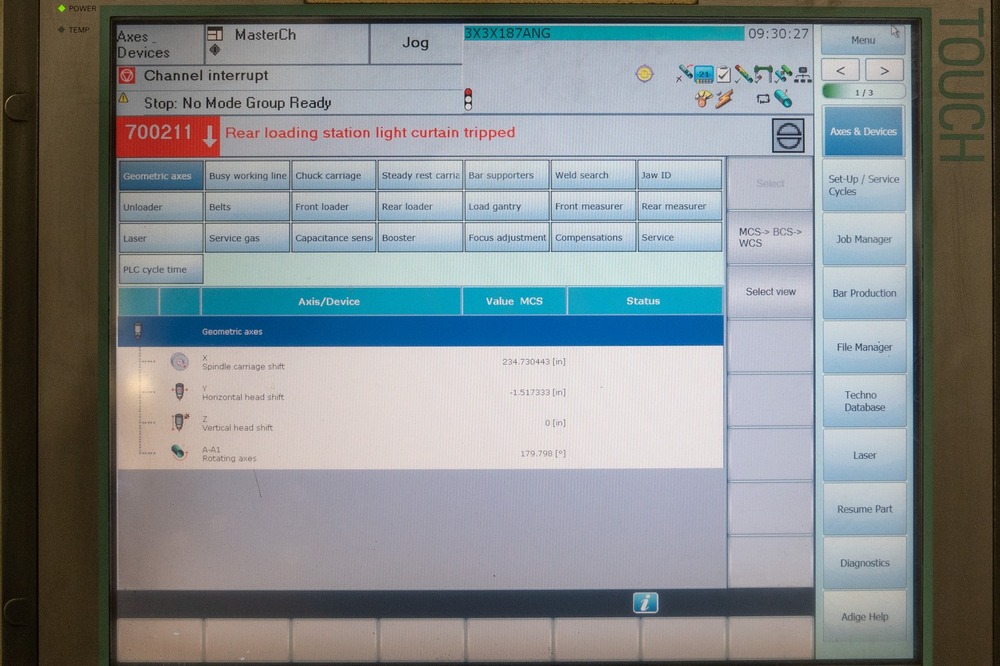

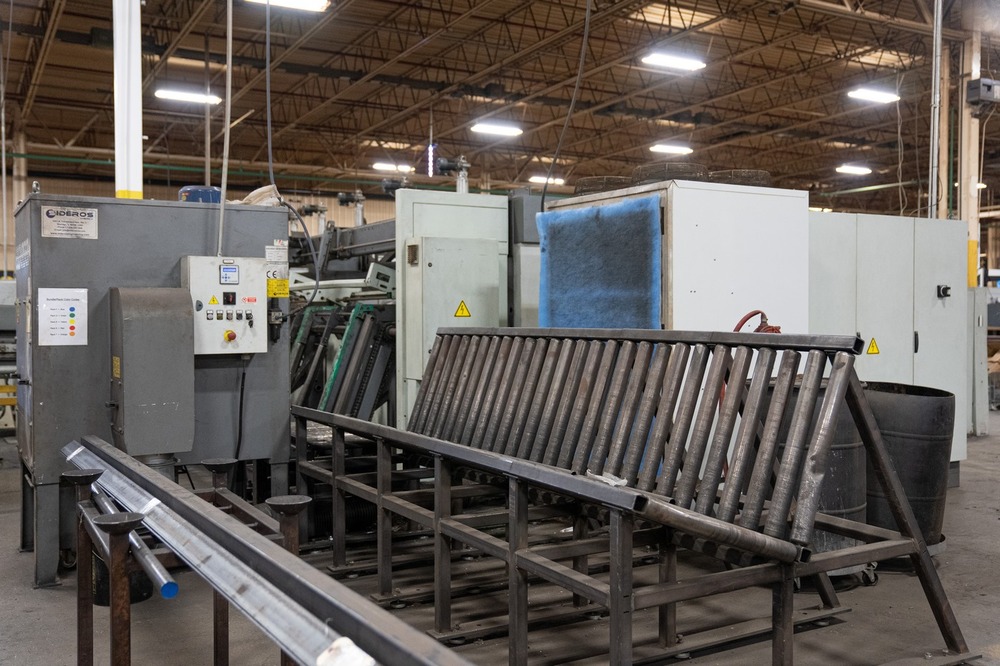

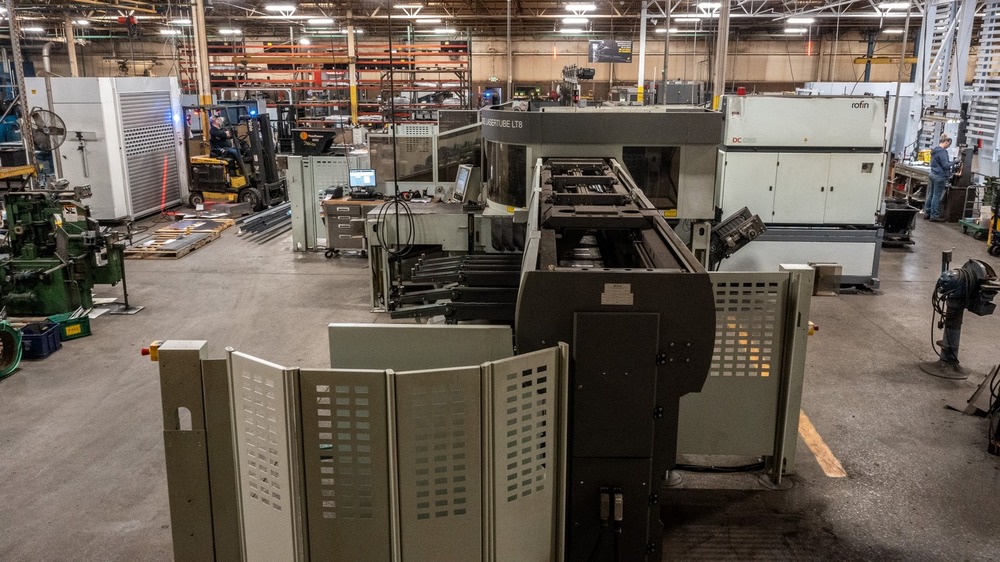

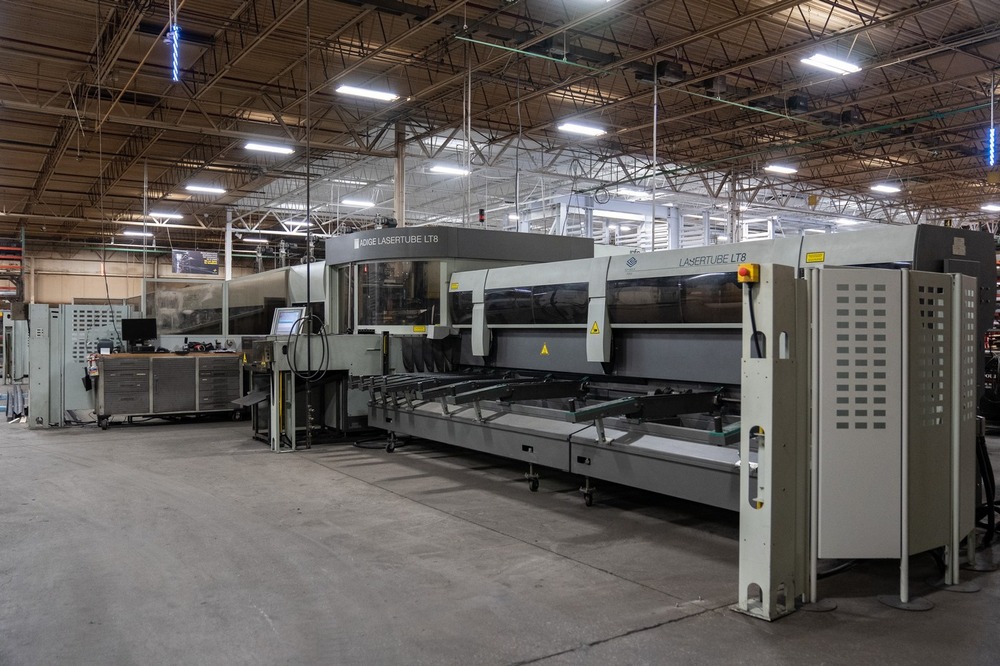

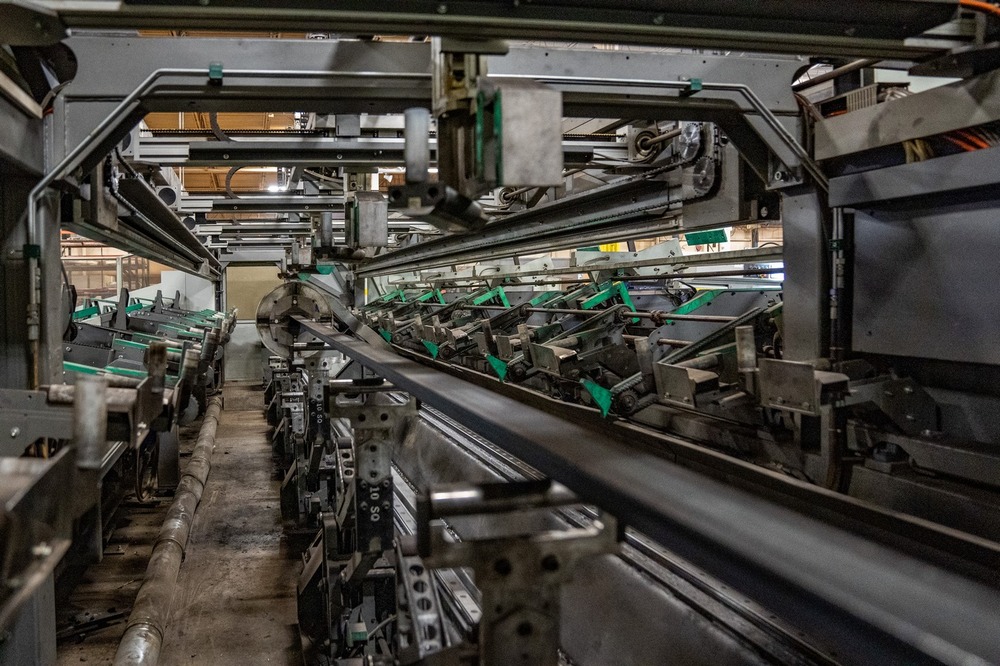

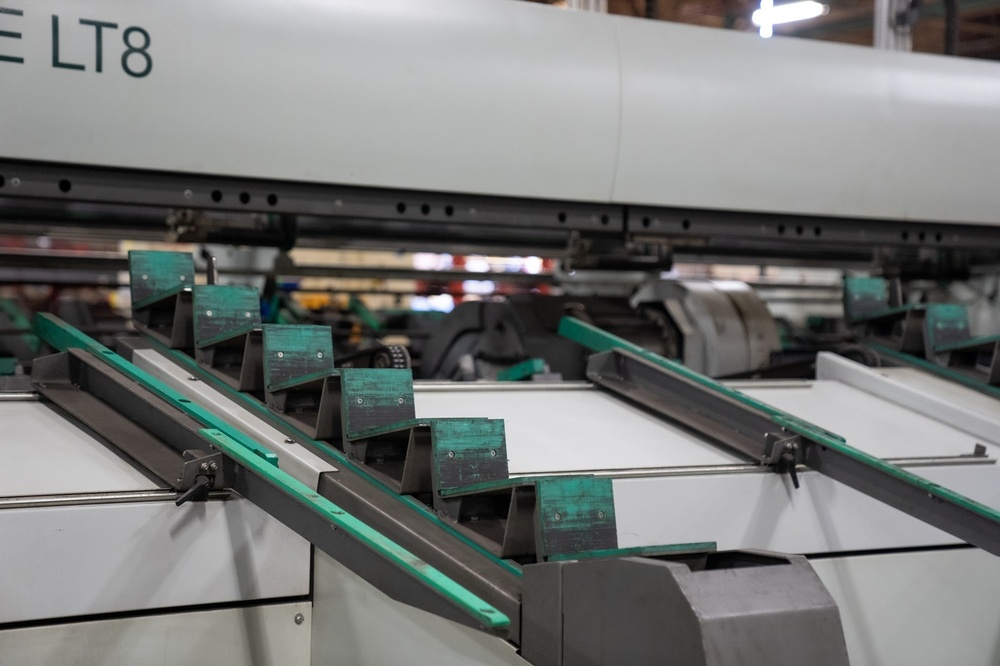

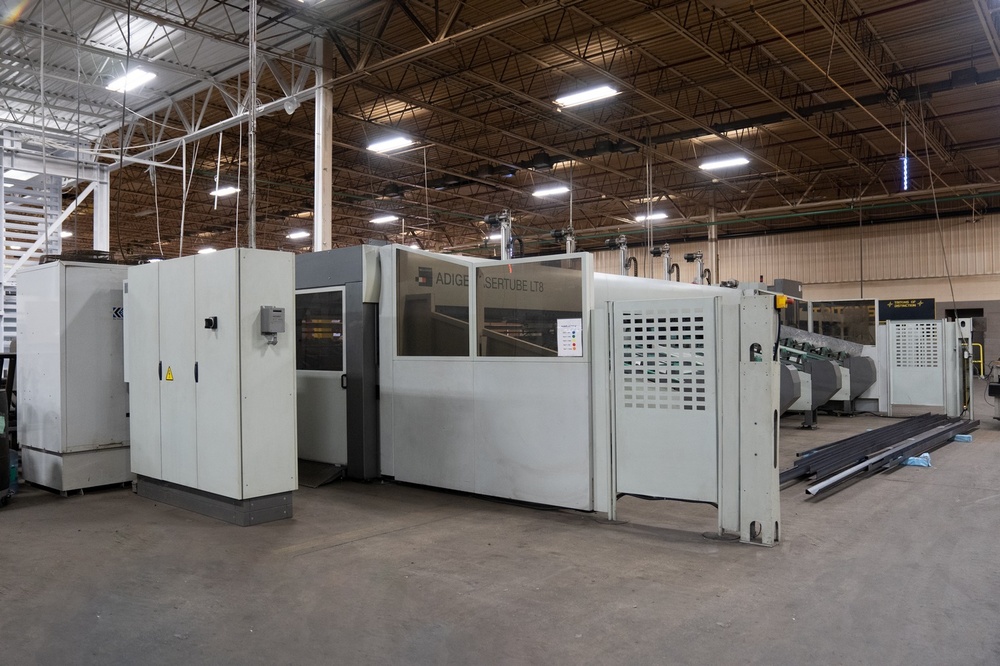

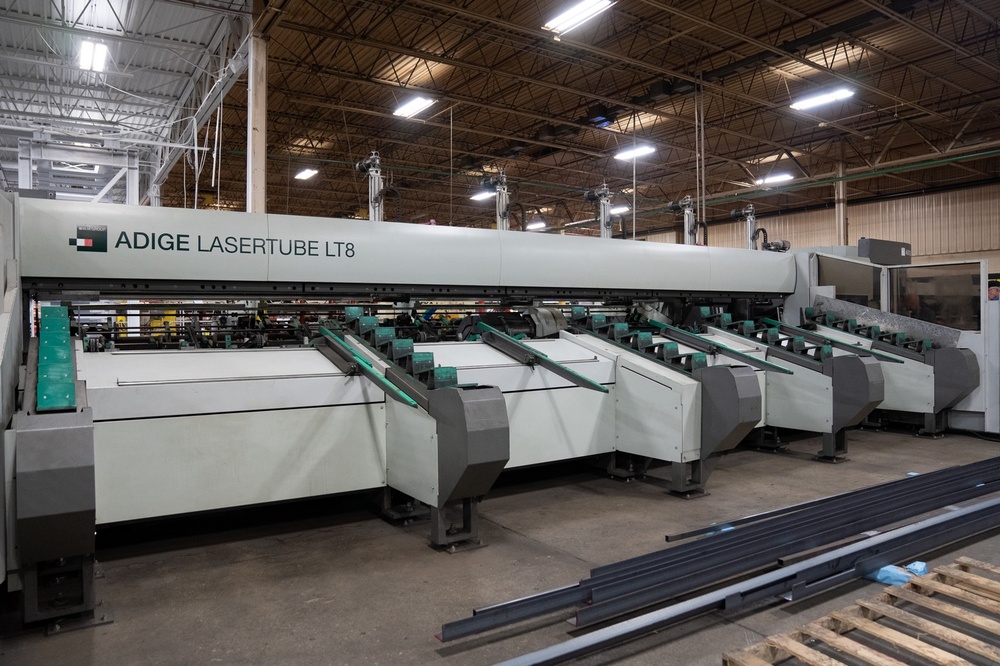

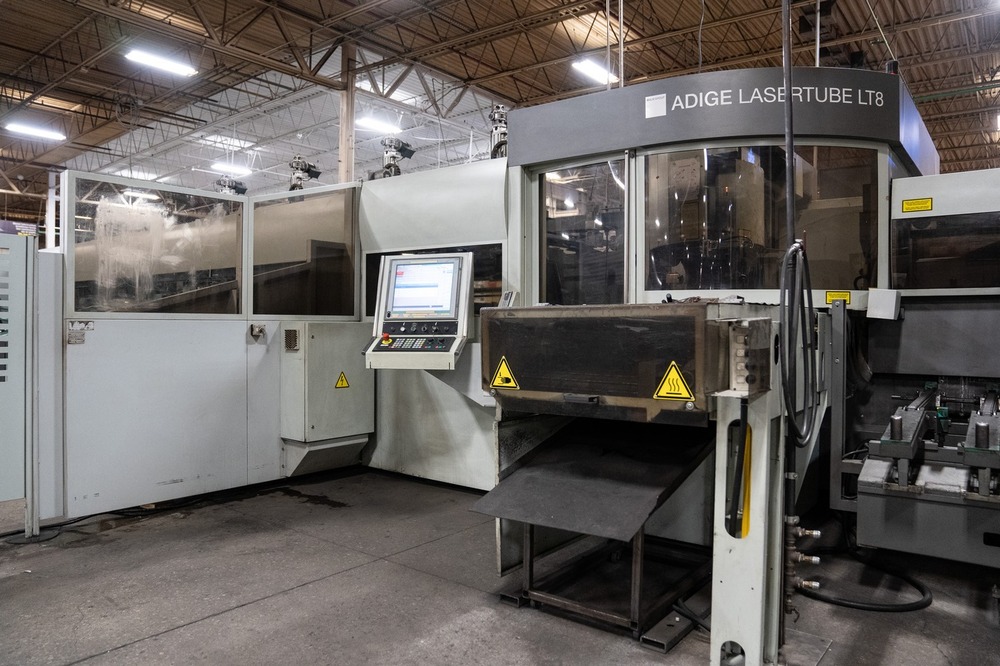

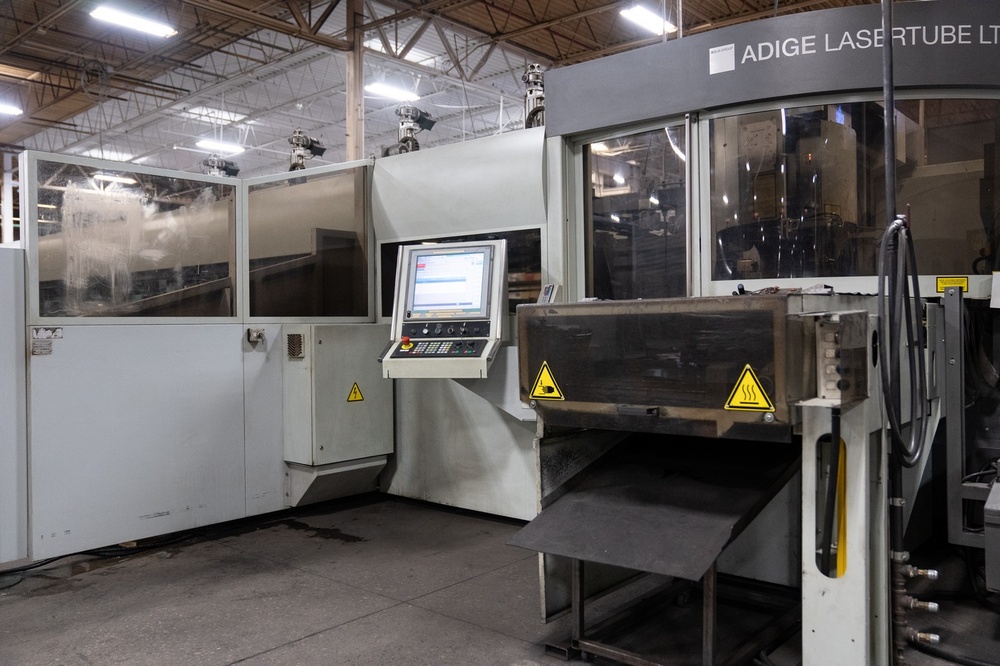

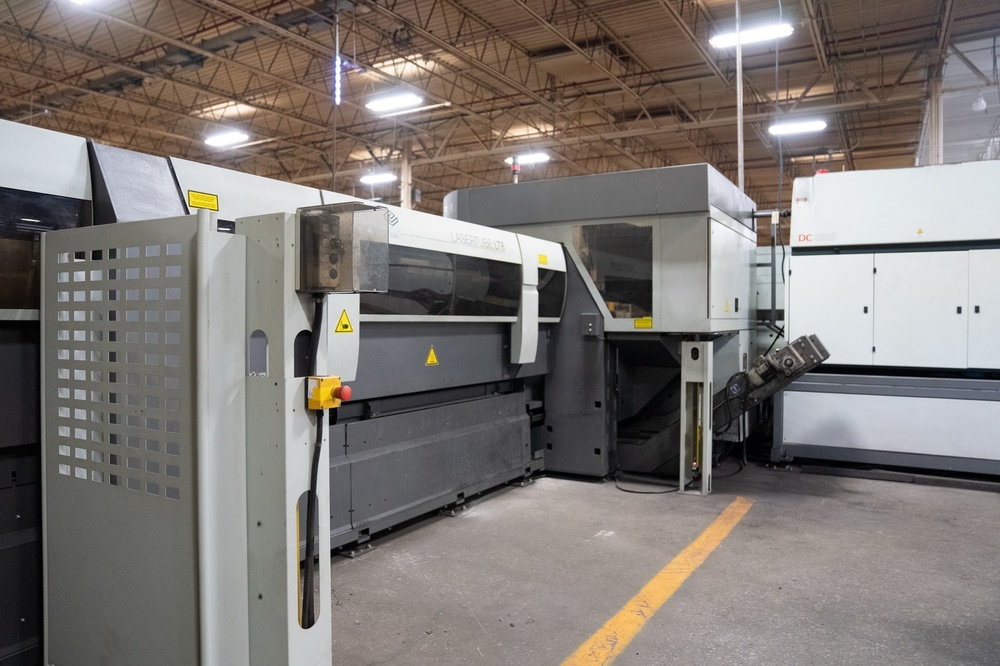

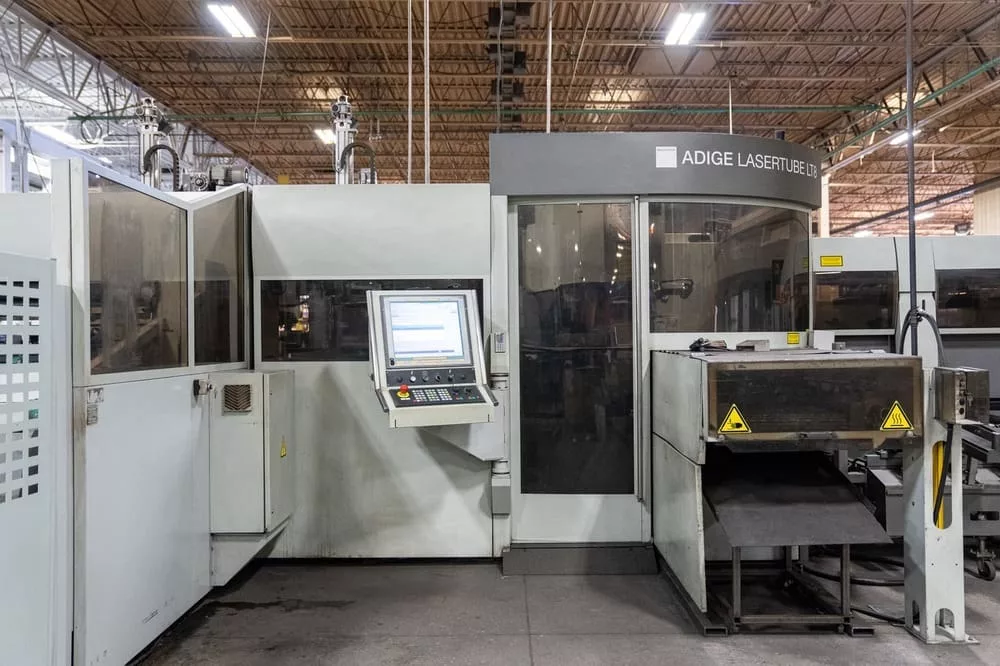

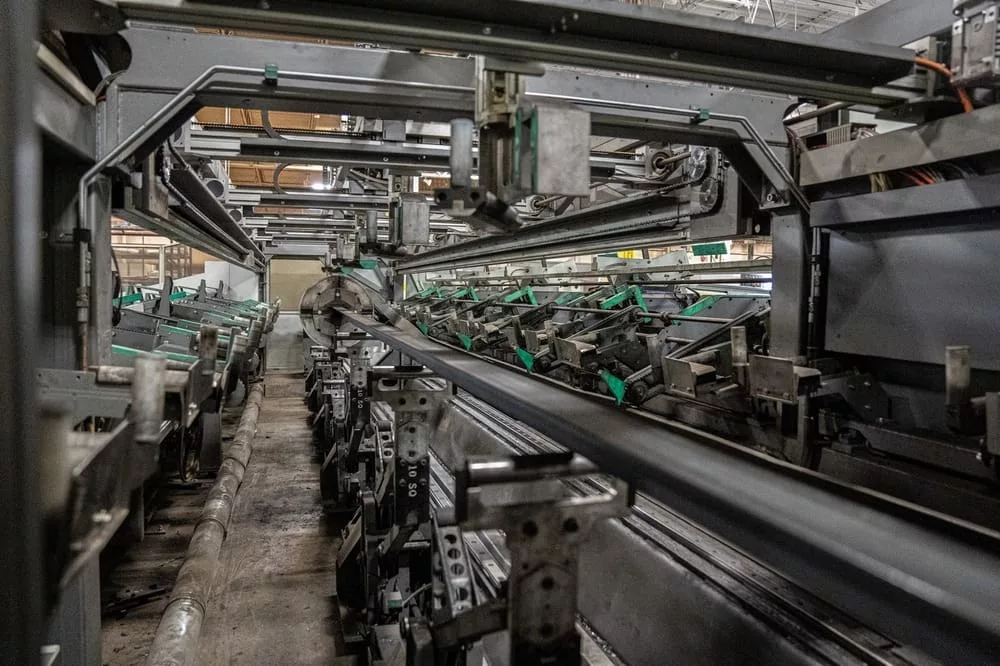

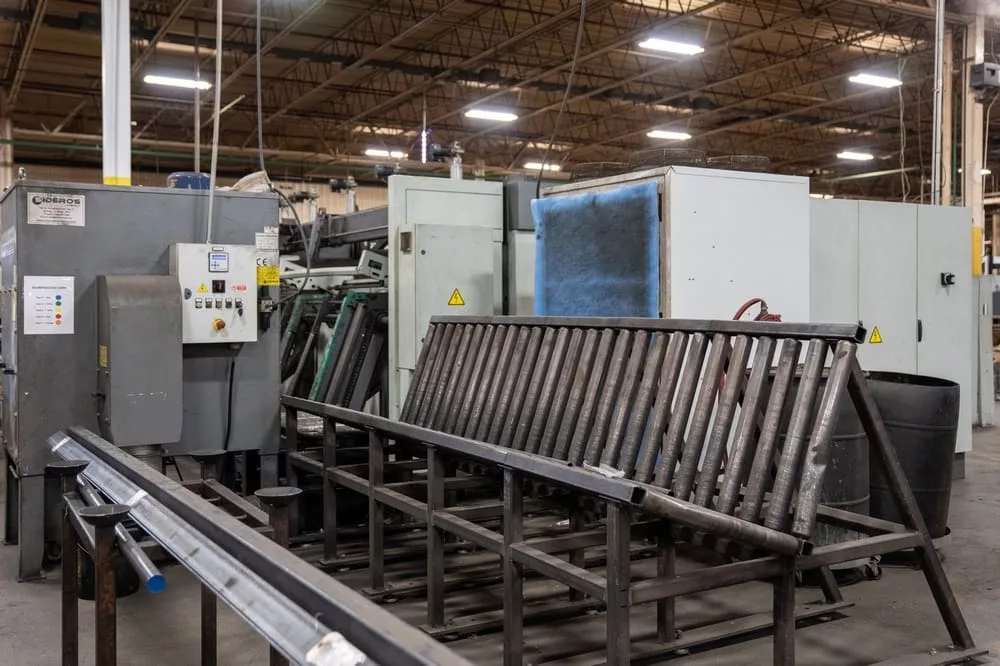

Used BLM LT8 (2014) Laser for Sale. This CO2 tube laser runs a Rofin Sinar DC 035 resonator rated at a maximum 3,500 watts, with a Siemens 840 D control. It cuts round tube from 0.5″ to 8.5″ diameter, square tube 0.5″ to 8″, and rectangular tube 0.5″ to 8″. Infeed lengths run from 8′ 2″ minimum to 27′ 10″ maximum, with both an automatic bundle loader and manual single bar infeed, an 8,800 lb bundle feed capacity, and a maximum material weight of 23 lbs per foot. Outfeed length is 21′ 3″. Equipped with breakthrough pierce detection, tilt head cutting, tube twist and bow correction, high speed piercing, closed loop chiller, chiller unit, dust collector, and rear scrap conveyor. Available to be seen under power for inspection. See more used laser cutting machines, [Activate Pricing](#activate-pricing), or Request a Quote.
Specifications
| Max Wattage |
3,500 |
|---|---|
| Control |

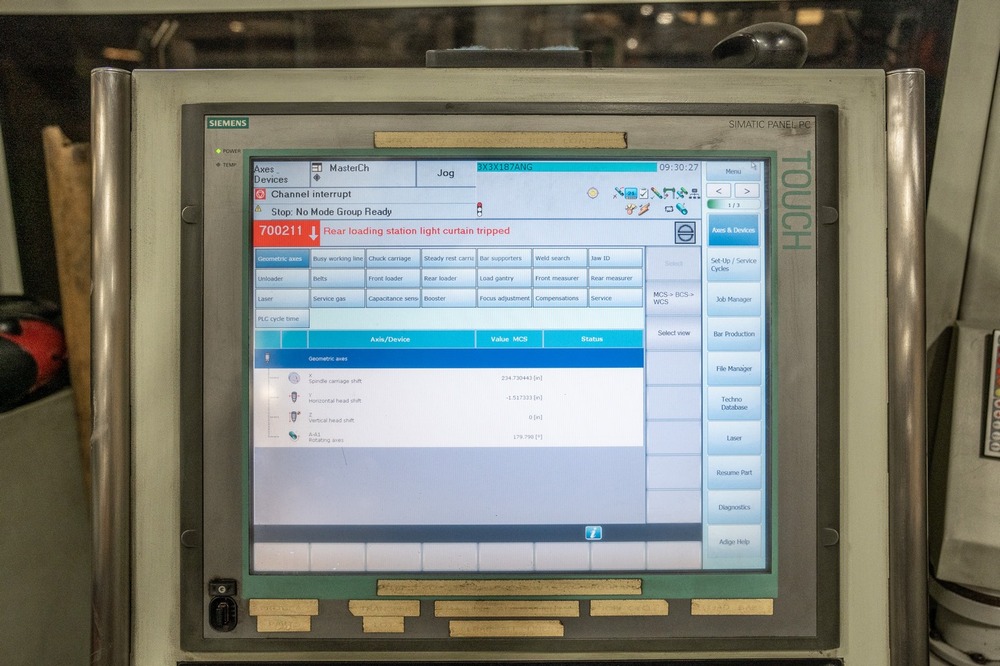

Siemens 840 D |
| Round Tube Diameter |
0.5" - 8.5" |
| Square Tube |
0.5" - 8" |
| Rectangular Tube |
0.5" - 8" |
| Laser Type |
CO2 |
| Laser Resonator |

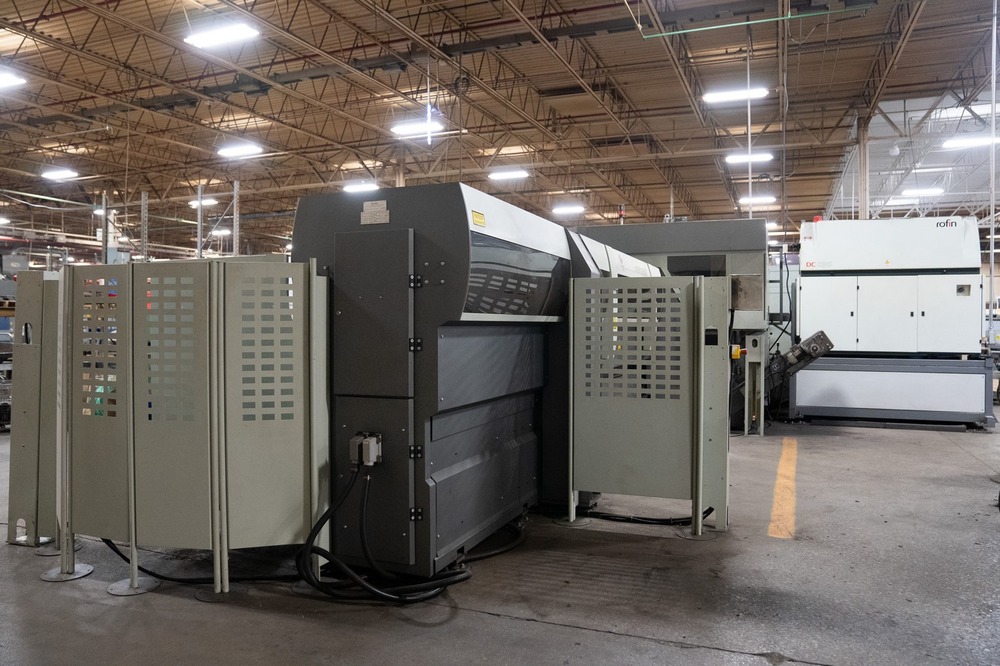

Rofin Sinar DC 035 |
| Laser Maximum Wattage |
3,500 |
| Infeed Lengths |
Max - 27' 10" / Min - 8' 2" |
| Infeed Types |

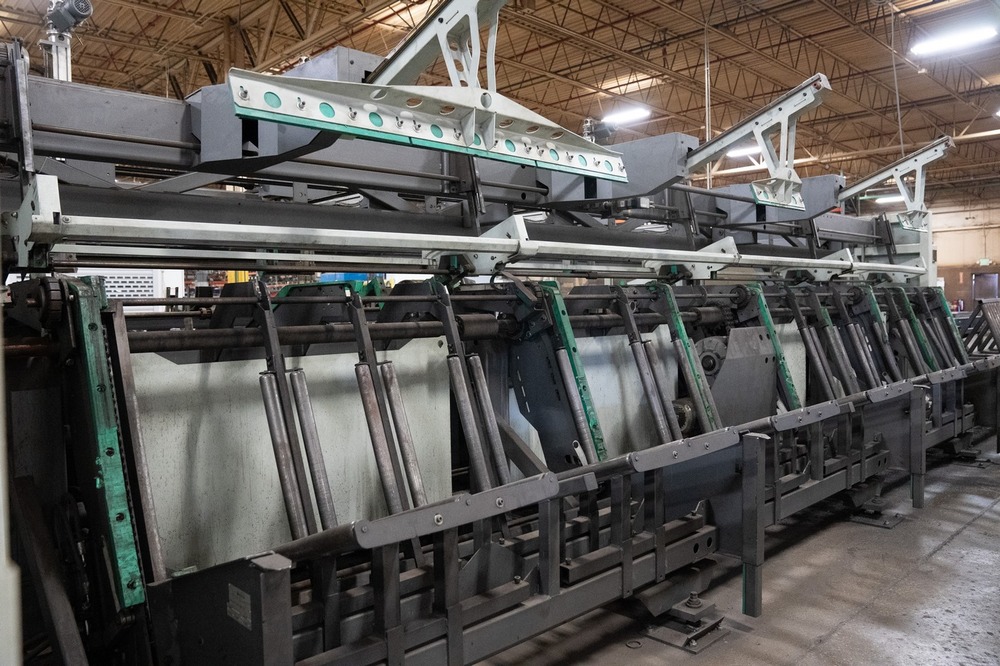

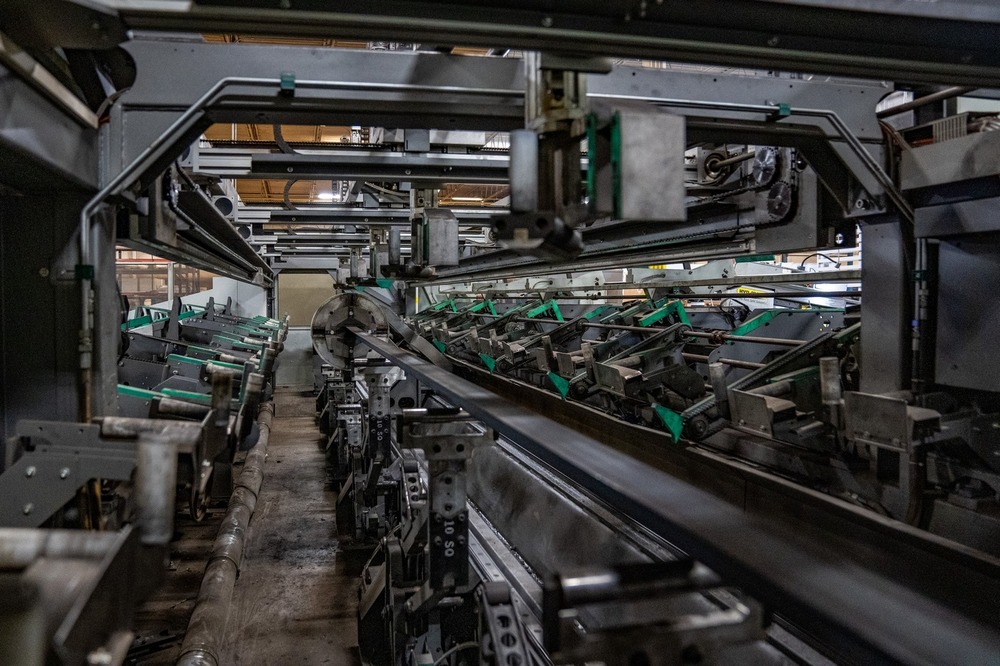

Automatic Bundle Loader and Manual Single Bar |
| Bundle Feed Capacity |
8,800 Lbs |
| Max Material Weight |
23 LBS Per Foot |
| Outfeed Max. Lengths |
21'3" |
Features
|
Breakthrough Pierce Detection |

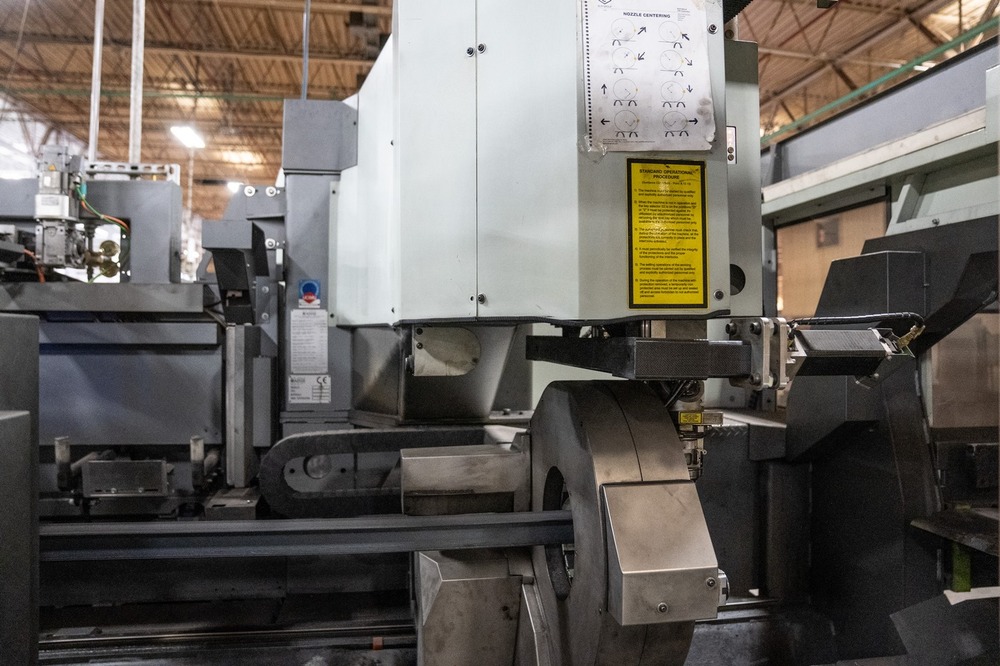

Tilt Head Cutting |
|
Tube Twist and Bow Correction |
Closed Loop Chiller |
|
Rear Scrap Conveyor |
Chiller Unit |
|
Dust Collector |
High Speed Piercing |
