Year |
2017 |
|---|---|
Make |
Mazak |
Model |
Optiplex Nexus 3015 |
Description |
5′ x 10′ 3kW CNC Fiber Laser |
Reference # |
8079199 |
Price |
$129,990.00 |

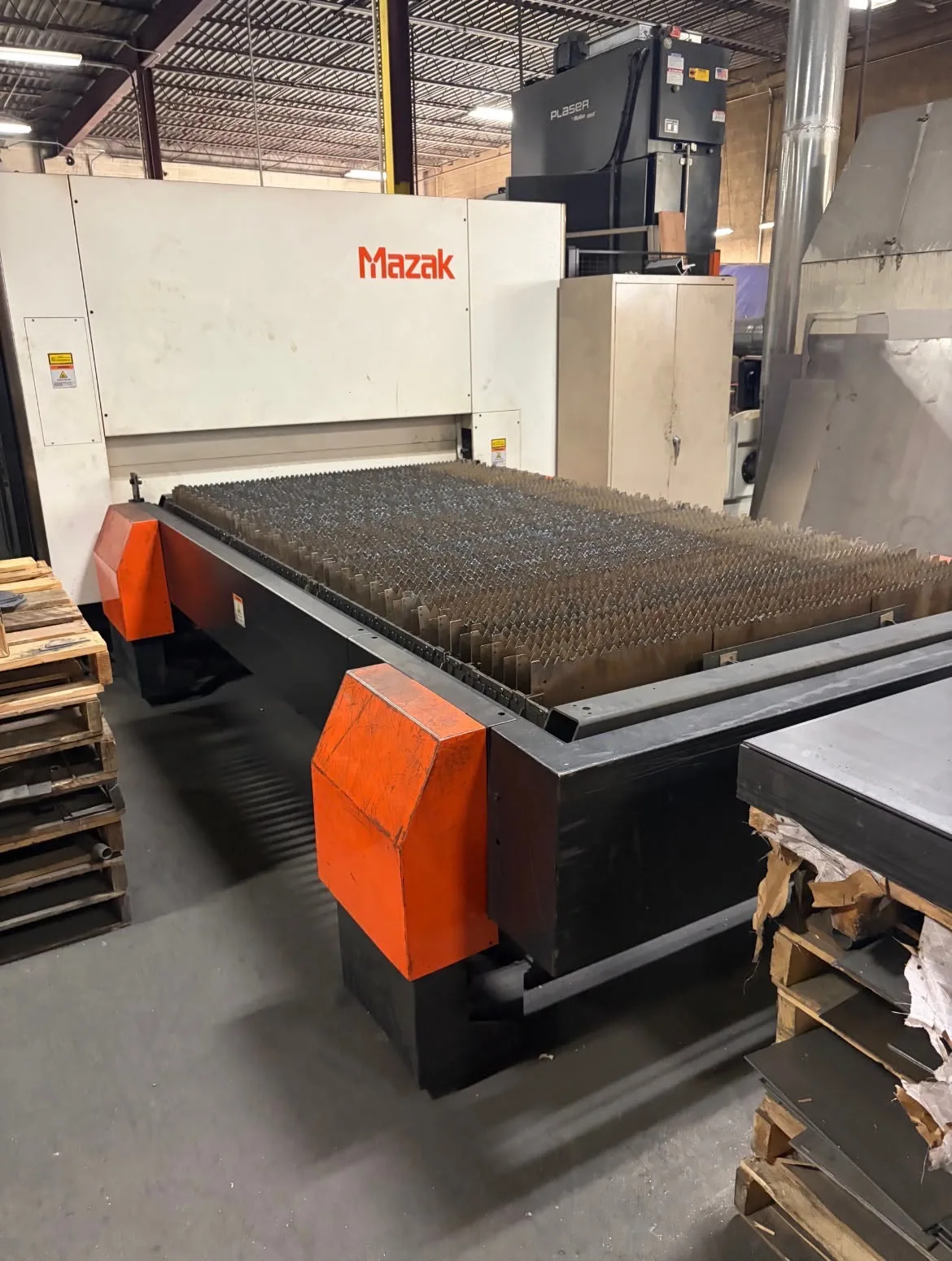

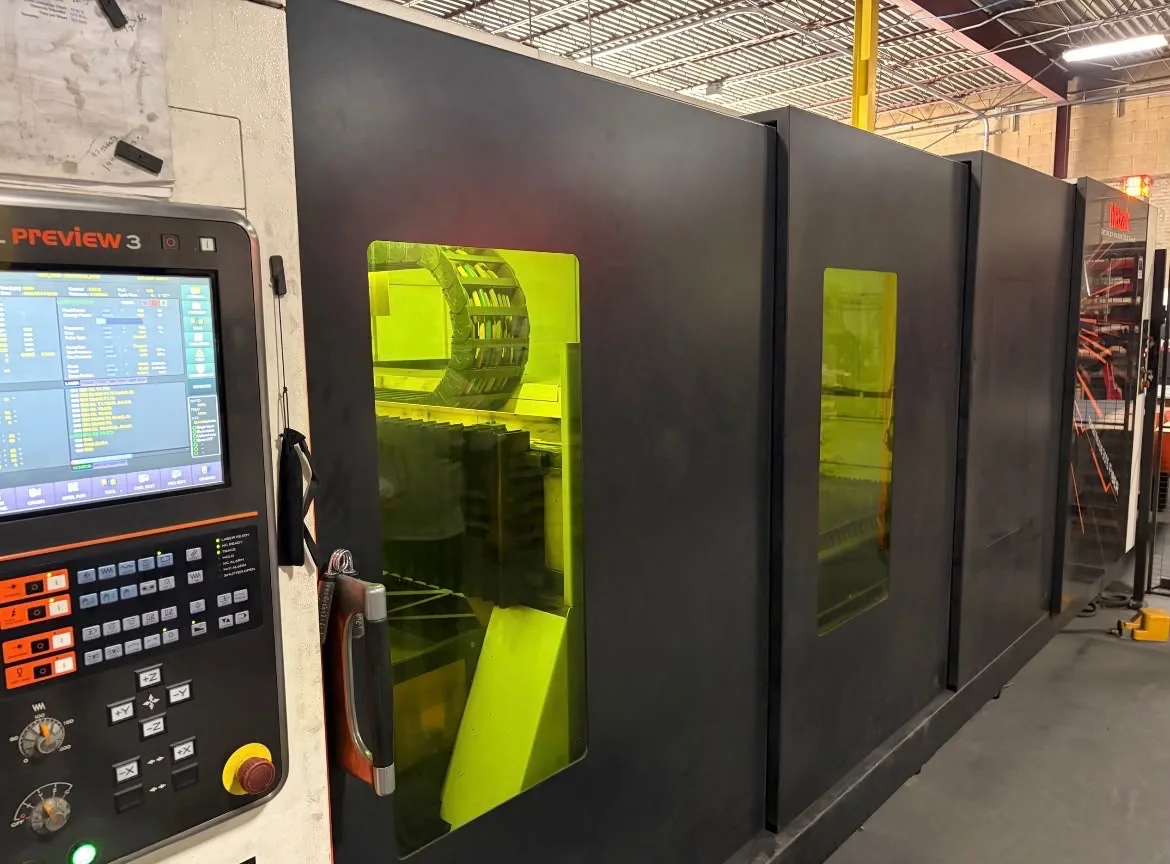

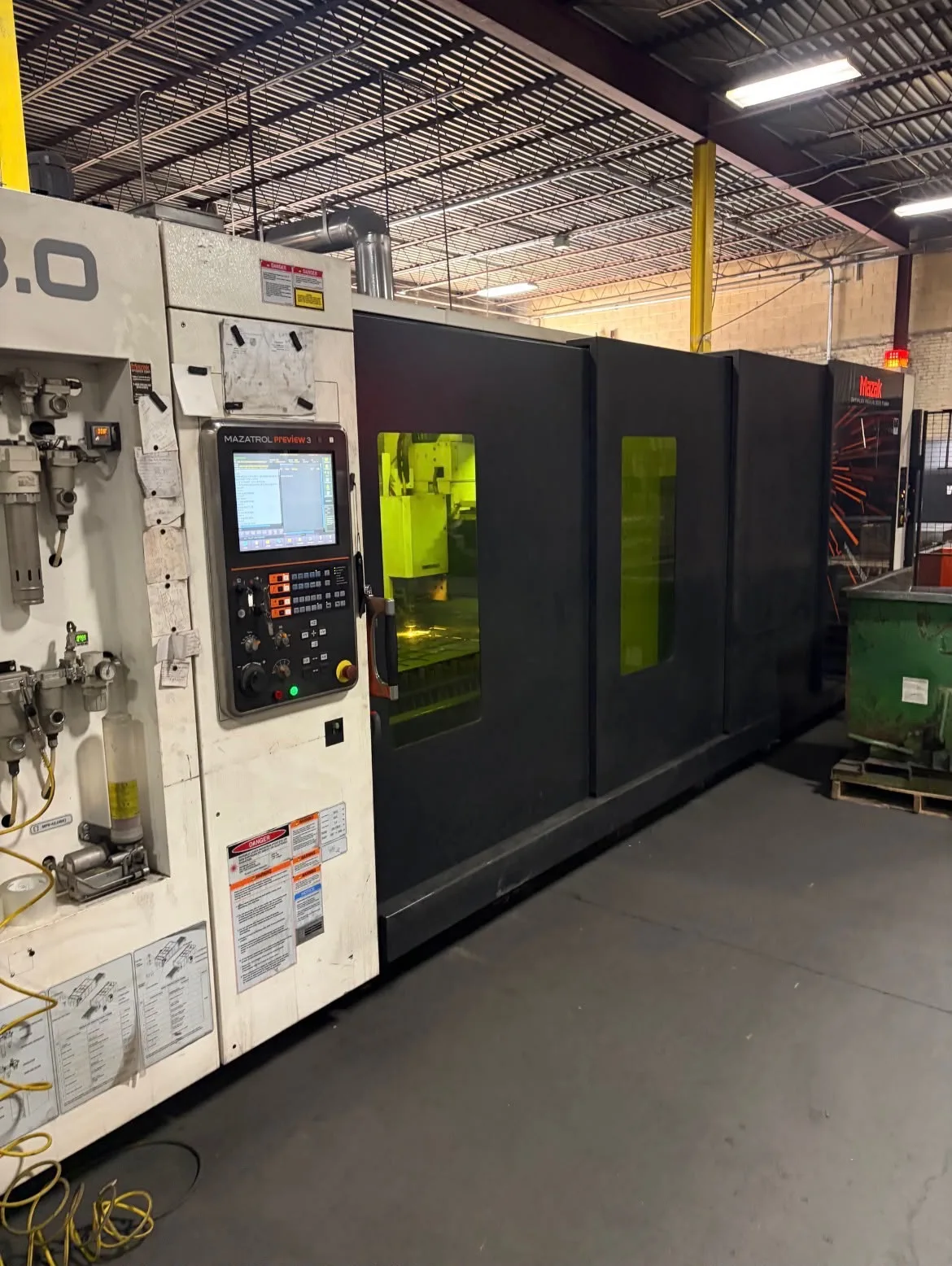

Used Mazak Optiplex Nexus 3015 (2017) Laser for Sale. This fiber laser runs a 5′ x 10′ work table with 122.05″ of X-axis travel, 62.2″ of Y-axis travel, 5.91″ of Z-axis travel, and a work table height of 35.43″. Max wattage is 3,000, with cutting managed through a Mazatrol Preview 3 control. Equipped with dual pallet shuttle tables, a dust collector, an IPG resonator, and a chiller. The machine can be seen under power for an inspection, so cuts and pallet changes can be verified before purchase. It is listed alongside our other used laser cutting machines and the balance of our used Mazak machines. Activate Pricing to see the figure, or use the Inquire Now button to reach us with questions and arrange a viewing.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
3,000 |
| X-Axis Travel |
122.05" |
| Y-Axis Travel |
62.2" |
| Z-Axis Travel |
5.91" |
| Control |
Mazatrol Preview 3 |
| Work Table Height |
35.43" |
Features
|
IPG Resonator |
Chiller |
|
Dual Pallet Shuttle Tables |
Dust Collector |
