Year |
2014 |
|---|---|
Make |
Komatsu |
Model |
TLH-415N30FL |
Description |
3kw CNC Fiber Laser |
Reference # |
8076508 |
Price |
Activate Pricing |

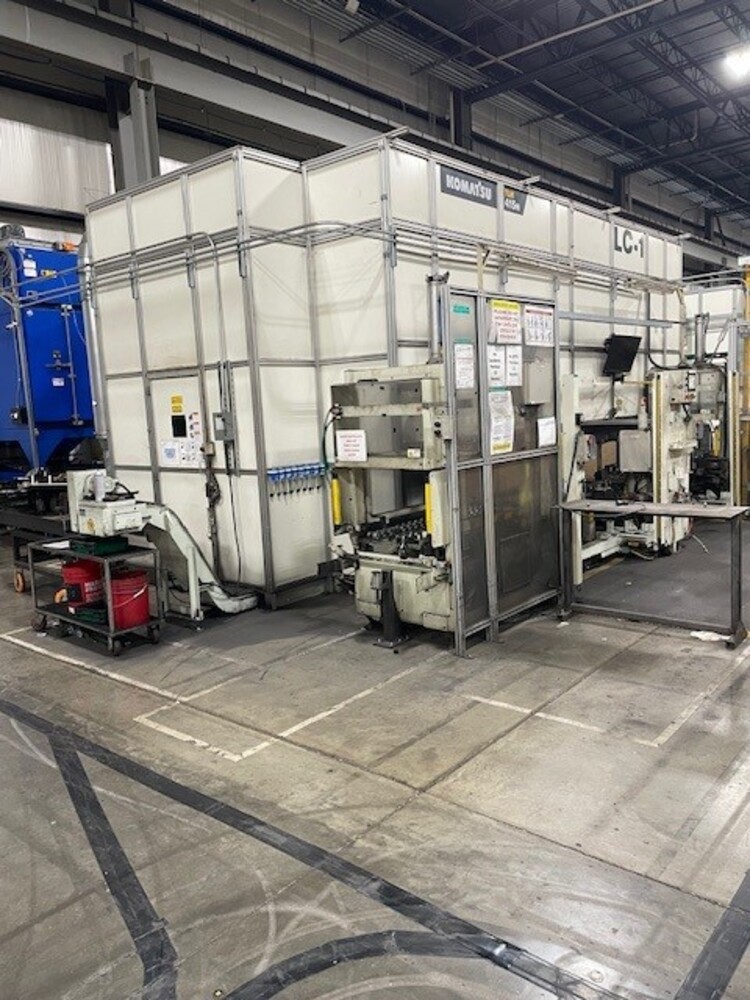

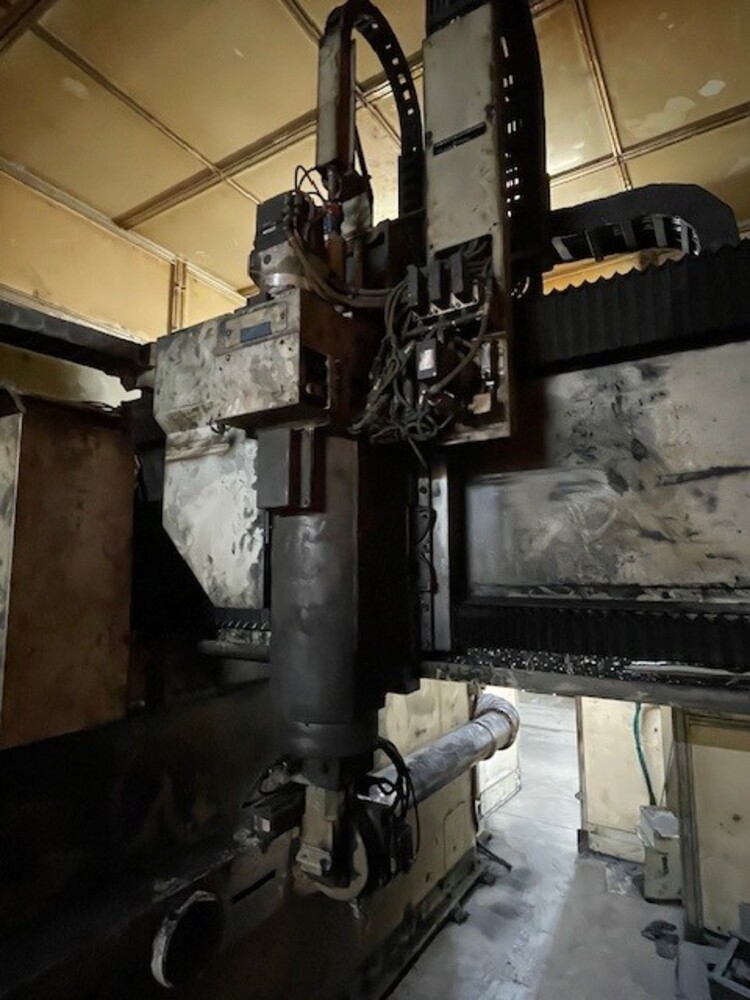

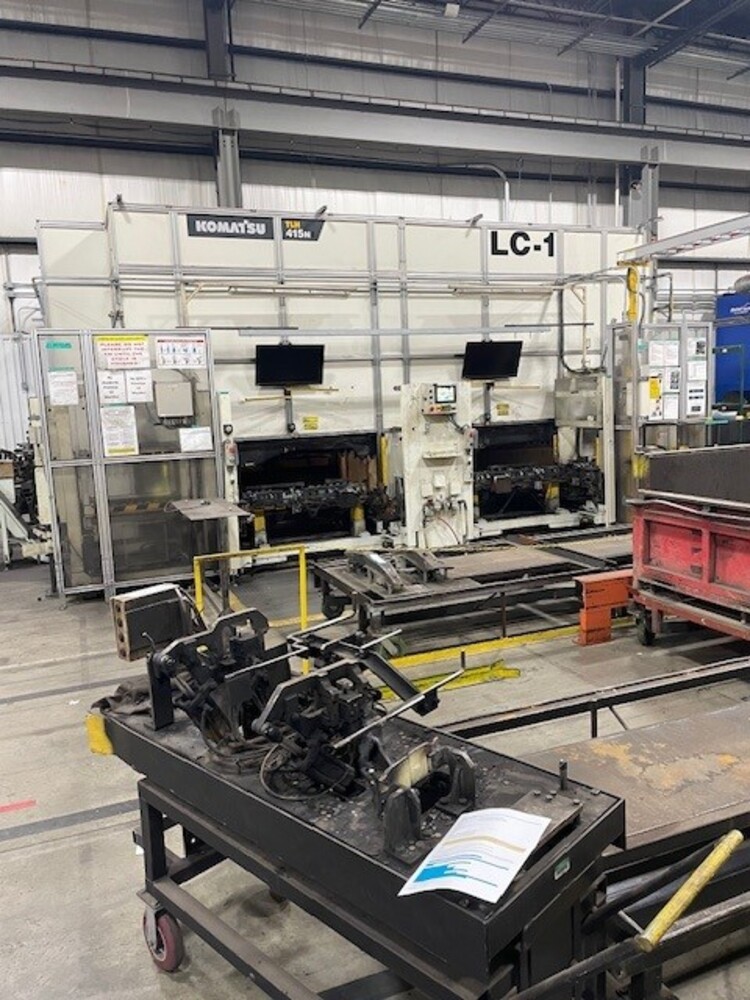

Used Komatsu TLH-415N30FL (2014) Laser for Sale. This 5-axis controlled fiber laser processing machine runs 5 axes plus 1 axis (X/Y/Z/C/A + G) with the Komatsu control and a 15″ color touch panel LCD with keyboard and mouse. Max wattage is 3,000, with an IPG Fiber Laser YLS-3000 power source. Travels are 177.17″ X-axis, 45.28″ Y-axis and 19.69″ Z-axis. Equipped with 3-point circle/arc teaching, 3D copy function, corner R designation, back step, step search, mirror image, TEPROM-L200 hardware and software, USB interface, dust collector, and an air-cooled IPG LC170.01-A.3.5/6 chiller unit weighing 882 lbs. Floor thickness required is 7.87″. Call for footprint drawings and additional specs. The machine can be seen under power for an inspection. See more used laser cutting machines, Activate Pricing, or Request a Quote.
Specifications
| Max Wattage |
3,000 |
|---|---|
| Control |
Komatsu |
| X-Axis Travel |
177.17" |
| Y-Axis Travel |
45.28" |
| Z-Axis Travel |
19.69" |
| Power Source |

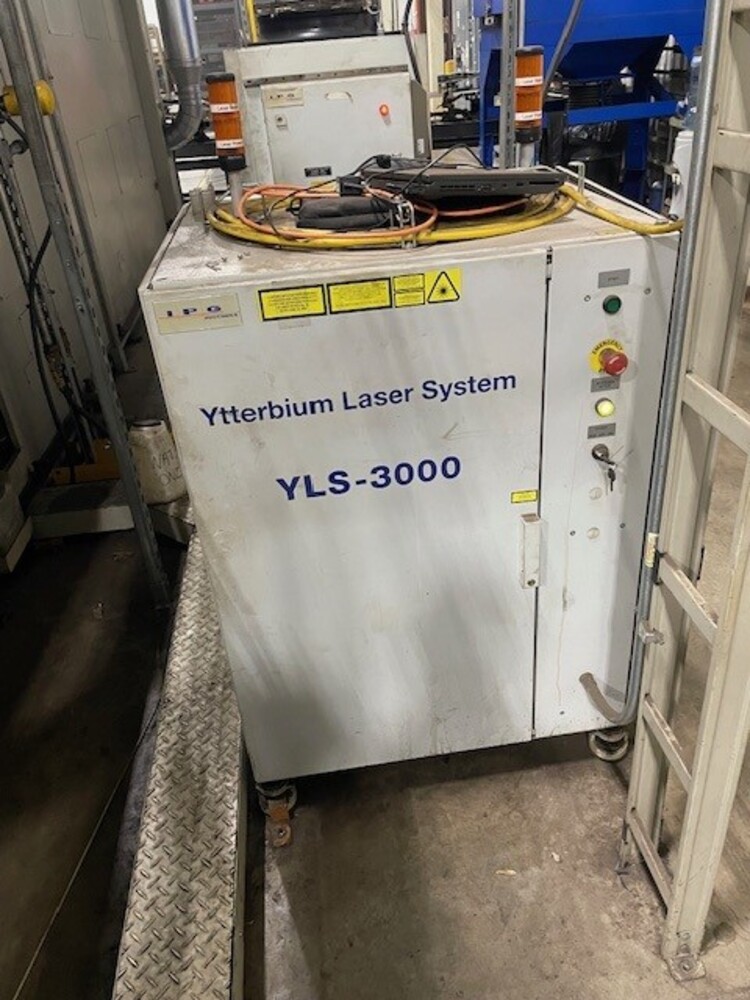

IPG Fiber Laser YLS-3000 |
| Chiller Weight |
882 Lbs. |
| Floor Thickness Required |
7.87" |
| Note |
Call for Footprint Drawings and Additional Specs |
Features
|

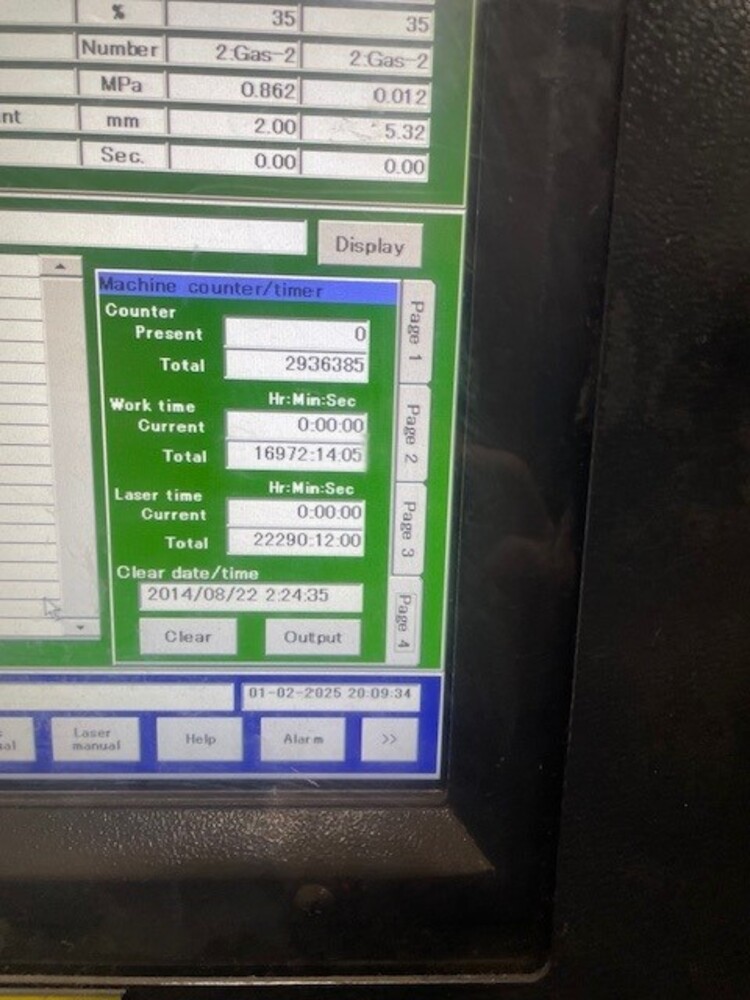

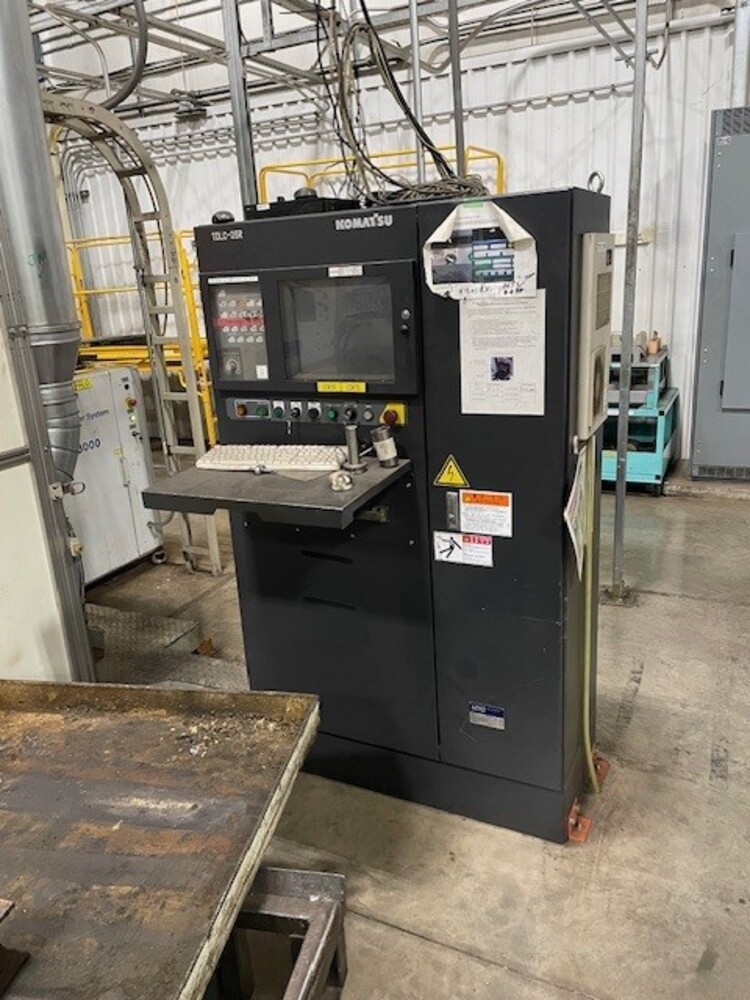

15" Color Touch Panel LCD Keyboard and Mouse |
3-Point Circle/Arc Teaching |
|
3D Copy Function |
5 Axes + 1 Axes (X/Y/Z/C/A + G) |
|
5-Axis Controlled Fiber Laser Processing Machine |

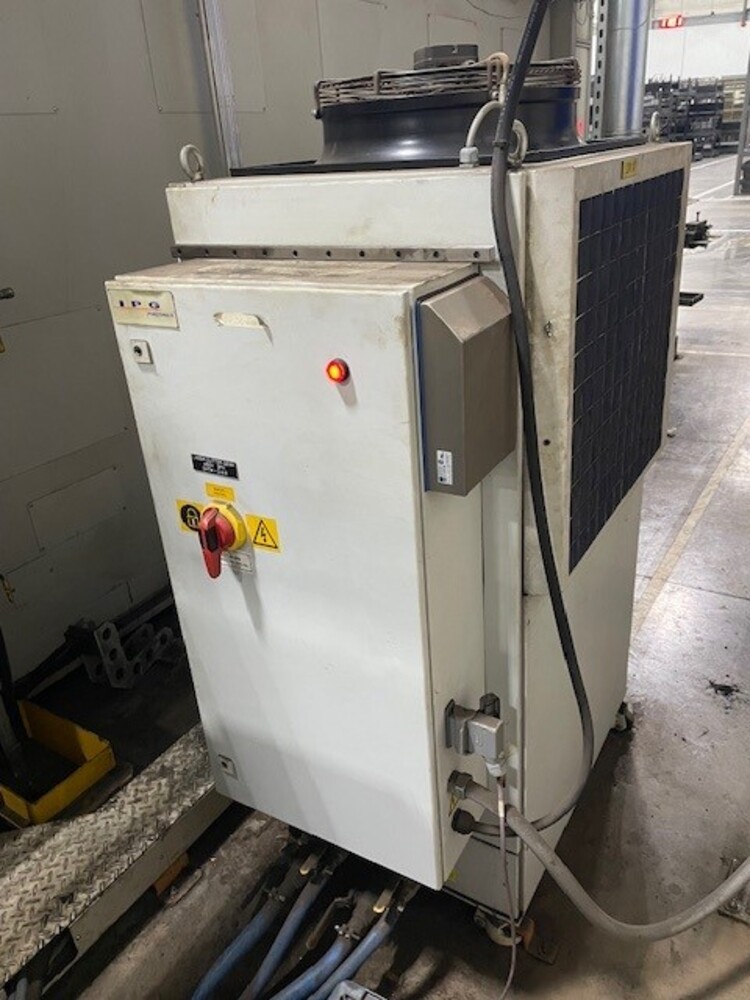

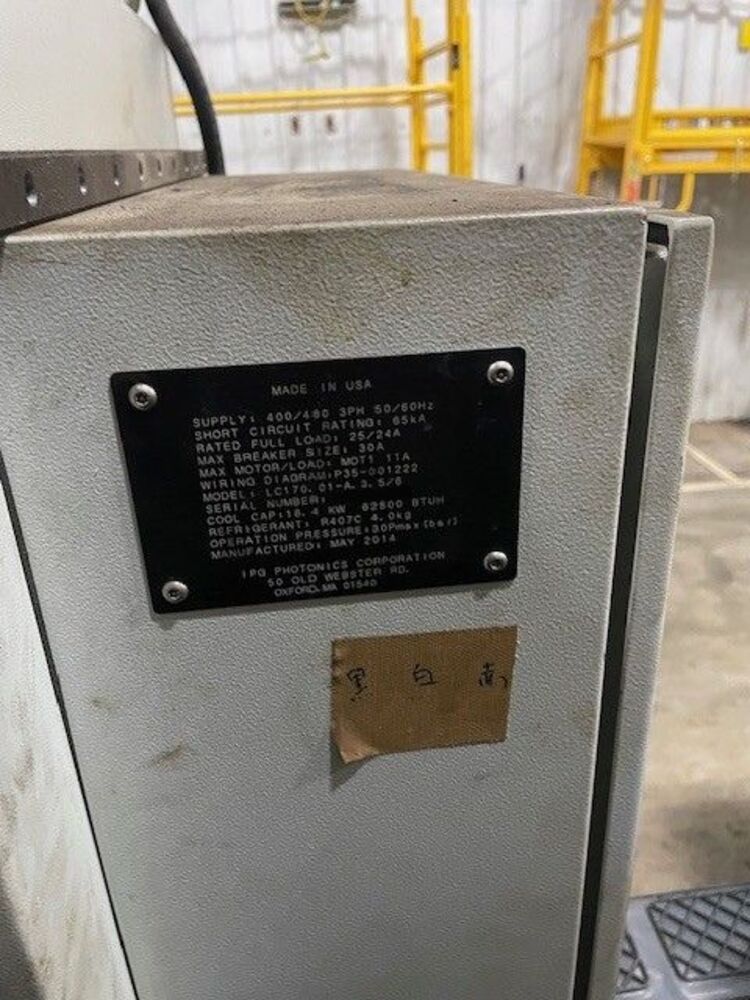

Air-Cooled Chiller IPG LC170.01-A.3.5/6 |
|
Back Step |
Corner R Designation |
|
Step Search |
TEPROM-L200 (Hardware + Software) |
|
Chiller Unit |

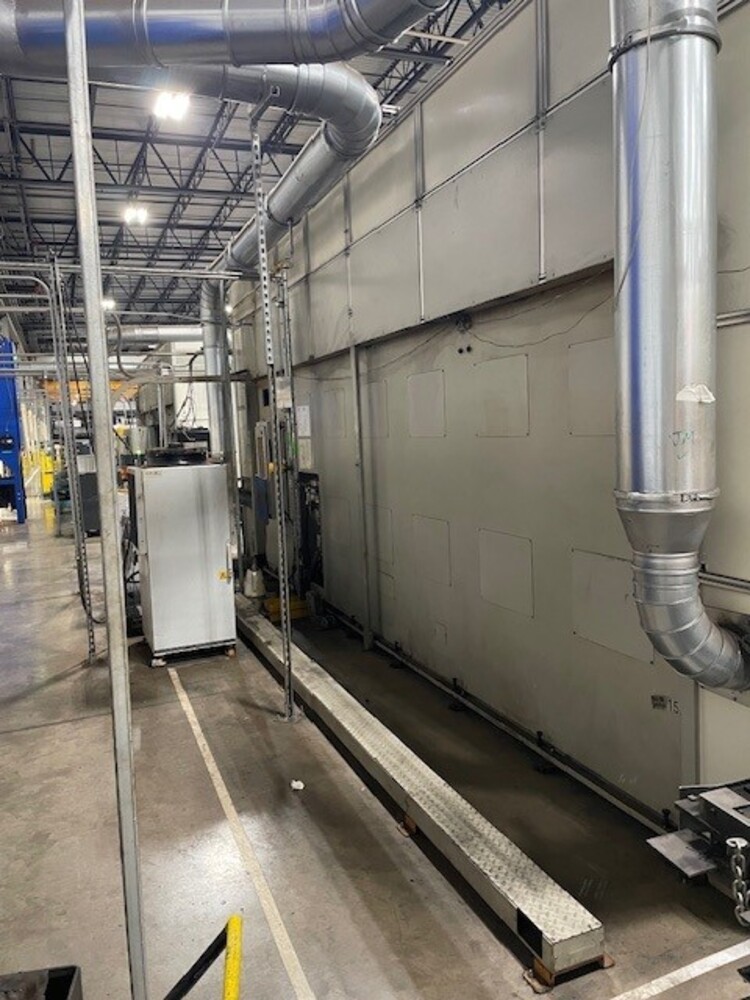

Dust Collector |
|
USB Interface |
Mirror Image |
