Year |
2021 |
|---|---|
Make |
Aeon |
Model |
Mira 9 |
Description |
1.96' x 2.95' 100W CNC Laser |
Reference # |
8078695 |
Price |
Activate Pricing |

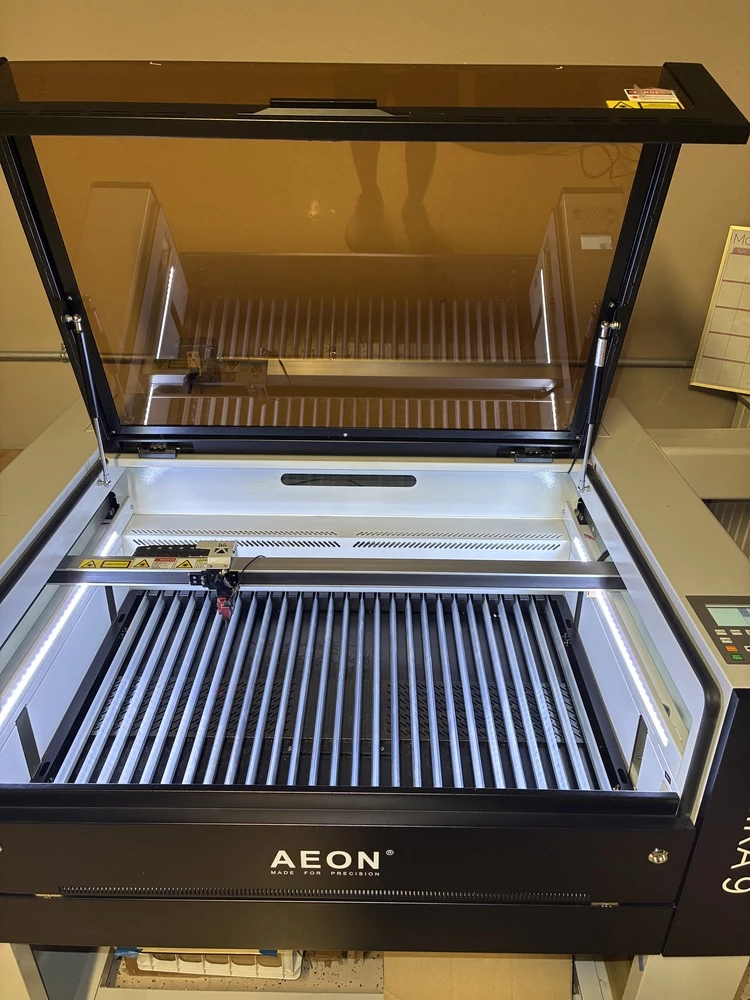

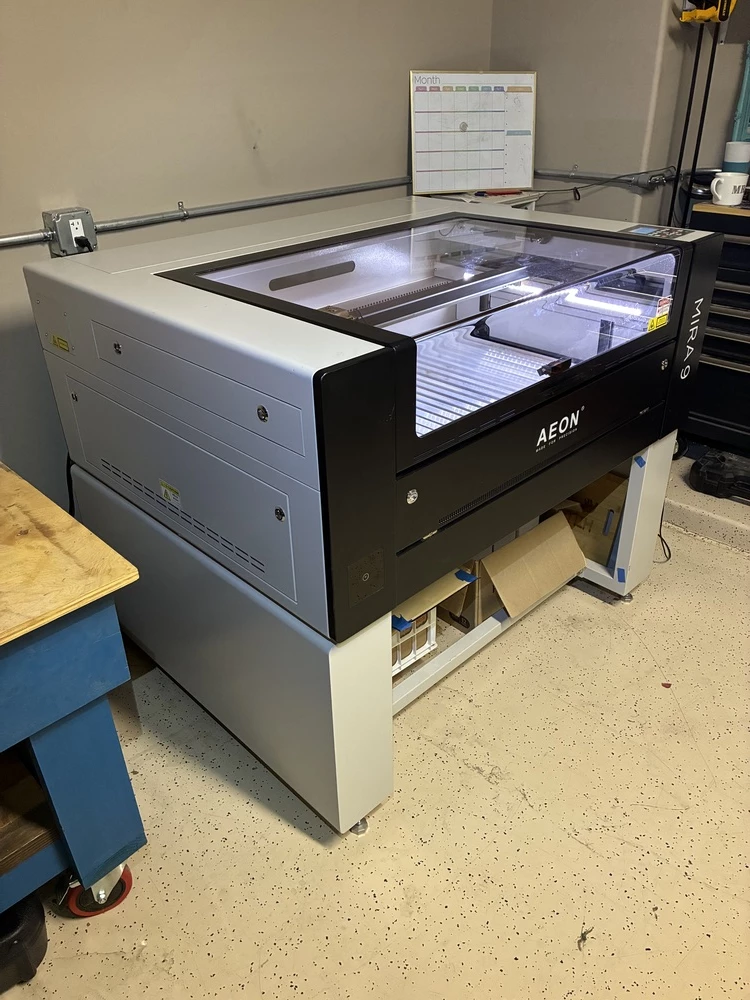

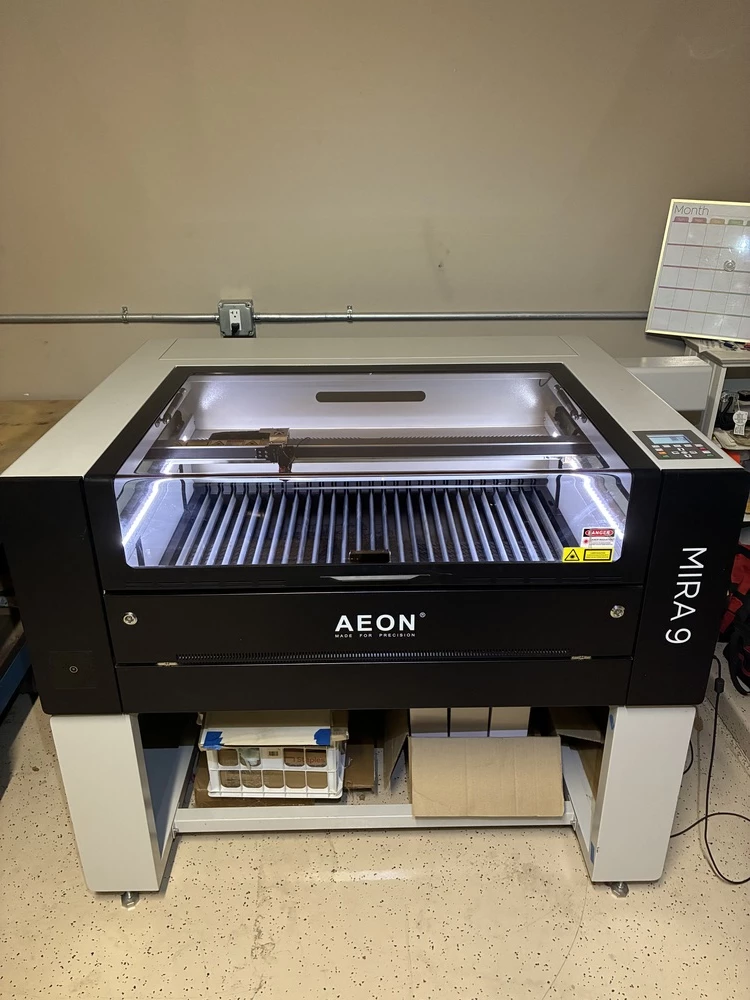

Used Aeon Mira 9 (2021) Laser for Sale. This CO2 laser has a 900 mm x 600 mm (23-5/8″ x 35-1/2″) horizontal workspace with a 600 mm wide by 900 mm long table, and 150 mm (5-7/8″) of motorized adjustable Z-axis travel for bed clearance. Max wattage is 100 at a 10600 nm wavelength, with engraving speeds to 1200 mm/s, cutting speeds of 680 to 1000 mm/s, 5G max acceleration, positioning precision of hup to 1000 DPI scanning resolution. Control is Ruida DSP running on 110 AC / 50/60HZ, compatible with LightBurn, RDWorks, CorelDraw, AutoCAD and Photoshop. Cutting thickness is 0 to 10 mm natively, up to 1″ depending on material density and focal lens selection. Equipped with a built-in cooling system, air assist pump, fume exhaust fan, chiller unit and dust collector. The machine can be seen under power for an inspection. See more used laser cutting machines, then Activate Pricing and Request a Quote.
Specifications
| Table Width |
600 mm |
|---|---|
| Table Length |
900 mm |
| Max Wattage |
100 |
| Control |
Ruida DSP |
| Power Requirement |
110 AC / 50/60HZ |
| Horizontal Workspace Area |
900 mm x 600 mm (23-5/8″ x 35-1/2") |
| Laser Wavelength |
10600 nm |
| Z-Axis Travel (Bed Clearance) |
150 mm (5-7/8") Motorized Adjustable Lift |
| Max Engraving Speed |
1200 mm/s |
| Max Cutting Speed |
680 to 1000 mm/s |
| Max Acceleration Speed |
5G |
| Positioning/Locating Precision |
≤ 0.1 mm |
| Max Scanning Resolution |
1000 DPI |
| Compatible Software |
LightBurn/RDWorks/CorelDraw/AutoCAD/Photoshop |
| Cutting Thickness Capacity |
0 to 10 mm Natively (Up to 1” Depending on Specific Material Density and Focal Lens Selection) |
Features
|
Built in Cooling System/Air Assist Pump/Fume Exhaust Fan |
Chiller Unit |
|
Dust Collector |
