Year

2012

Make

Star

Model

ST-38

Description

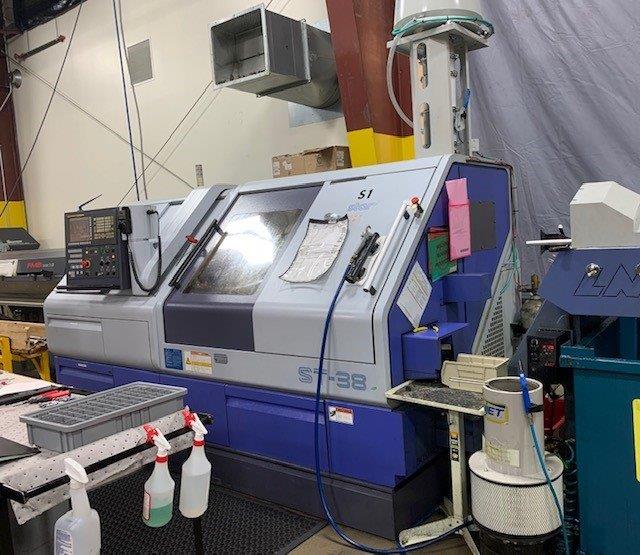

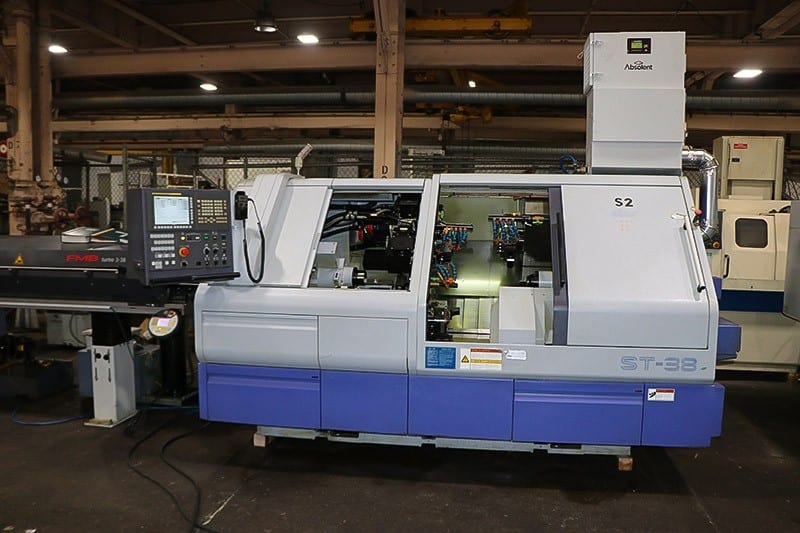

CNC Swiss Lathe

Reference #

8070771

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Specifications

Max Machining Diameter

38mm (1-1/2")

Max Headstock Stroke

350mm (13-25/32")

Front Working Turret Toolpost

Front Side Turret: 10 Stations, Back Side Turret: 10 Stations

Number Of Turning Tools

Max 2 Tools/Station

Tool Shank

16mm/20mm

Sleeve Holder Max Depth Of Hole Capability

120mm

Power Driven Att. Number Of Tools

Max 2 Tools/Station

Power Driven Att. Max Drilling Capability

10mm

Power Driven Att. Max Tapping Capability

M8xp1.25

Main Spindle Indexing Angle

C-Axis Control

Main Spindle Speed

Max 7.000min

Main Spindle Motor

Built-In Motor Drive 7.5kw (Continuous)/11kw(25)

Power-Driven Att. Spindle Speed

Max 5.700min

Power-Driven Att. Drive Motor

Ac Servo Drive 2.7kw (Continuous) 4.0kw(5min/30)

Coolant Tank Capability

245

Dimensions (WxDxH)

Dimensions (WxDxH) 3,477x1,859x1,865mm

Center Height

1,134mm (Including Leveling Pads)

Weight

6,250kg

Power Consumption

10.5kva

A-Weighted Sound Pressure

Max 71 Db(A)

Max. Chucking Diameter

38mm (1-1/2")

Backworking Attachment Max. Part Pick-Up Length

150mm (5-7/8")

Backworking Attachment Max. Parts Projection Length

75mm (2-15/16")

Backworking Turret Tool Post

10 Station

Backworking Attachment Number Of Turning Tools

Max. 2tools/Station

Backworking Attachment Tool Shank

16mm/20mm

Sleeve Holder Number Of Tools

Max. 3 Tools/Station

Sleeve Holder Max. Drilling Capability

23mm (29/32")

Sleeve Holder Max. Tapping Capability

M12xp1.75

Power Driven Attachment Number Of Tools

Max. 2 Tools/Station

Power Driven Attachment Max. Drilling Capability

10mm (25/64")

Power Driven Attachment Max. Tapping Capability

M8xp1.25

Power Driven Attachment Spindle Speed

Max. 5,700 Rpm

Power Driven Attachment Drive Motor

2.7/4.0 Kw

Subspindle Indexing Angle

C-Axis Control

Subspindle Speed

Max. 7,000 Rpm

Subspindle Motor

5.5/7.5kw

Bar Capacity (mm)

38

Features

(6) Total Static Tool Holders

(9) Total Live Tool Holders

3 Turret - All Live Stations

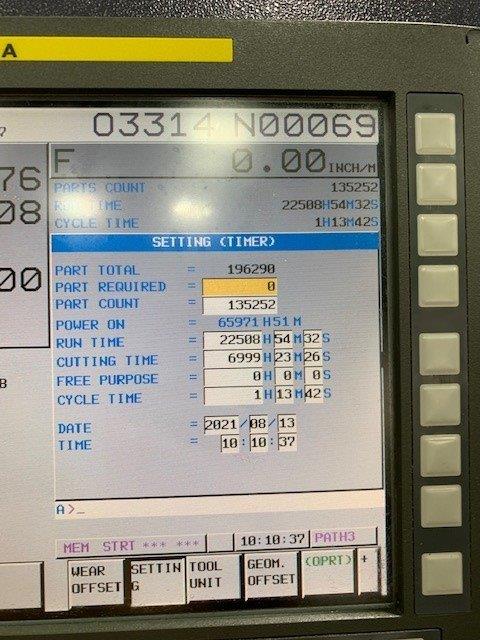

Fanuc 30ia CNC Control

Fire Suppression (No Tank)

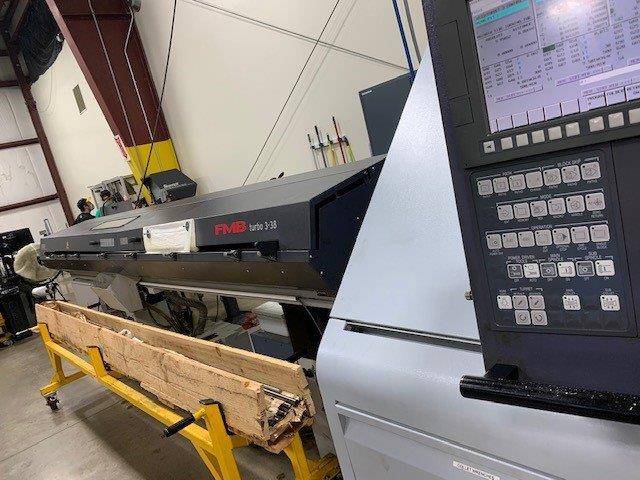

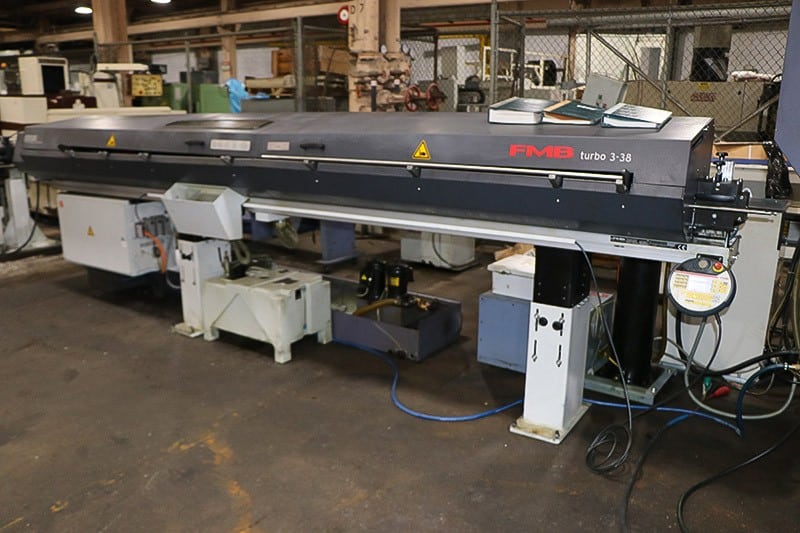

FMB Turbo 3-38 Magazine Bar Feed

LNS Chip Conveyor

Oil Based
