Year |
2008 |
|---|---|
Make |
Hwacheon |
Model |
Cutex 240 |
Description |
CNC Lathe |
Reference # |
8077190 |
Price |
Activate Pricing |

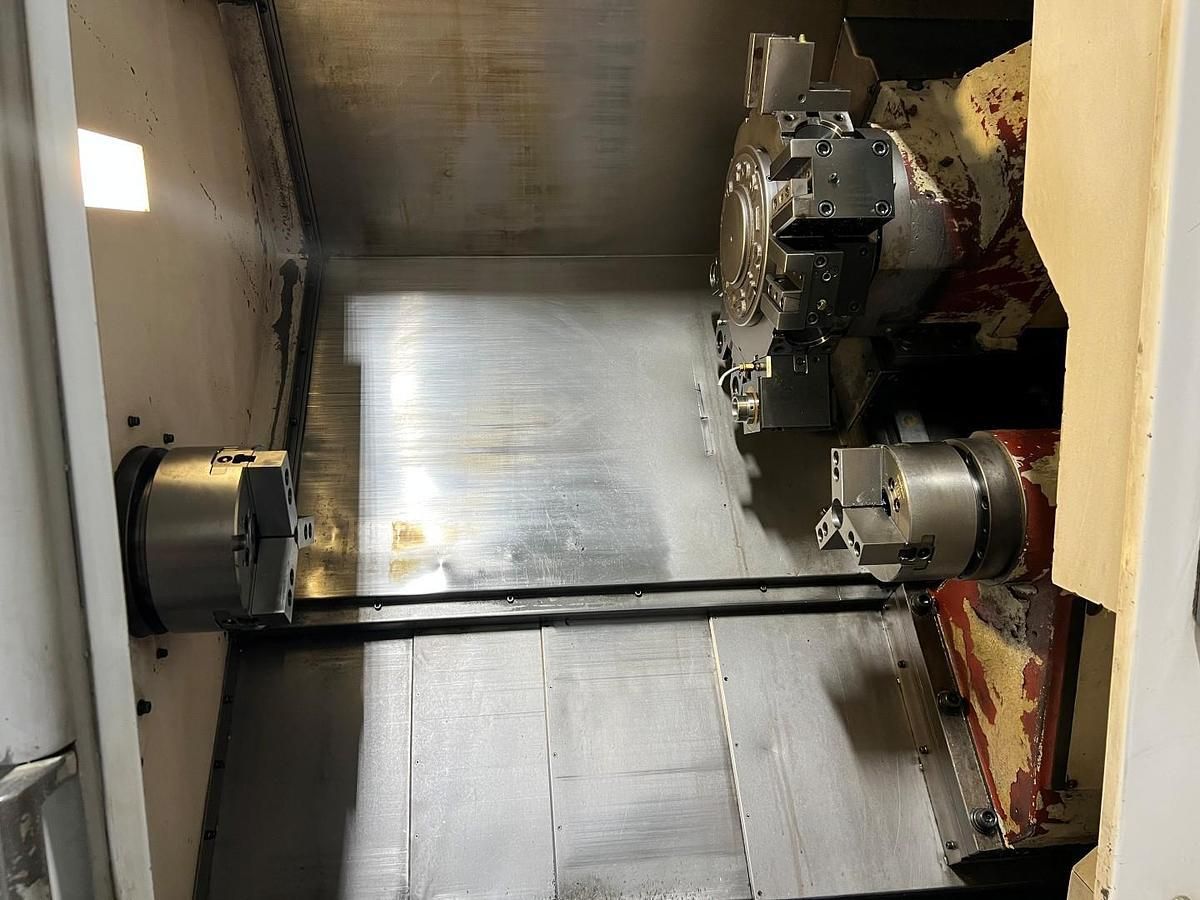

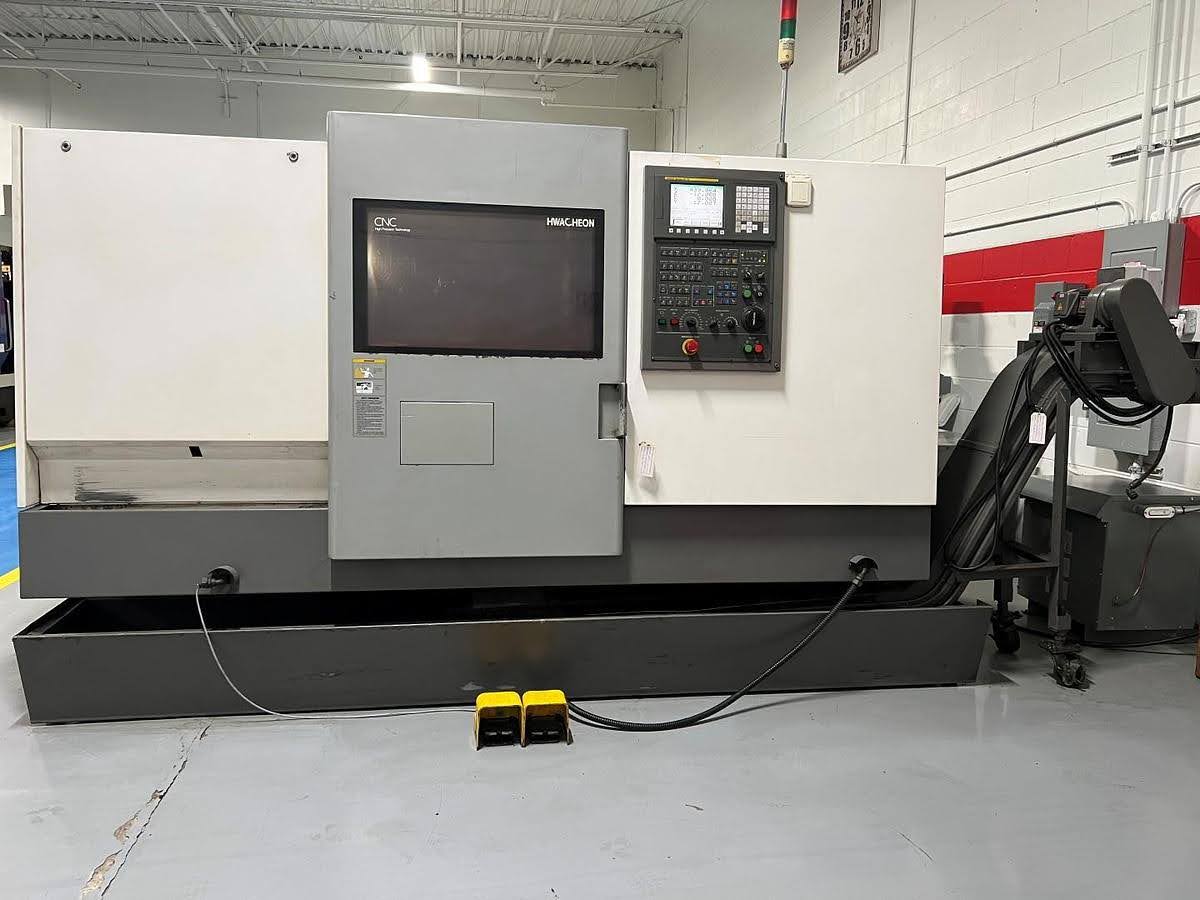

Used Hwacheon Cutex 240 (2008) CNC Lathe for Sale. This turning center has an 8″ chuck, 2.5″ bar capacity, 22.8″ swing, and 15″ turning diameter, with 24″ between centers and 8.46″ of X-axis travel. Spindle speed runs to 5,000 RPM, and the machine is equipped with a 12 station turret, C-axis live tooling, and a sub-spindle for second-operation work. Control is a Fanuc Oi-TF. A chip conveyor is included for chip removal. The machine can be seen under power for an inspection, so you can verify the spindle, turret, and control functions before committing. See more comparable machines among our used CNC lathes or browse our other Hwacheon equipment. Activate Pricing to view the figure, then Request a Quote. This machine is located in Canada.
Specifications

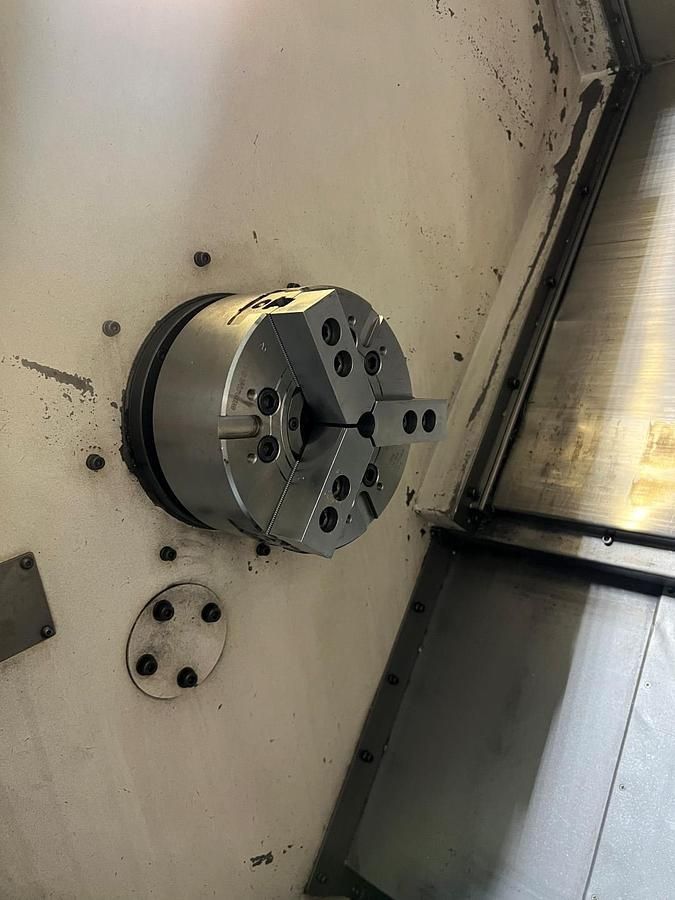

| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
22.8" |
| Turning Diameter |
15" |
| Spindle Speed |
5,000 RPM |

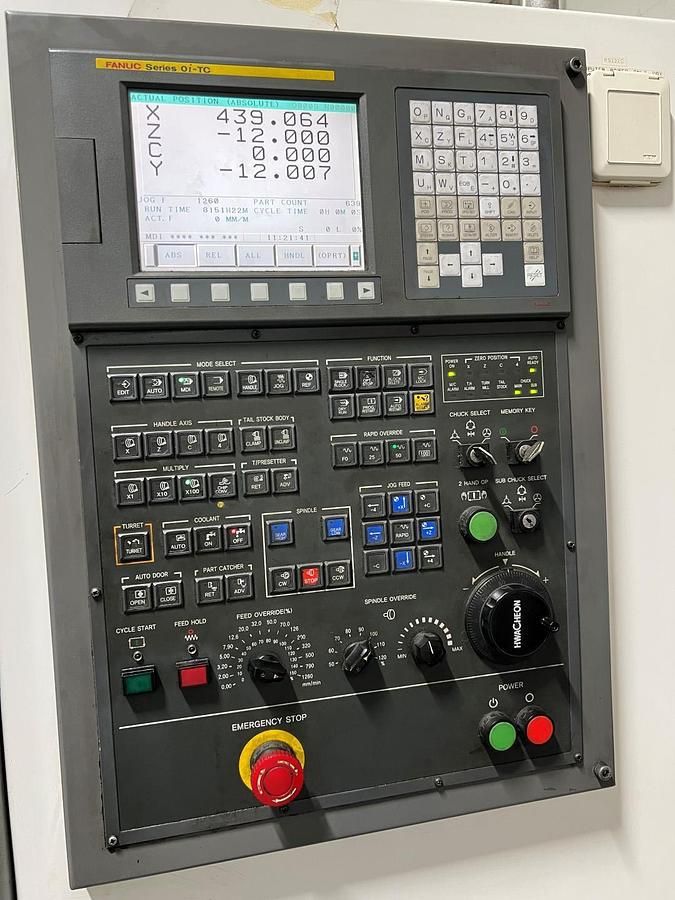

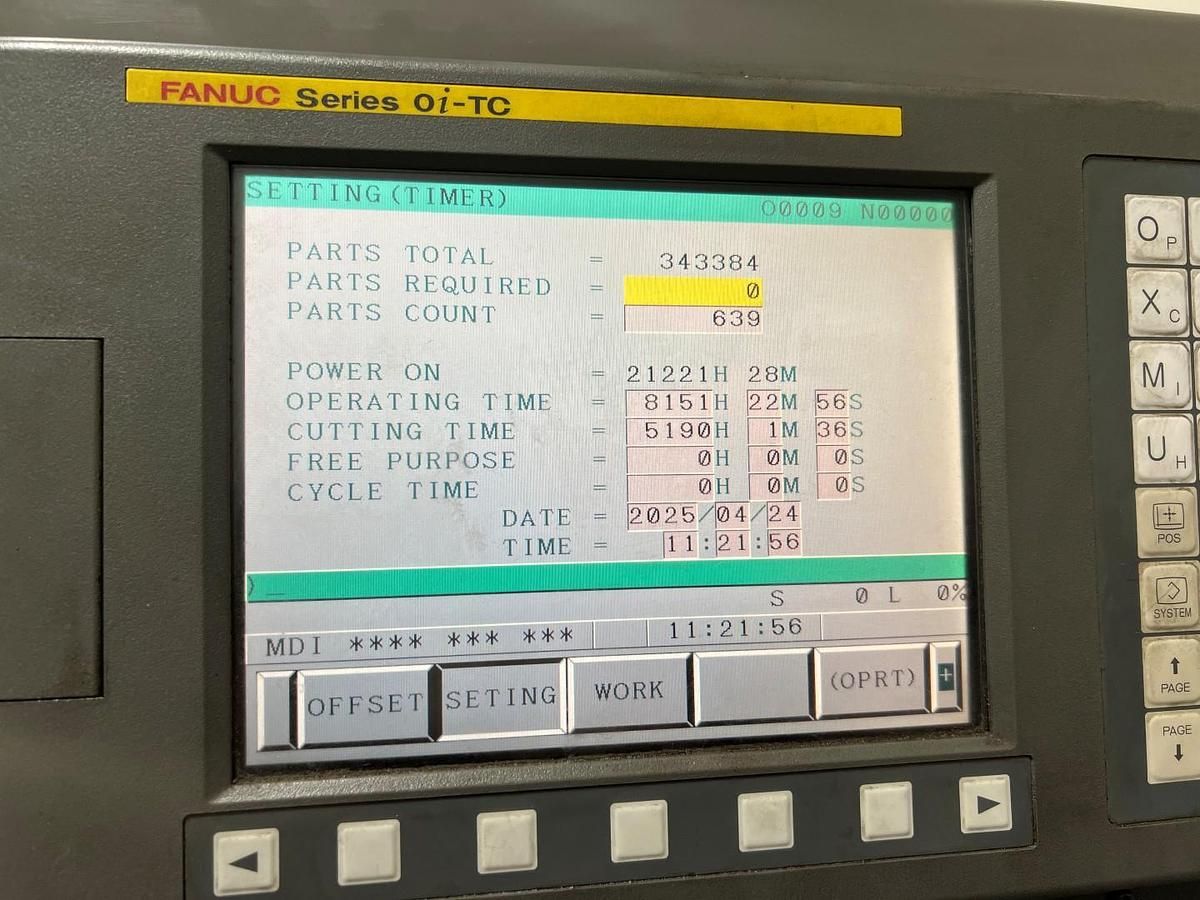

| Control |
Fanuc Oi-TF |
| Distance Between Centers |
24" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Sub-Spindle |
Yes |
| X-Axis Travel |
8.46" |
| Chip Removal |
Chip Conveyor |
