Year |
2011 |
|---|---|
Make |
Mazak |
Model |
Slant Turn Nexus 550M |
Description |
CNC Lathe |
Reference # |
8077429 |
Price |
Activate Pricing |

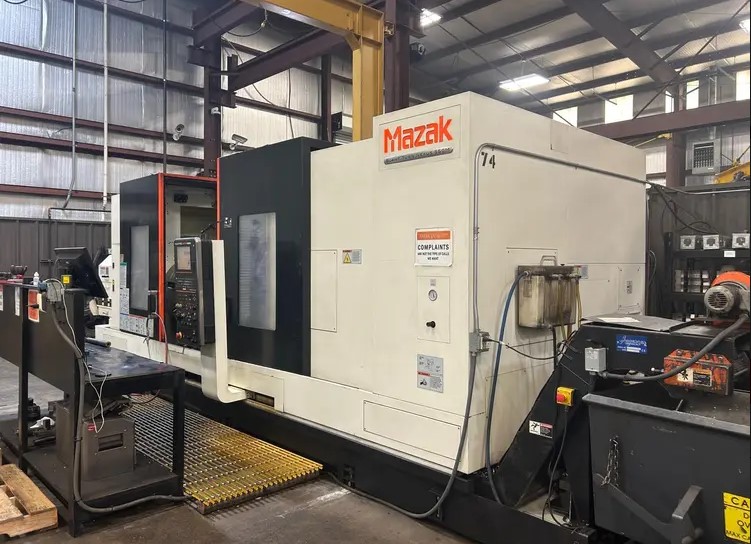

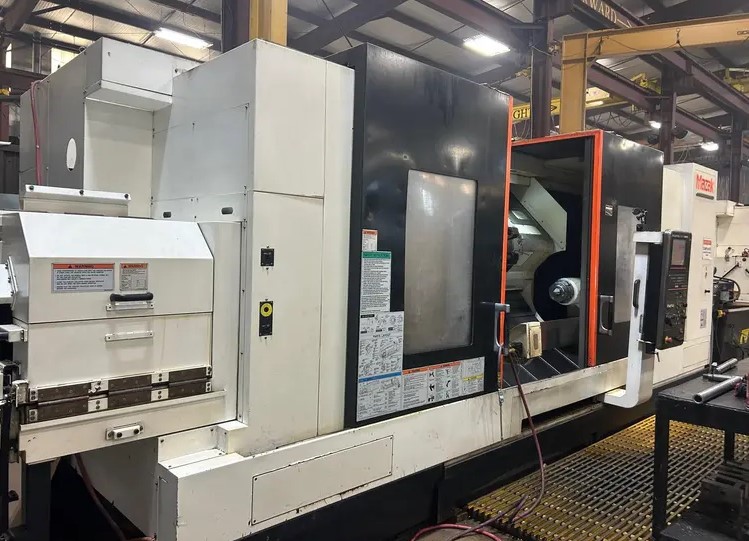

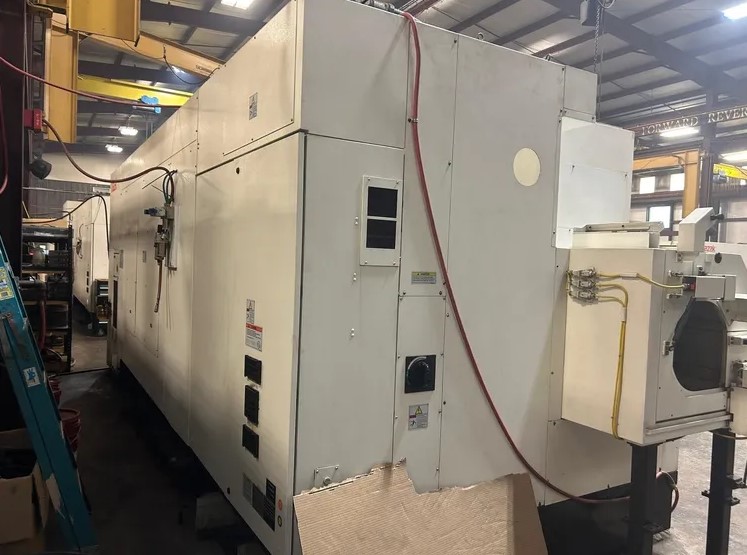

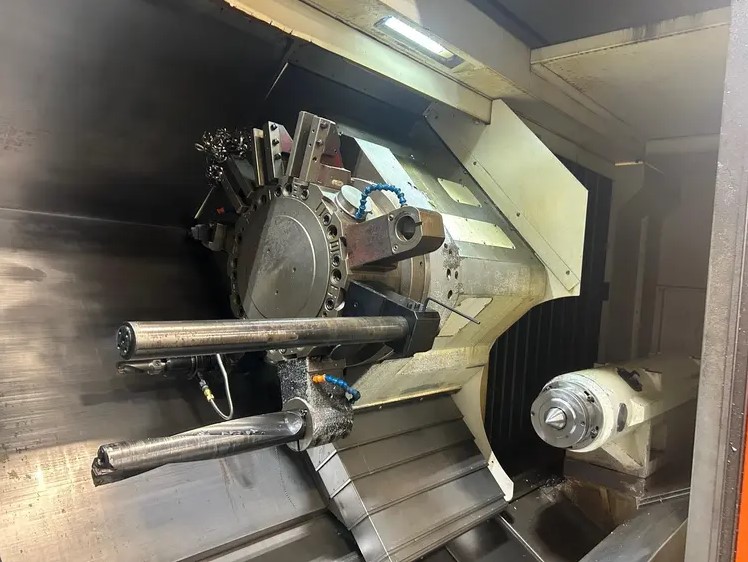

Used Mazak Slant Turn Nexus 550M (2011) CNC Lathe for Sale. This large-capacity turning center features a 24″ chuck, 12.5″ bar capacity, 40.9″ swing and 29″ turning diameter, with 80″ between centers. The 60 HP spindle turns to 750 RPM and is run through a Mazatrol Matrix Nexus control. A 12-position turret with C-axis live tooling handles milling and drilling work, and a chip conveyor is fitted for chip removal. Equipped with a 24″ air chuck, EIA option, tailstock, rear chuck preparation and multitap transformer. The steady rest and chuck shown in the photos are not included. The machine can be seen under power for an inspection. See more used CNC lathes or browse our Mazak inventory, then Activate Pricing or Request a Quote.
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
12.5" |
| Swing |
40.9" |
| Turning Diameter |
29" |
| Spindle Speed |
750 RPM |
| Control |
Mazatrol Matrix Nexus |
| Distance Between Centers |
80" |
| Turret |
12 Position |
| Chip Removal |
Chip Conveyor |
| Live Tooling |
C-Axis Live Tooling |
| Spindle Motor |
60 HP |
Features
|
24" Air Chuck |
EIA Option |
|

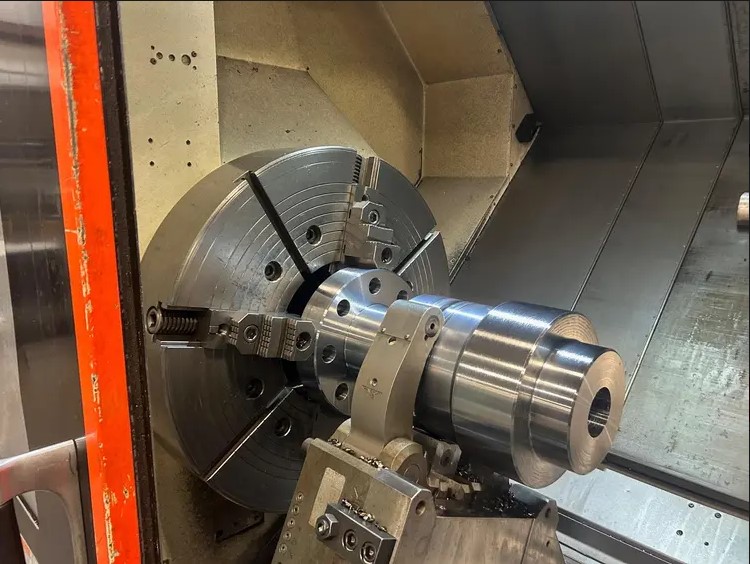

Steady Rest and Chuck in Photos Not Included |
Tailstock |
|
Rear Chuck Preparation |
Multitap Transformer |
