Year |
2023 |
|---|---|
Make |
Mazak |
Model |
Integrex i-100H ST |
Description |
CNC Lathe (Purchased and installed in 2025) |
Reference # |
8078873 |
Price |
Activate Pricing |

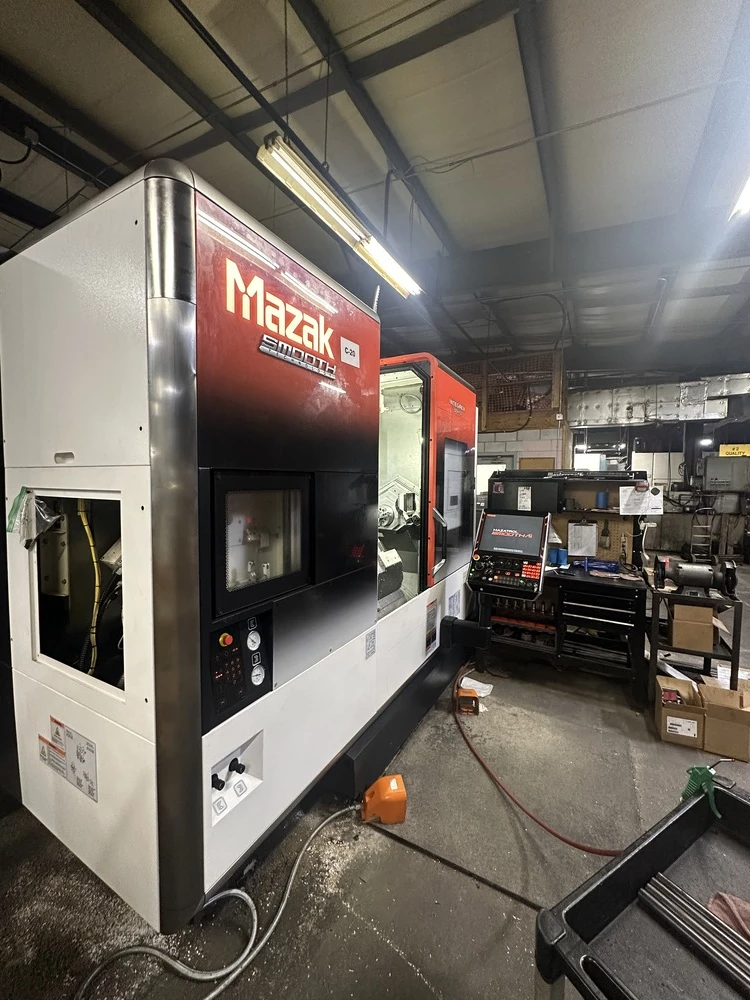

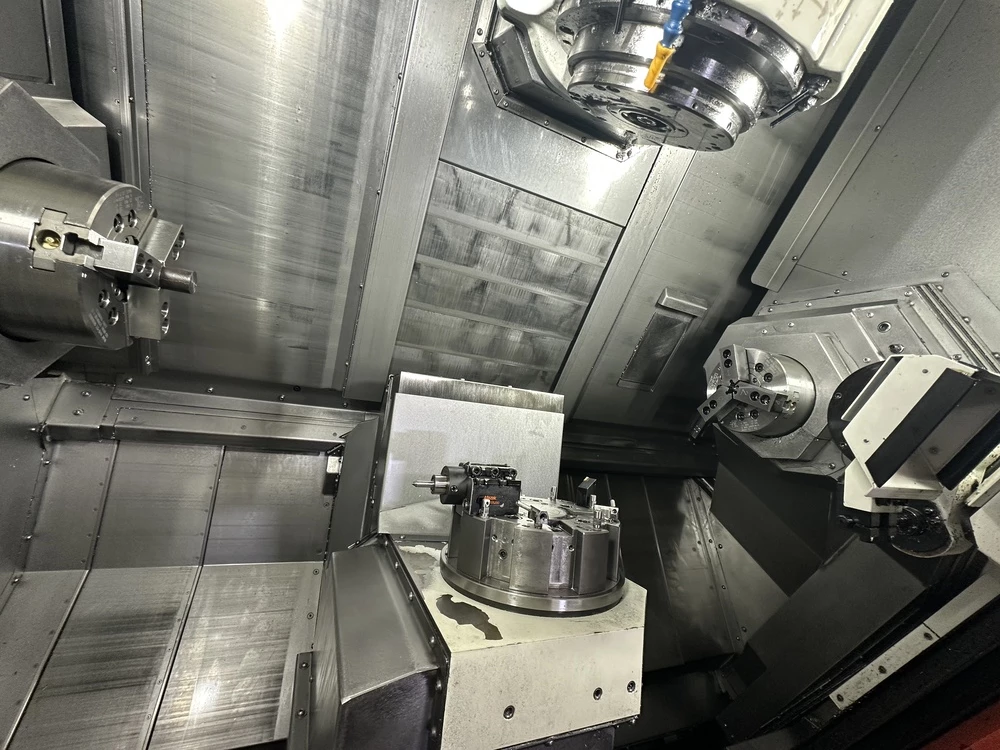

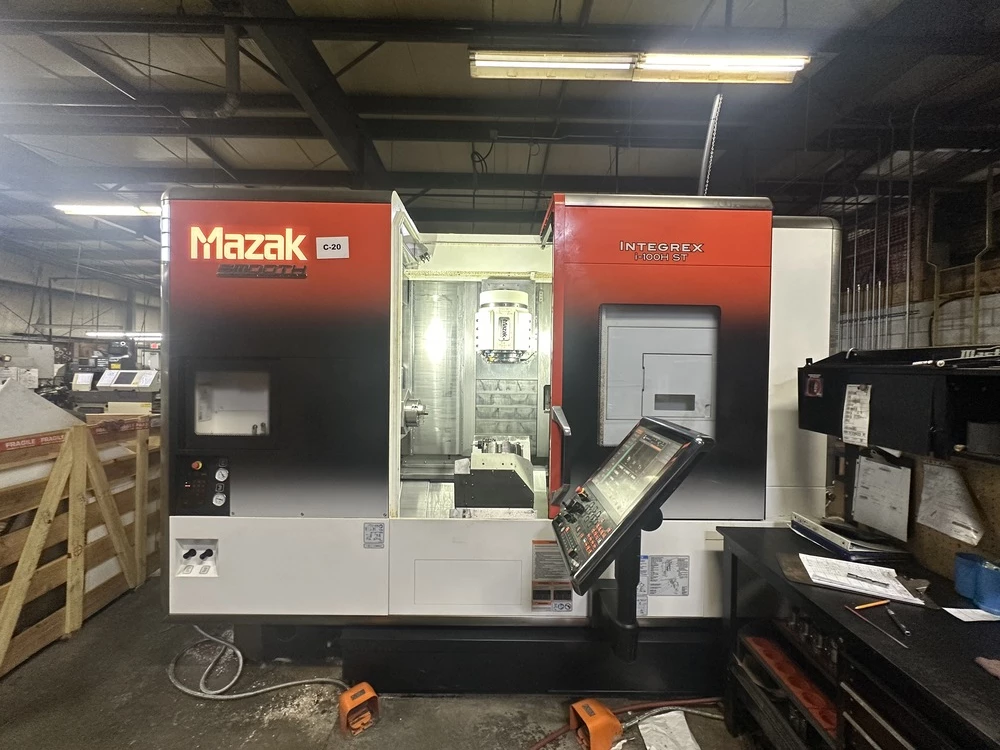

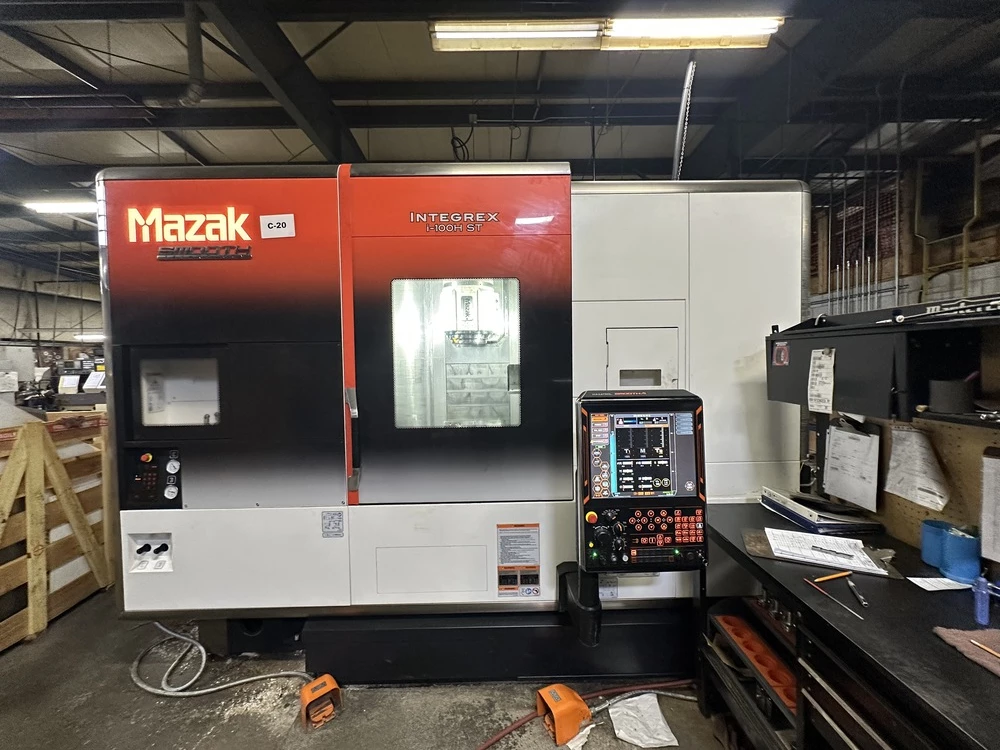

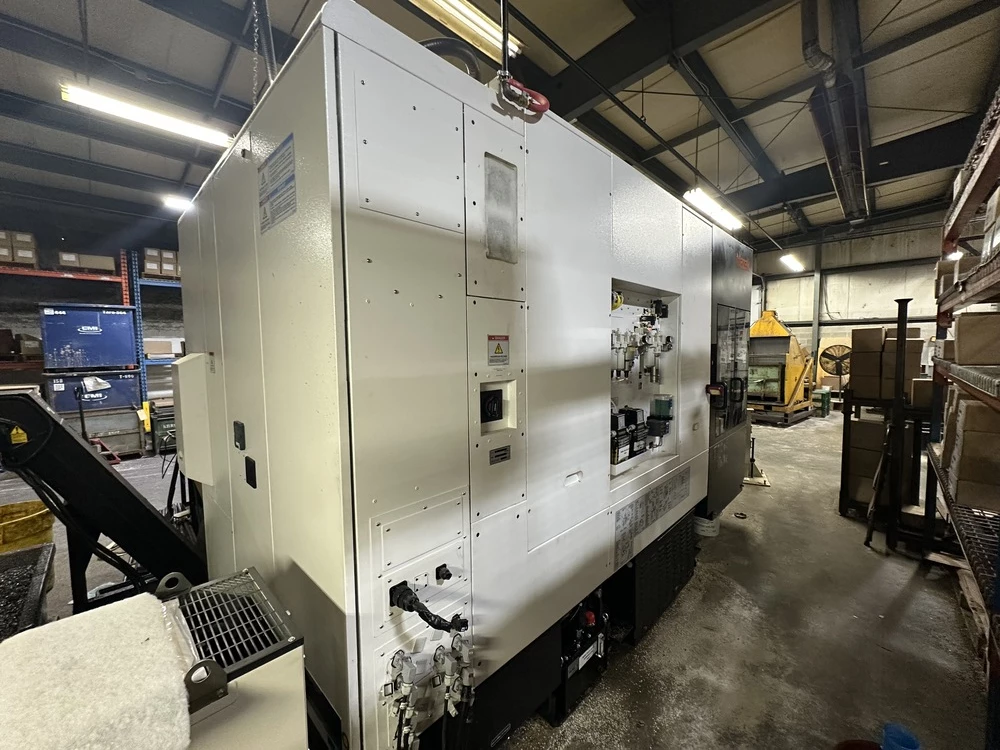

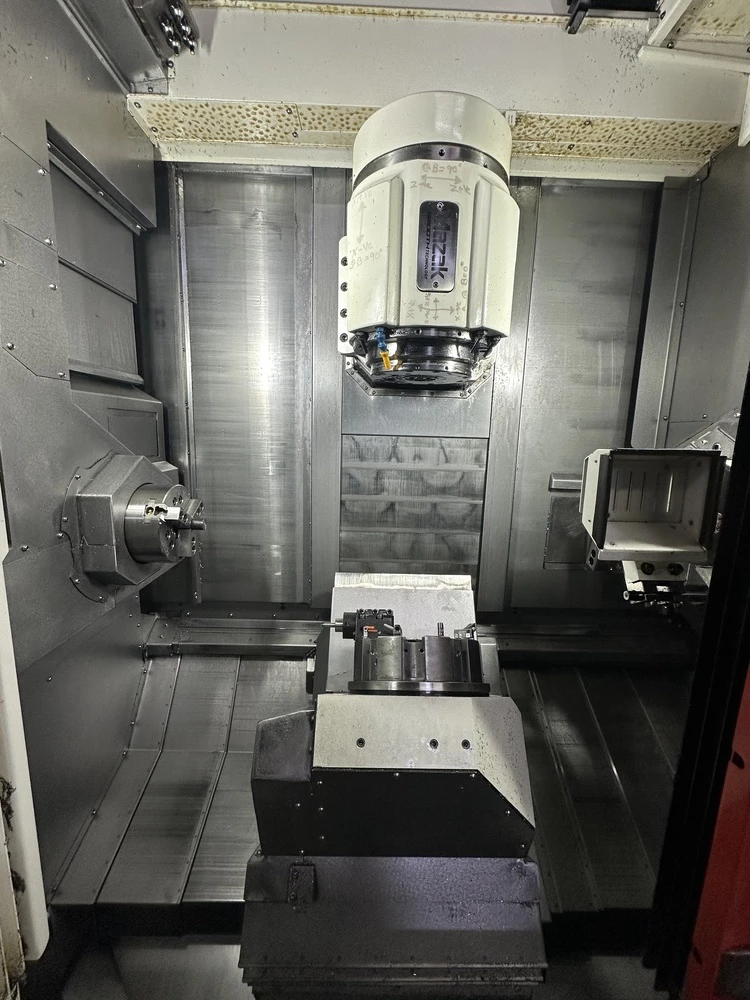

Used Mazak Integrex i-100H ST (2023) CNC Lathe for Sale. This multi-tasking turning center runs a Mazatrol SmoothAi control with a 6″ chuck, 2″ bar capacity, 20.9″ swing and 24″ turning diameter, with 33″ between centers. Spindle speed is 6,000 RPM, and the 9 station turret carries C-Axis live tooling with Y-Axis and rotary speed to 12,000 RPM. Equipped with a sub spindle, auto tool presetter, parts catcher and chip conveyor. The machine can be seen under power for an inspection by appointment. See more used CNC lathes or browse our Mazak inventory. Use the Activate Pricing link for current figures, or Request a Quote and we will follow up with details. This machine is located in Canada.
Specifications
| Chuck Size |
6" |
|---|---|
| Bar Capacity |
2" |
| Swing |
20.9" |
| Turning Diameter |
24" |
| Spindle Speed |
6,000 RPM |

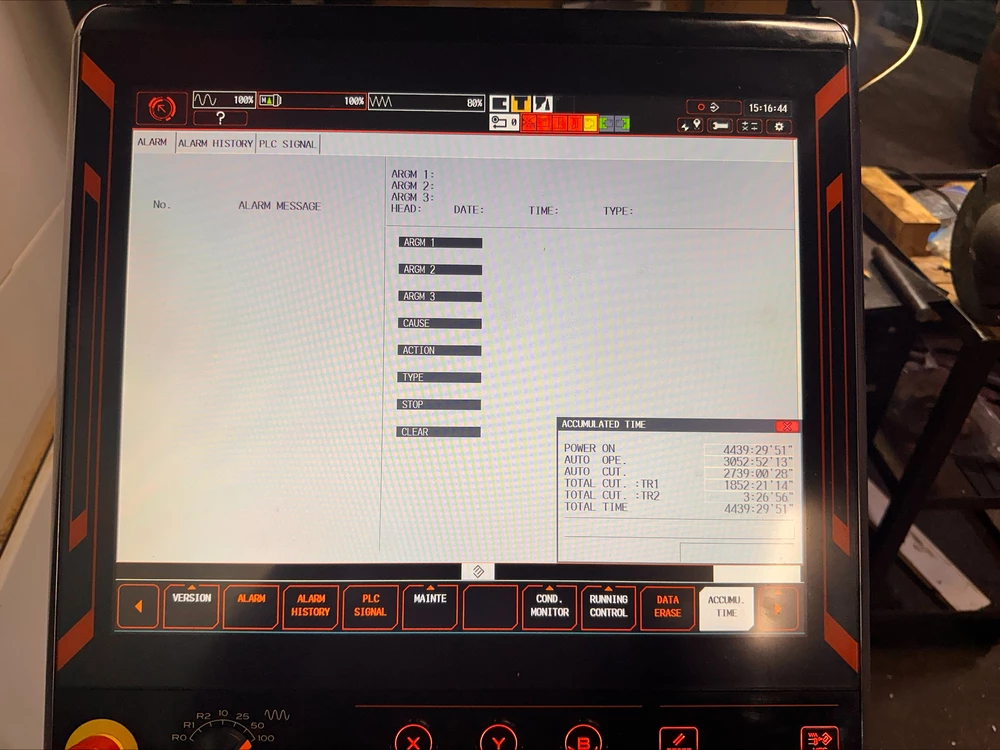

| Control |
Mazatrol SmoothAi |
| Distance Between Centers |
33" |

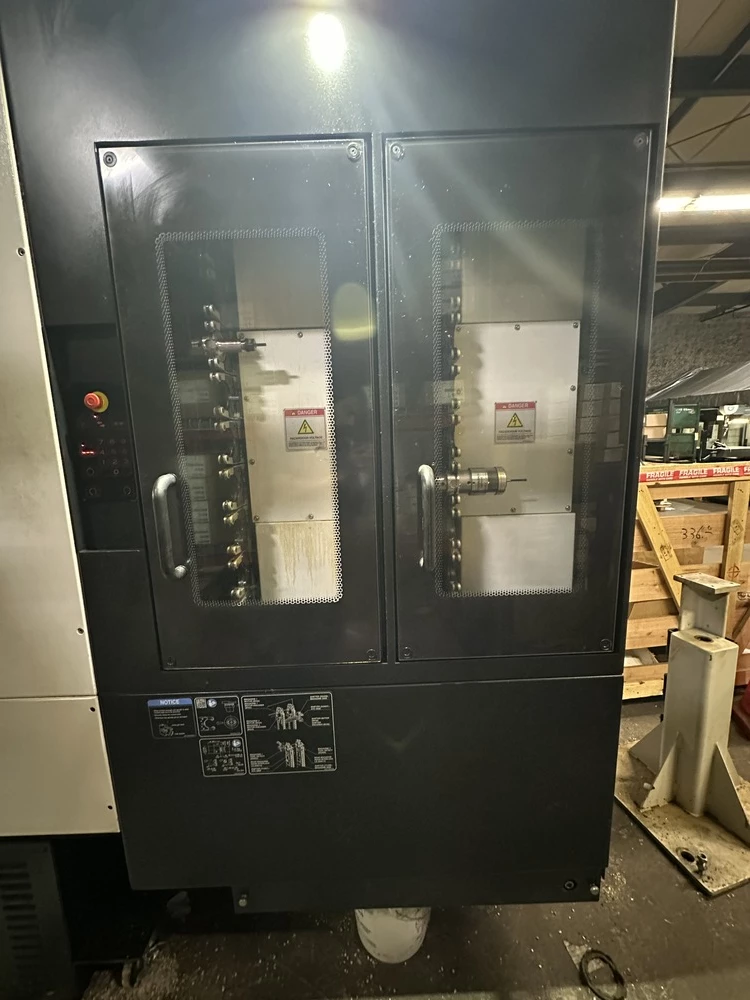

| Turret |
9 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Rotary Speed |
12,000 RPM |
| Chip Removal |
Chip Conveyor |
Features
|
Auto Tool Presetter |
Parts Catcher |
|
Sub Spindle |
