KD Machinery and the Mazak Integrex
We have handled 12 Mazak Integrex machines, spanning build years 2001 to 2023. That is our own record, not a catalog listing.
The most common Mazak Integrex we have handled is the Integrex i-200S — 2 of the 12 machines.
The Mazak Integrex variants we have handled
- Integrex i-200S — 2 of 12
- Integrex i200S — 1 of 12

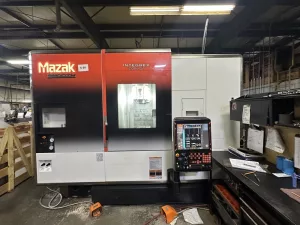

- Integrex i-100H ST — 1 of 12
- Integrex e650HII x 120 — 1 of 12
- Integrex i400S — 1 of 12
- Integrex i-500V — 1 of 12
- Integrex 300-IV — 1 of 12
- Integrex e-800V — 1 of 12
Plus 3 in less common variants.
Specifications, from the machines we have handled
| Chuck Size | 8" (4 of 12), 6" (2 of 12), 15" (2 of 12), and 2 others |
|---|---|
| Bar Capacity | 2.5" (2 of 12), 2" (2 of 12), 2.56" (2 of 12), and 4 others |
| Swing | 25.9" (3 of 12), 20.9" (1 of 12), 24" (1 of 12), and 4 others |
| Turning Diameter | 25.9" (3 of 12), 24" (1 of 12), 36.2" (1 of 12), and 5 others |
| Distance Between Centers | 40" (3 of 12), 120" (2 of 12), 33" (1 of 12), and 3 others |
| X-Axis Travel | 43.31" (1 of 12), 35" (1 of 12) |
| Y-Axis Travel | 31.5" (1 of 12), 31" (1 of 12) |
| Z-Axis Travel | 35.43" (1 of 12), 25" (1 of 12) |
| Spindle Speed | 5,000 RPM (4 of 12), 6,000 RPM (2 of 12), 3,300 RPM (2 of 12), and 4 others |
| Spindle Taper | CAT 40 (2 of 12), CT 50 (1 of 12) |
| Spindle Motor | 30 HP (1 of 12), 50 HP (1 of 12), 40 HP (1 of 12) |
| Tool Magazine Capacity | 80 ATC (2 of 12), 36 ATC (1 of 12), 110 ATC (1 of 12), and 1 other |
| Turret | 12 Station (2 of 12), 9 Station (1 of 12), 80 Tool (1 of 12), and 2 others |
| Control | Mazatrol Matrix 2 (3 of 12), Mazatrol Matrix (3 of 12), Mazatrol SmoothAi (1 of 12), and 5 others |
What we have listed Mazak Integrex machines at
Across 31 Mazak Integrex machines we have listed with a published price, the middle half ran from $99,900 to $319,500, with a median of $229,750. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it. Ask us where a specific one sits.
Questions buyers ask
How much does a used Mazak Integrex cost?
Across 31 Mazak Integrex machines KD Machinery has listed with a published price, the middle half ran from $99,900 to $319,500, with a median of $229,750. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it.
Which Mazak Integrex variant is most common?
Of the 12 Mazak Integrex machines KD Machinery has handled, the most common variants are Integrex i-200S (2), Integrex i200S (1), Integrex i-100H ST (1), Integrex e650HII x 120 (1), Integrex i400S (1). That is our own record of what has actually come through, not a catalog of everything the manufacturer built.
Before you buy
Getting one inspected
We always strongly recommend an inspection before you buy. KD does not perform it ourselves — the inspection is done by you, by a third-party technician, or by the OEM.
We have a network of 3rd party techs whom we can recommend. Most buyers are looking at a machine in another state or across the country, and sending a tech who is already nearby saves the travel time and cost of going to see it yourself.
An inspection on a lathe typically covers the way covers, the chuck and jaws, the tailstock, turret indexing, coolant condition and ballscrew backlash.
Spindle hours are worth confirming rather than taking from a listing, because an hours meter can be reset. A high-hour machine that has been maintained regularly is a lot better than a lower-hour machine that has been neglected.
Buy the options from the factory
We would not recommend buying a machine and adding options later. It is very expensive to do so if it did not come out of the factory with those options.
That applies to live tooling, a tailstock, a sub-spindle, high-pressure coolant, a tool presetter, a parts catcher and a chip conveyor. The parts catcher and the chip conveyor look like bolt-ons and are not — they are hard and expensive to add after the fact.
A bar feeder is the exception. That one can be added at a reasonable expense.
Clear title
KD runs lien searches on every transaction so that our buyers can have peace of mind that they are purchasing an asset that does not have any active liens on it. We take this very seriously and are willing to pass up a deal if the seller won't cooperate on getting active liens cleared.
Where to buy a used Mazak Integrex
KD Machinery buys, sells and brokers used machinery nationwide. We have 4 used Mazak Integrex available now, listed on this page. We have handled 12 of them, built between 2001 and 2023.
Our office is in Scottsdale, Arizona, but the machines are not. They sit wherever the seller is, across the United States, and most buyers are looking at one in another state or across the country. We arrange inspection and rigging wherever a machine stands.
Call 480.922.1674, email customerservice@kdmachinery.com, or use the quote form on any machine above. We will tell you where a specific one sits on price, what condition it is in, and can put you in touch with an inspector near it.
Mazak Integrex machines KD has sold
KD Machinery has bought and sold 8 Mazak Integrex machines built between 2001 and 2017.
