Year |
2012 |
|---|---|
Make |
Mazak |
Model |
Integrex i-500V |
Description |
CNC Vertical/Horizontal Multitasking Center |
Reference # |
8076573 |
Price |
Activate Pricing |

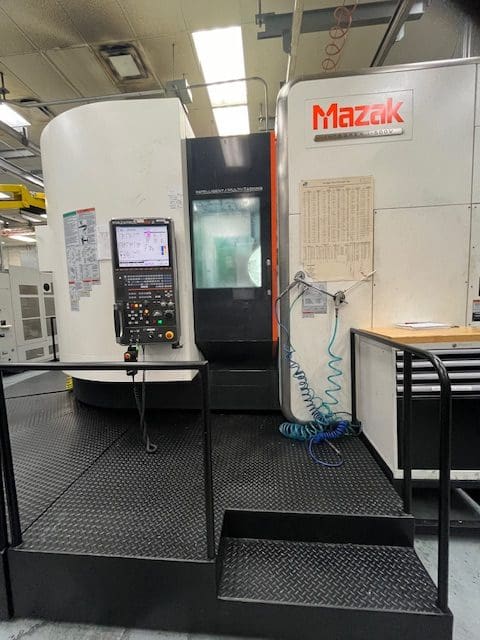

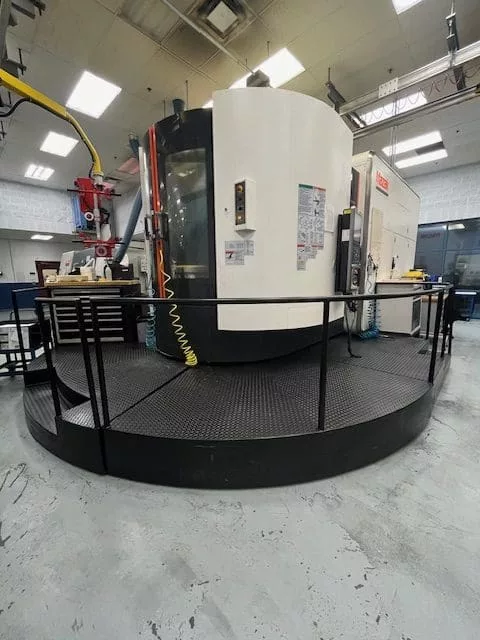

Used Mazak Integrex i-500V (2012) CNC Vertical Machining Center for Sale. This machine runs a Mazatrol Matrix 2 control with 43.31″ of X-axis travel, 31.5″ in Y, and 35.43″ in Z. The 30 HP spindle turns to 12,000 RPM with a CAT 40 taper, served by an 80-tool ATC. It has a 24″ x 24″ (610 mm) pallet, a 2-pallet changer with safety cover, and a 4th axis rotary table with full indexing and B/C-axis resolution of 0.0001 degree. Also included: EIA/ISO 5-axis simultaneous function, tool tip point control, 5-axis tool radius compensation, scale feedback on the Y/Y/Z axes, Renishaw probing, ATLM, laser mill tool measurement NC4, spindle chiller, ballscrew coolers on X/Y/Z, chip conveyor, and a Super FlowTB/1000 coolant system. See more CNC vertical machining centers or browse Mazak equipment. The machine can be seen under power for an inspection. Activate Pricing or Request a Quote. This machine is located in Arizona.
Specifications
| Pallet Size (Millimeters) |
610 |
|---|---|
| Pallet Size |
24" x 24" |
| X-Axis Travel |
43.31" |
| Y-Axis Travel |
31.5" |
| Z-Axis Travel |
35.43" |
| Tool Magazine Capacity |
80 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
30 HP |
| Control |
Mazatrol Matrix 2 |
| Pallet Indexing |
Full 4th Axis |
| Additional Axis |

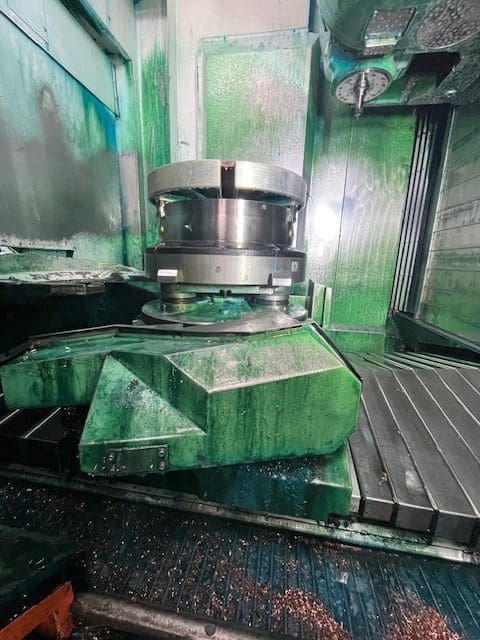

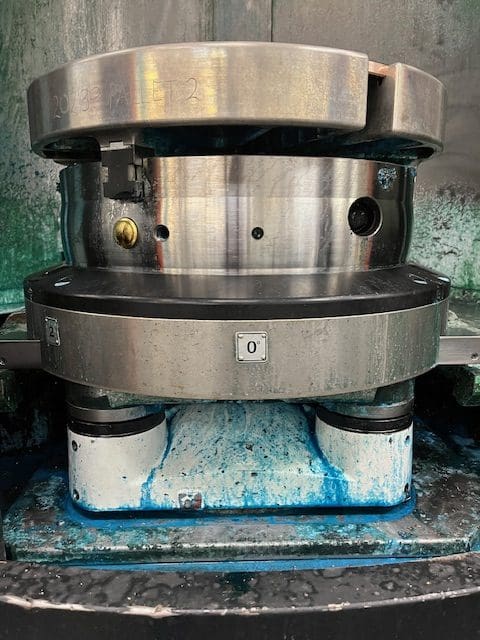

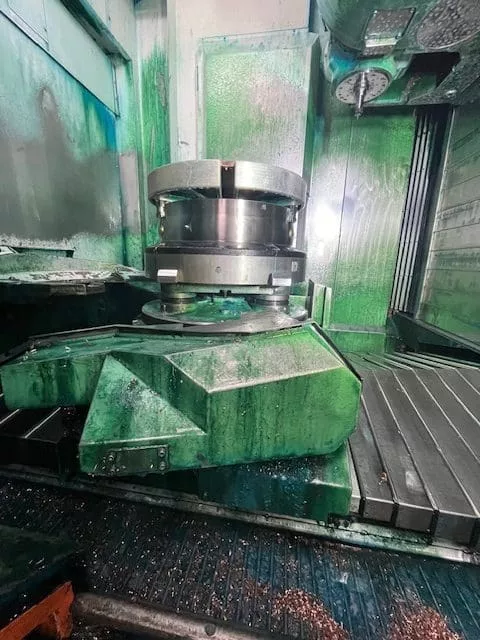

4th Axis Rotary Table |
| B/C-Axis |
0.0001 Degree |
| Chip Removal |
Chip Conveyor |
| Coolant |

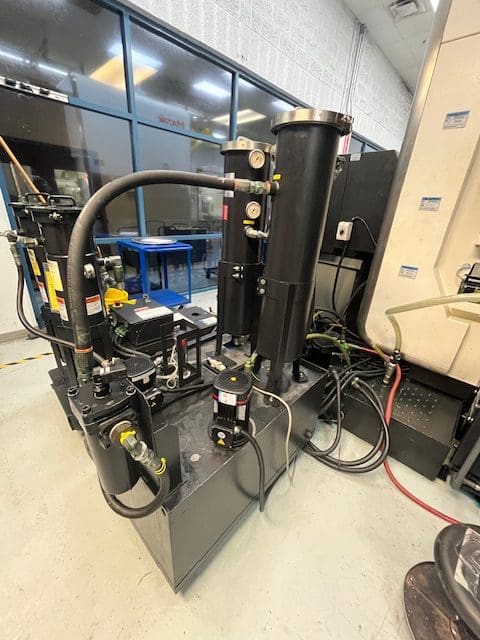

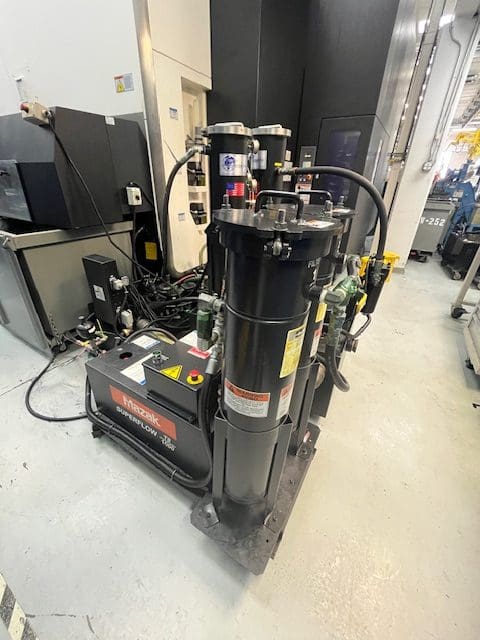

Super FlowTB/1000 Coolant System |
Features
|

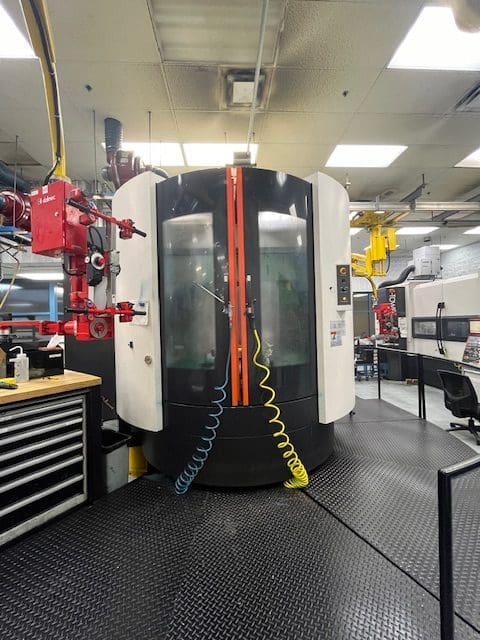

2-Pallet Changer |
24" Location Bore Tap Pallet |
|
5-Axis Tool Radius Compensation |
B Mill Spindle Synch Tapping W/O Tool |
|
Detach Manual Pulse Generator |
Double Internal Wear Resistant Conveyors |
|
EIA/ISO Function 5 Axes Simultaneous |
Laser Mill Tool Measure NC4/Full W/O Soft |
|
Manual Rotation of 2 PC Loading System |
Prep for Flash Tool System |
|
Prep for Monitoring System BMP600 |
Prep for Visual Tool ID/Data Management |
|
Safety Cover for 2 Pallet Changer |
Tool Tip Point Control / 5 Axes Simul |
|
Work Measuring System RMP600 Ready |
ATLM |
|
Scale Feedback System (Y/Y/Z Axis) |
Renishaw Probing |
|
Spindle Chiller Unit |
Coolers for Ballscrews (X/Y/Z) |
|
MT Connect Preparation |
