Year |
2015 |
|---|---|
Make |
Mikron |
Model |
HPM 1350U |
Description |
CNC Vertical Machining Center |
Reference # |
8079179 |
Price |
Activate Pricing |

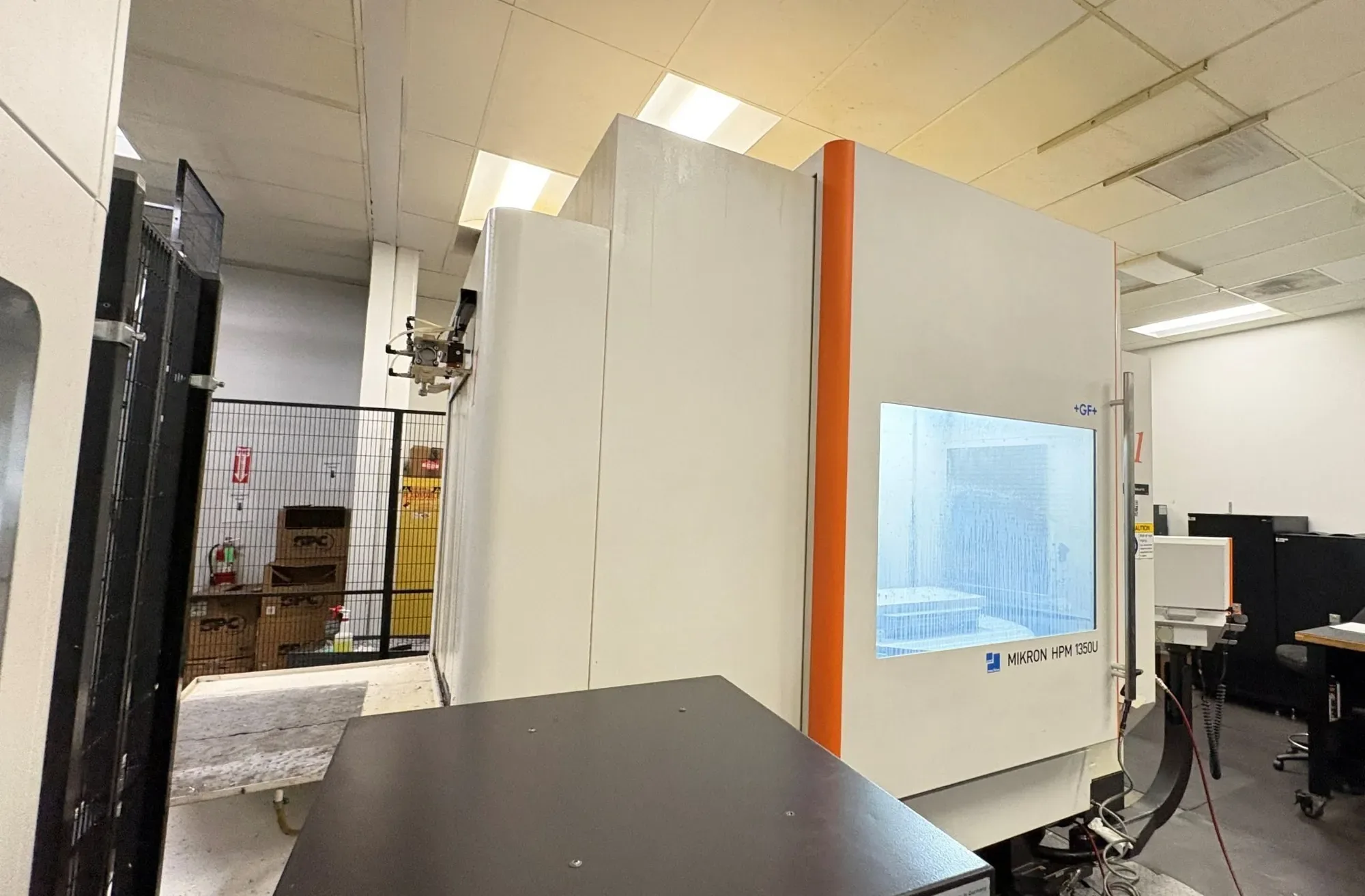

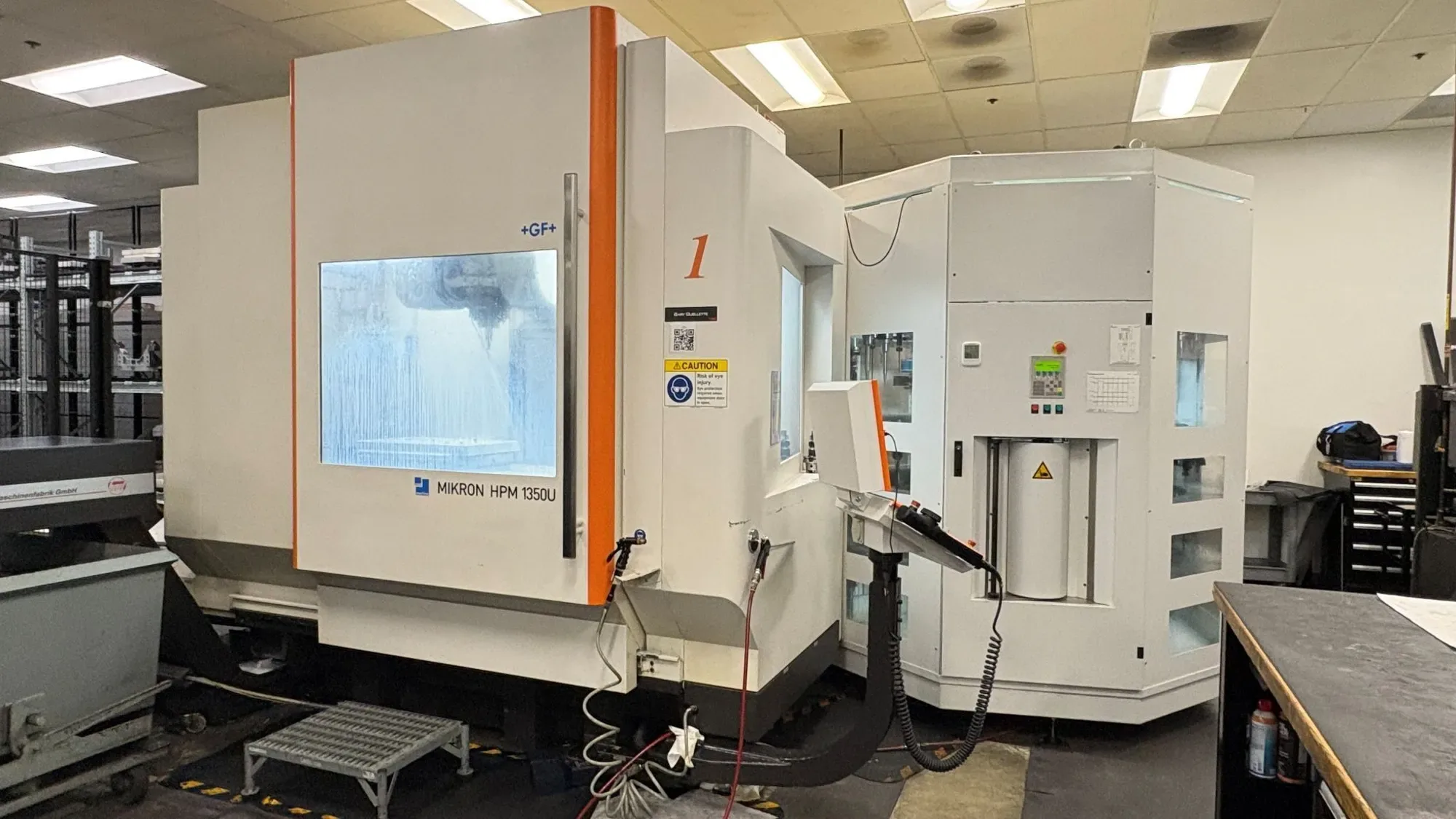

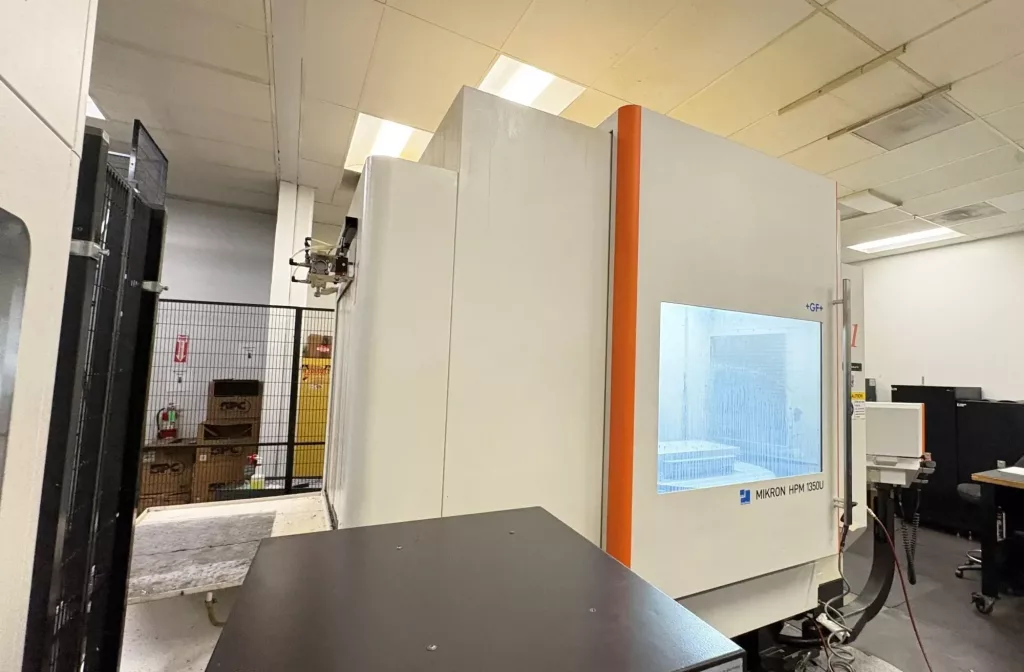

Used Mikron HPM 1350U (2015) CNC Vertical Machining Center for Sale. This machine offers 53.15″ of X-axis travel, 45.28″ in Y and 27.56″ in Z, with a 170-tool ATC and an HSK 100A spindle rated to 10,000 RPM and driven by a 45.6 HP motor. Control is an iTNC 530 CNC Control with 15″ color display, and the machine weighs 27,778 lbs. Equipped with 5+1 axis machining, through spindle coolant, Advanced Processing System Extended, dual laser measuring system, Renishaw RMP60 3D touch probe, kinematics touch probe cycles for inspection and optimization, oil mist extraction, chip conveyor, rotating window, 30mm calibration ball with base plate, 950 liter band filter unit, Balluff tool ID system, Delphine base plate with 6 HHPA chucks, rotary union (2 x hydraulic, 1 x air), and a robot interface on the left side with automated door and electrical interface. Available for inspection under power. See our other used CNC vertical machining centers, then Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
53.15" |
|---|---|
| Y-Axis Travel |
45.28" |
| Z-Axis Travel |
27.56" |
| Tool Magazine Capacity |

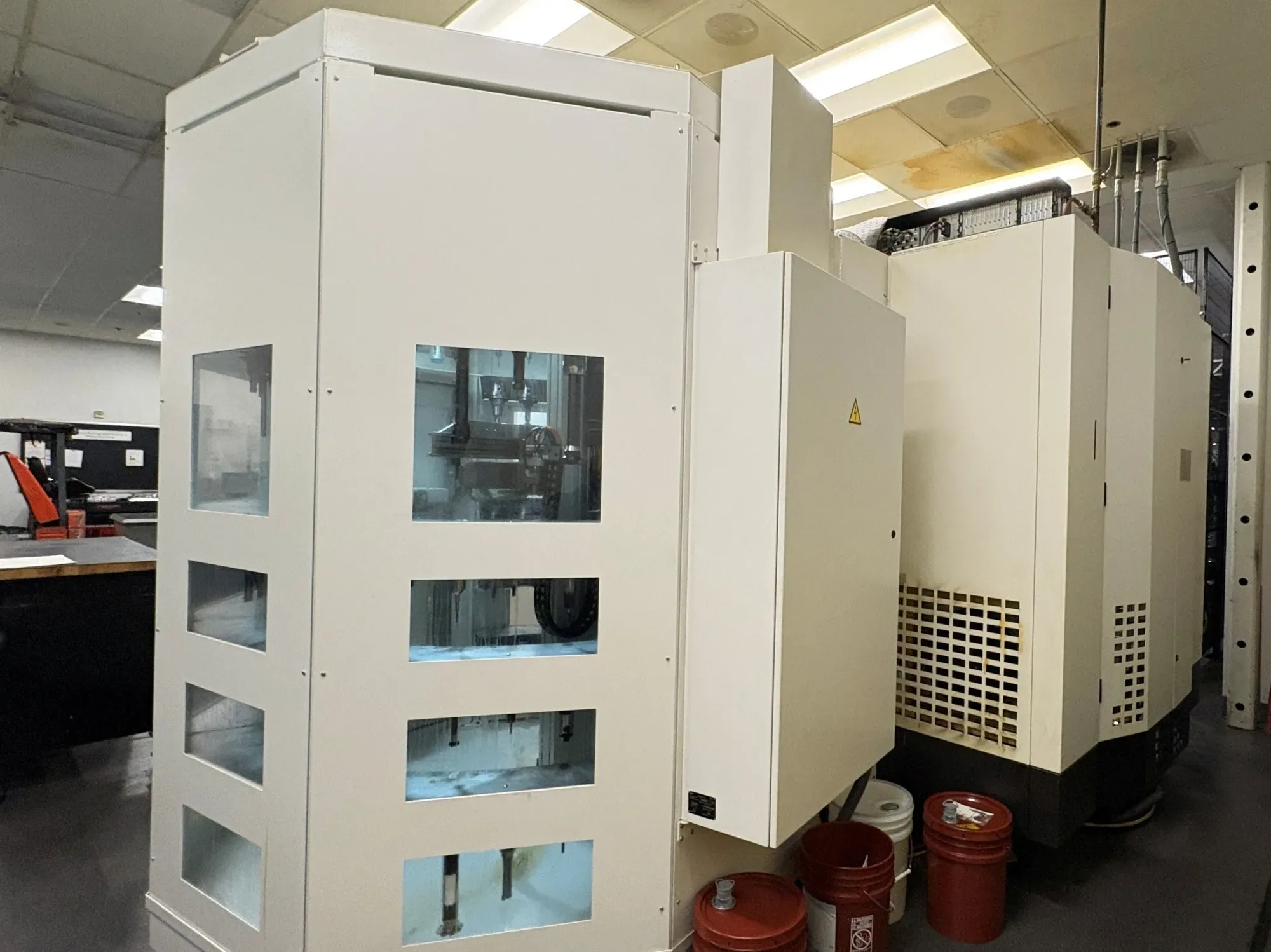

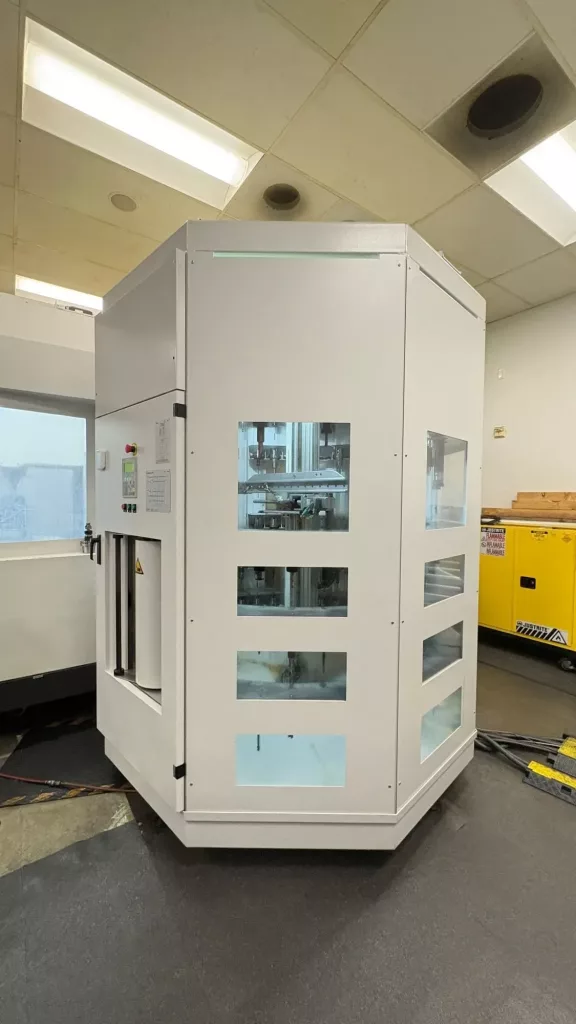

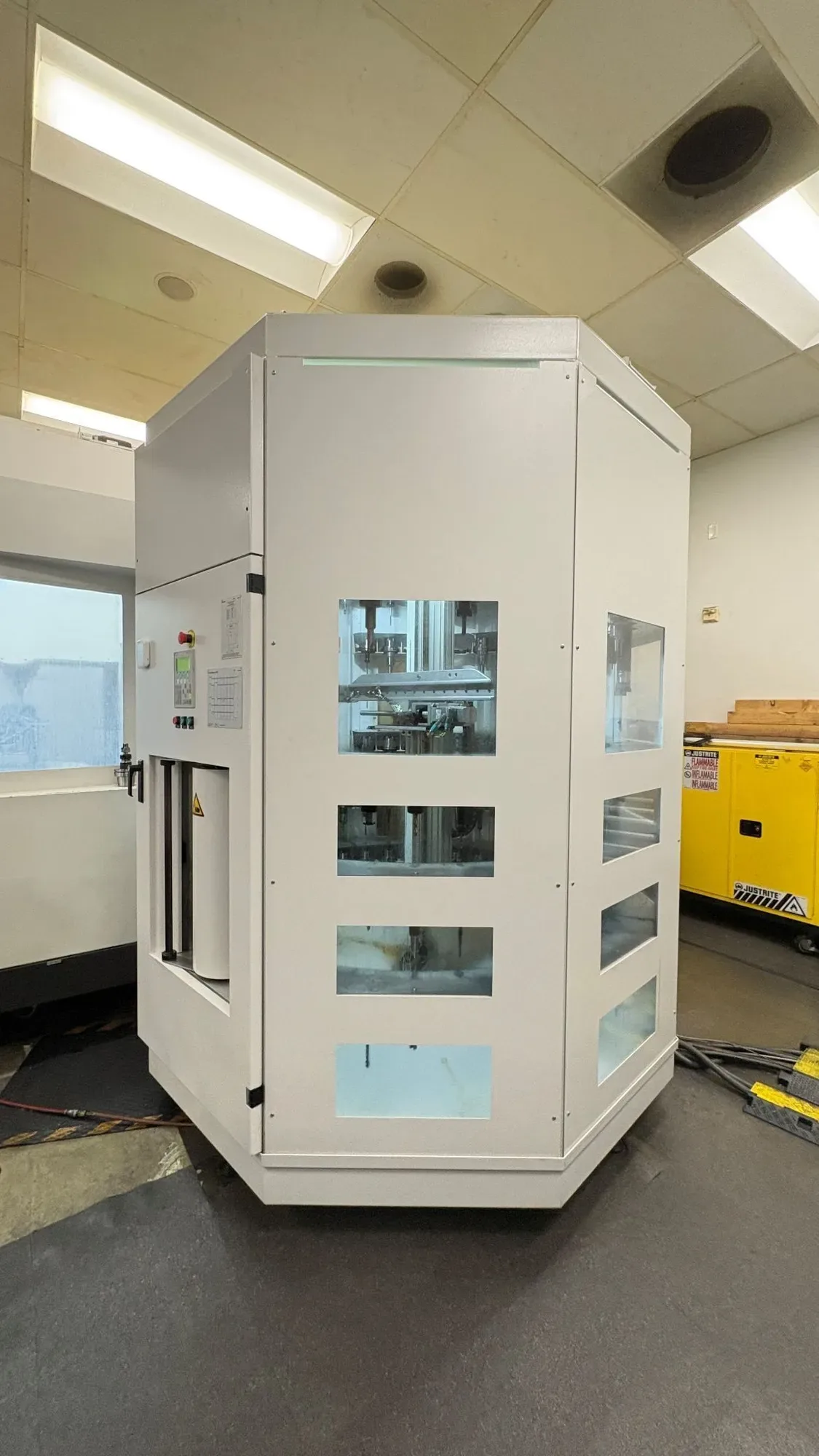

170 ATC |
| Spindle Speed |
10,000 RPM |
| Spindle Taper |
HSK 100A |
| Spindle Motor |
45.6 HP |
| Control |

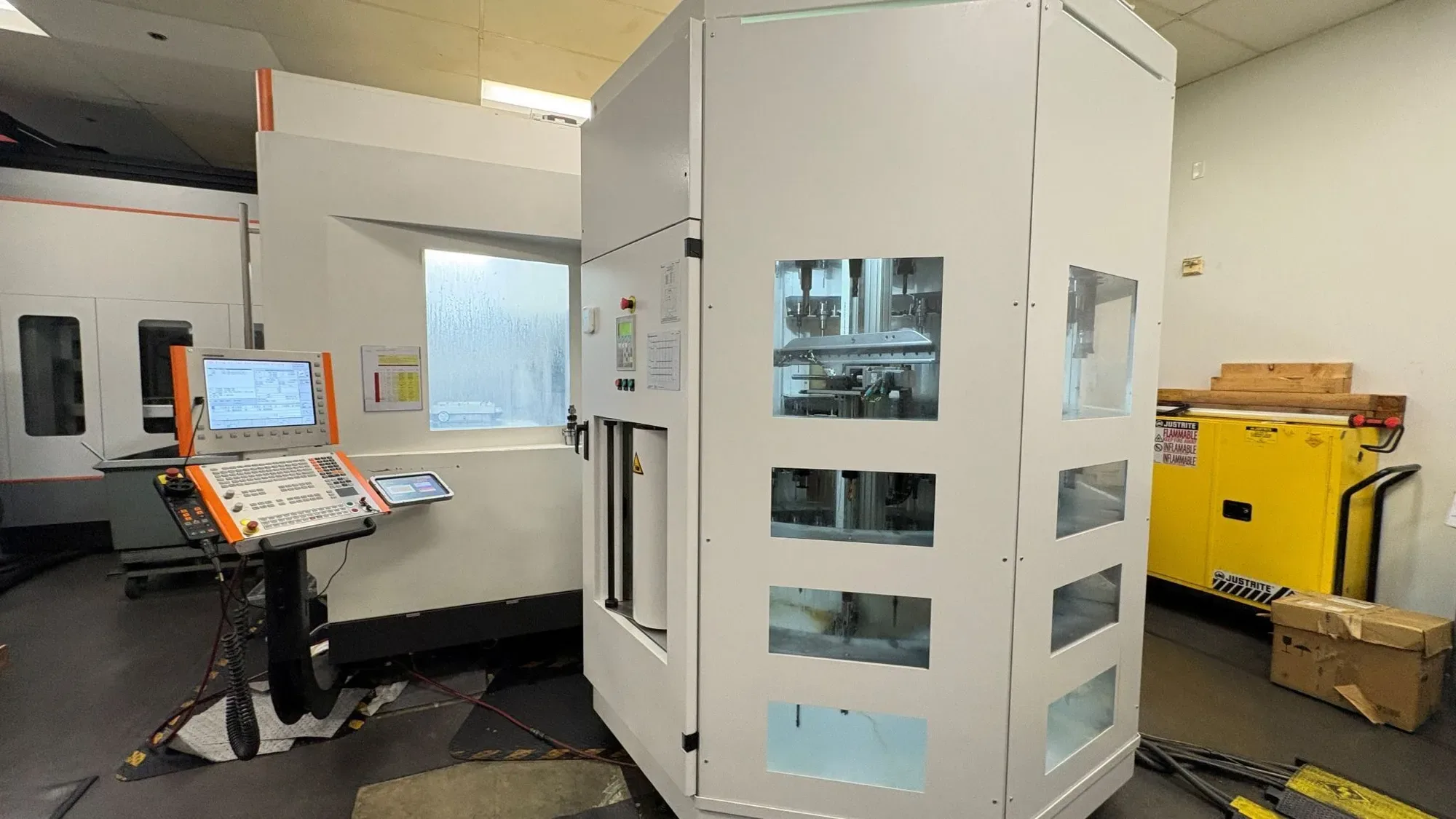

iTNC 530 CNC Control 15" Color |
| Weight |
27,778 Lbs |
Features
|
3D Touch Probe Renishaw RMP60 |
5+1 Axis Machining |
|
Advanced Processing System Extended |
Balluff Tool ID System |
|

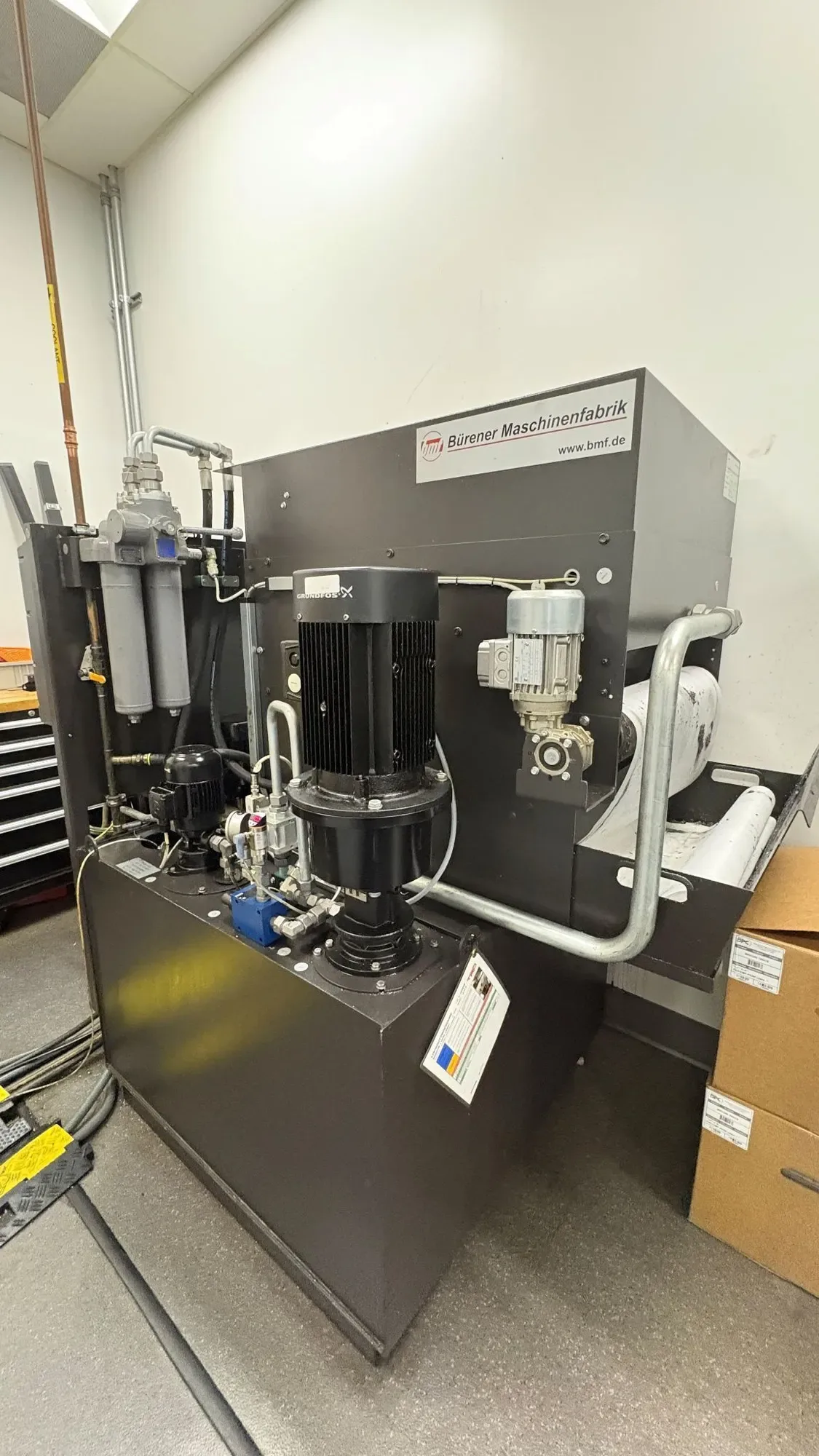

Band Filter Unit 950 Liter |
Callibration Ball 30mm W/ Base Plate |
|

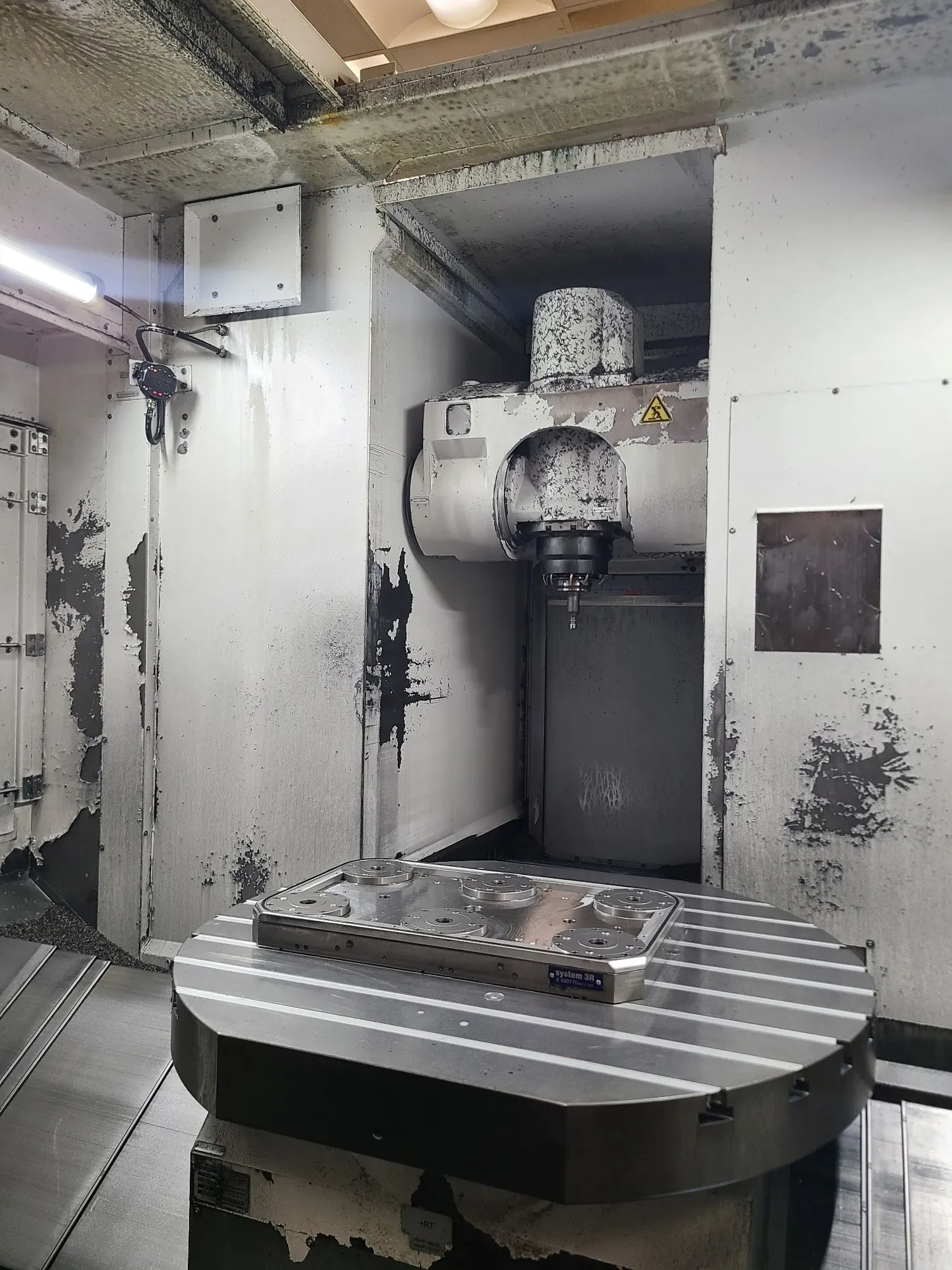

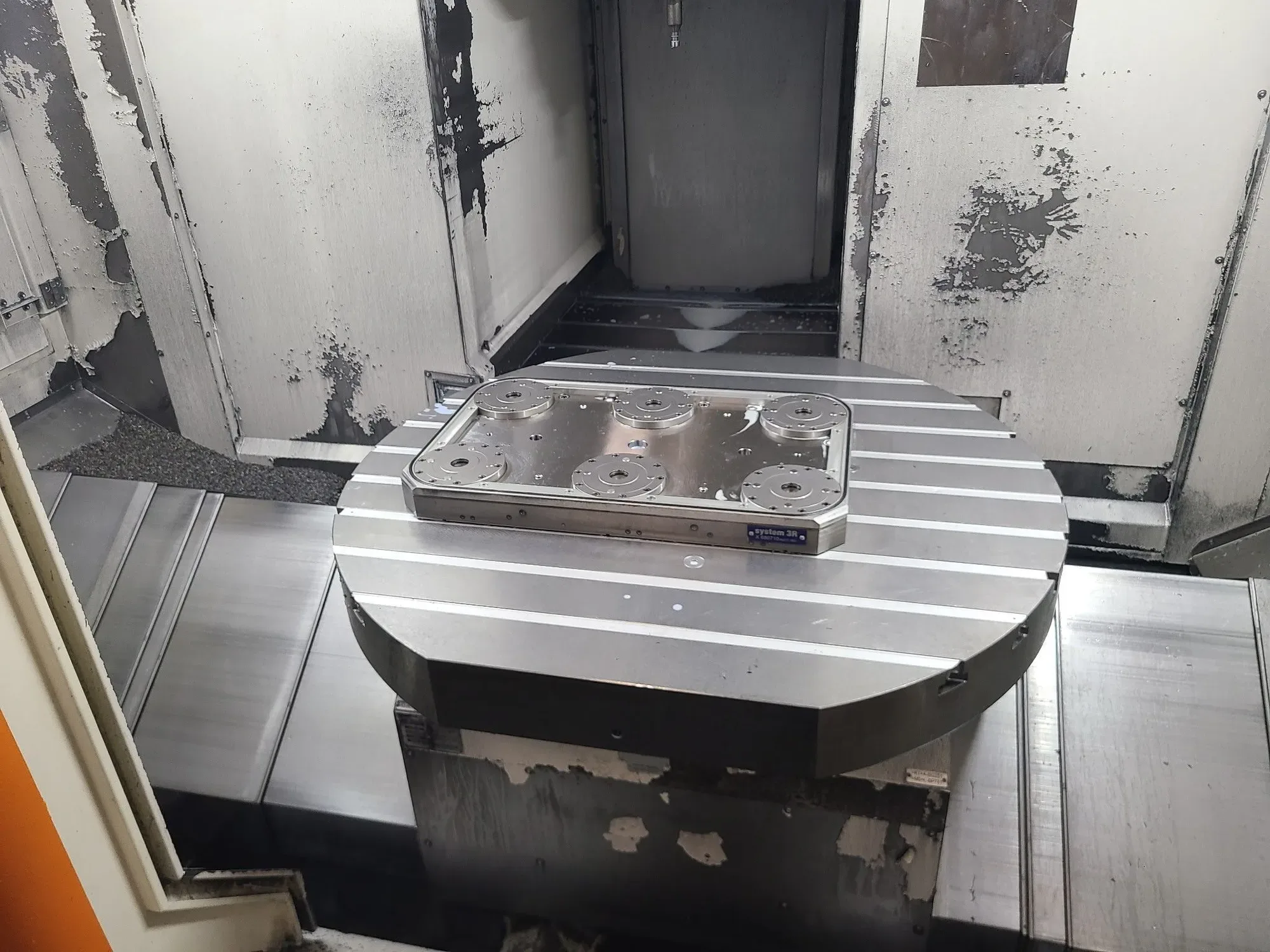

Delphine Base Plate 6 Chucks HHPA |
Dual Laser Measuring System |
|
Kinematics Touch Prop Cycles For Inspection & Optimization |
Robot Interface On Left Side And Automated Door & Electrical Interface |
|
Rotary Union 2 x Hyd/1 x Air |
Rotating Window |
|
Chip Conveyor |
Through Spindle Coolant |
|
Oil Mist Extraction |
