Year |
2017 |
|---|---|
Make |
Kiwa |
Model |
KH-4500 |
Description |
CNC Horizontal Machining Center |
Reference # |
8074071 |
Price |
Activate Pricing |

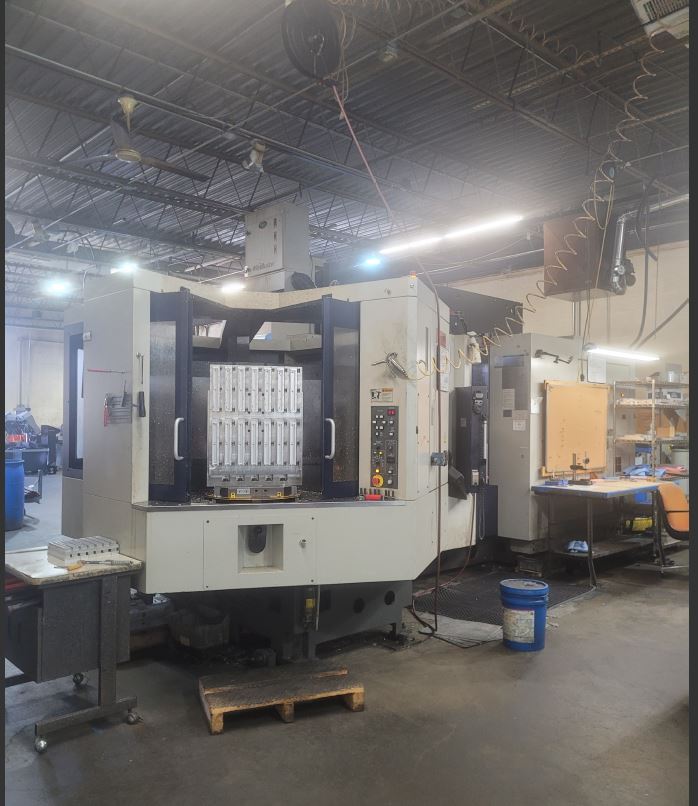

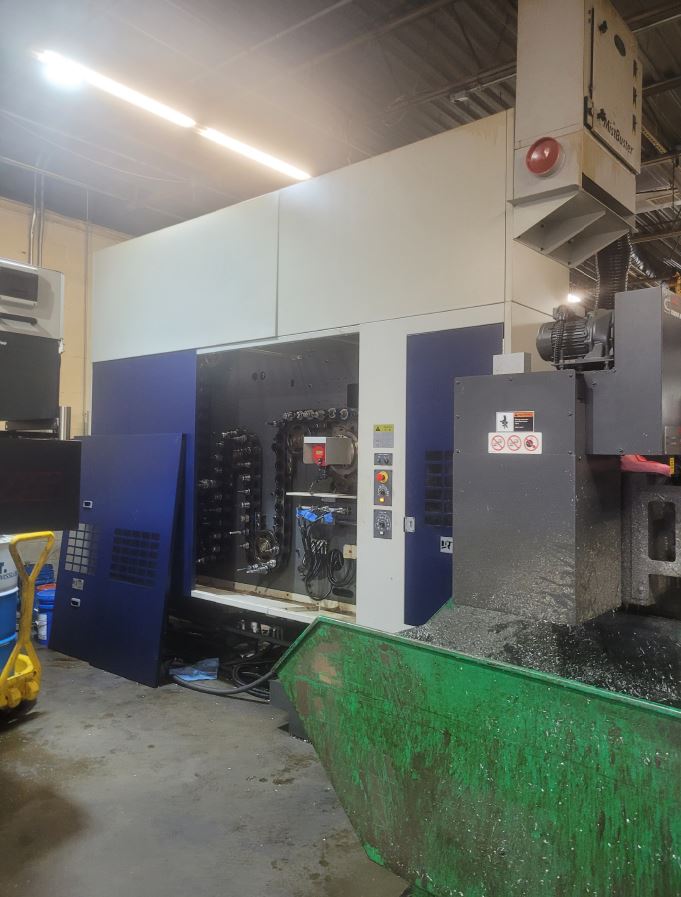

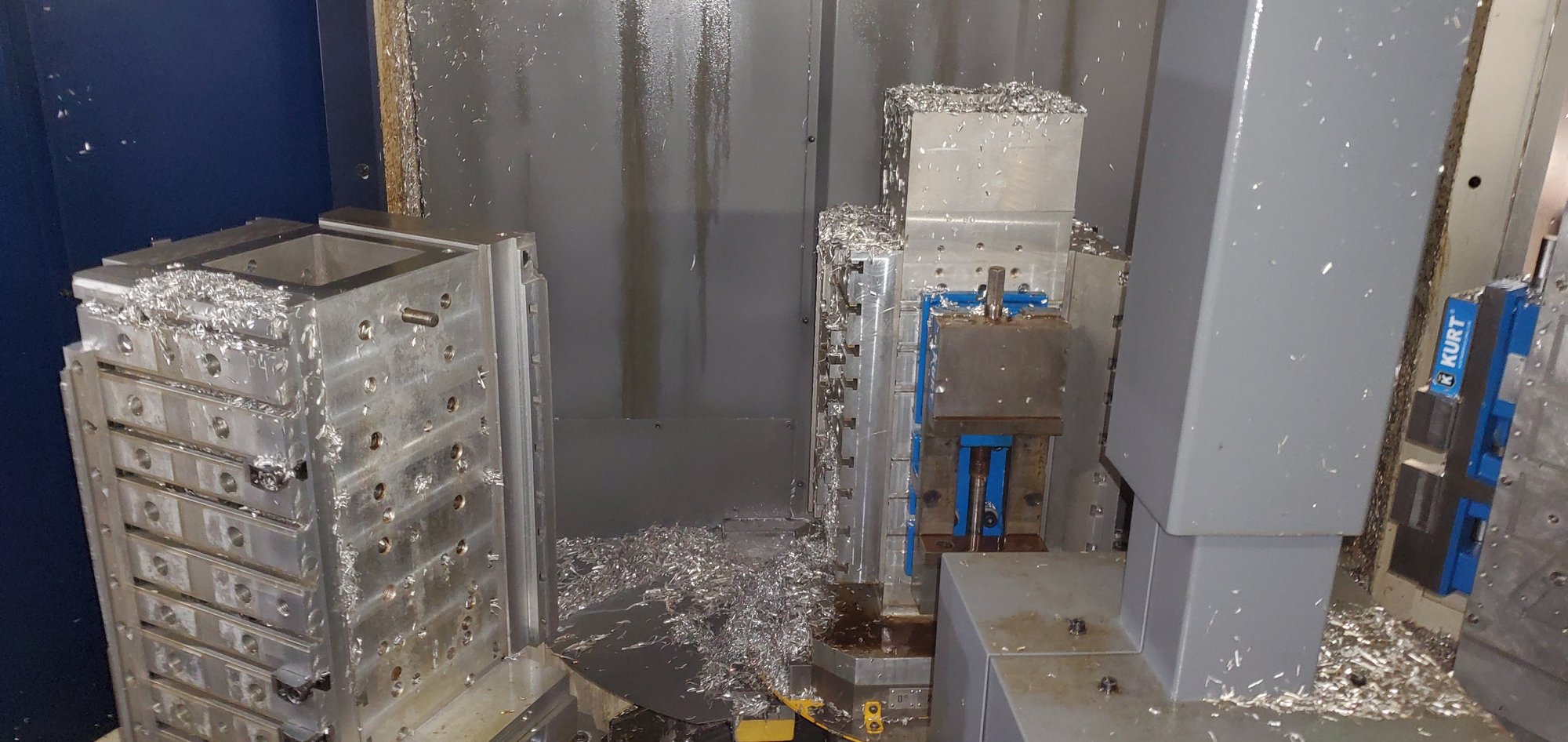

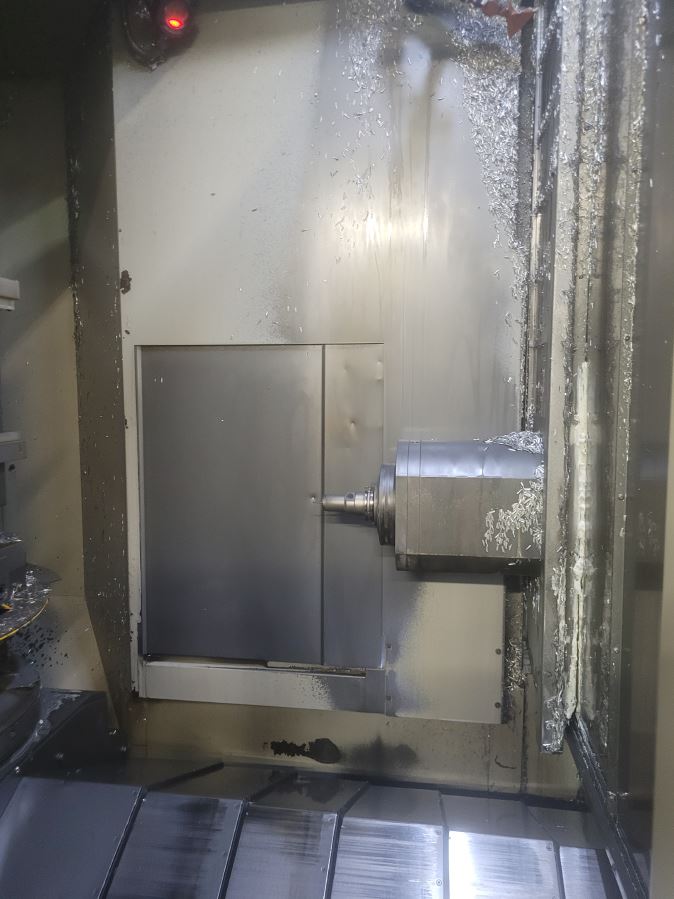

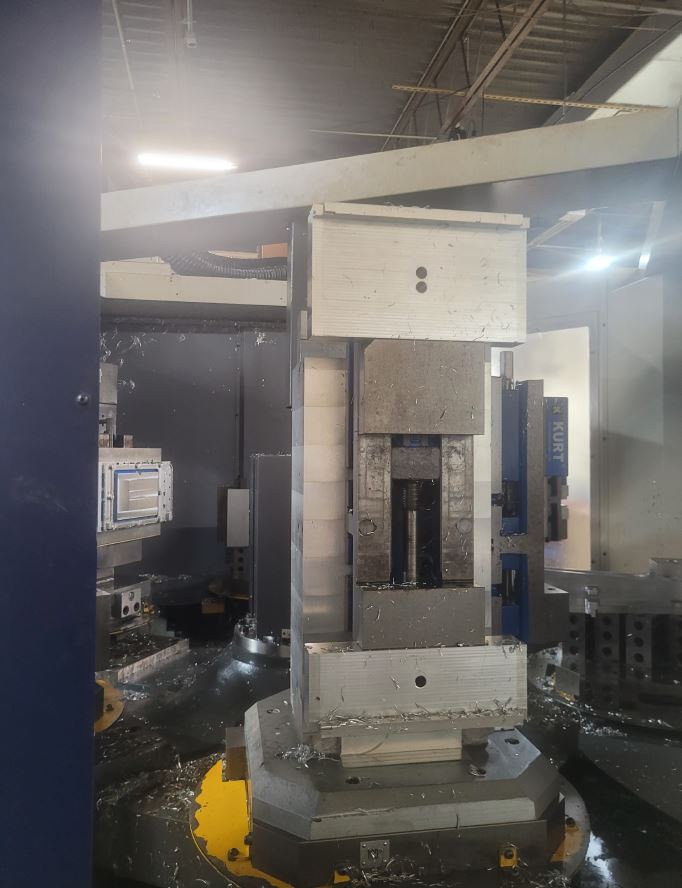

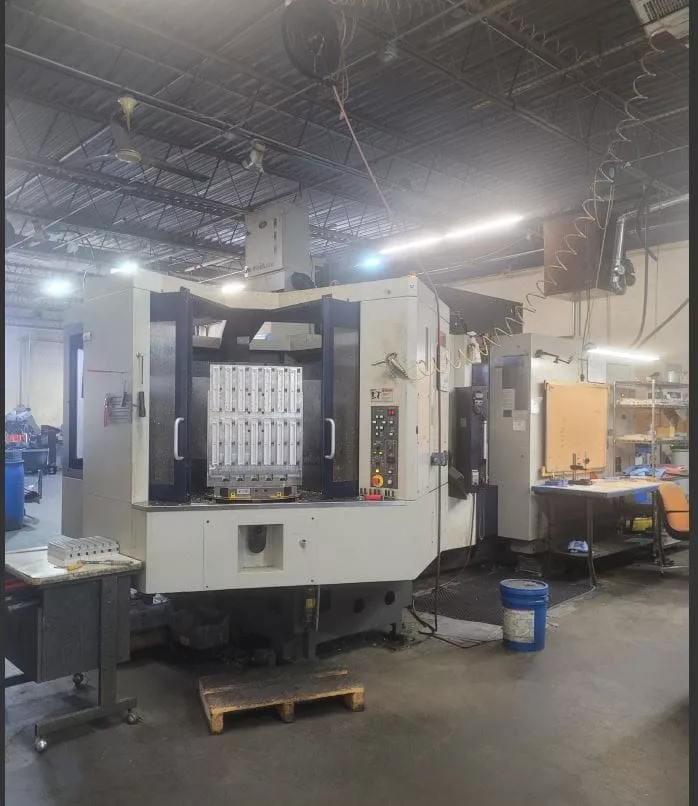

Used Kiwa KH-4500 (2017) CNC Horizontal Machining Center for Sale. This machine has a 400 mm pallet measuring 15.7″ x 15.7″, with travels of 25.2″ in X, 25″ in Y and 26.8″ in Z. It runs a Fanuc 31ib control, a 15,000 RPM CAT 40 spindle and a 240-tool ATC, with full 4th axis pallet indexing and a 7.6 second pallet change. Rapid traverse is 3149 IPM and cutting feed is 1181 in/min. Pallet load capacity is 1100 lbs (500 kg). Equipped with an 8 pallet pool, Chipblaster J30 HP coolant thru spindle (1000 PSI), LNS Microfine chip conveyor, OMP-400 Renishaw probe, automatic tool breakage detection and part program to 8mb. It can be seen under power for an inspection. See more CNC horizontal machining centers, [Activate Pricing](#activate-pricing) or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.7" x 15.7" |
| X-Axis Travel |
25.2" |
| Y-Axis Travel |
25" |
| Z-Axis Travel |
26.8" |

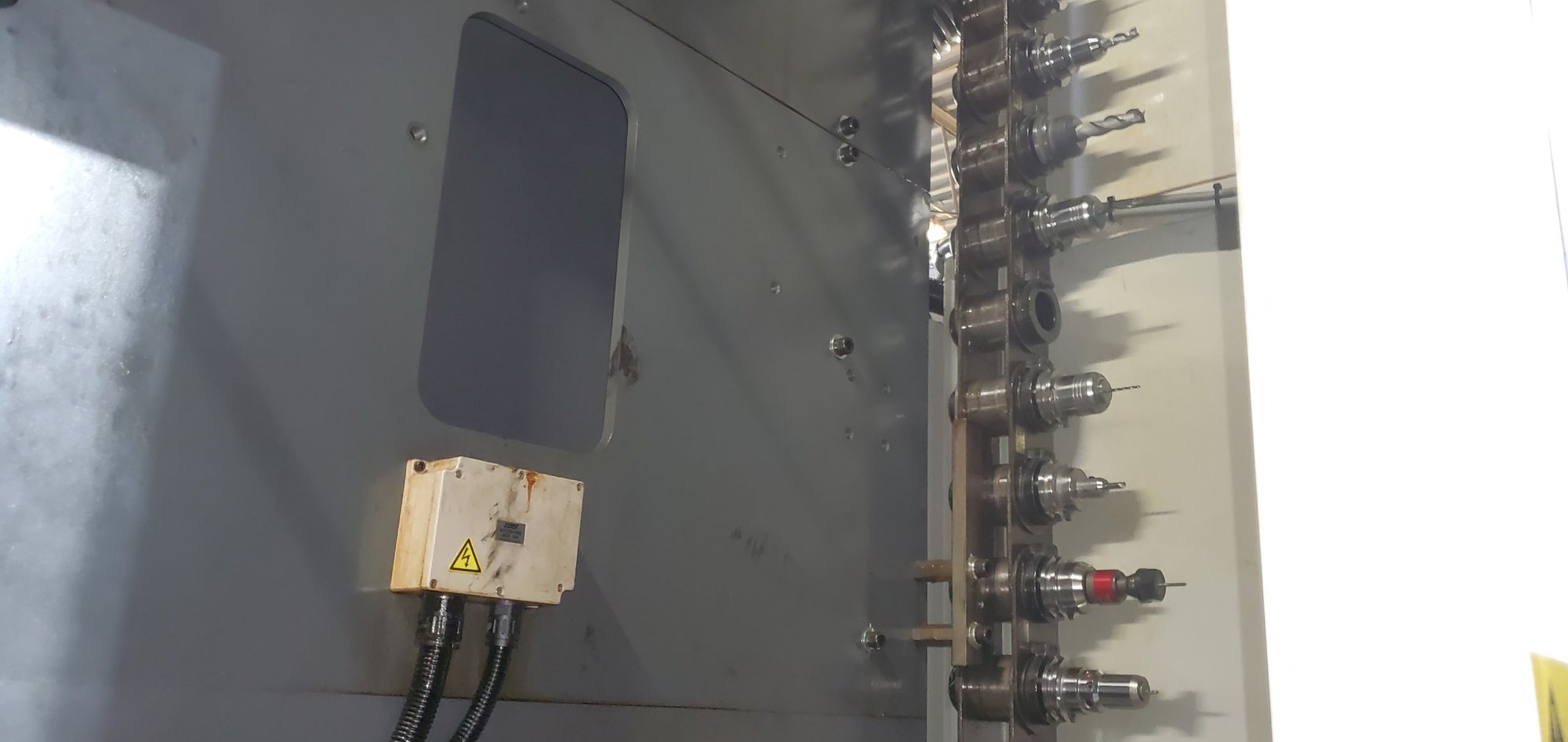

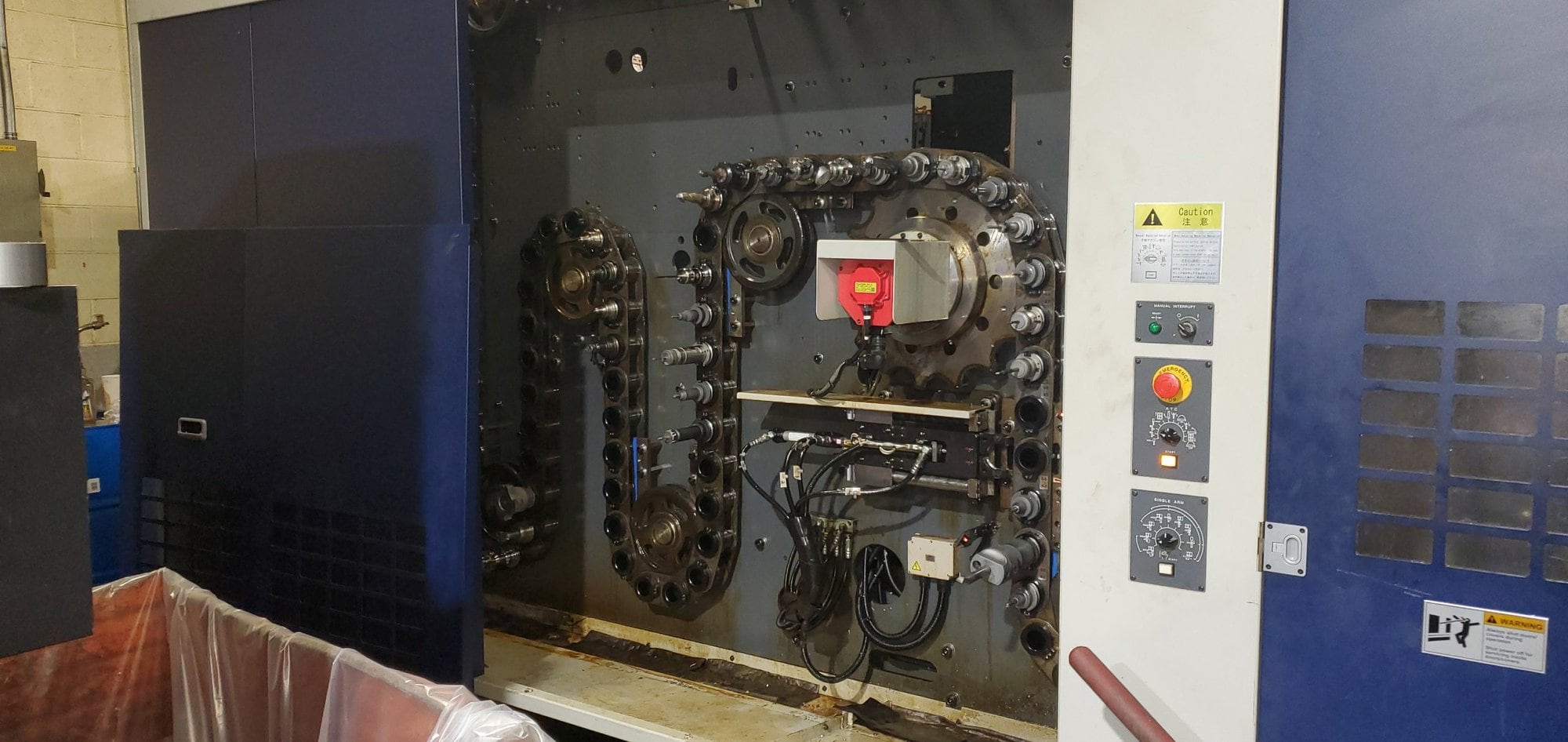

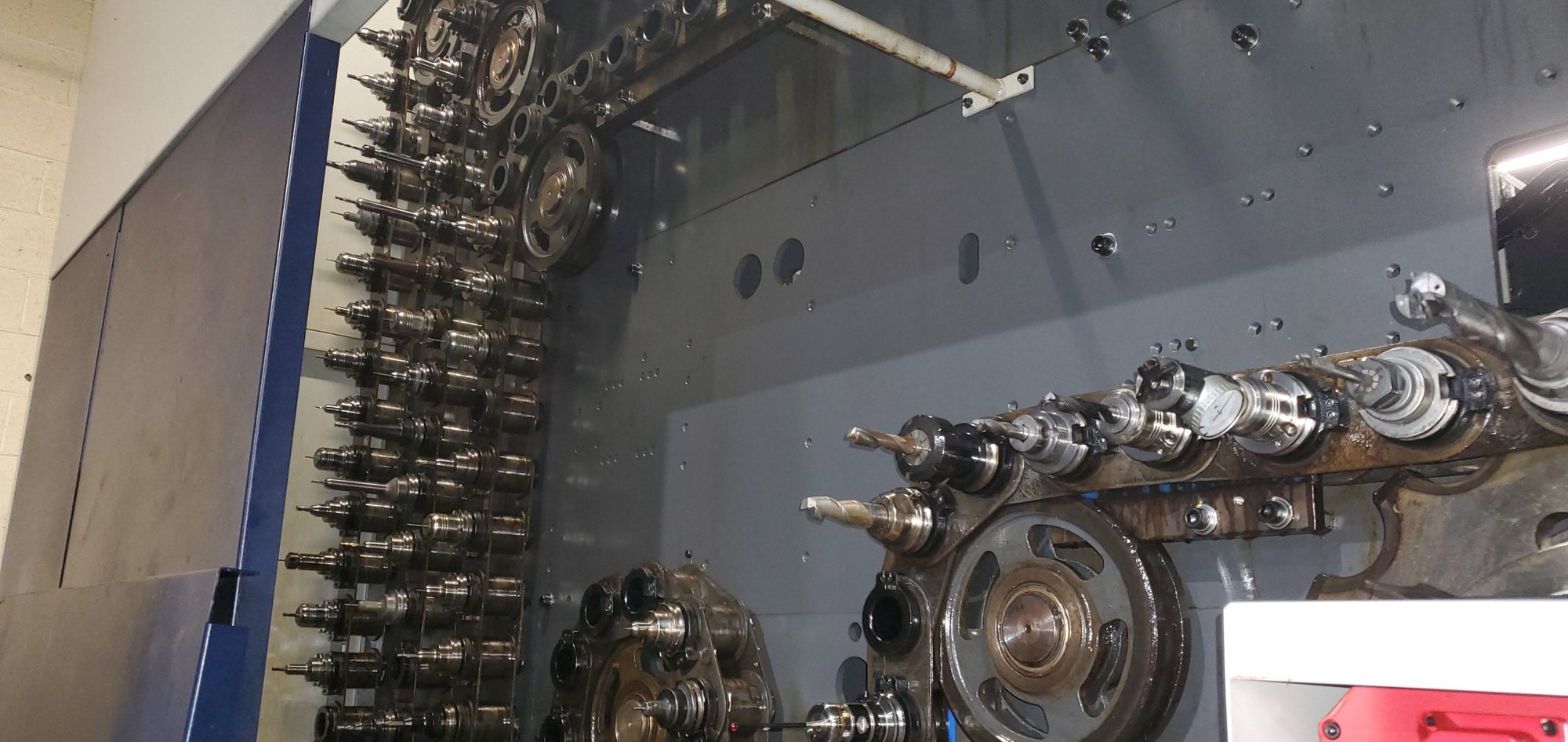

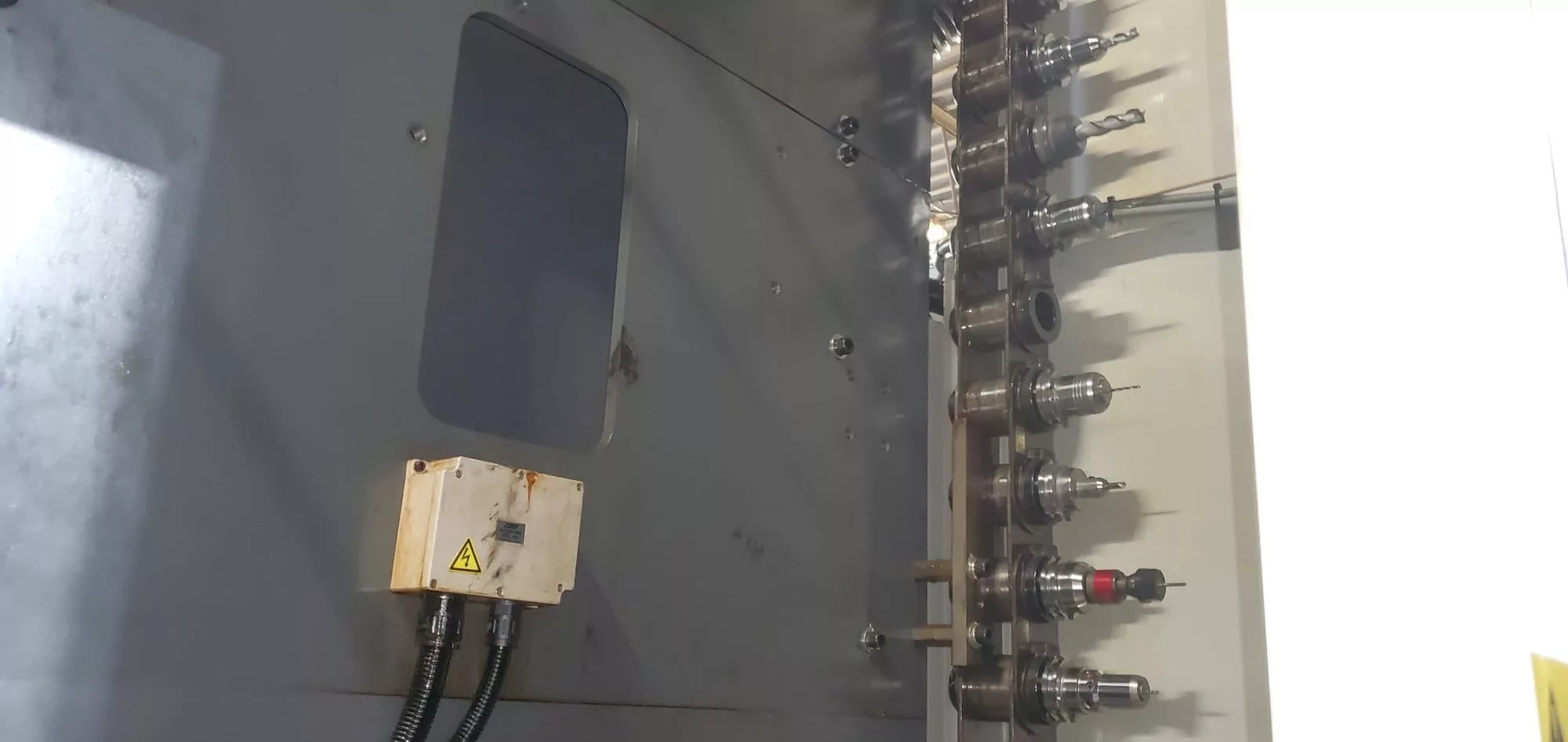

| Tool Magazine Capacity |
240 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |

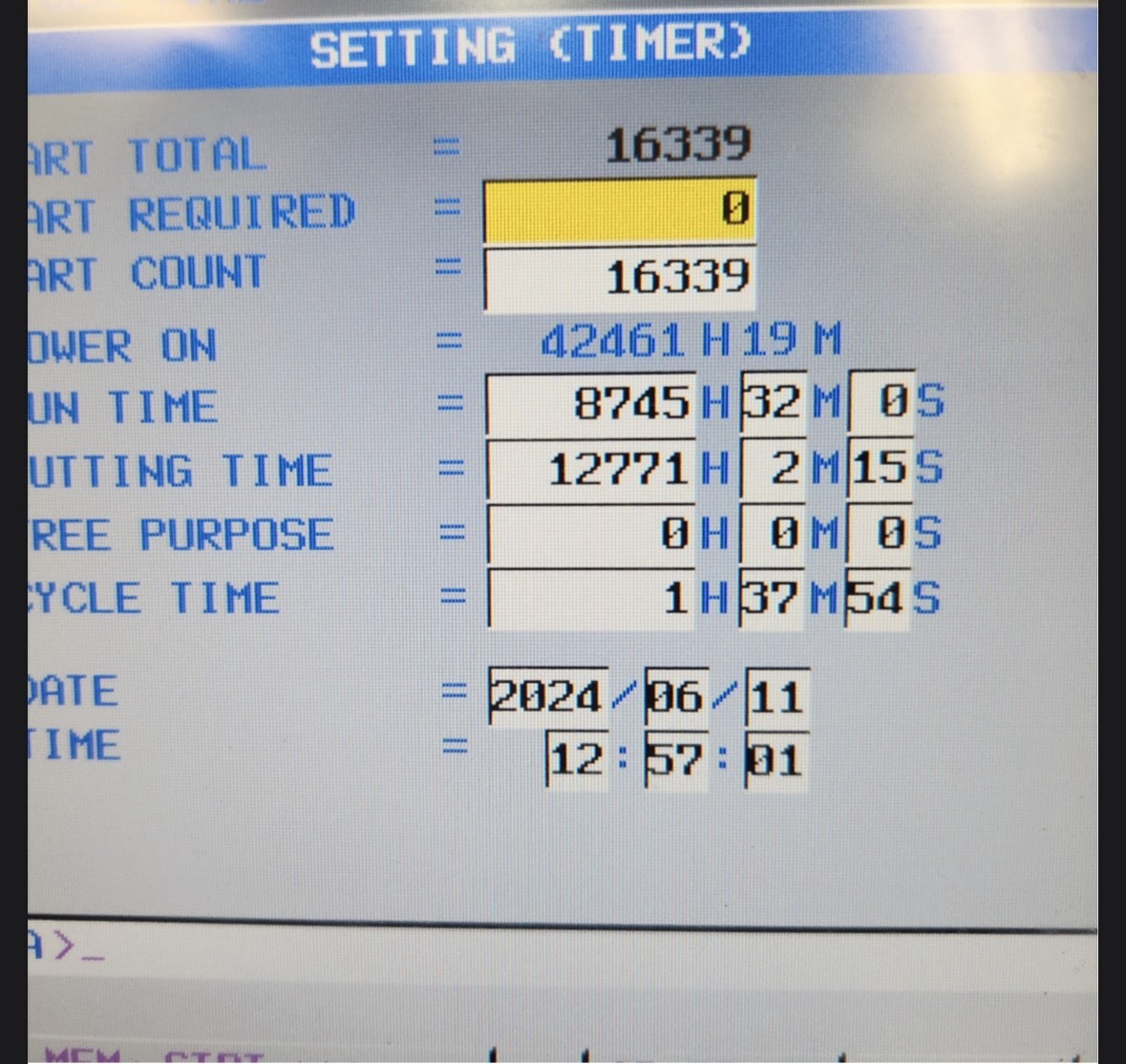

| Control |
Fanuc 31ib |

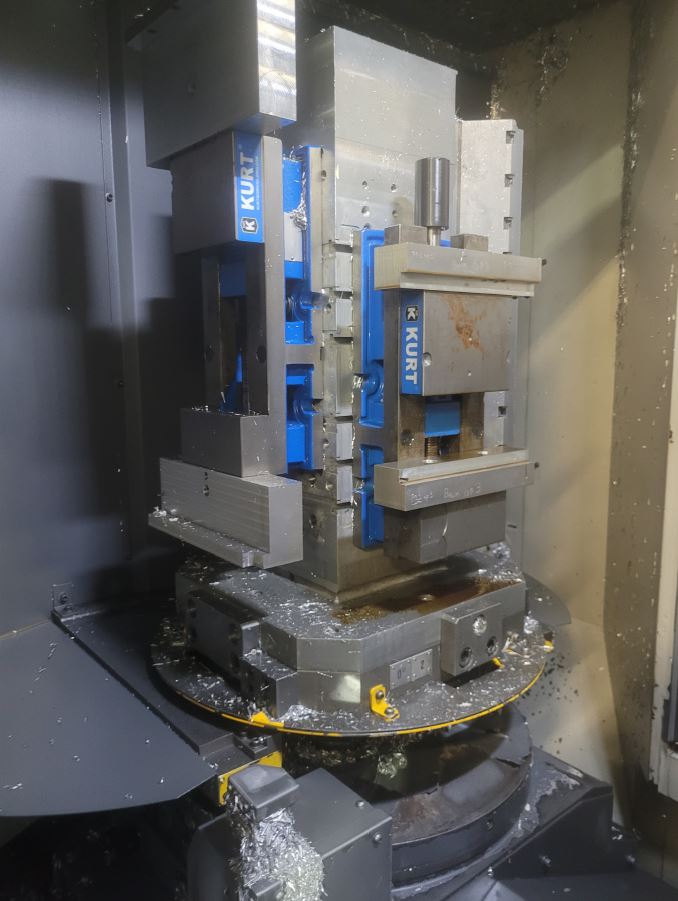

| Pallet Indexing |
Full 4th Axis |
| Chip Removal |
Chip Conveyor |
| Pallet Surface to Spindle Center |
2.0-26.0 (50-660) in (mm) |
| Pallet Center to Spindle Nose |
3.9-30.7 (100-780) in (mm) |
| Pallet Load Capacity |
1100 (500) lbs (kg) |
| Max. Workpiece Size |
ø 29.5 (750) for 2/6APC / ø 25.6 (650) for 8APC in (mm) |
| Pallet Change Time |
7.6 sec |
| X/Y/Z Axis Rapid Traverse |
3149 IPM |
| Cutting Feed (X/Y/Z) |
1181 (30) in/min (m/min) |
Features
|
Additional Custom Common Variable |
Automatic Tool Breakage Detection |
|
Chipblaster J30 HP Coolant Thru Spindle (1000PSI) |
LNS Microfine Chip Conveyor |
|
OMP-400 Renishaw Probe |
Part Program to 8mb |
|
8 Pallet Pool |
