Year |
2010 |
|---|---|
Make |
OKK |
Model |
HM1250S |
Description |
CNC Horizontal Machining Center |
Reference # |
8077125 |
Price |
Activate Pricing |

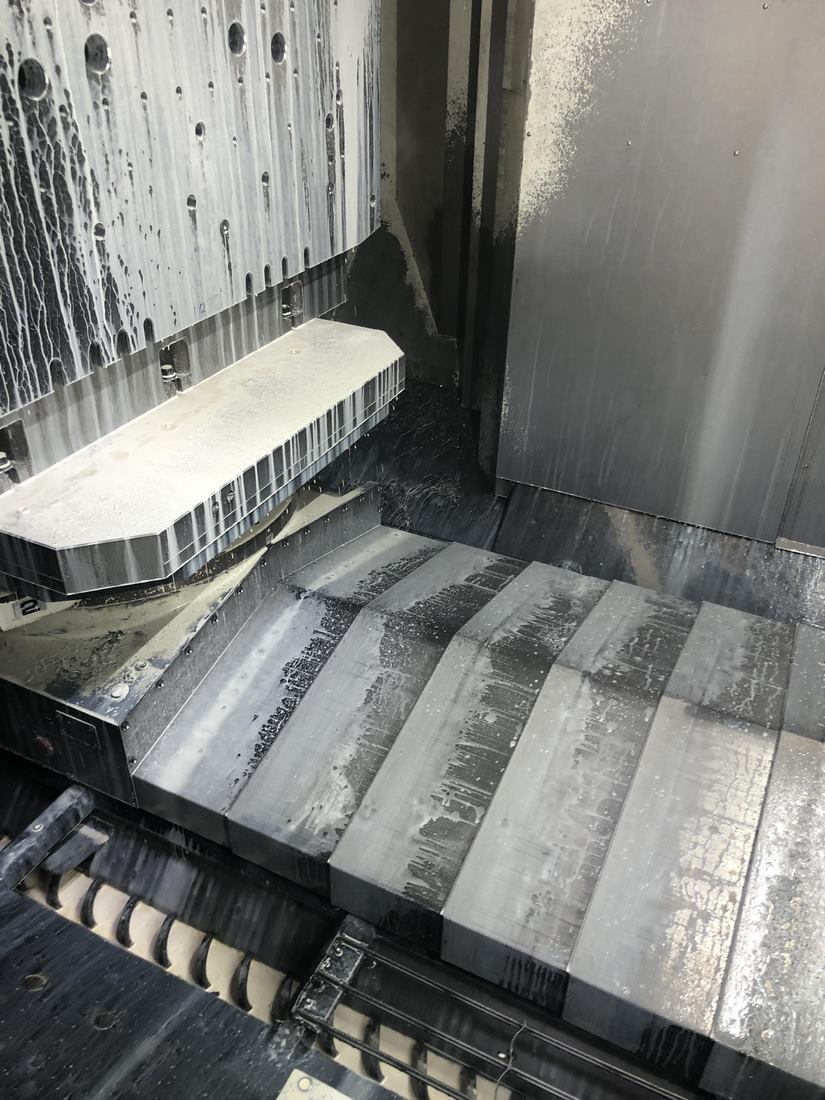

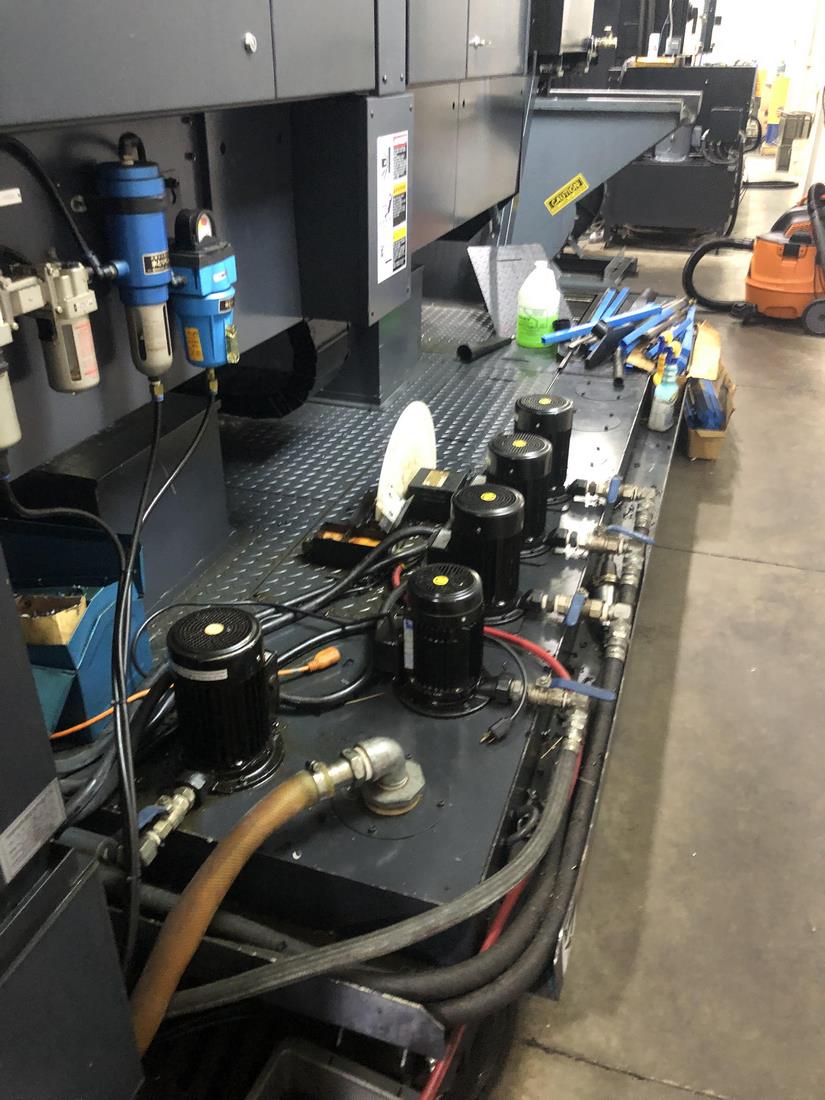

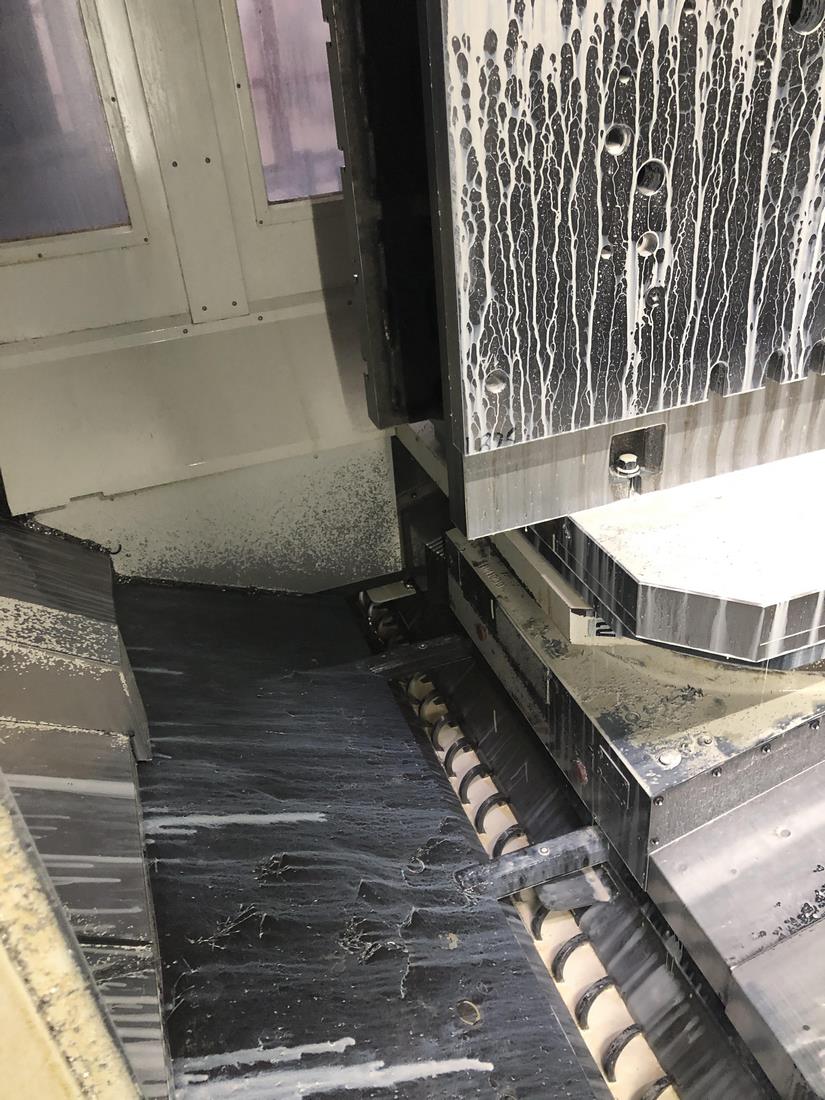

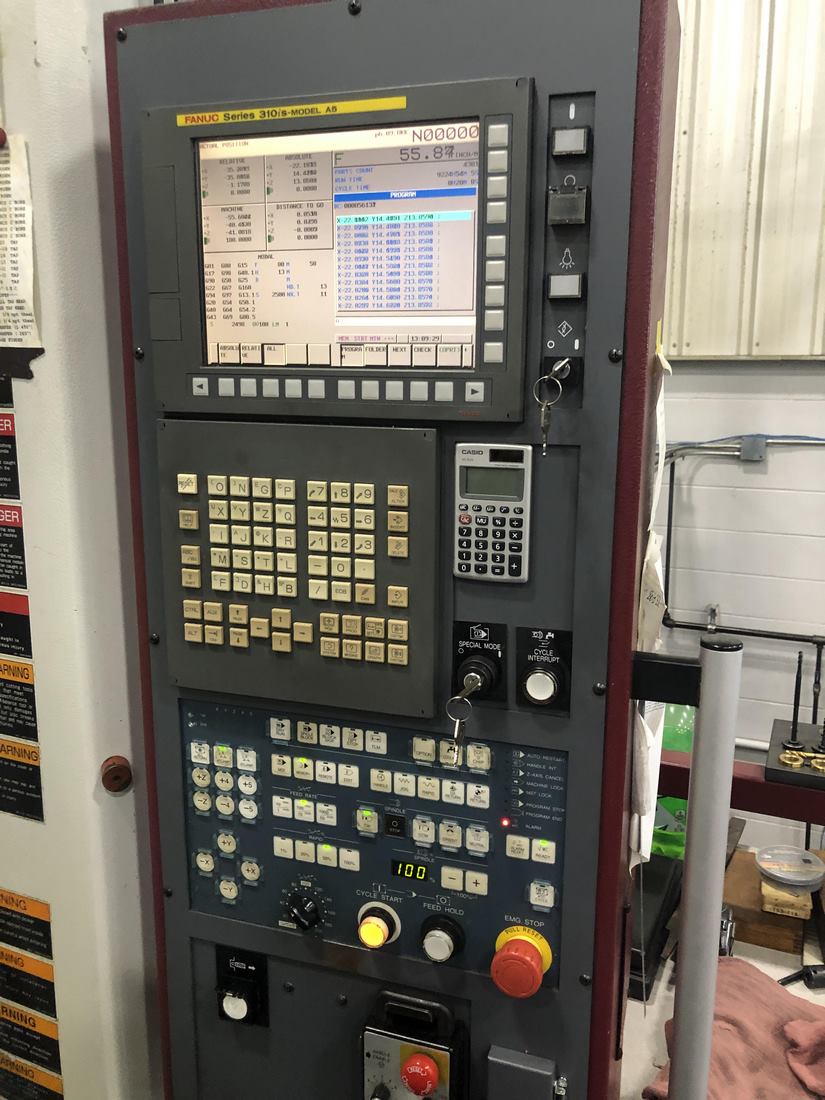

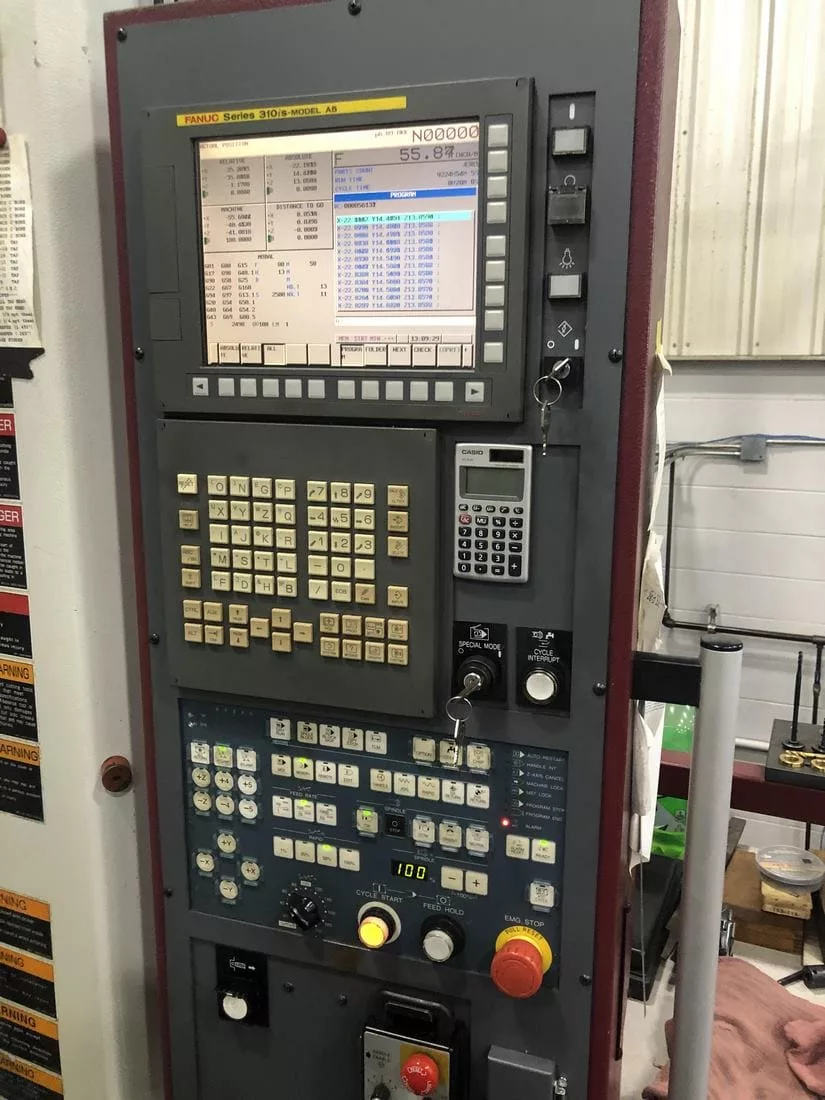

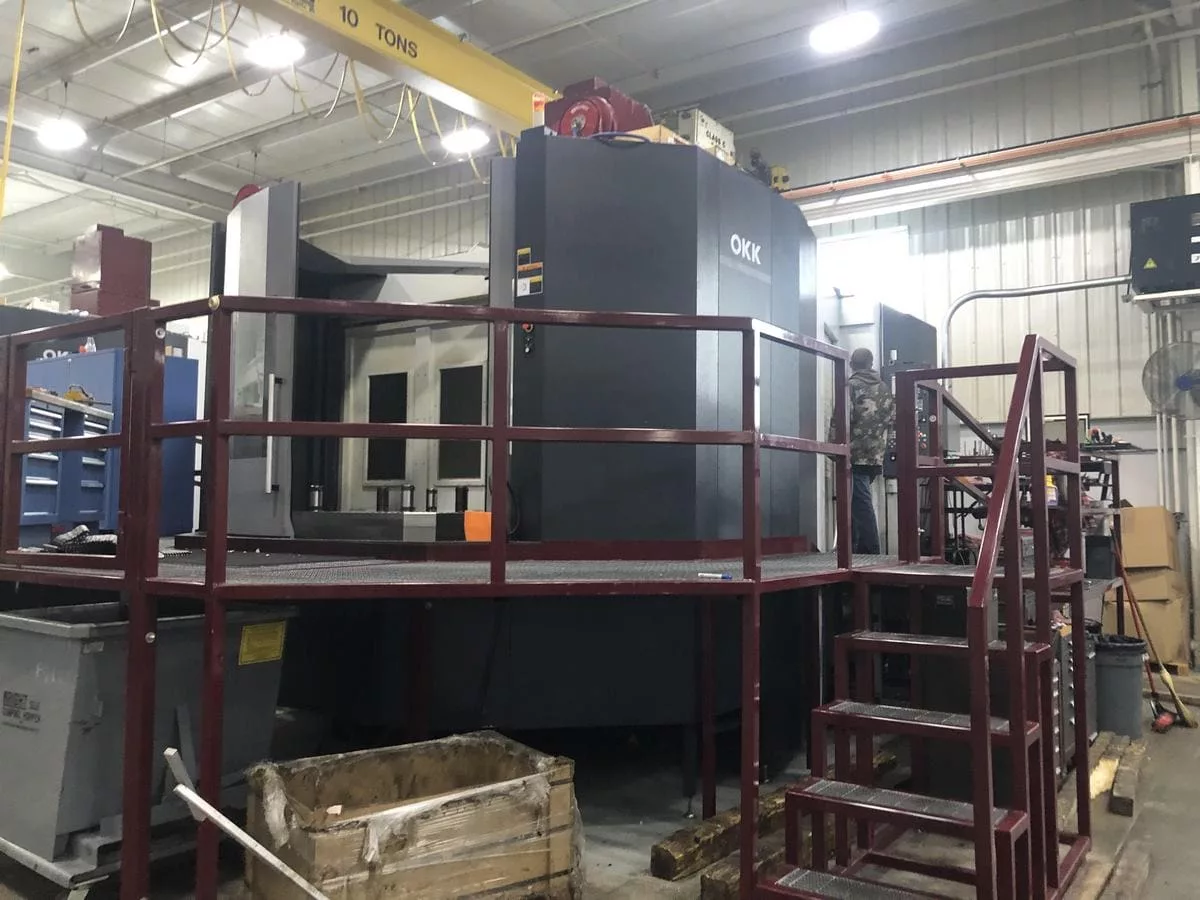

Used OKK HM1250S (2010) CNC Horizontal Machining Center for Sale. This machine has a 1245 mm pallet measuring 49.21″ x 49.21″, with a pallet load capacity of 6613 lbs and full 4th axis pallet indexing. Travels are 66.93″ in X, 55″ in Y and 48.82″ in Z. The 50 HP spindle runs to 8,000 RPM with a CAT 50 taper and 1000 PSI high pressure thru spindle coolant, and the 60 ATC tool magazine is served alongside a Blum laser tool pick-up. Also equipped with a chip conveyor, enclosure ceiling top and oil skimmer, under Fanuc 310i control. The machine can be seen under power for an inspection. See more CNC horizontal machining centers, [Activate Pricing](#activate-pricing), or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
1245 |
|---|---|
| Pallet Size |
49.21" x 49.21" |
| X-Axis Travel |
66.93" |
| Y-Axis Travel |
55" |
| Z-Axis Travel |
48.82" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
8,000 RPM |
| Spindle Taper |
CAT 50 |
| Control |
Fanuc 310i |
| Pallet Indexing |
Full 4th Axis |
| Chip Removal |
Chip Conveyor |
| Spindle Motor |
50 HP |
| Coolant |
1000 PSI High Pressure Thru Spindle Coolant |
| Pallet Load Capacity |
6613 Lbs |
Features
|
Blum Laser Tool Pick-Up |
Enclosure Ceiling Top |
|
Oil Skimmer |
