Year |
2006 |
|---|---|
Make |
Haas |
Model |
EC-400 |
Description |
CNC Horizontal Machining Center |
Reference # |
8072888 |
Price |
Activate Pricing |

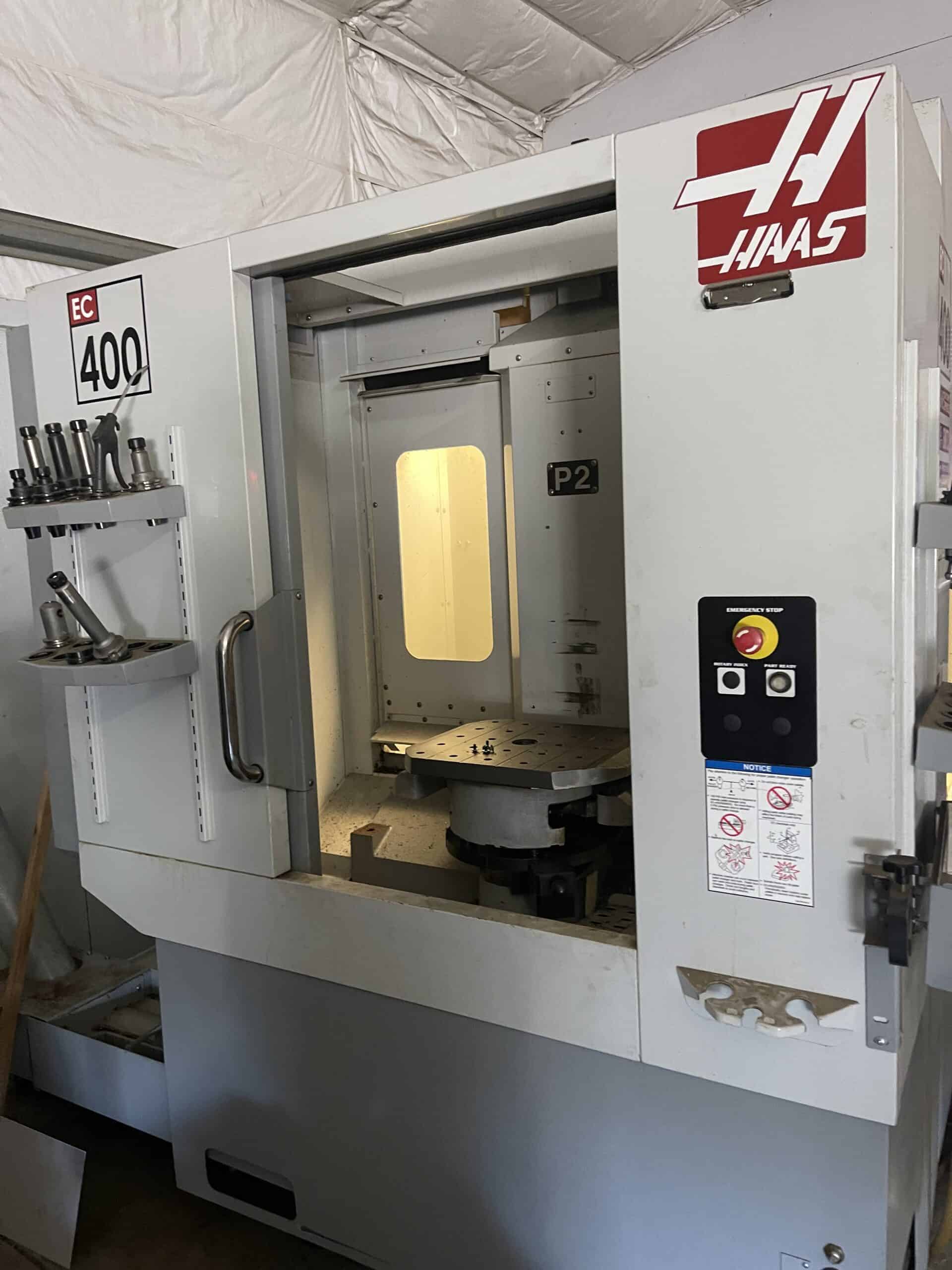

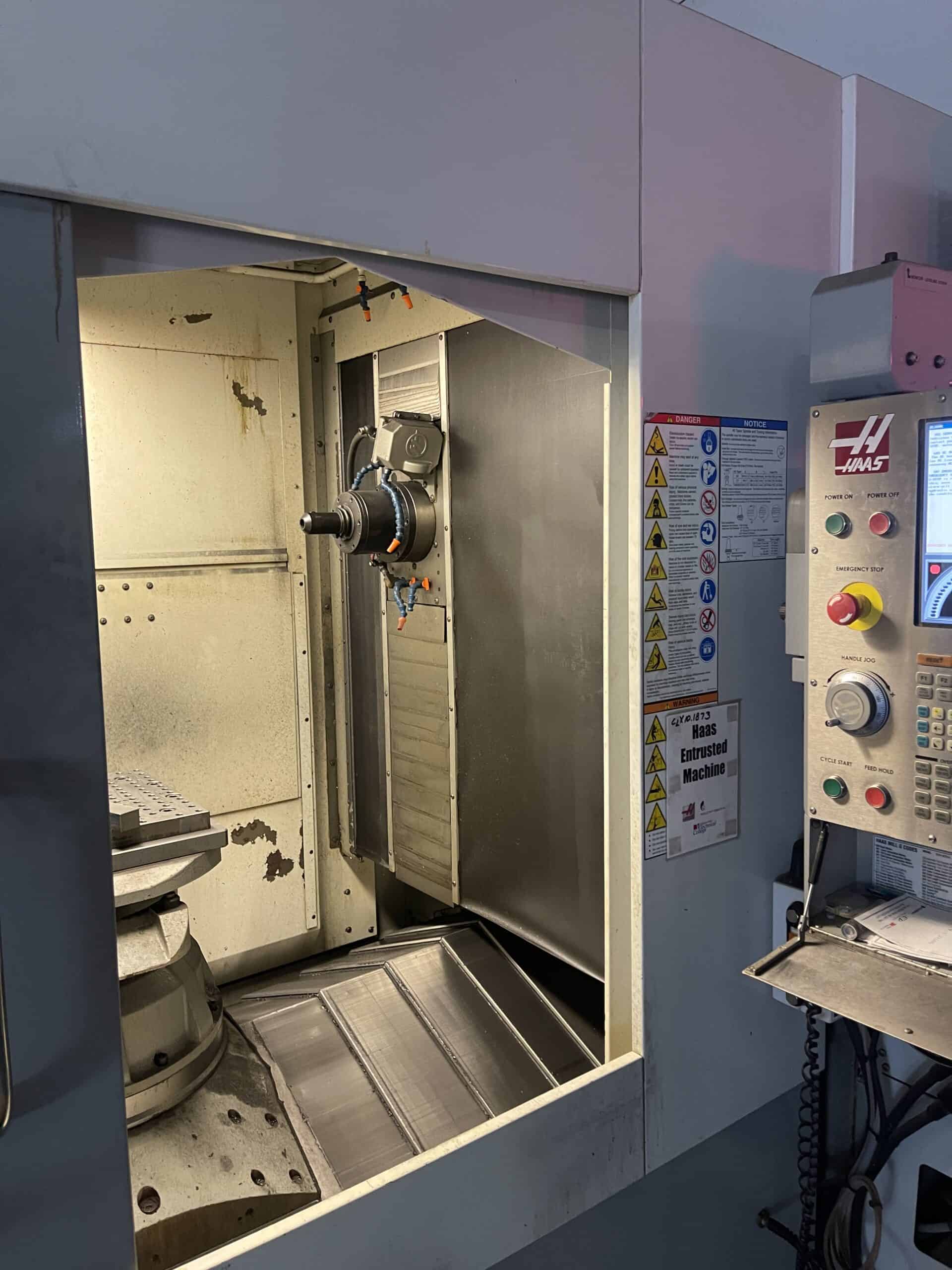

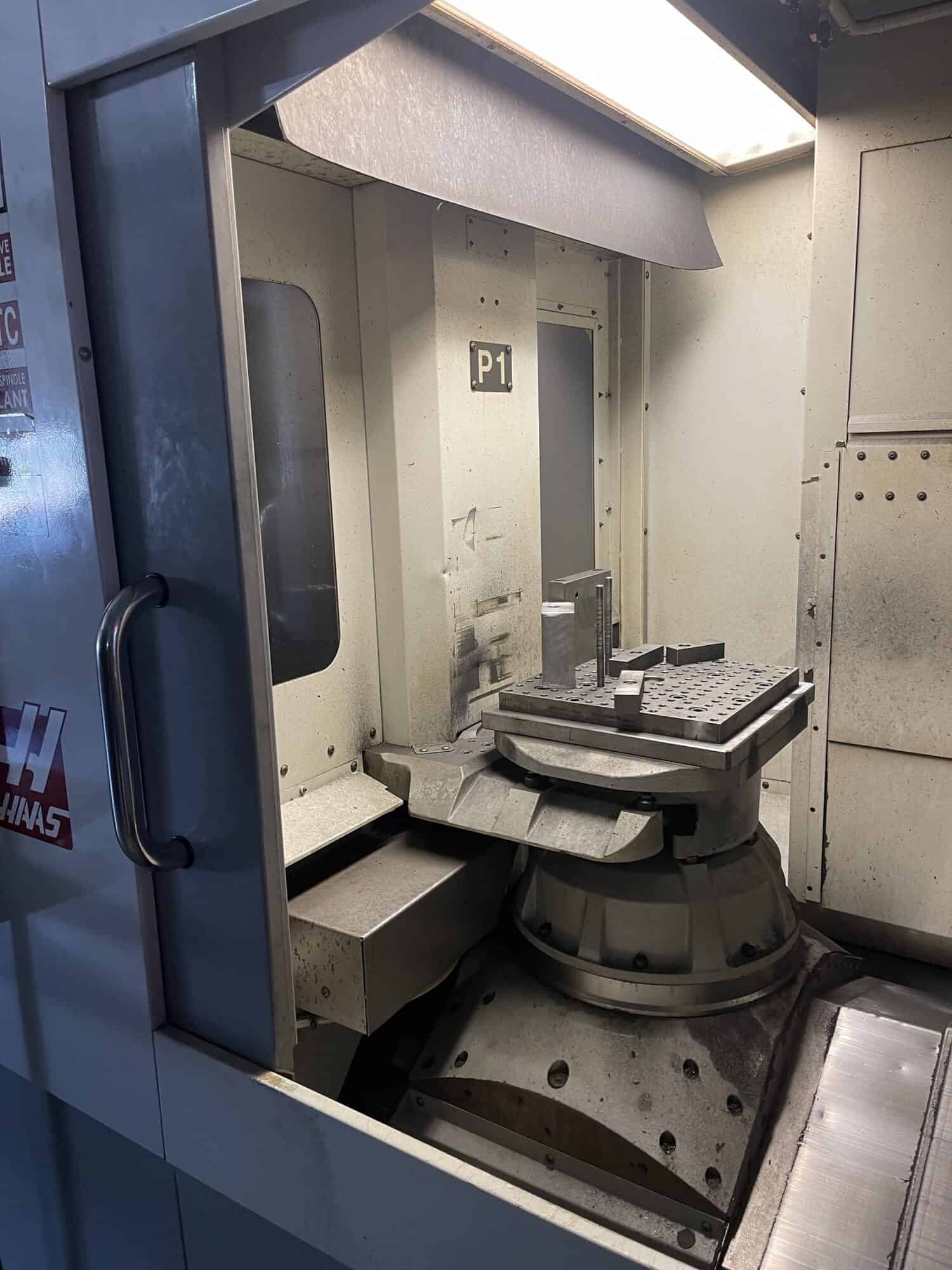

Used Haas EC-400 (2006) CNC Horizontal Machining Center for Sale. This machine has a 400 mm pallet measuring 15.75″ x 15.75″ with full 4th axis pallet indexing, and travels of 20″ in X, Y, and Z. The spindle runs to 12,000 RPM with a CAT 40 taper and through spindle coolant, and the 40-station ATC handles tool changes. Equipped with a chip auger for chip removal and run by the Haas CNC control. Includes Chick tombstones. This machine can be seen under power for an inspection. See more CNC horizontal machining centers or browse our Haas inventory. Use Activate Pricing to view the figure, then Request a Quote and we will follow up with details.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.75" x 15.75" |
| X-Axis Travel |
20" |
| Y-Axis Travel |
20" |
| Z-Axis Travel |
20" |
| Tool Magazine Capacity |
40 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |
Haas CNC |
| Pallet Indexing |
Full 4th Axis |
| Chip Removal |

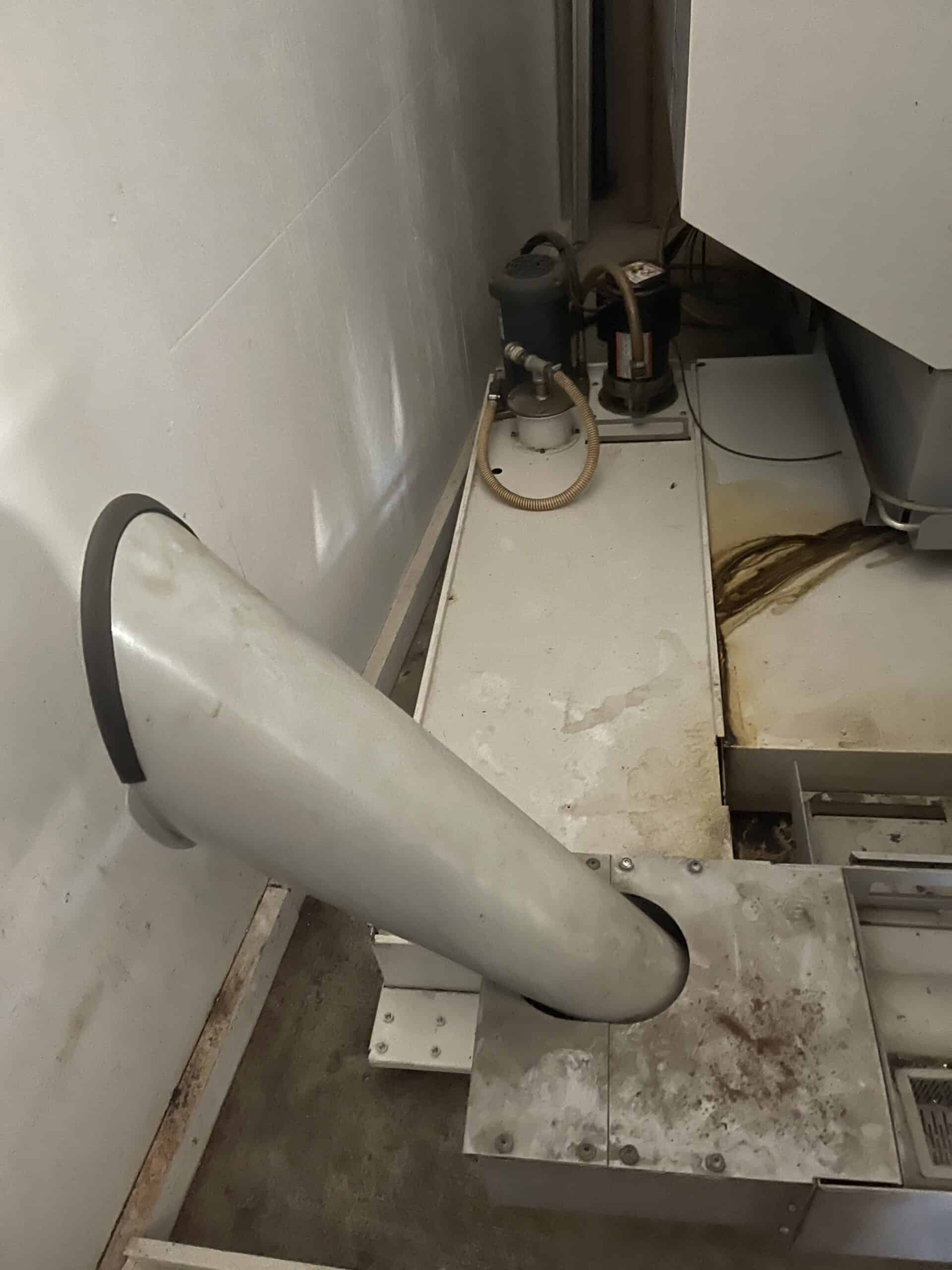

Chip Auger |
| Coolant |
Through Spindle Coolant |
| Note |

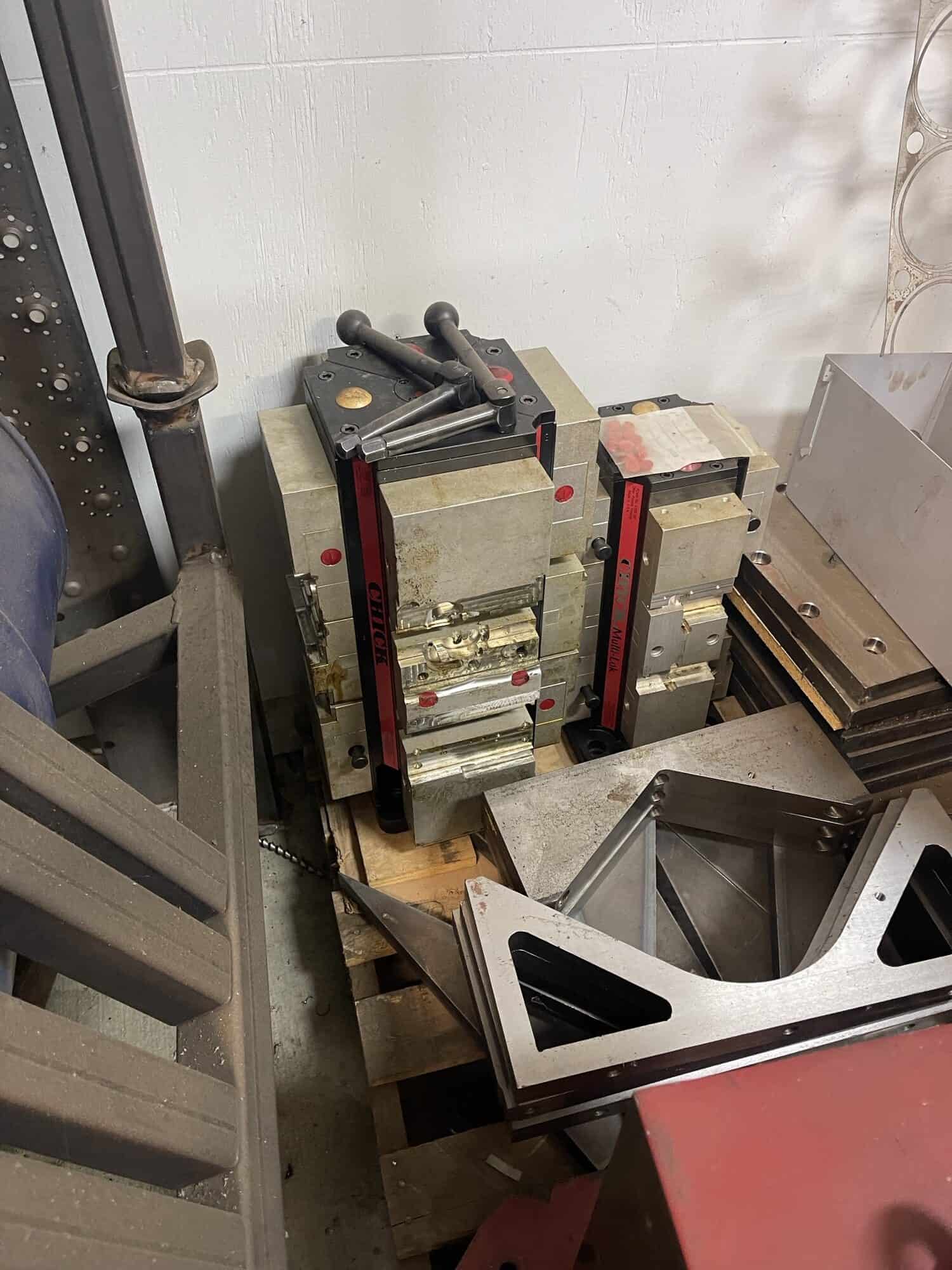

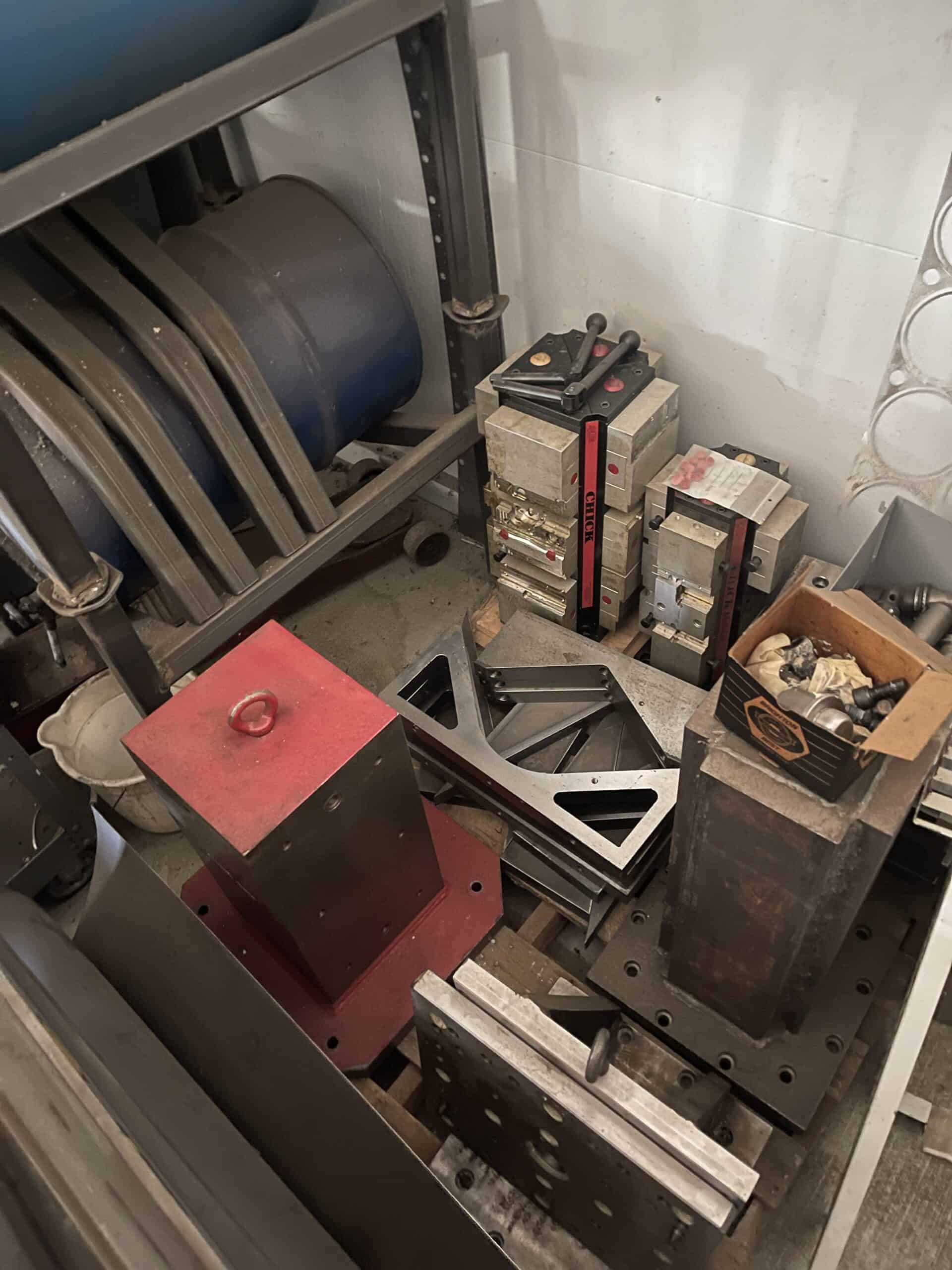

Includes Chick Tombstones |
