Year |
2011 |
|---|---|
Make |
Okuma |
Model |
MB-5000H |
Description |
CNC Horizontal Machining Center |
Reference # |
8073941 |
Price |
Activate Pricing |

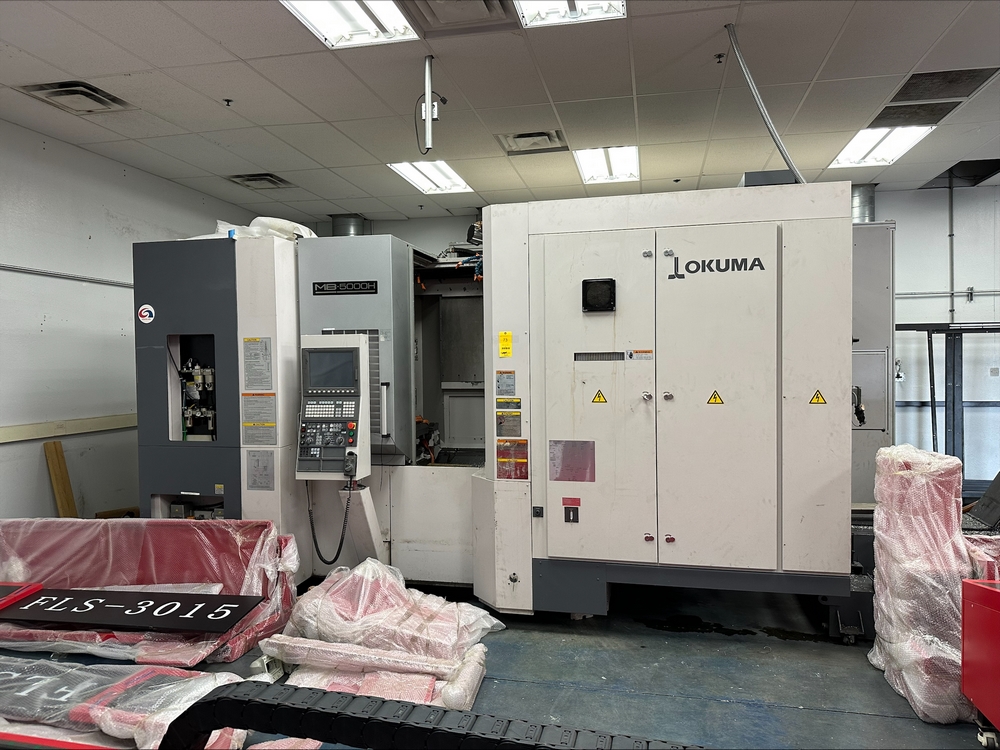

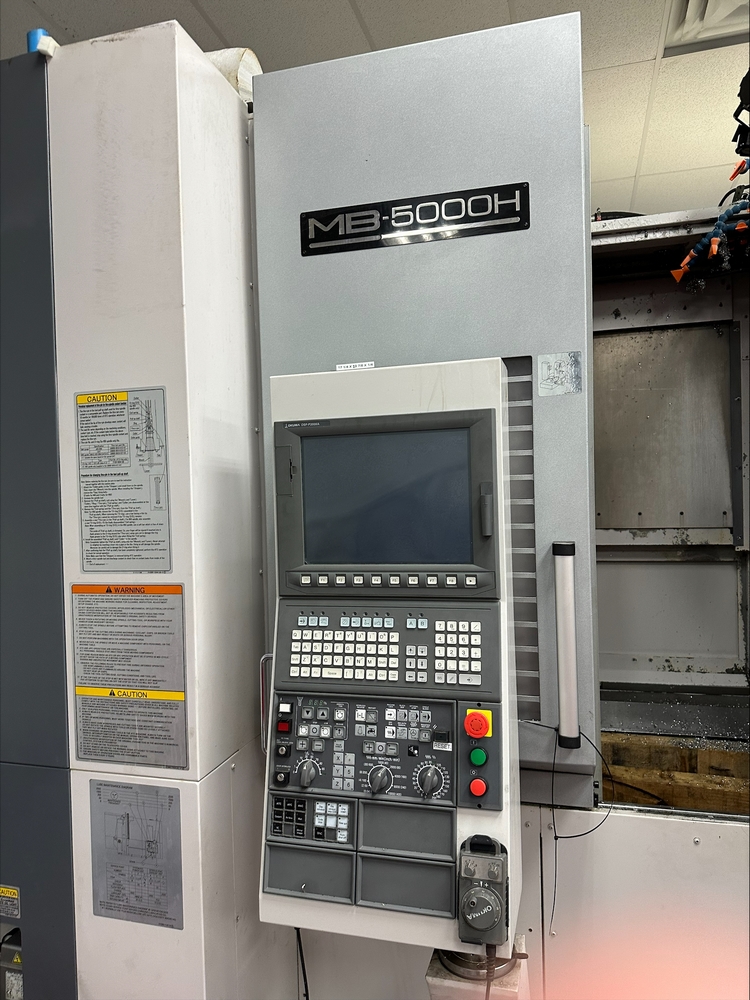

Used Okuma MB-5000H (2011) CNC Horizontal Machining Center for Sale. This Okuma horizontal machining center has a 500 mm pallet measuring 19.7″ x 19.7″, with 29.92″ of X-axis travel, 29.92″ of Y-axis travel and 31.89″ of Z-axis travel. The 12,000 RPM spindle uses a CAT 40 taper and is served by a 146-position ATC. Pallet indexing is full 4th axis. Included are two tombstone fixtures, 8″ L x 8″ W x 16-1/2″ H, on 12″ L x 12″ W machine pallets. Control is the Okuma OSP 200MA. The machine is equipped with a chip conveyor, a Losma Icarus mist collector and MP Systems high pressure coolant. It can be seen under power for an inspection. See more CNC horizontal machining centers, Activate Pricing, or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.7" x 19.7" |
| X-Axis Travel |
29.92" |
| Y-Axis Travel |
29.92" |
| Z-Axis Travel |
31.89" |
| Tool Magazine Capacity |
146 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Pallet Indexing |
Full 4th Axis |

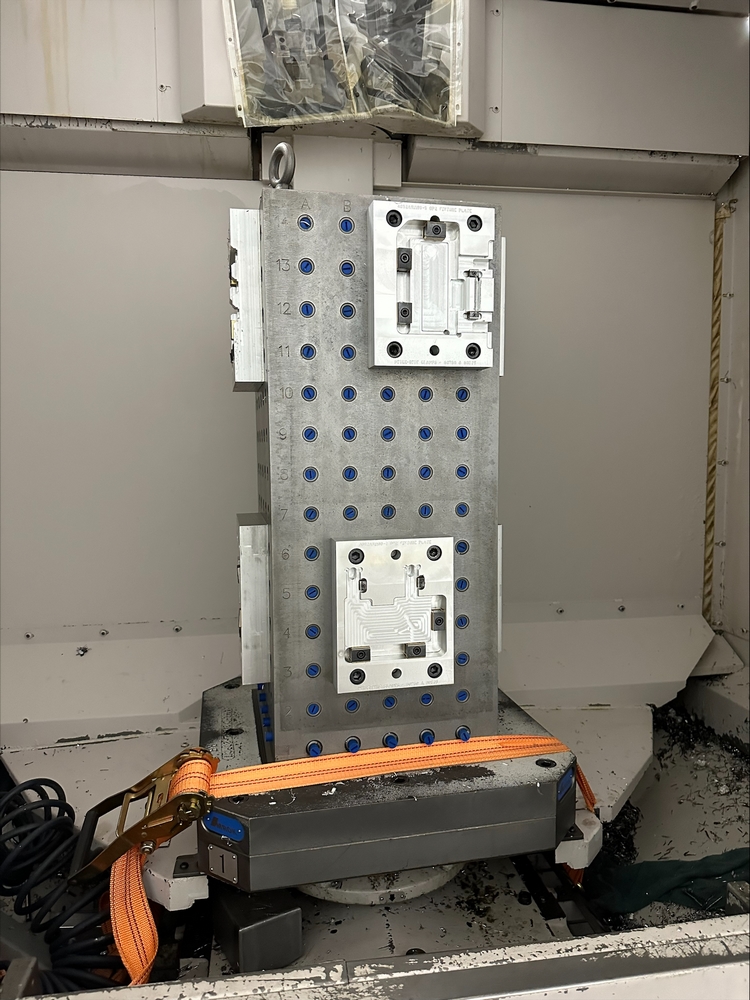

| Tombstone Fixtures (2) |
8" L x 8" W x 16-1/2" H on 12" L x 12" W Machine Pallets |

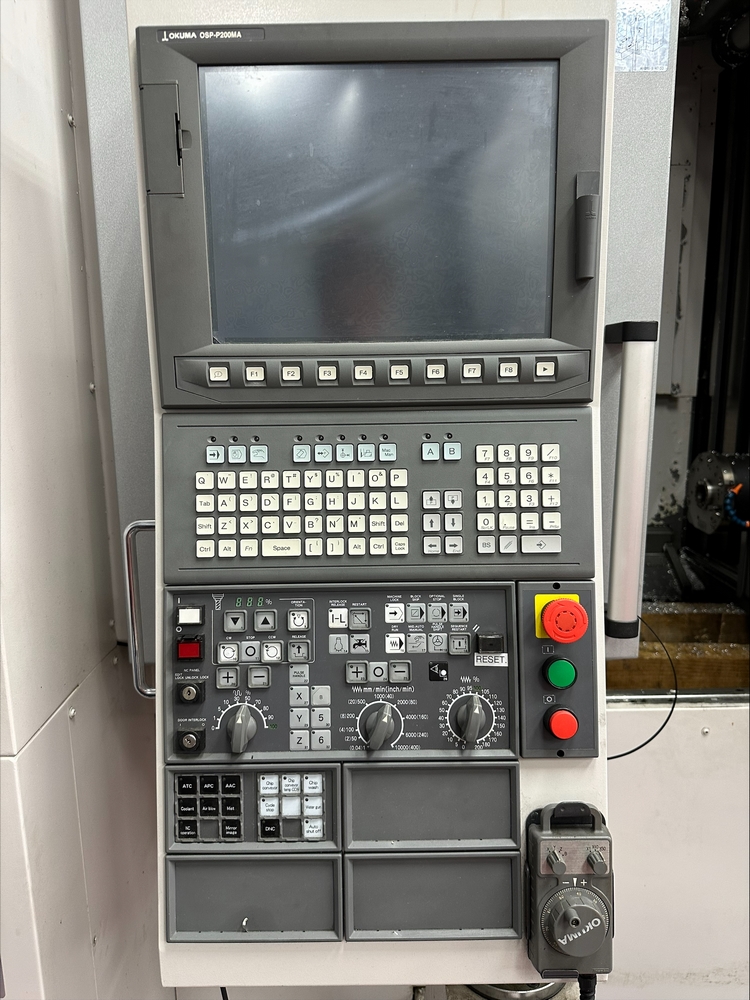

| Control |
OSP 200MA |
| Chip Removal |
Chip Conveyor |
Features
|

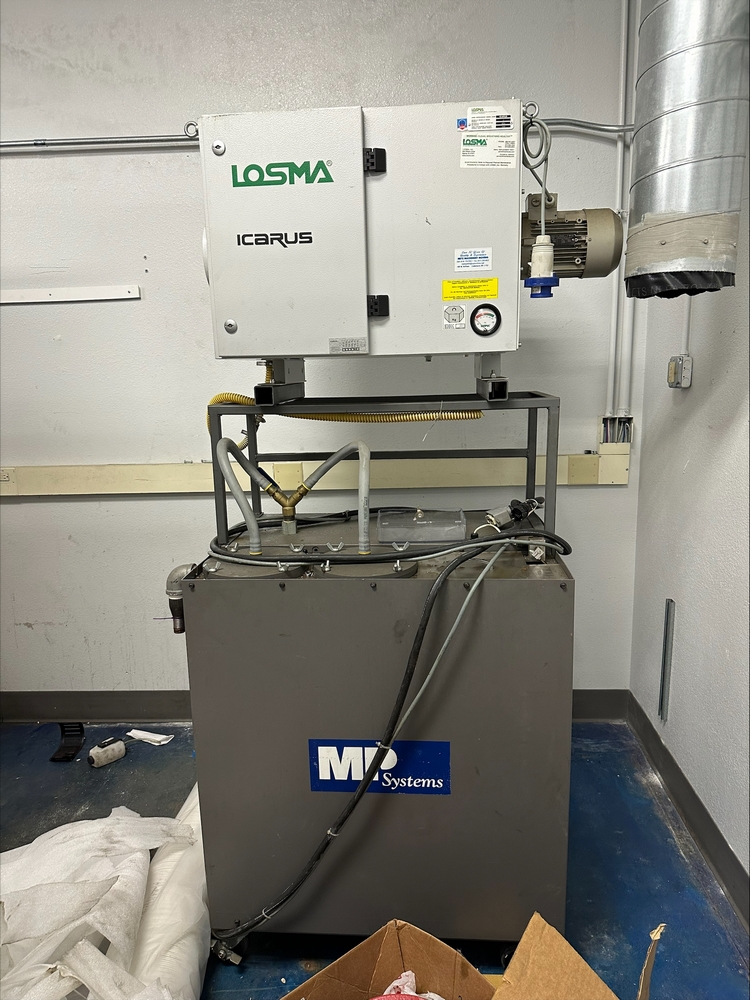

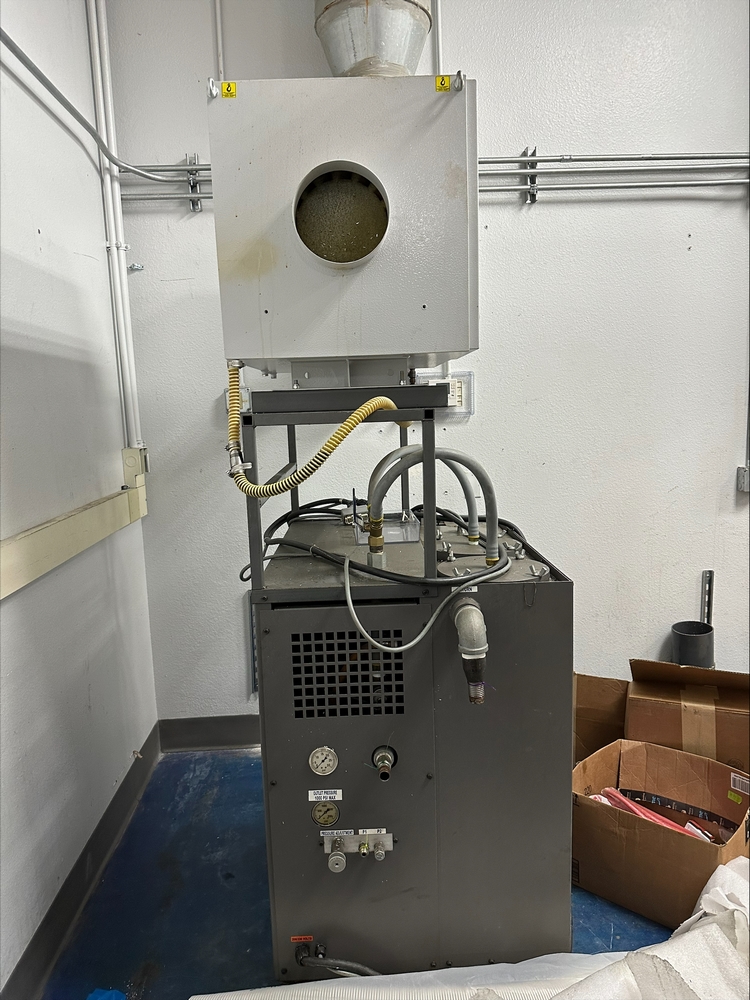

Losma Icarus Mist Collector |
MP Systems High Pressure Coolant |
