Year |
2012 |
|---|---|
Make |
Mitsubishi |
Model |
BA24 |
Description |
EDM Wire |
Reference # |
8070067 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
23.6" |
|---|---|
| Y-Axis Travel |
15.7" |
| Z-Axis Travel |
12.2" |

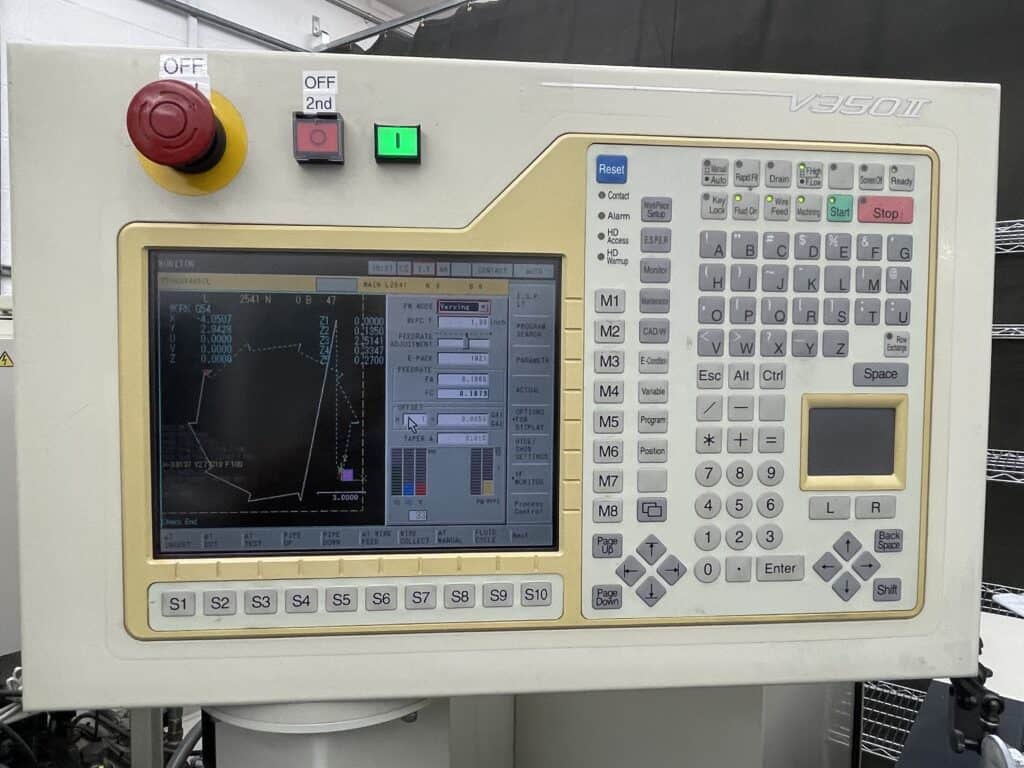

| Control |
Mitsubishi |
| U/V Axis Travel |
3.0" x 3.0" |
| Glass Scale Feedback |
Rotary Encoders |
| Degree Taper Cutting |
15 @ 10.5" |

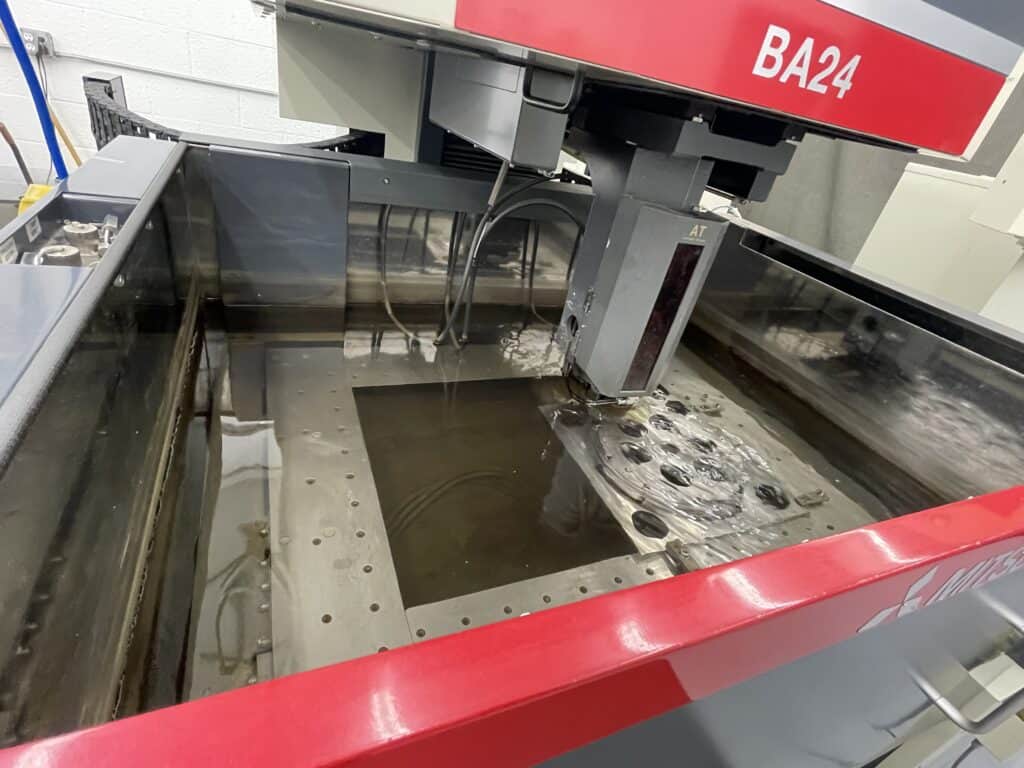

| Inside Tank Dimensions |
41.3" x 32.3" |
| Power Requirement |
200-220/3/60 |
| Workpiece Weight |
3,300 lbs |
| Table Dimensions |
34.6” X 26.8” |
| Resolution |
.000002” (2 Millionths) |
| Table Rapid Feed |
51.2 IPM |
| Wire Diameter |
.004” - .012” |
| Minimum Wire Thread Start Hole |
.020” |
| Filter System |
Paper Cartridge (2x) |
| Filter Tank Capacity |
175 Gallons |
| Dielectric System Dimensions |
39.5” X 90.0” X 66.0” |
| Overall Machine Unit Dimensions |
79.2” X 103.6” X 82.6” |
| Machine Weight |
9,700 Lbs |
Features
|
Power and Corner Master Control |
Auto Oiler |
|
Auto Wire Threading |
Chiller |
|
20 GB Hard Drive |
22 lbs Wire Spool |
|
Wire Chopper |
4-Sided Table |
|
Submerged Threading at Break Point |
Anti-Electrolysis Power Supply |
|
Fine Hole Insert |
