Year |
2003 |
|---|---|
Make |
AgieCharmilles |
Model |
Robofil 240 |
Description |
EDM Wire |
Reference # |
8074580 |
Price |
Activate Pricing |

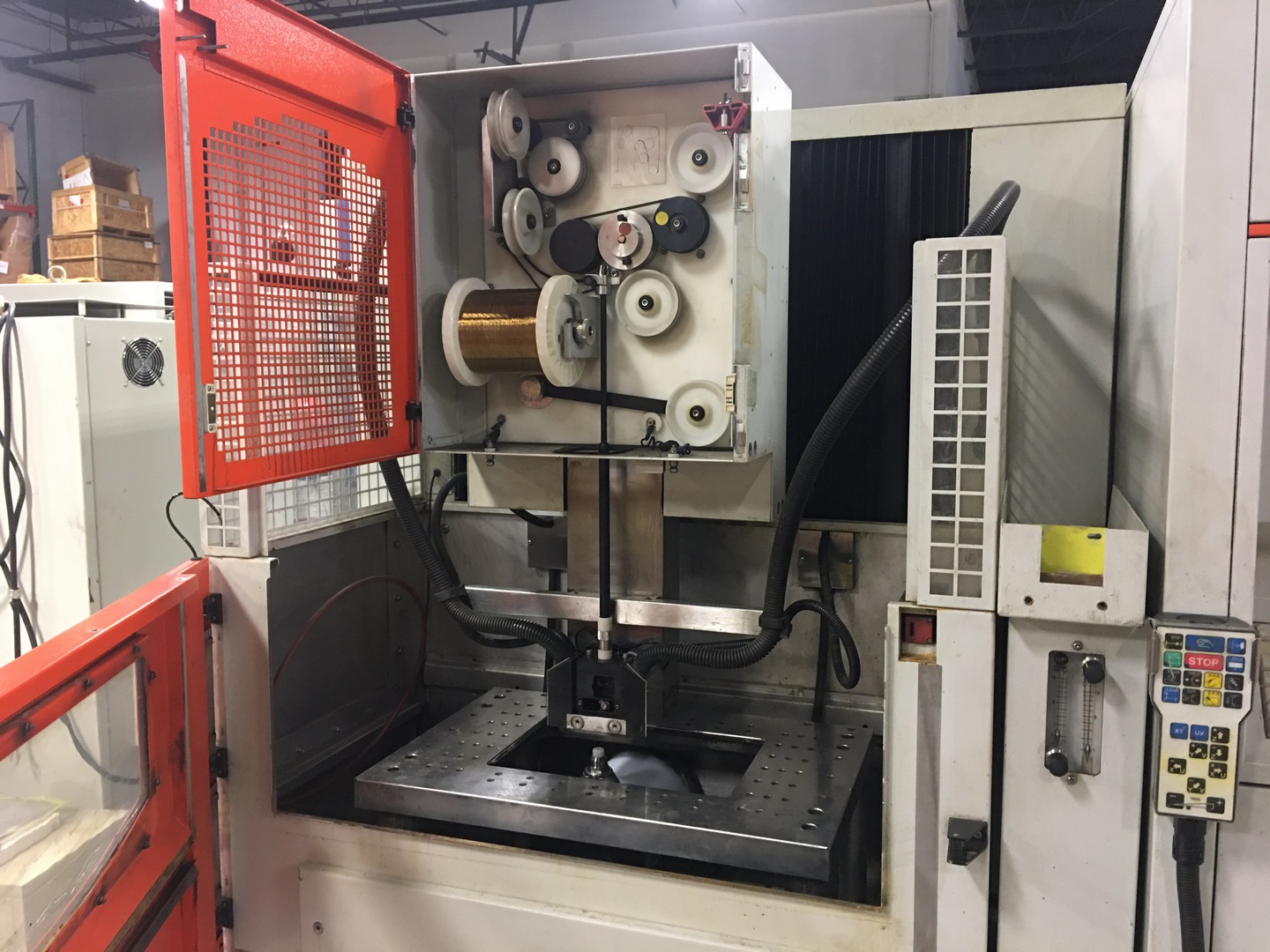

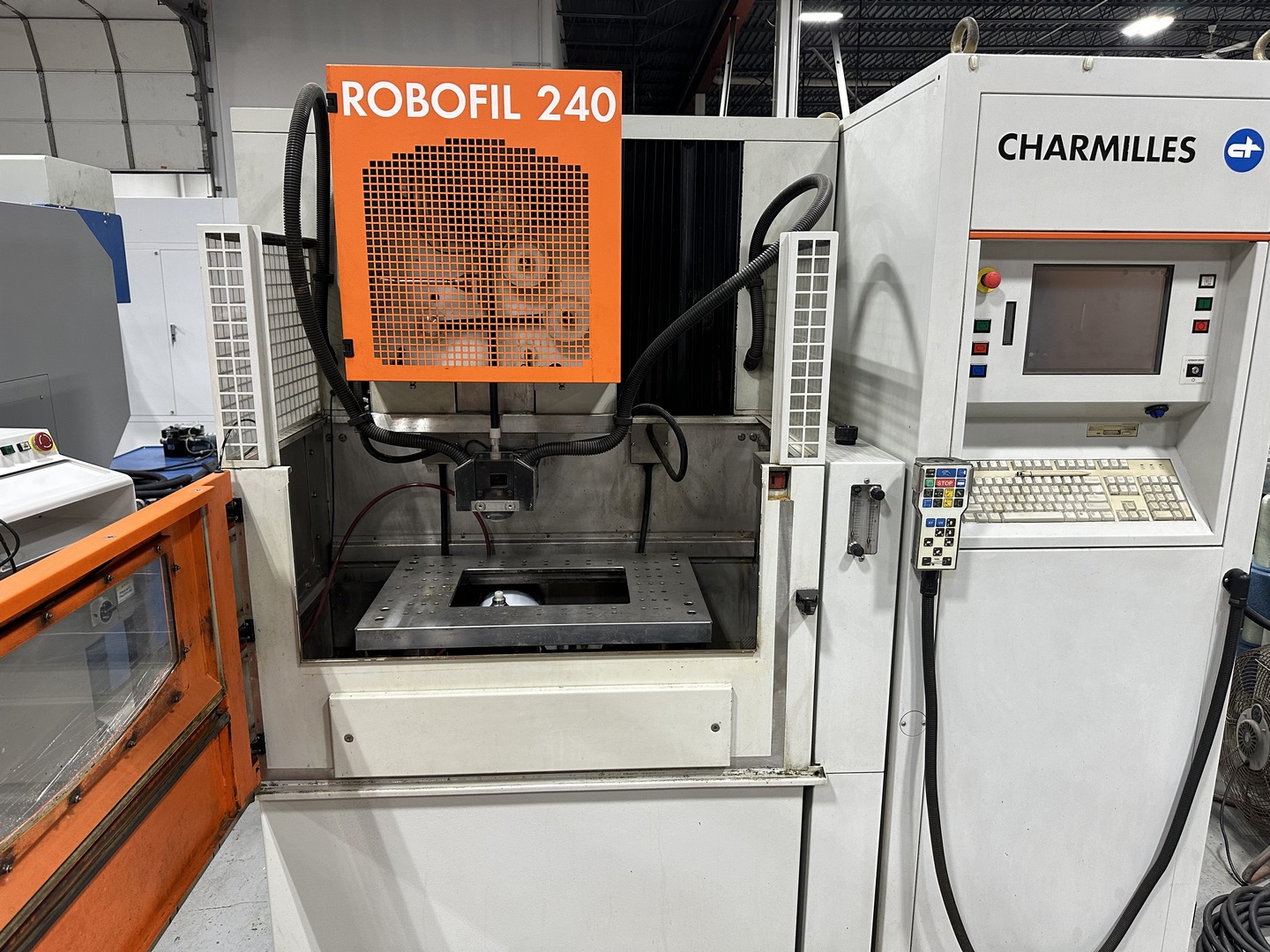

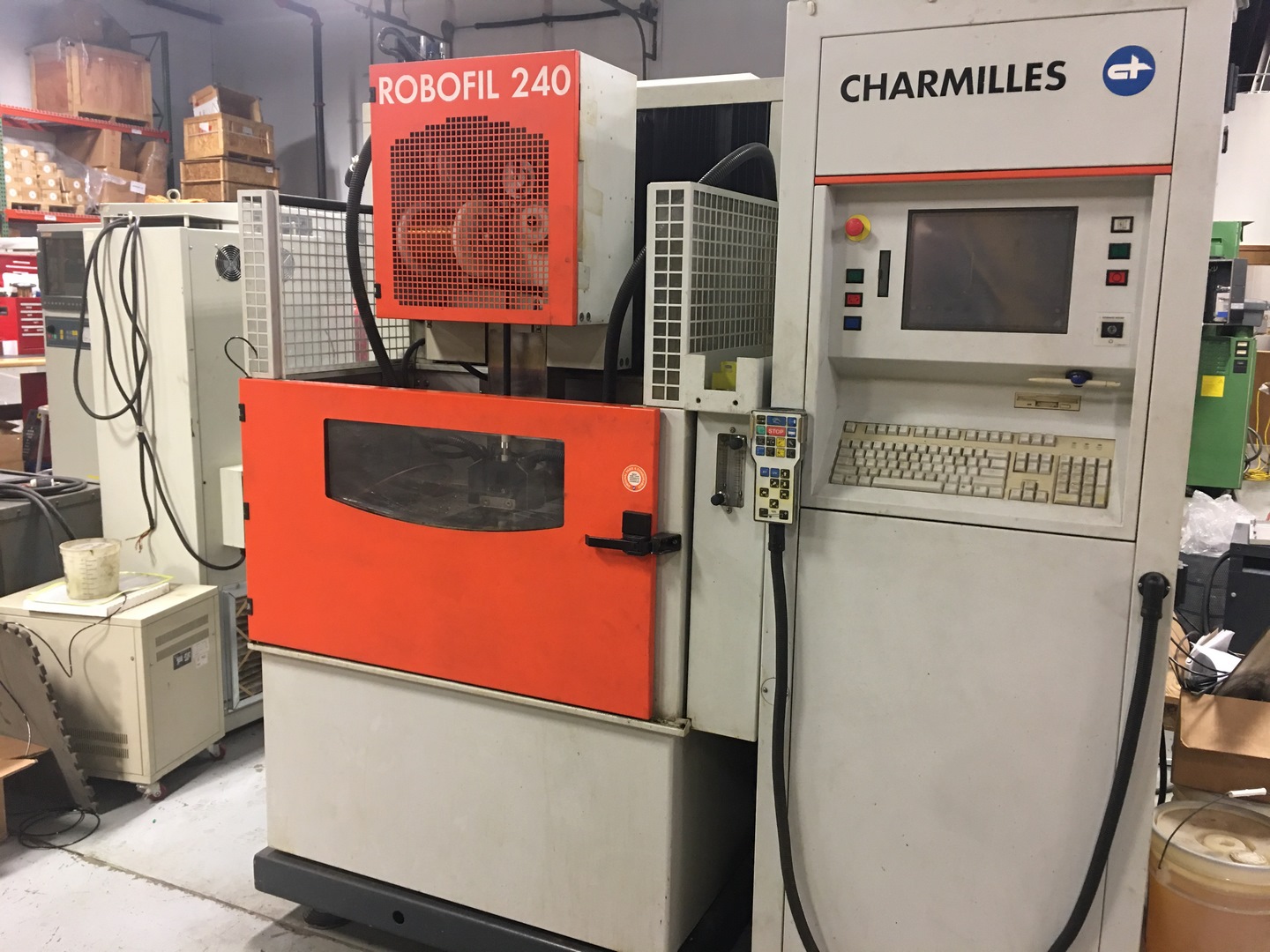

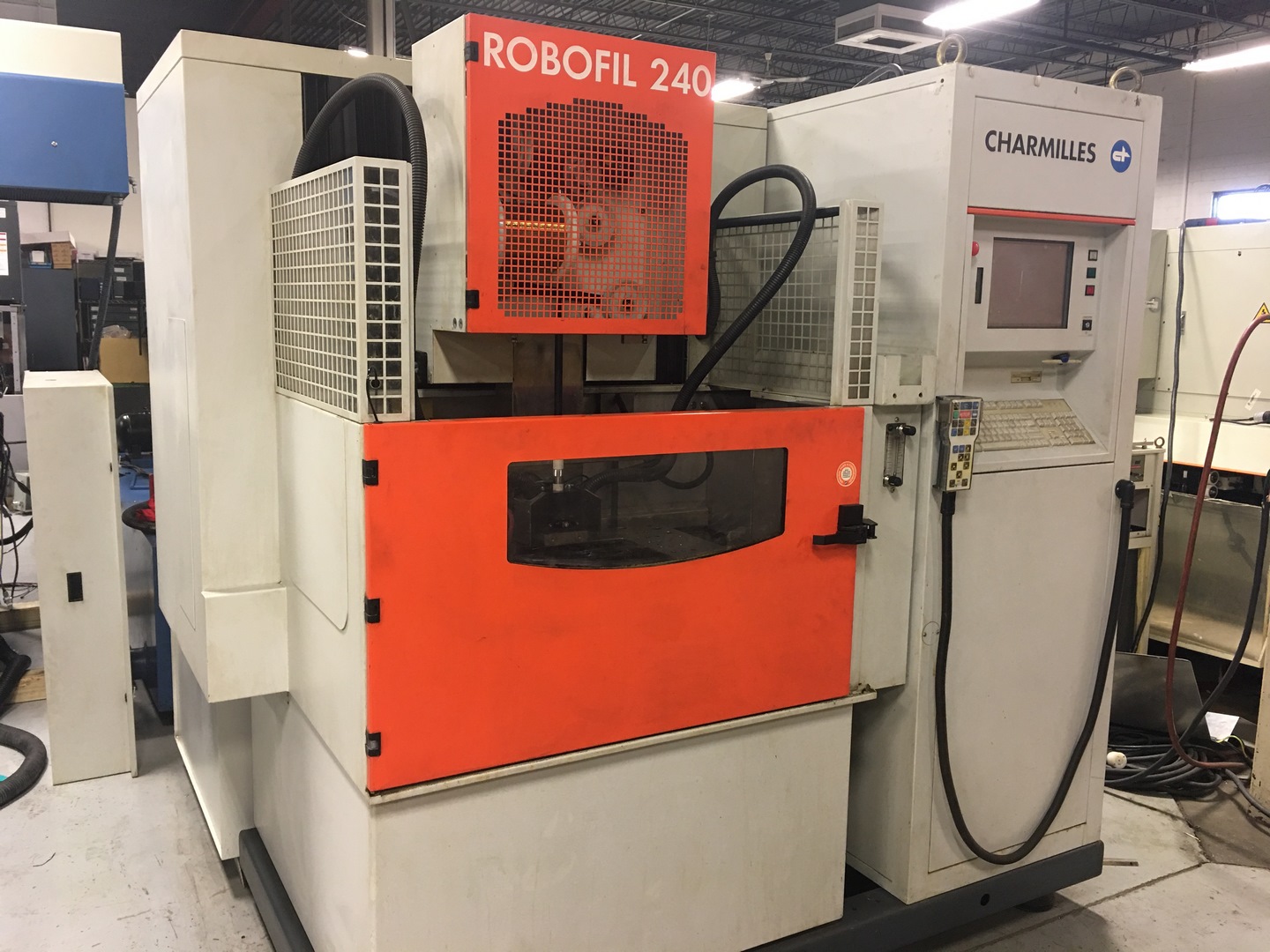

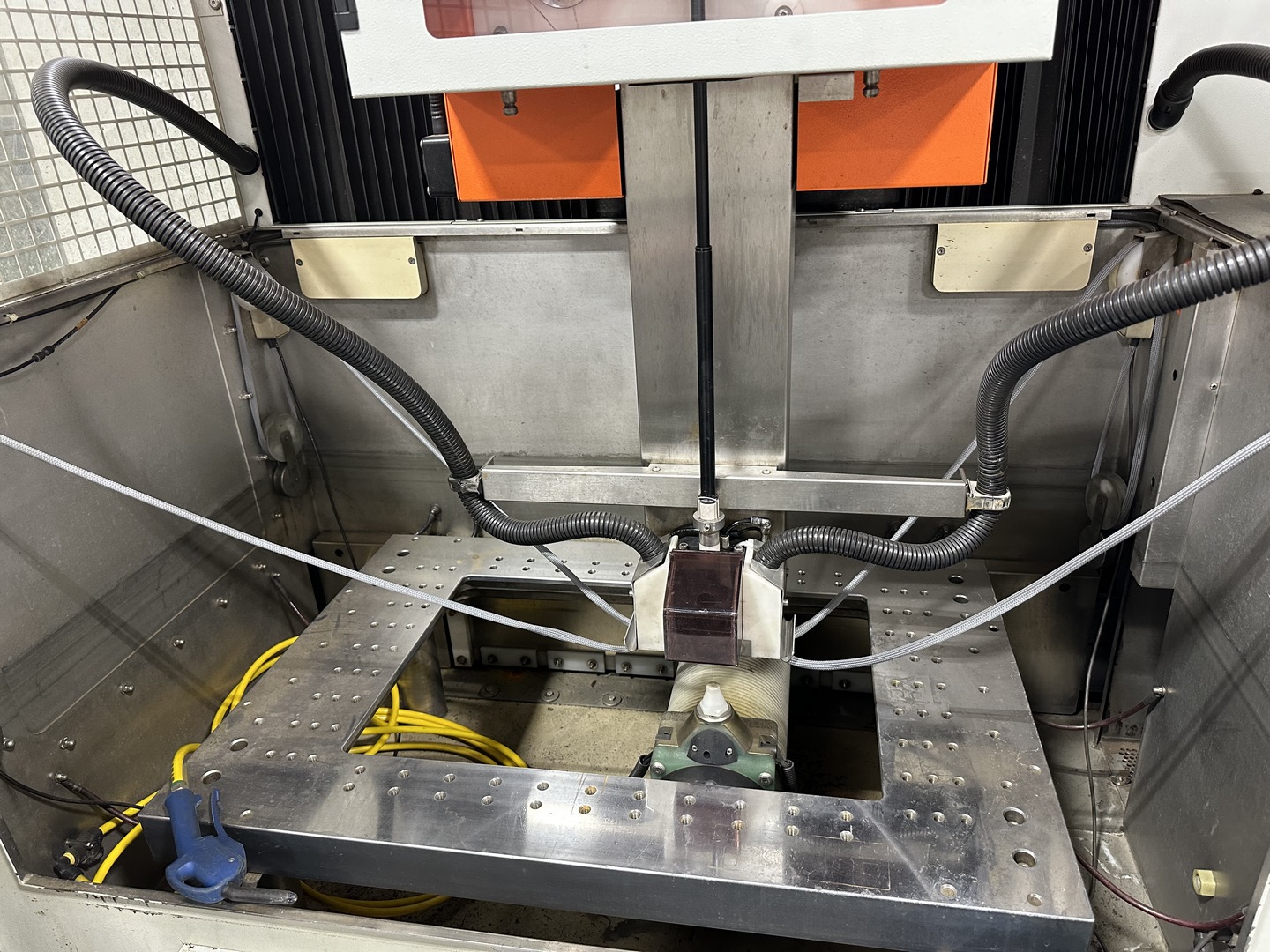

Used AgieCharmilles Robofil 240 (2003) EDM for Sale. This refurbished wire EDM machine offers 13.77″ of X-axis travel with 8.66″ in both Y and Z, plus U/V travel of 13.77″ x 8.66″ and taper cutting to +/- 30 degrees. It runs a CT Millennium control with a Windows operating system, touch screen, RS-232 and Ethernet, and glass scales on all axes. Wire diameter range is .004″ to .012″, and maximum workpiece size is 39.37″ x 21.65″ x 8.66″. Equipment includes a 3D part alignment system, built-in spent wire processor, collision protection on all axes, Dynamic Screen Function (DSF), automatic wire threader and dielectric chiller. Power requirement is 400/3/60; the machine weighs 5,401 lbs and measures 79.53″ x 80.7″ x 78.74″. It can be seen under power for an inspection. See more AgieCharmilles equipment, Activate Pricing, or Request a Quote.
Specifications
| X-Axis Travel |
13.77" |
|---|---|
| Y-Axis Travel |
8.66" |
| Z-Axis Travel |
8.66" |
| Control |
CT Millennium |
| U/V Axis Travel |
13.77" x 8.66" |
| Degree Taper Cutting |
+/- 30 Degree |
| Power Requirement |
400/3/60 |
| Wire Diameter |
.004" to .012” |
| Max Work Piece Size |
39.37" x 21.65" x 8.66” |
| Machine Weight |
5,401 Lbs |
| Machine Dimensions |
79.53" x 80.7" x 78.74" |
| Note |
Refurbished |
Features
|
3D Part Alignment System |
Built-in Spent Wire Processor |
|
Collision Protection All Axes |
Dynamic Screen Function (DSF) |
|
Glass Scales All Axes |
Touch Screen / RS-232 / Ethernet |
|
Automatic Wire Threader (AT) |
Dielectric Chiller |
|
Windows Operating System |
