Year |
2017 |
|---|---|
Make |
Fanuc |
Model |
Robocut a-C400iB |
Description |
EDM Wire |
Reference # |
8078919 |
Price |
Activate Pricing |

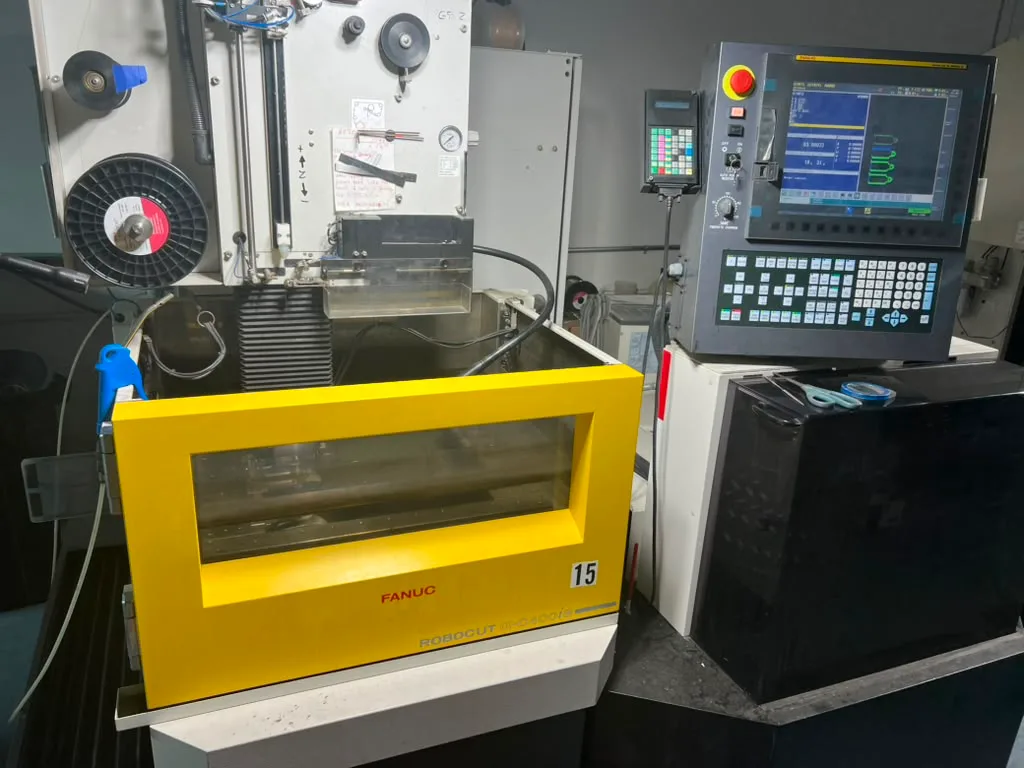

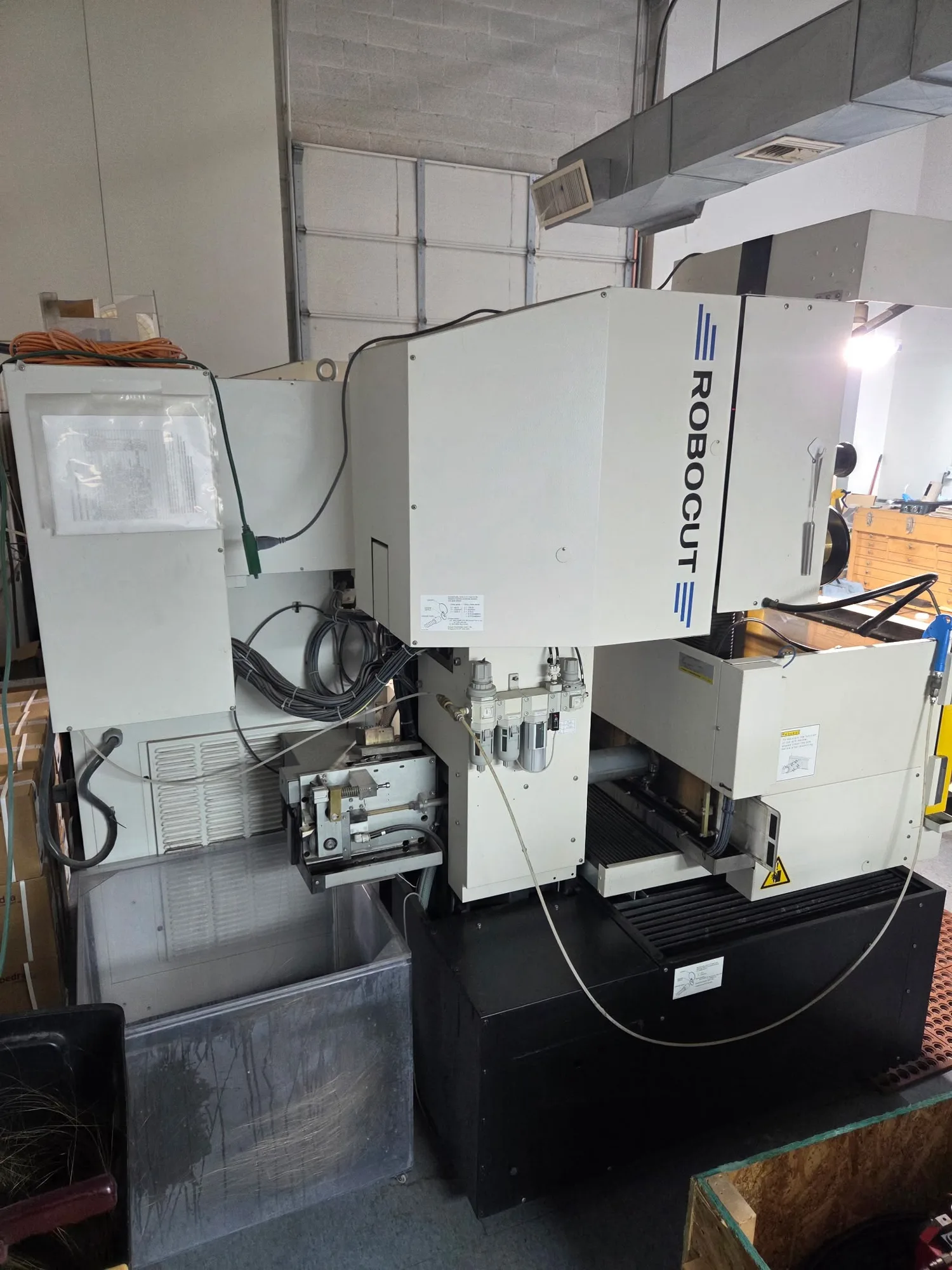

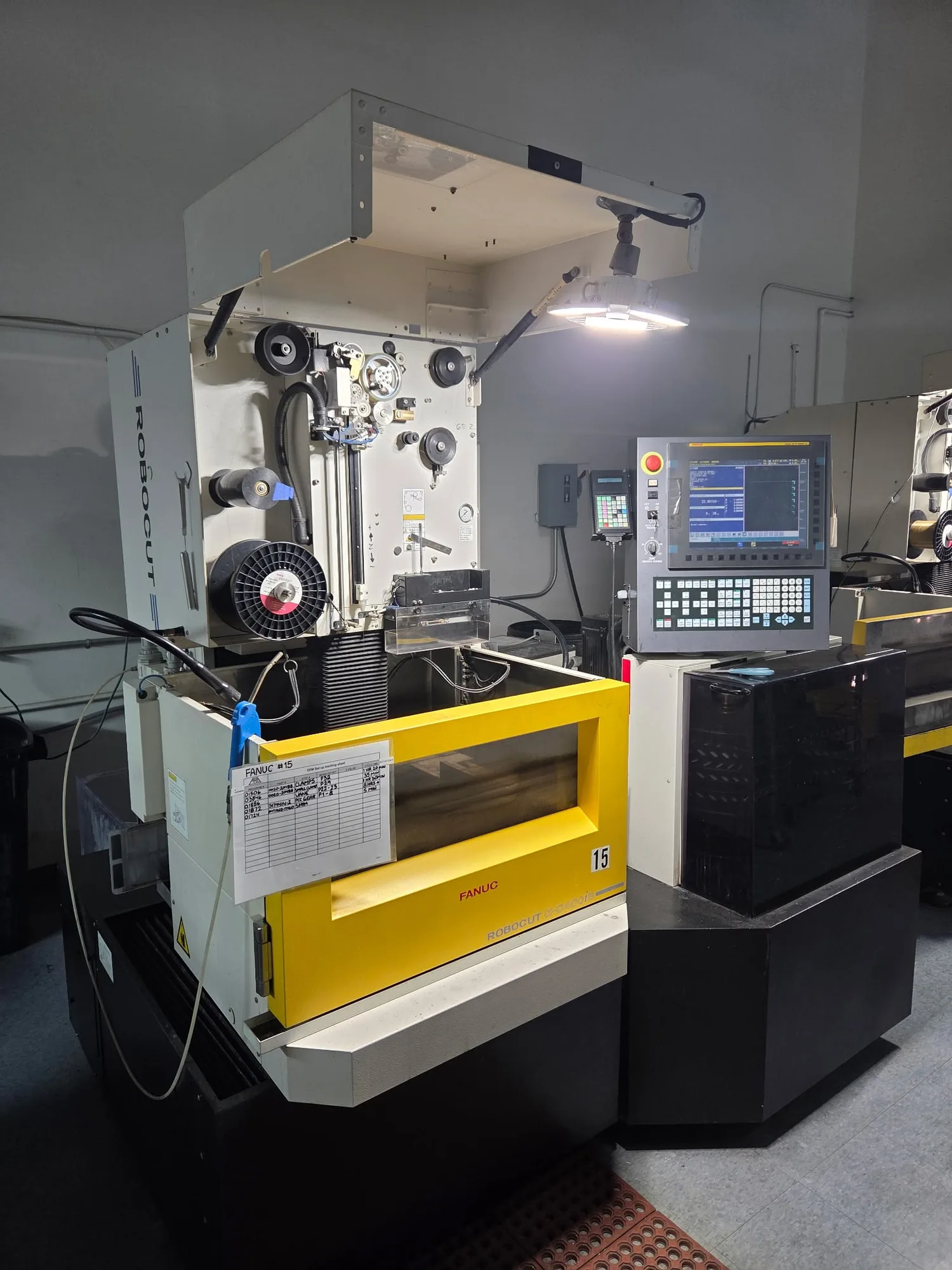

Used Fanuc Robocut a-C400iB (2017) EDM for Sale. This wire EDM offers 15.7″ of X-axis travel, 11.8″ Y, 10.2″ Z, and 2.36″ x 2.36″ U/V travel, with taper cutting to 12° at 10.0″. The work tank measures 28.7″ x 24.8″ x 9.8″ inside, holds 145 gallons, and handles a maximum workpiece weight of 1,102 lbs with submerged cutting to 9.8″. Wire diameter range is 0.004″ to 0.012″. Control is the Fanuc Series 31i-WB with a 15″ color touch screen LCD, Heidenhain linear glass scales on X and Y, auto wire threading, programmable Z axis and flushing, chiller, Ethernet and two USB ports. Requires 200-220 V/3 phase/60 Hz; machine weight 4,000 lbs, floor space 94″ x 105″. Available to see under power for inspection. Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
10.2" |
| U/V Axis Travel |
2.36" x 2.36" |
| Control |
Fanuc Series 31i-WB |
| Degree Taper Cutting |
12° @ 10.0" |
| Glass Scale Feedback |
X and Y Axis Only |

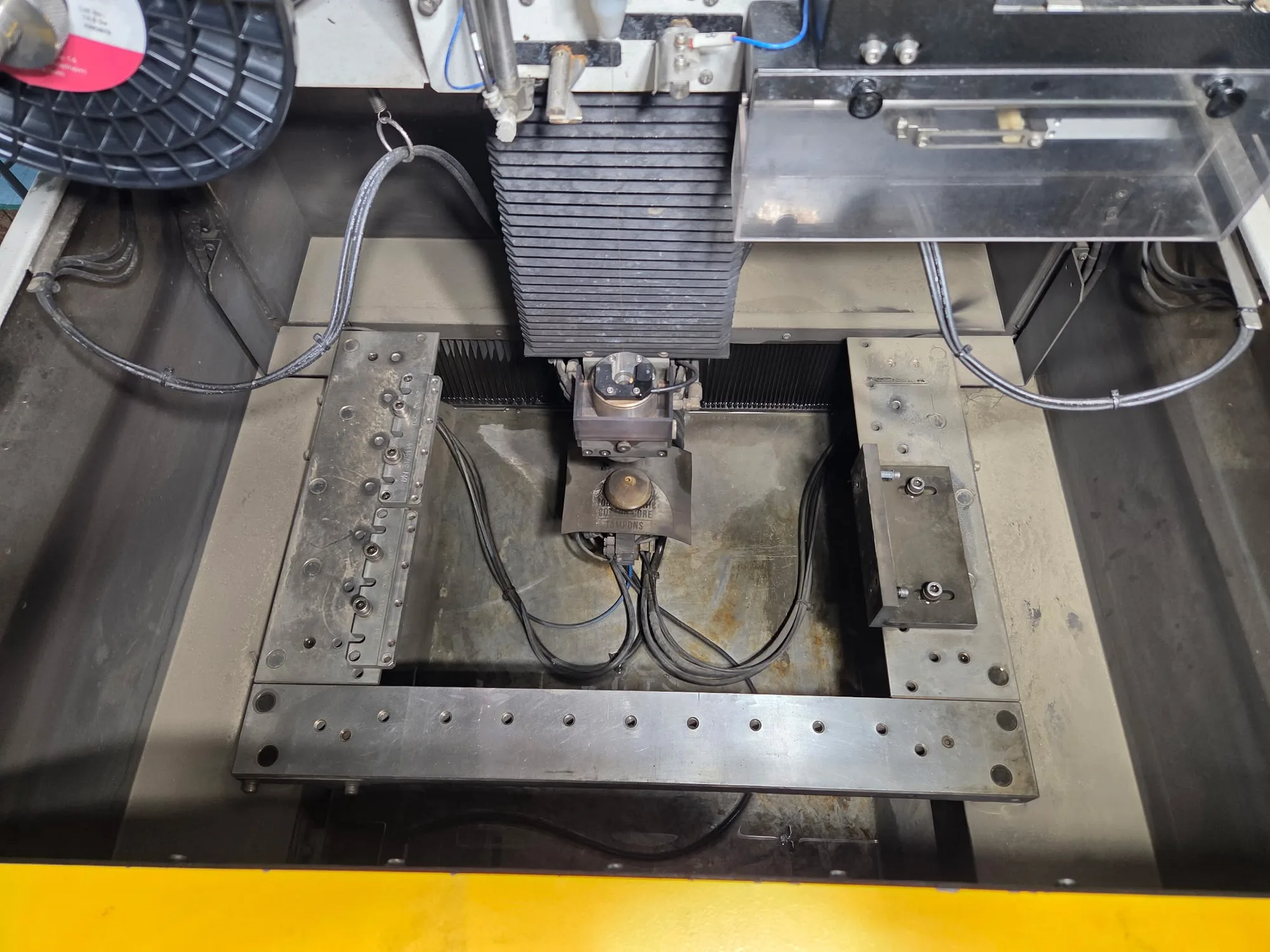

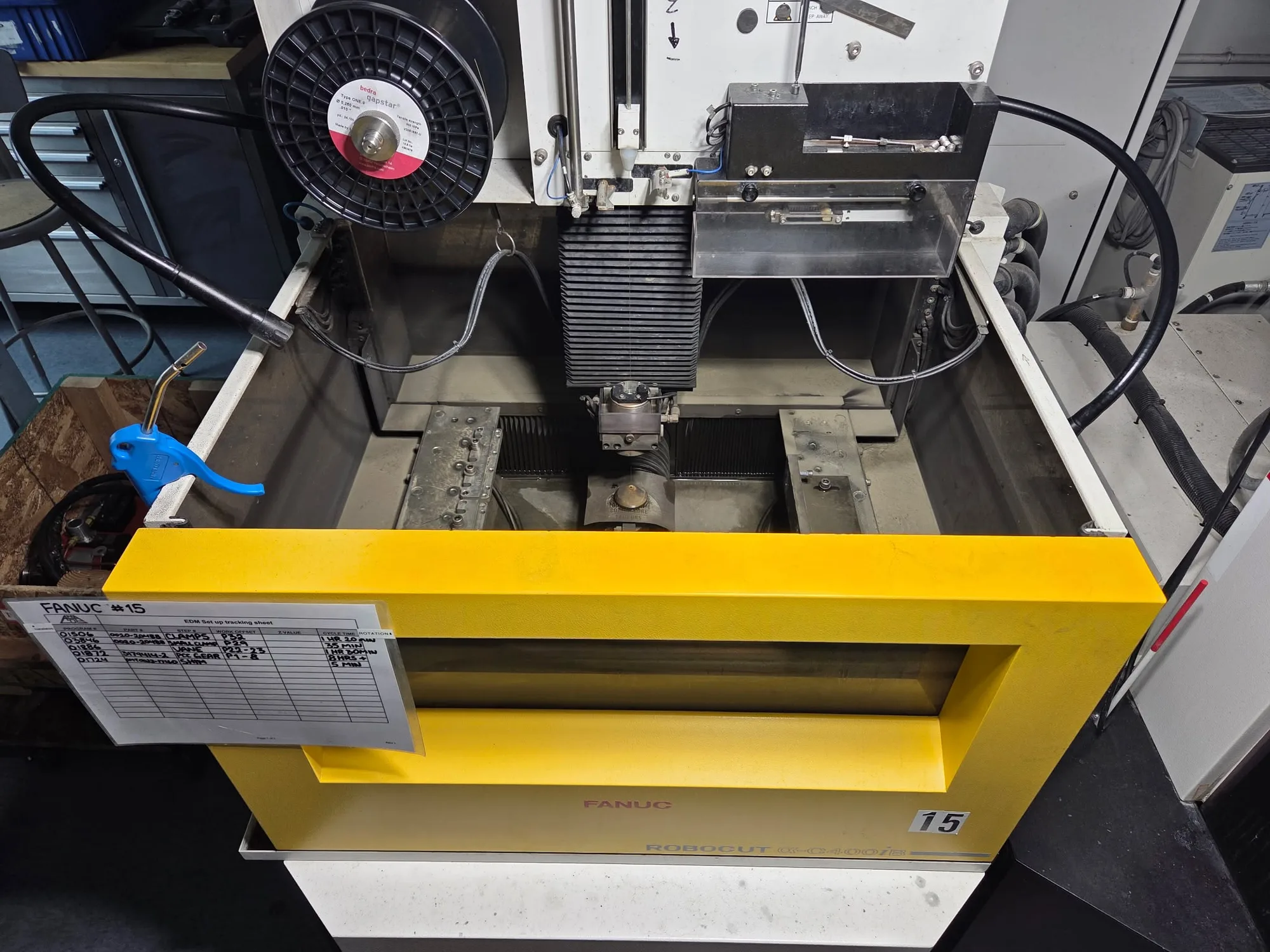

| Inside Tank Dimensions |
28.7” x 24.8” |
| Wire Diameter |
0.004" To 0.012" |
| Tank Capacity |
145 Gal |
| Internal Work Tank Size |
28.7” x 24.8” x 9.8 |
| Maximum Submerged Cutting Depth |
9.8" |
| Maximum Work Piece Weight |
1,102 Lbs. |

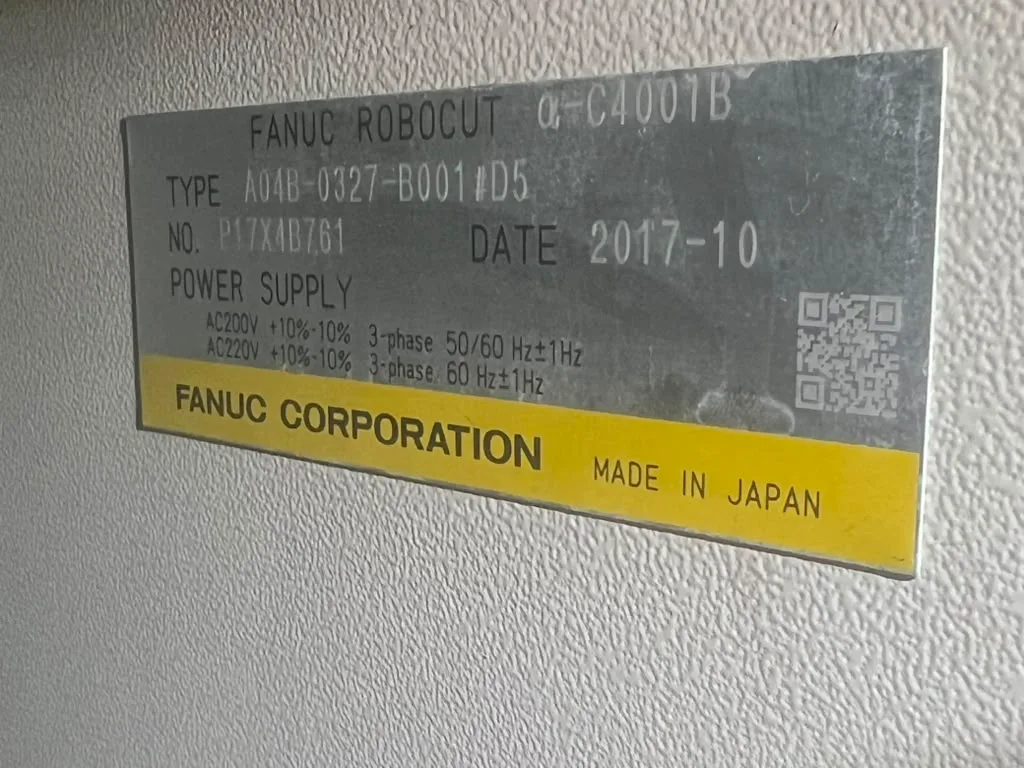

| Power Requirement |
200-220 V/3 Phase/60 Hz |
| Machine Weight |
4,000lbs |
| Floor Space |
94" x 105" |
Features
|
Auto Wire Threading |
Programmable “Z” Axis |
|
Programmable Flushing |
Chiller |
|
100% Built in Japan |
S232C Input/Output Port for File Transferring |
|
2 USB Ports |
Servo Motor Controlled Automatic Water Level Control in Work Tank |
|
3D Coordinate System Rotation |
Stainless Submersible Vertical Wire Alignment Gauge |
|
Anti-Crash Protection |
Auto Wire Recovery Function |
|
Automatic Corner Rounding |
Automatic Power Recovery |
|
Automatic Restart |
Ethernet Port |
|
Exclusive Twin Servo Motor Wire Tension System |
FANUC Automatic Wire Feed System |
|
Fanuc Filtration Unit |
FANUC High Speed Digital / AC Power Supply |
|
FANUC Serial/Digital AC Servo Motors |
Fanuc Series 31i-WB 15" Color LCD – Touch Screen |
|
Heidenhain Linear Glass Scales |
Independent Column Mounted U and V Axis Slides |
|
NC Command Resolution Of 0.0000004” (0.0001 Mm) |
Part Program Storage Capacity 4 Megabyte |
