Year |
2002 |
|---|---|
Make |
AgieCharmilles |
Model |
Robofil 240 |
Description |
EDM Wire |
Reference # |
8078228 |
Price |
Activate Pricing |

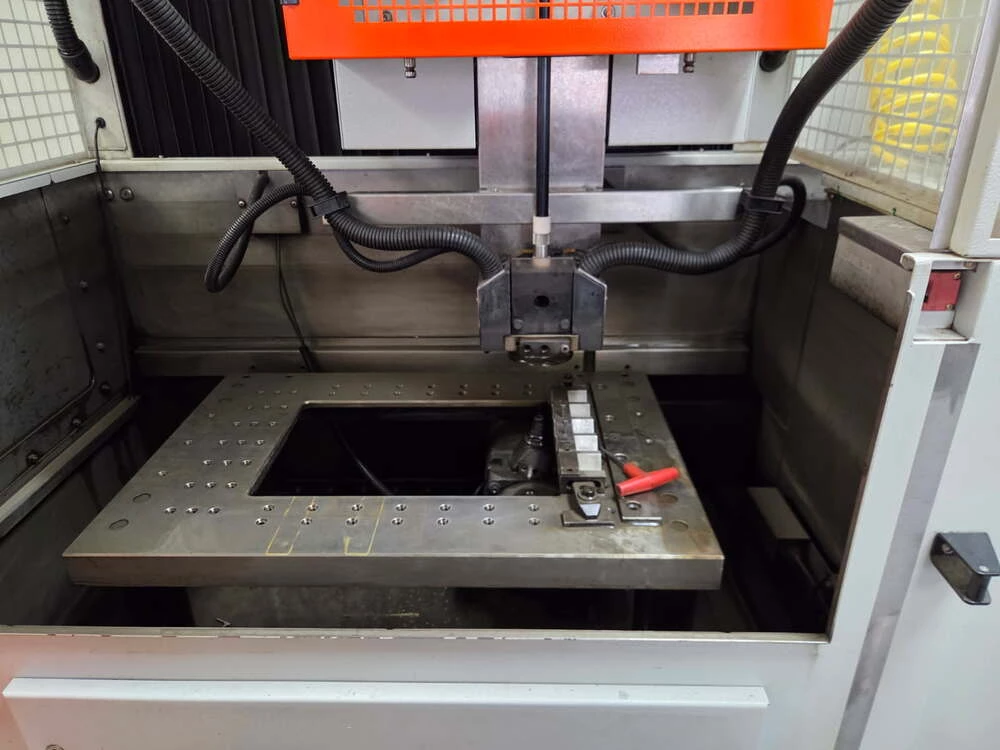

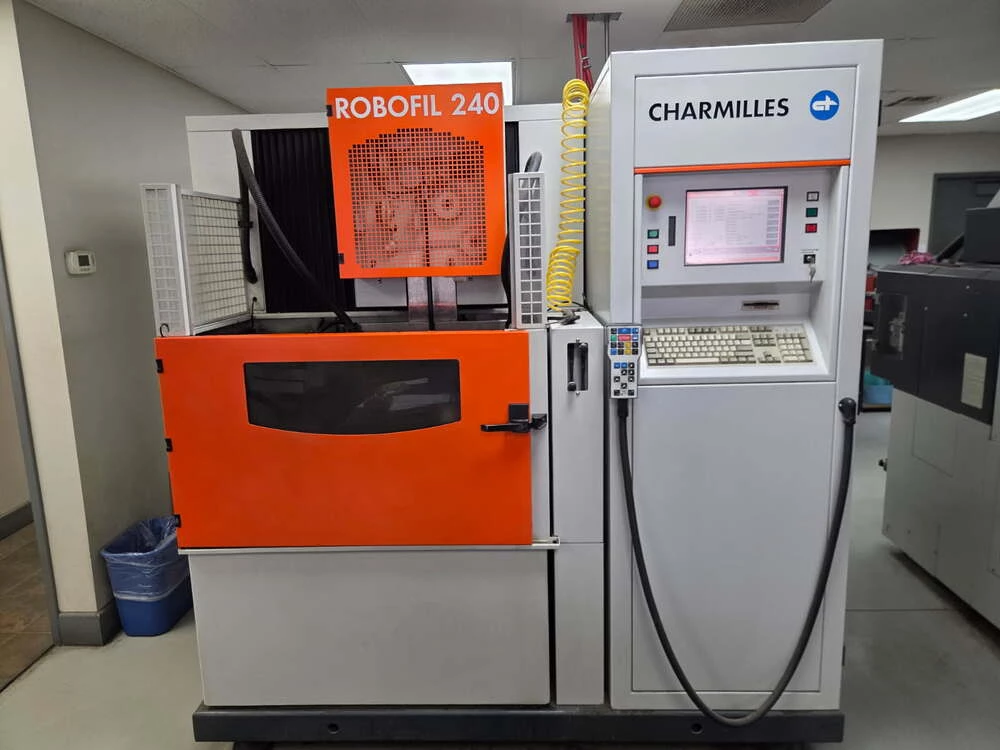

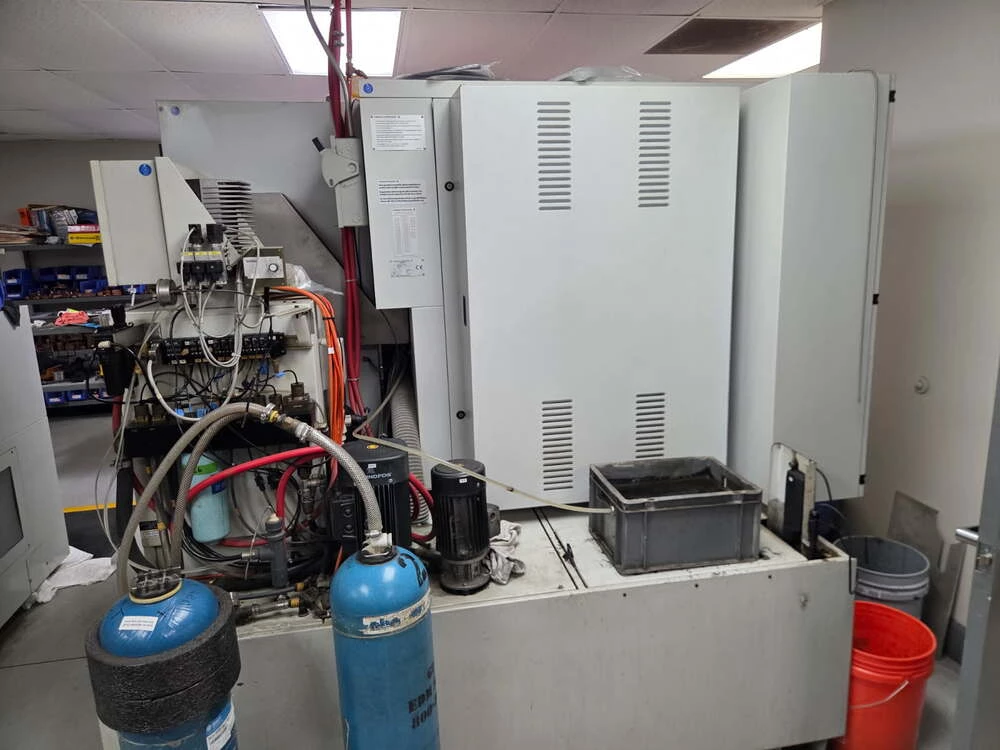

Used AgieCharmilles Robofil 240 (2002) EDM for Sale. This wire EDM is fitted with the CT Millennium control and offers X-axis travel of 13.77″, Y-axis travel of 8.66″, and Z-axis travel of 8.66″, with U/V axis travel of 13.77″ x 8.66″ and taper cutting to +/- 30 degrees. Inside tank dimensions measure 26.77″ x 17.72″, and wire diameters from 0.004″ to 0.012″ are accommodated. Power requirement is 400V/3PH/60Hz. Equipped with collision protection on all axes, glass scales on all axes, auto wire threading, chiller, remote jog handle, and wire chopper. The machine can be seen under power for an inspection. See more used EDM machines or browse our AgieCharmilles listings. Activate Pricing to view the figure, or Request a Quote and we will follow up.
Specifications
| X-Axis Travel |
13.77" |
|---|---|
| Y-Axis Travel |
8.66" |
| Z-Axis Travel |
8.66" |
| Control |
CT Millennium |
| U/V Axis Travel |
13.77" x 8.66" |
| Degree Taper Cutting |
+/- 30 Degree |
| Inside Tank Dimensions |
26.77" x 17.72" |
| Power Requirement |
400V/3PH/60Hz |
| Wire Diameters |
0.004" - 0.012" |
Features
|
Collision Protection All Axes |
Glass Scales All Axes |
|
Auto Wire Threading |
Chiller Included |
|
Remote Jog Handle |
Wire Chopper |
