Year |
2012 |
|---|---|
Make |
Doosan |
Model |
Puma TT1800SY |
Description |
CNC Lathe |
Reference # |
8078567 |
Price |
Activate Pricing |

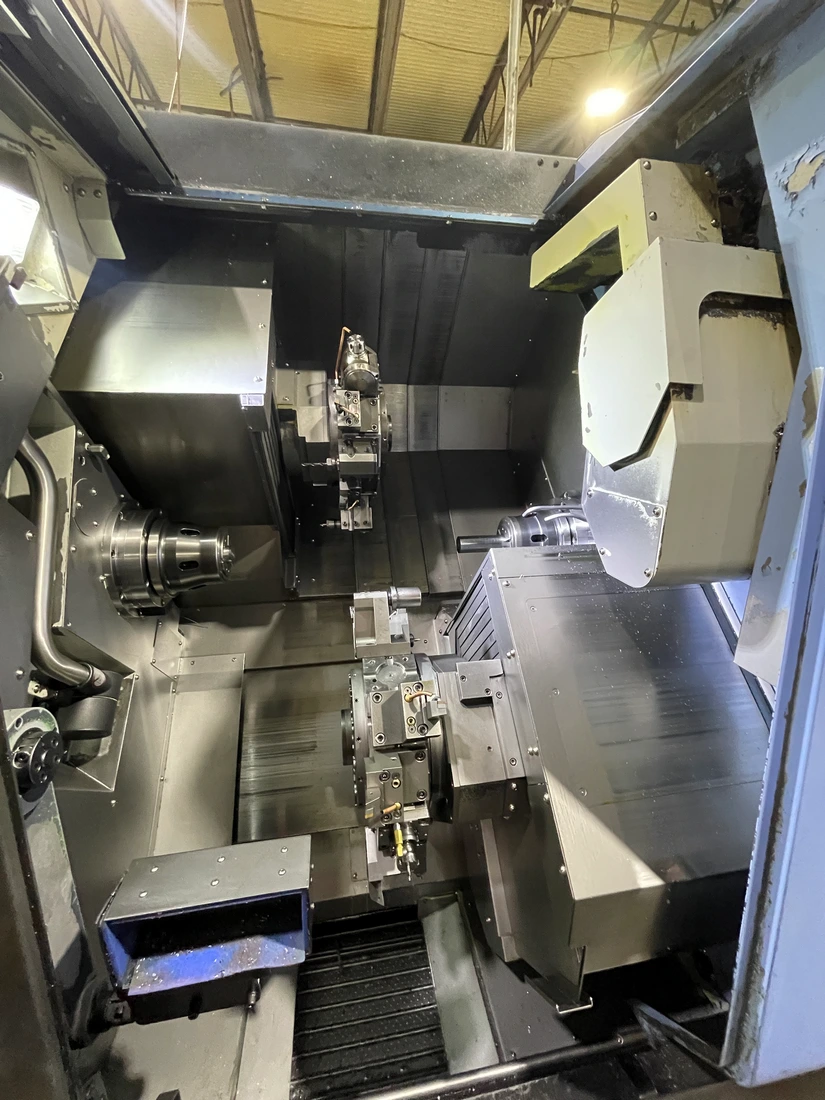

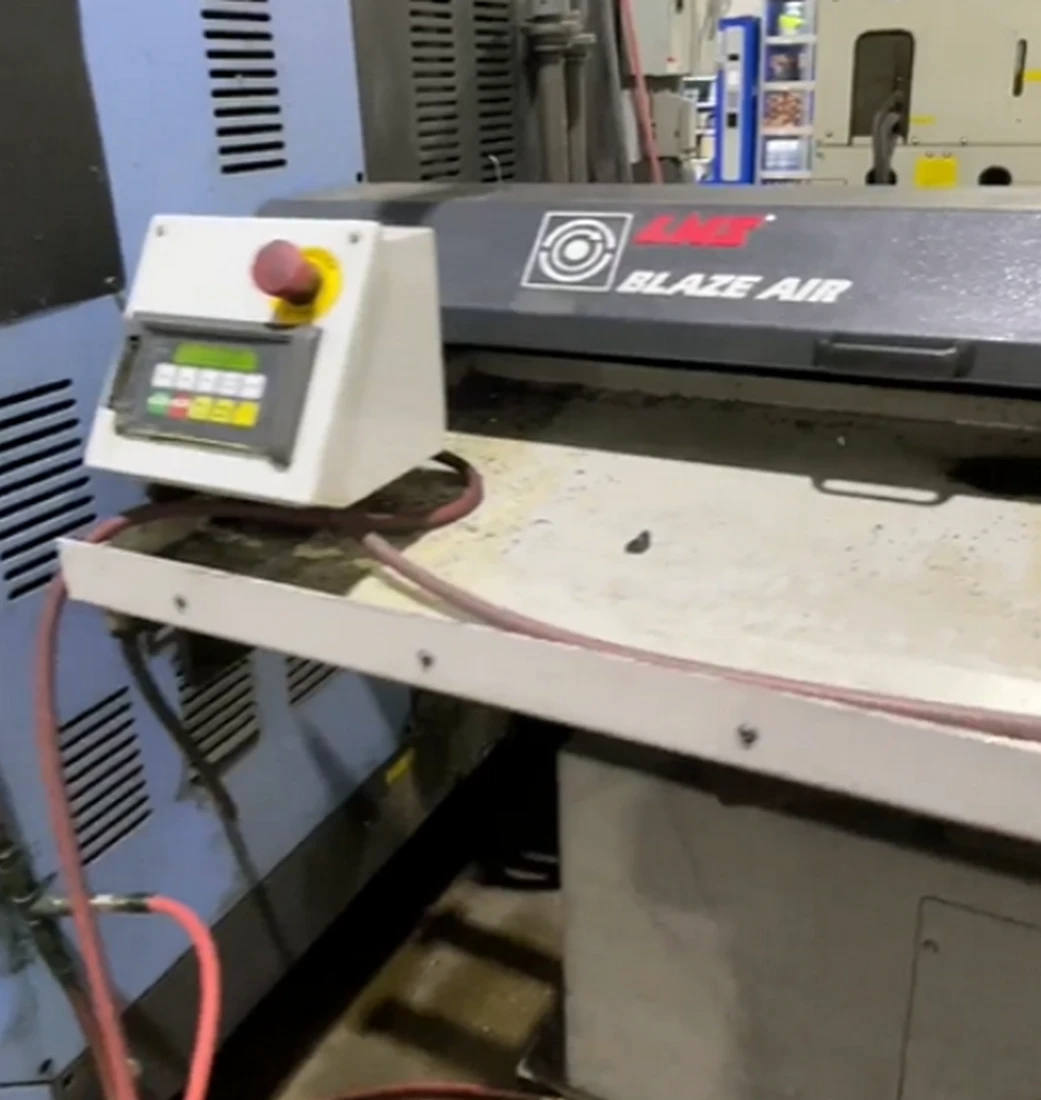

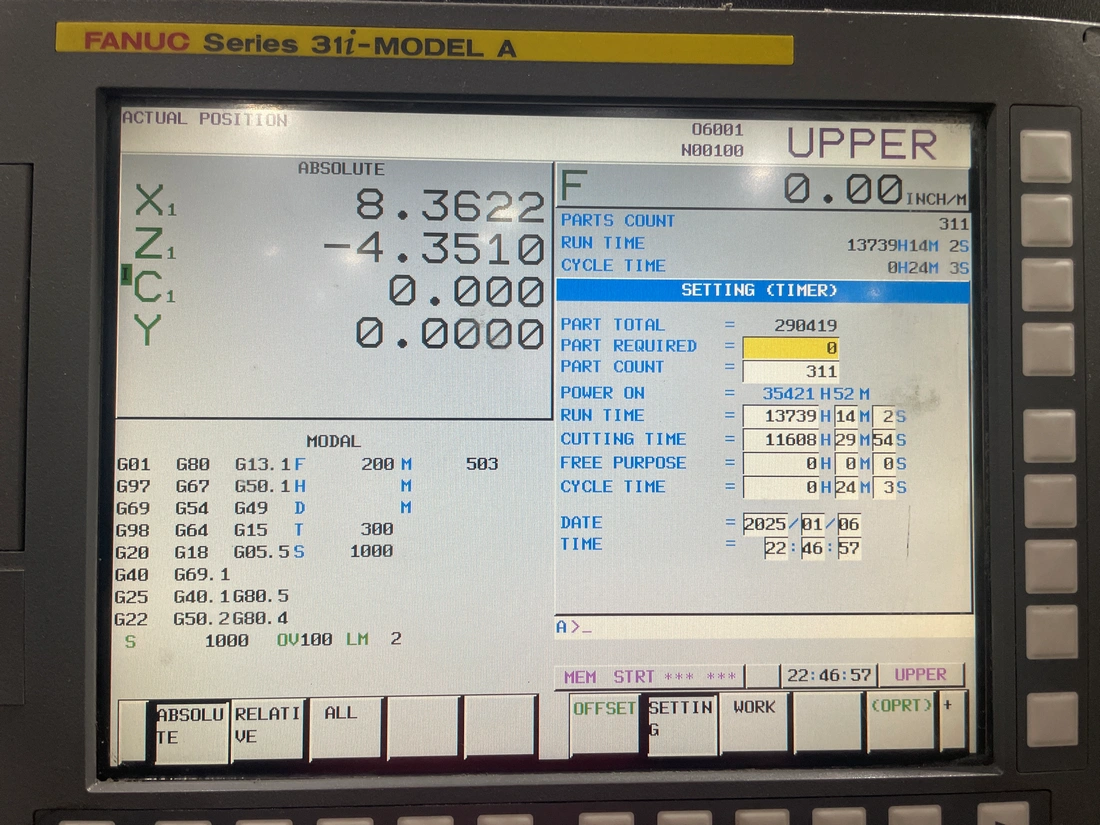

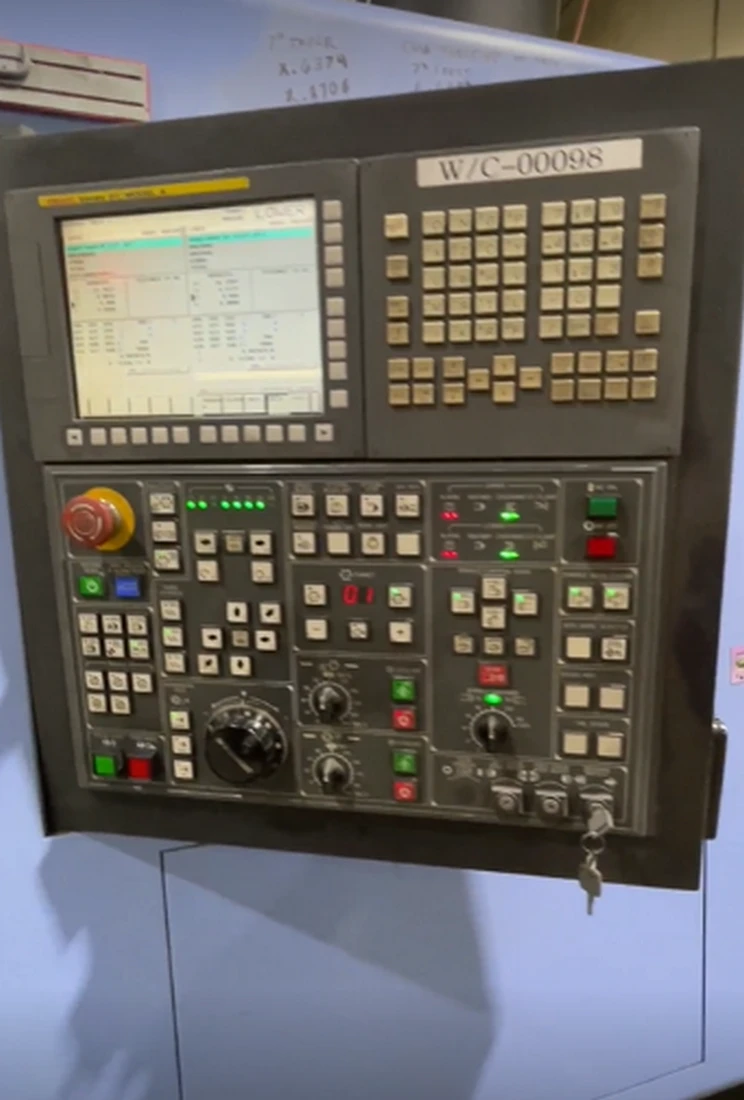

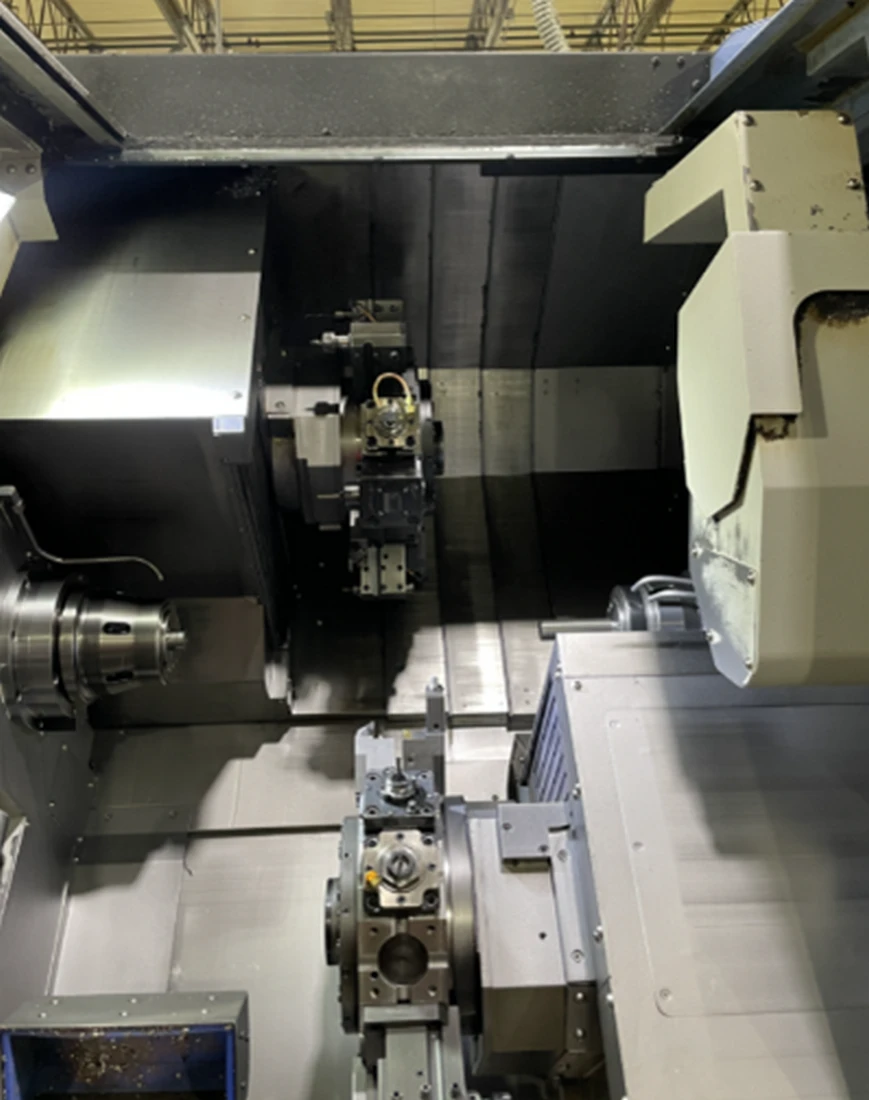

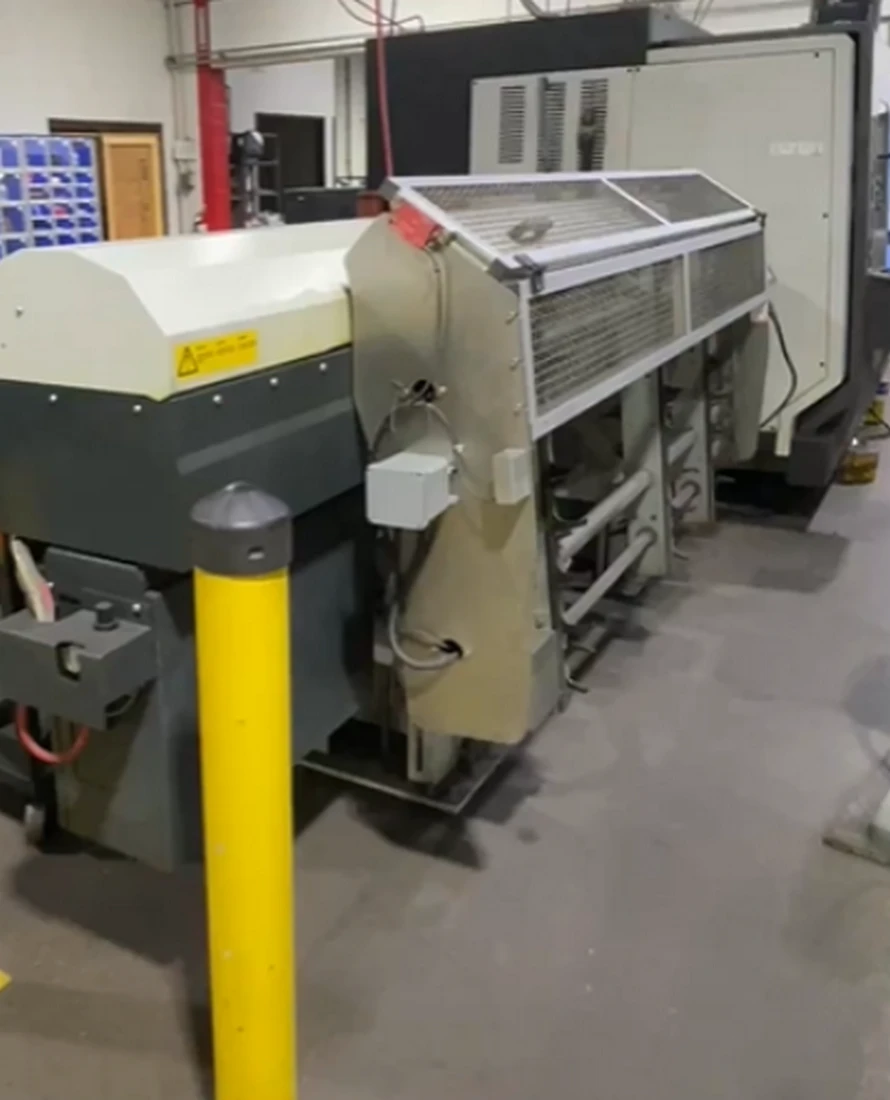

Used Doosan Puma TT1800SY (2012) CNC Lathe for Sale. This twin-spindle, dual-turret machine runs a Fanuc 31i B5 control with an 8″ chuck, 2.6″ bar capacity, 9″ turning diameter and 27″ distance between centers. Spindle speed is 5,000 RPM. Each 12-station turret is set up with C-axis live tooling and Y-axis capability, and the lathe includes a sub spindle and auto tool presetter. Support equipment consists of an LNS Turbo HB chip conveyor, LNS Bar Feeder S2, LNS Blaze Air, Chip Blaster J2-60 and a Royal FX1200 mist air filter. The machine can be seen under power for an inspection. See more used CNC lathes or browse our Doosan inventory, click Activate Pricing, and Request a Quote.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.6" |
| Turning Diameter |
9" |
| Spindle Speed |
5,000 RPM |
| Control |
Fanuc 31i B5 |
| Distance Between Centers |
27" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Chip Removal |
LNS Turbo HB Conveyor |
Features
|
Chip Blaster J2-60 |
LNS Bar Feeder S2 |
|
LNS Blaze Air |
Royal Filter Mist Air Filter FX1200 |
|
Dual Turrets |
Auto Tool Presetter |
|
Sub Spindle |
