Year |
2024 |
|---|---|
Make |
Hyundai |
Model |
Wia L500LMA |
Description |
CNC Lathe |
Reference # |
8077230 |
Price |
Activate Pricing |

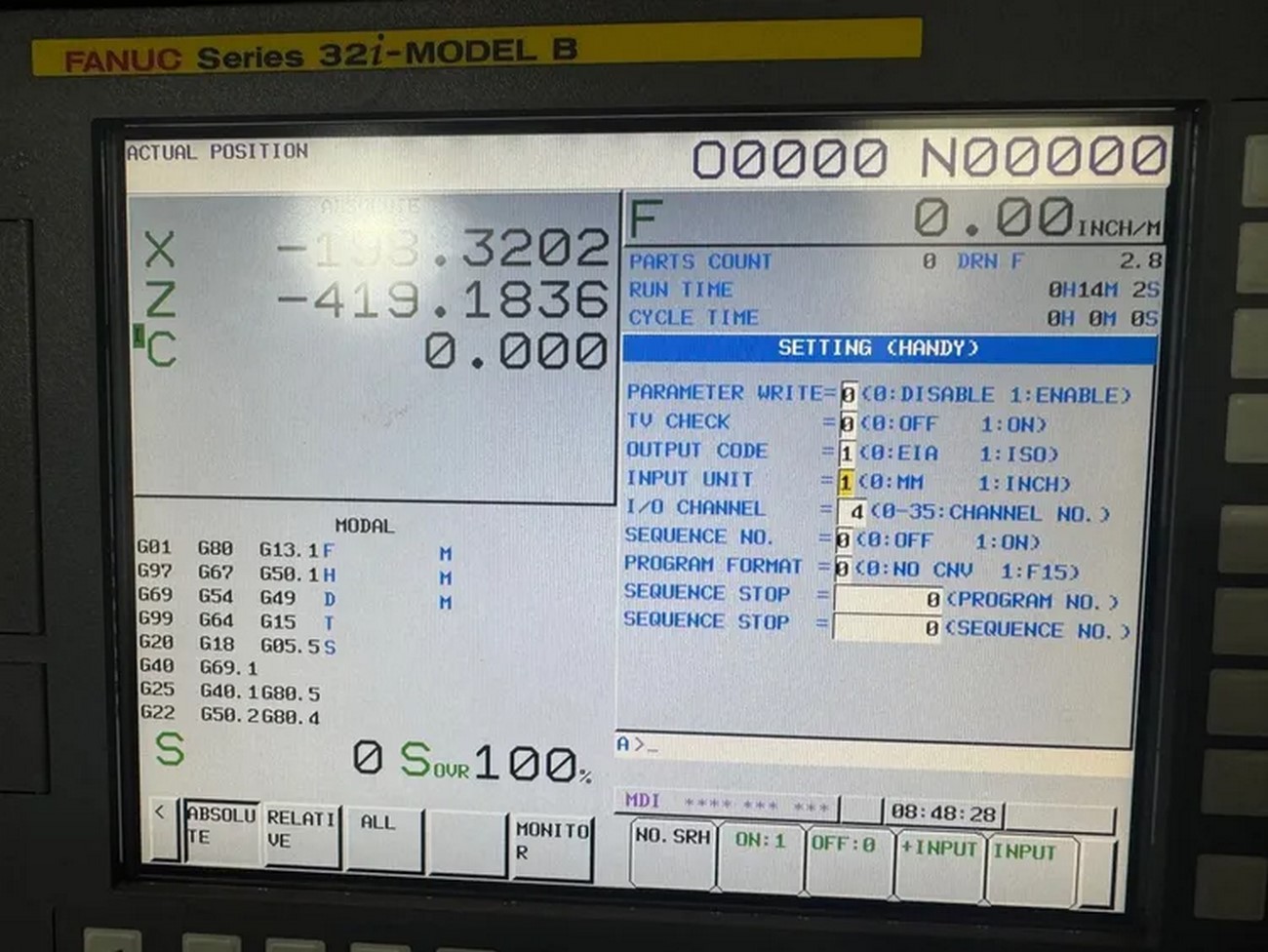

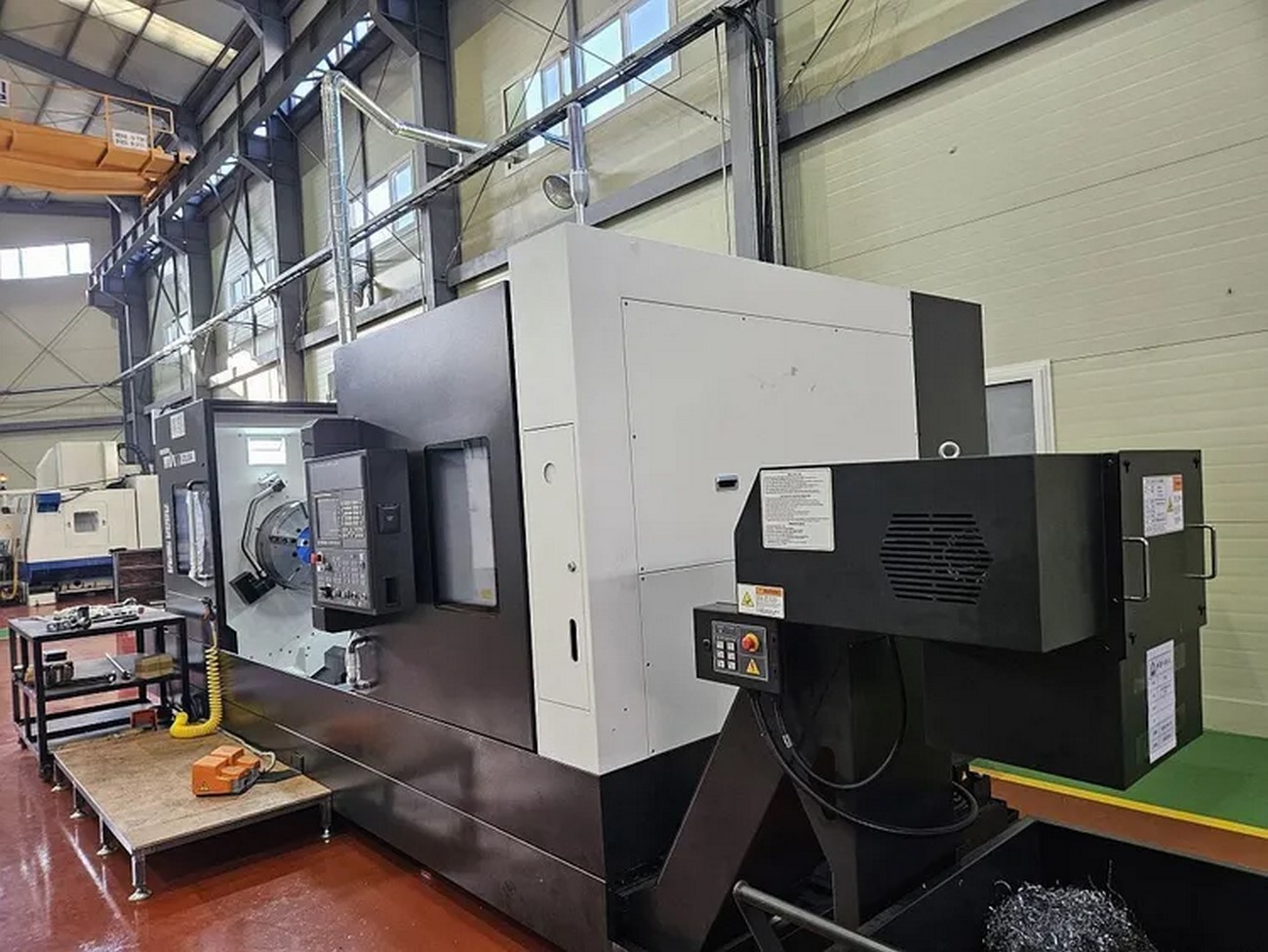

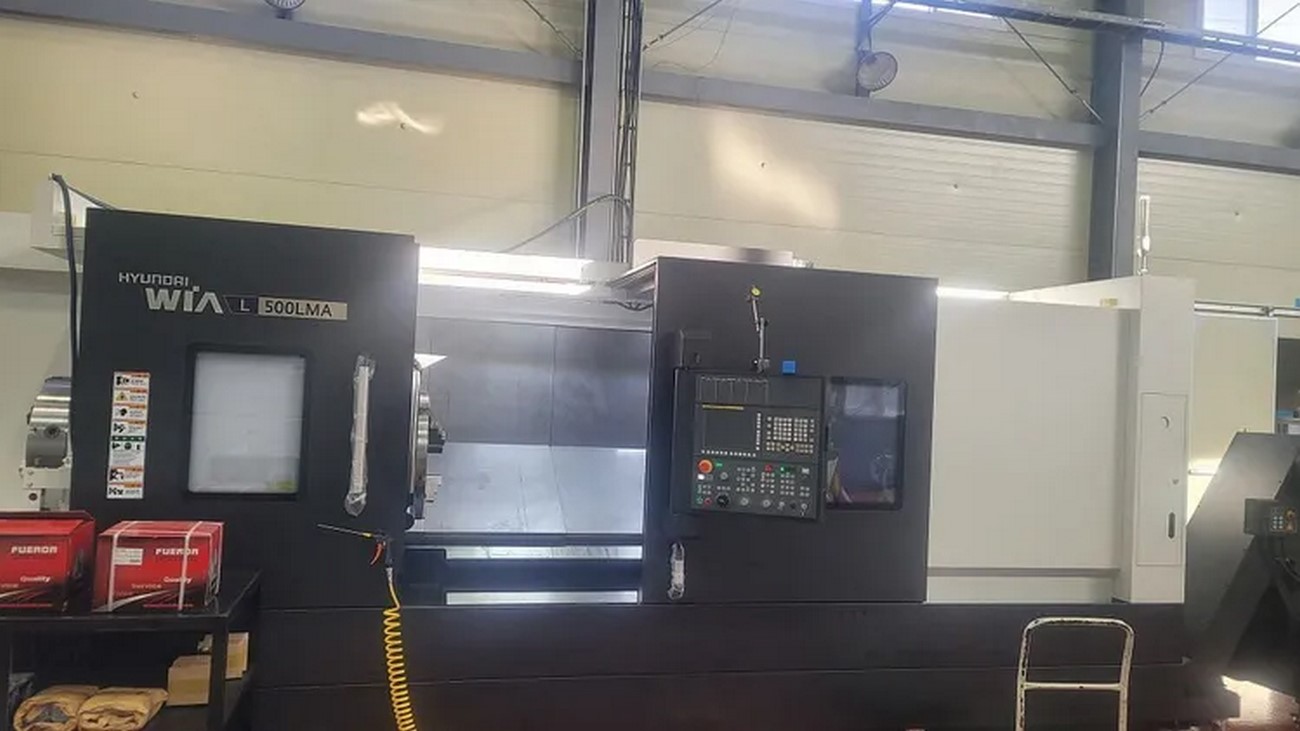

Used Hyundai Wia L500LMA (2024) CNC Lathe for Sale. This machine has a 24″ chuck size with 10.8″ bar capacity, 40.6″ swing, and 27.2″ turning diameter. Spindle speed is 4,000 RPM under Fanuc CNC control, with 82″ distance between centers and 5.2″ tailstock quill travel. It carries a 12 station turret with C-axis live tooling and a chip conveyor. Equipped with (1) I.D. rotary head, (1) O.D. rotary head, and (2) 24″ 3-jaw manual chucks front and rear with 10.8″ bore each. Also includes heavy duty box way construction, thread synchronized cutting, variable lead threading, auto tool presetter, programmable tailstock, and thread cutting retract. 200 hours on time. Available to see under power for inspection. See more used CNC lathes or other Hyundai Wia machines, and Request a Quote.
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
10.8" |
| Swing |
40.6" |
| Turning Diameter |
27.2" |
| Spindle Speed |
4,000 RPM |

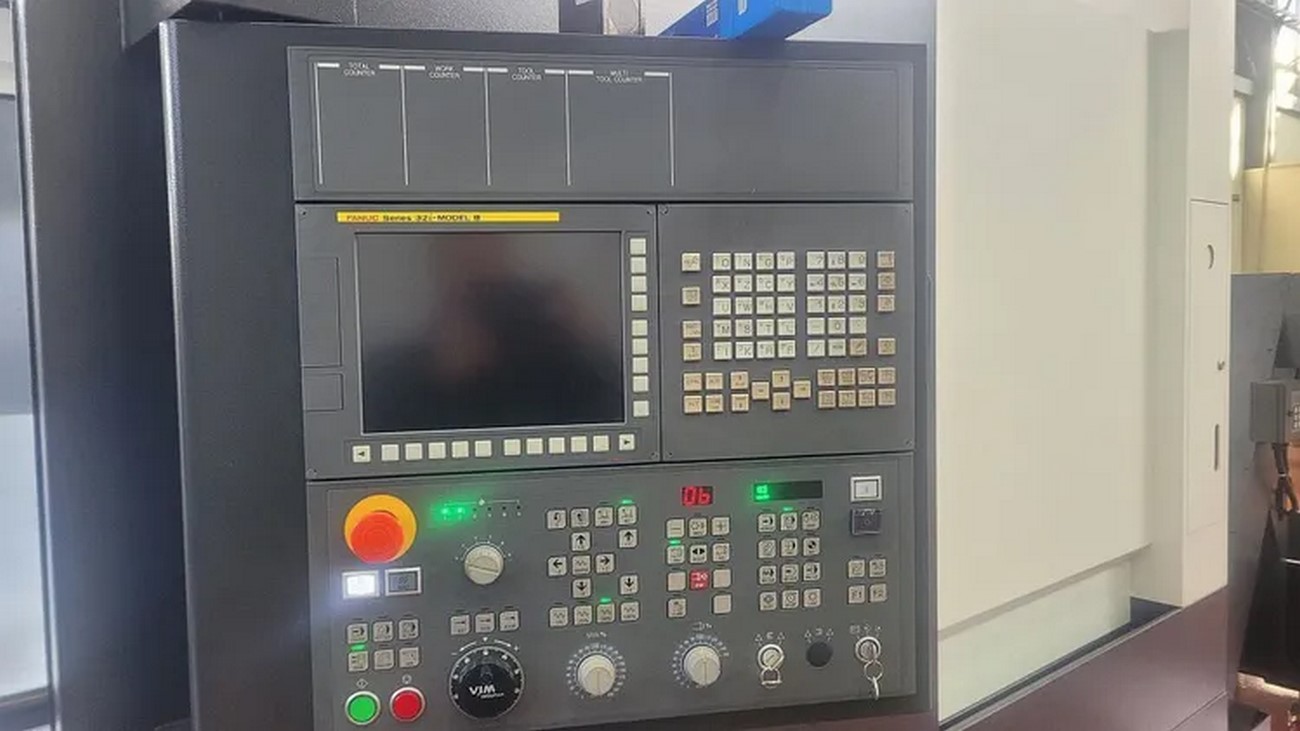

| Control |
Fanuc CNC |
| Distance Between Centers |
82" |
| Tailstock Quill Travel |
5.2" |

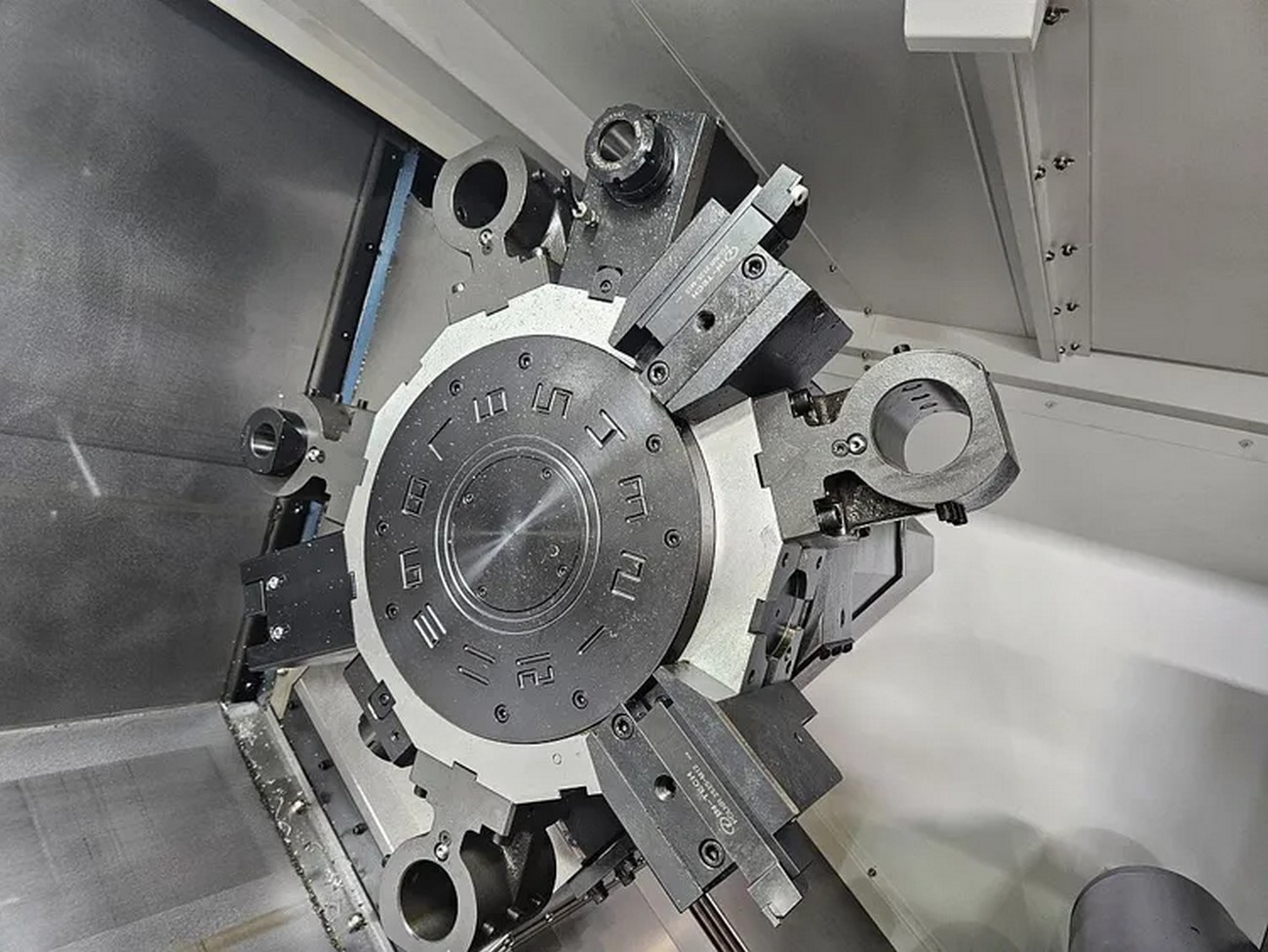

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
Features
|
(1) I.D. Rotary Head |
(1) O.D. Rotary Head |
|

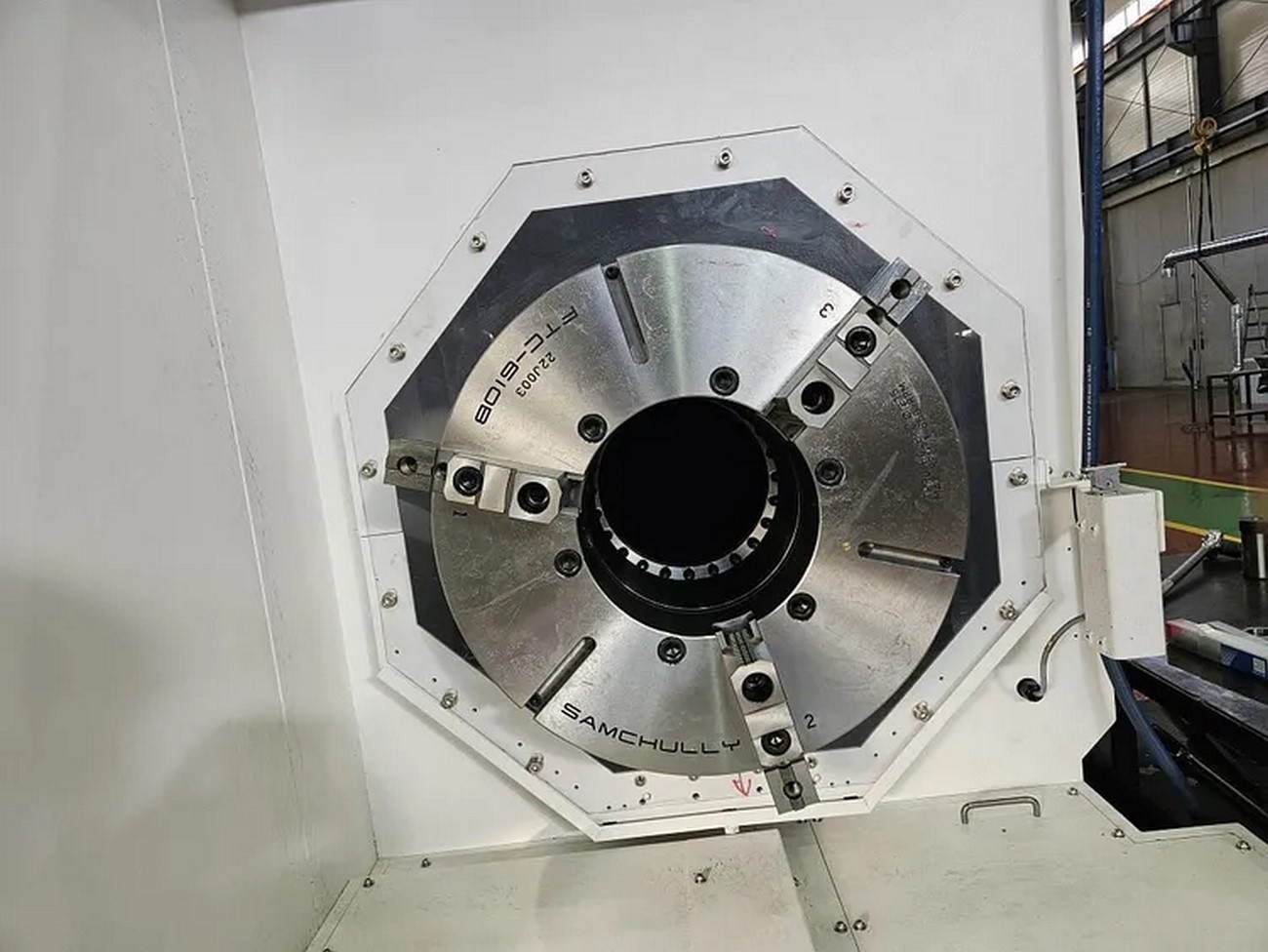

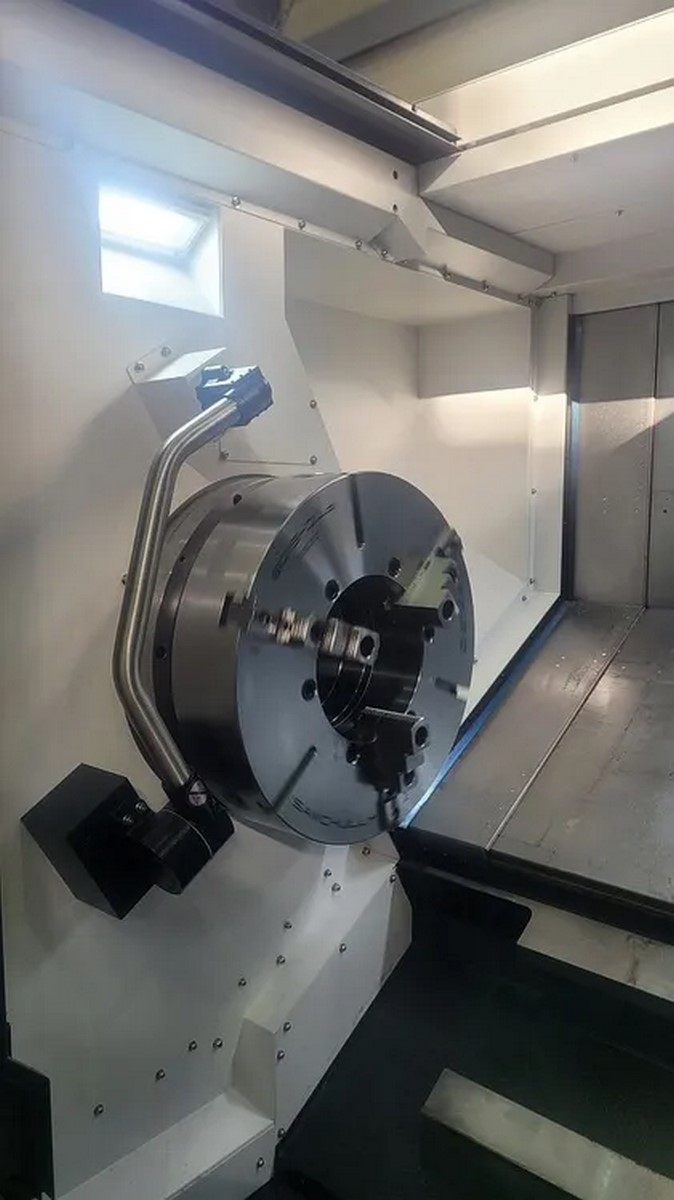

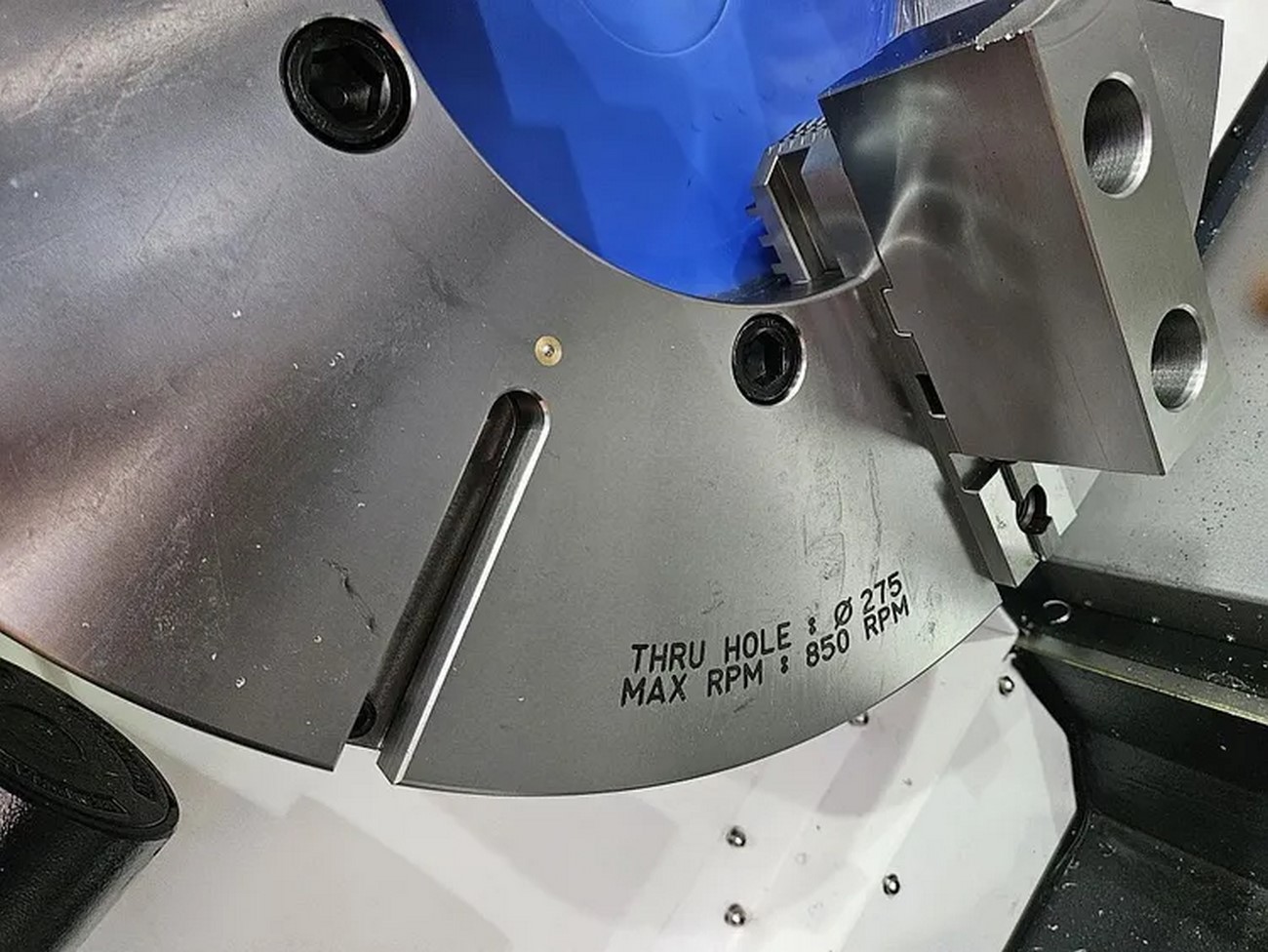

(2) 24" 3-Jaw Manual Chuck Front and Rear (With 10.8 Bore Each) |
200 Hours On Time |
|

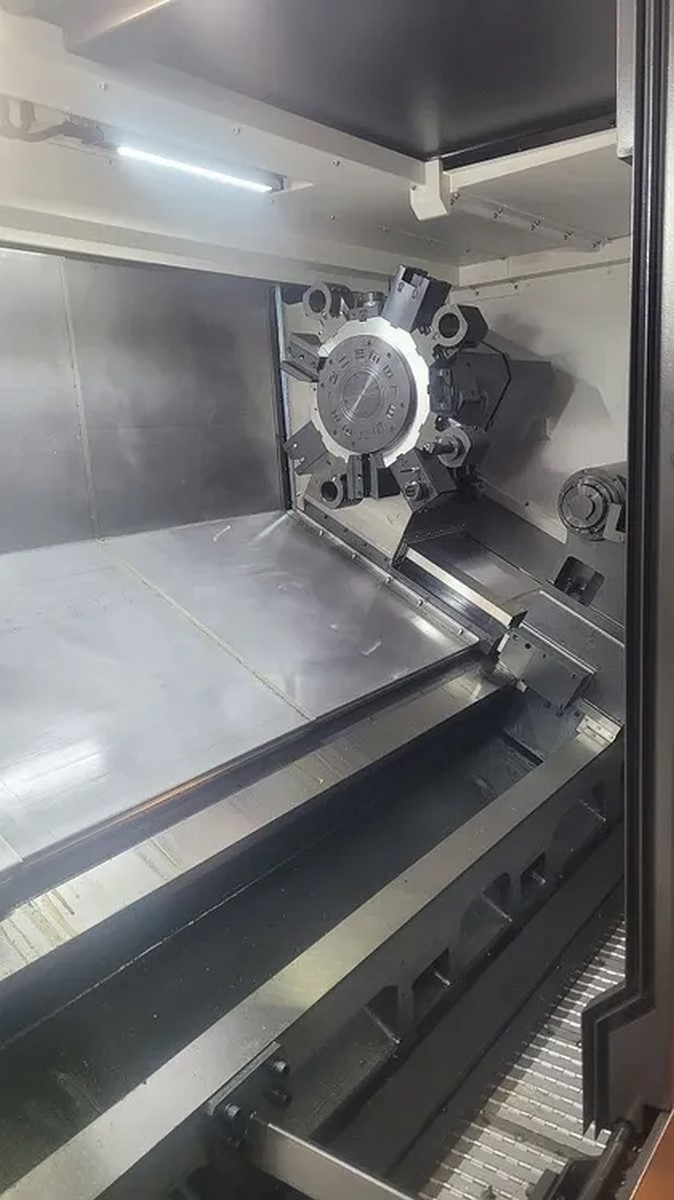

Heavy Duty Box Way Construction |
Thread Synchronized Cutting |
|
Variable Lead Threading |
Auto Tool Presetter |
|
Programmable Tailstock |
Thread Cutting Retract |
