Year |
2018 |
|---|---|
Make |
Romi |
Model |
C830 |
Description |
CNC Lathe |
Reference # |
8078967 |
Price |
Activate Pricing |

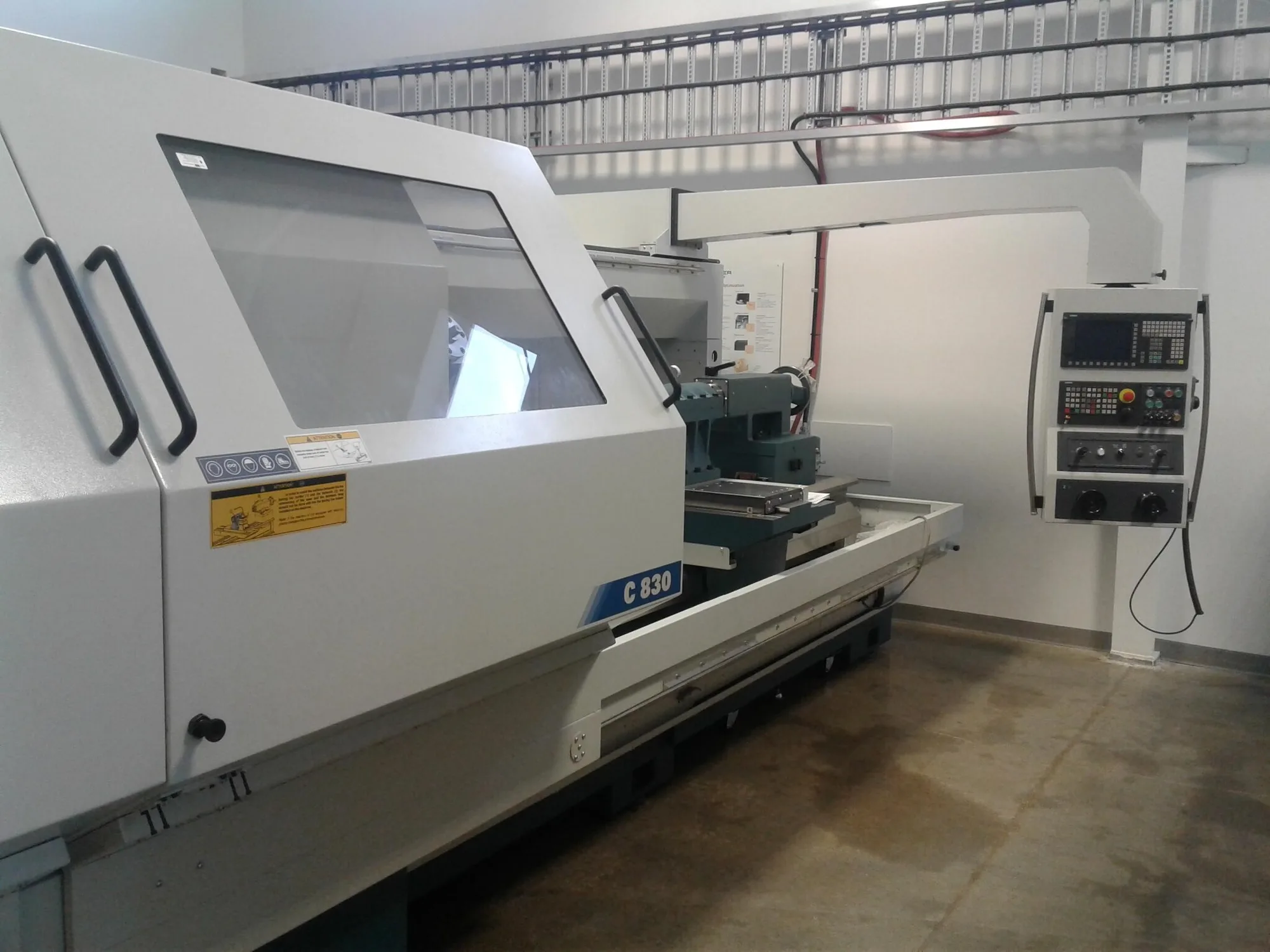

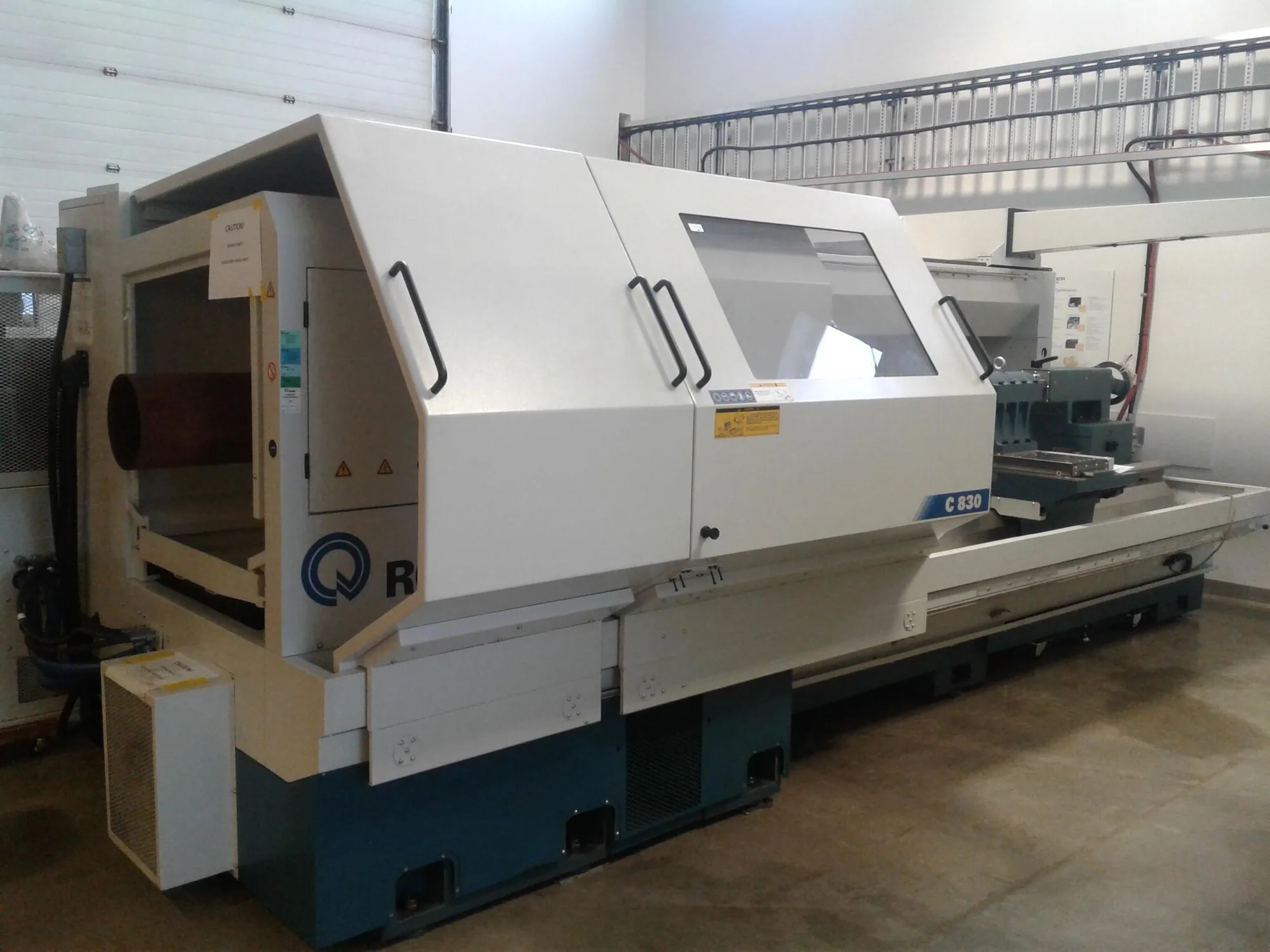

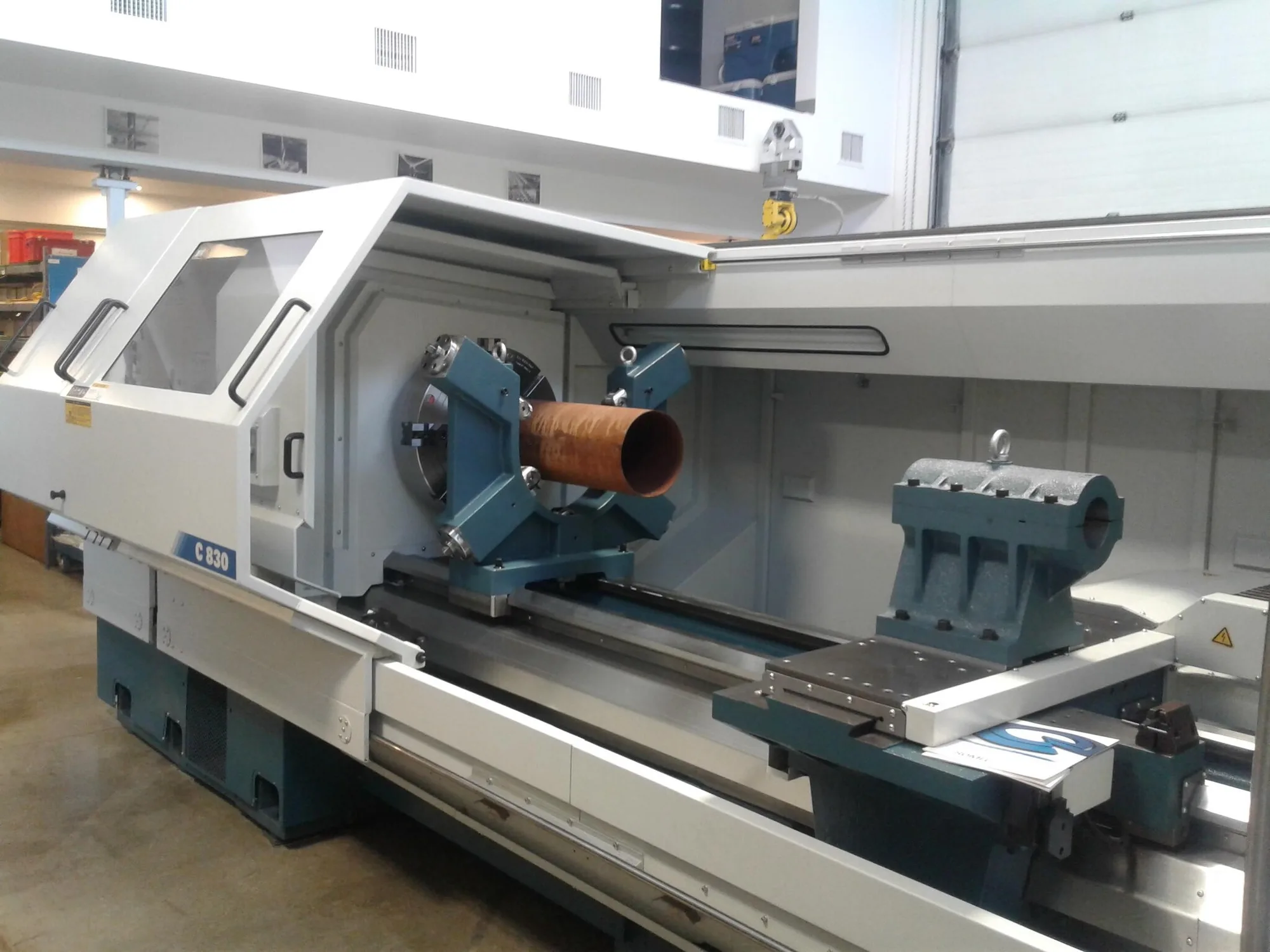

Used Romi C830 (2018) CNC Lathe for Sale. This flat-bed turning center offers a 24″ chuck size, 10.2″ bar capacity, 33.46″ swing, 21.6″ turning diameter and 775 RPM spindle speed with an ASA A2-15 spindle nose. Equipped with a tailstock featuring a manually operated quill with built-in bearing and MT-5 quill taper hole, X55916 coolant pump, SE10043 deep hole drill/support, U type steady rest with 100 to 440mm capacity, a set of rollers for 100 to 305mm (4 to 12″) diameter capacity, 2443-2A15EX 24″ 4-jaw extra heavy duty oil country chuck, rear centralizing ring with 10.2″ hole, SDN60EA-RS Dorian tool post and 4″ ID boring bar holder/saddle. No chip conveyor included. The machine can be seen under power for an inspection. Browse our other used CNC lathes, then Activate Pricing or use the Inquire Now button.
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
10.2" |
| Swing |
33.46" |
| Turning Diameter |
21.6" |
| Spindle Speed |
775 RPM |
Features
|
2443-2A15EX 24" 4-Jaw Extra Heavy Dty Oil Country |
4" ID Boring Bar Holder / Saddle |
|
ASA A2-15 |
Bearing and MT-5 Quill Taper Hole |
|
No Chip Conveyor Included |
Ø 100 to 440mm capacity |
|
Rear Centralizing Ring W/ 10.2" Hole |
SDN60EA-RS Dorian Tool Post |
|
SE10043 Deep Hole Drill/Support |
Set of rollers for 100 to 305mm (4 to 12") Ø capacity |
|
Steady rest U type |
Tailstock with manually operated quill with built-in |
|
X55916 Coolant Pump |
