Year |
2011 |
|---|---|
Make |
Amada |
Model |
LC3015 F1NT |
Description |

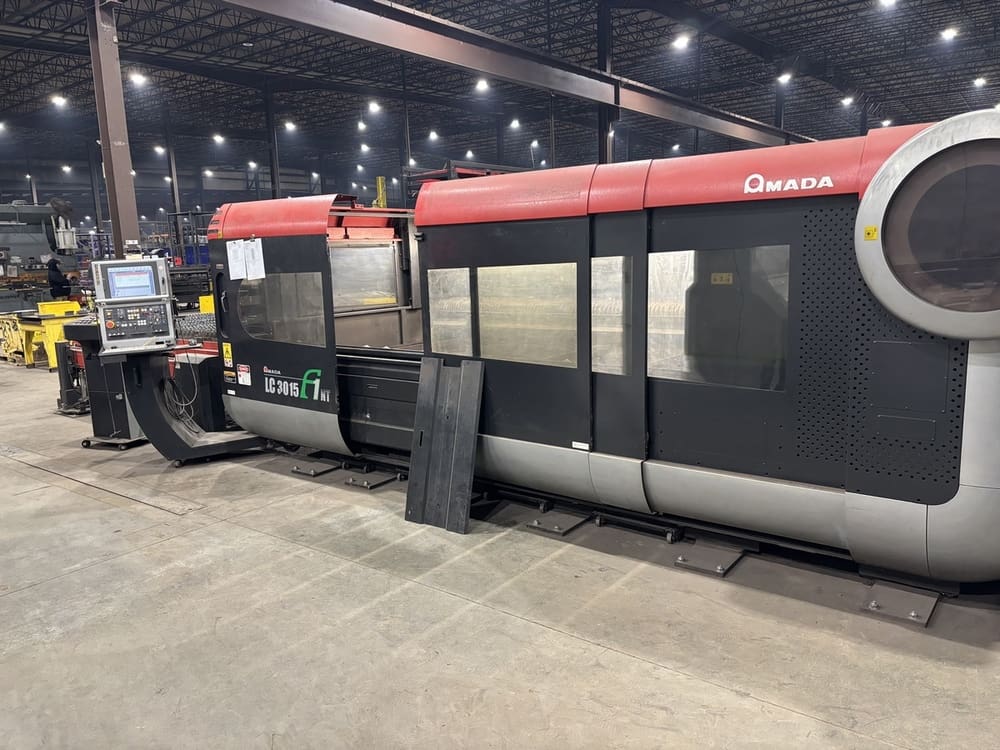

5' x 10' 4kW CNC Laser |
Reference # |
8076837 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

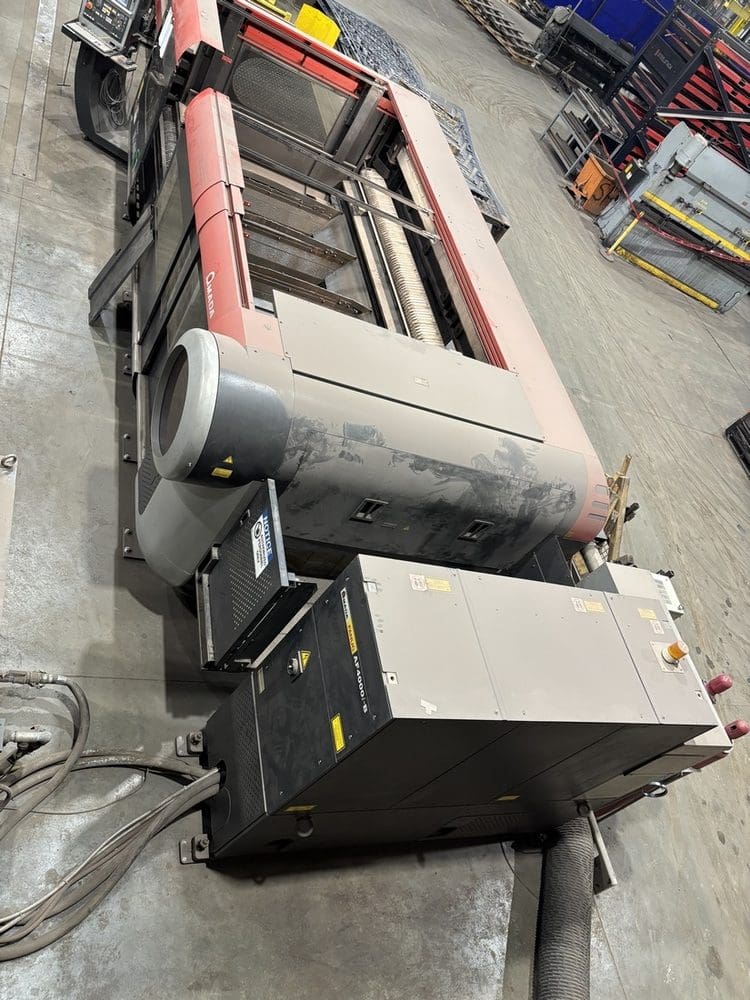

Used Amada LC3015 F1NT (2011) CNC Laser for Sale. This pre-owned Amada CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Amada Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4,000 |
| Control |
AMNC-F Controller |
| Power Requirement |
200V |
| Stainless Steel Cutting Cap |
.500” Clean Cut |
| Aluminum Cutting Cap |
.375” |
| Carbon Steel Cutting Cap |
.875” |
| Max Axis Positioning Speed |
4,724 IPM (6,681 IPM Vector 45°) |
| X-Axis Travel |
128.74" |
| Y-Axis Travel |
61.02" |
| Z-Axis Travel |
3.94” - 120.87" |
| Cutting Feedrates |
0 - 196.8 IPM |
| Max Rapid Feed (X, Y, Z Axis) |
393.6’/Min |
| Dimensions |
80.7” x 29.5” x 46.3” |
| Weight |
28,660 Lbs |
Features
|

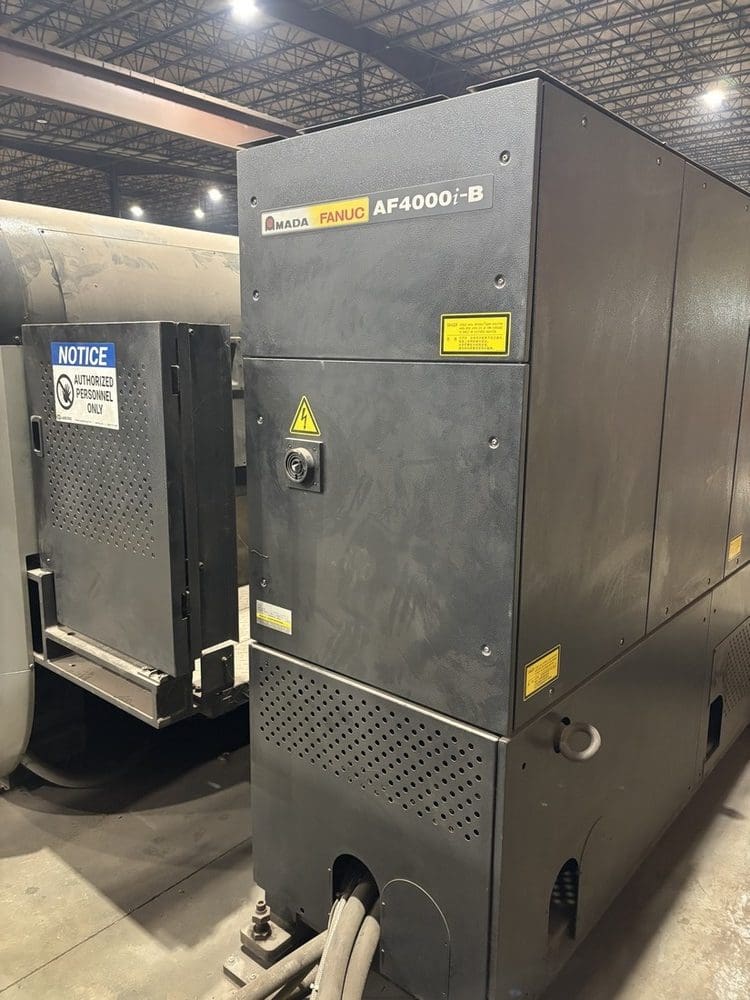

AF400I-B Oscillator |
CD/Floppy Disk/Standard Memory 2 MB & 10 GB Hard Drive Operating Method Automatic |
|
HS-2007 Z-Axis Sensor |
Keyboard/Ethernet/Wireless Communication |
|
Linear Drive Motors |
Touch Screen LCD 15" Screen |
|

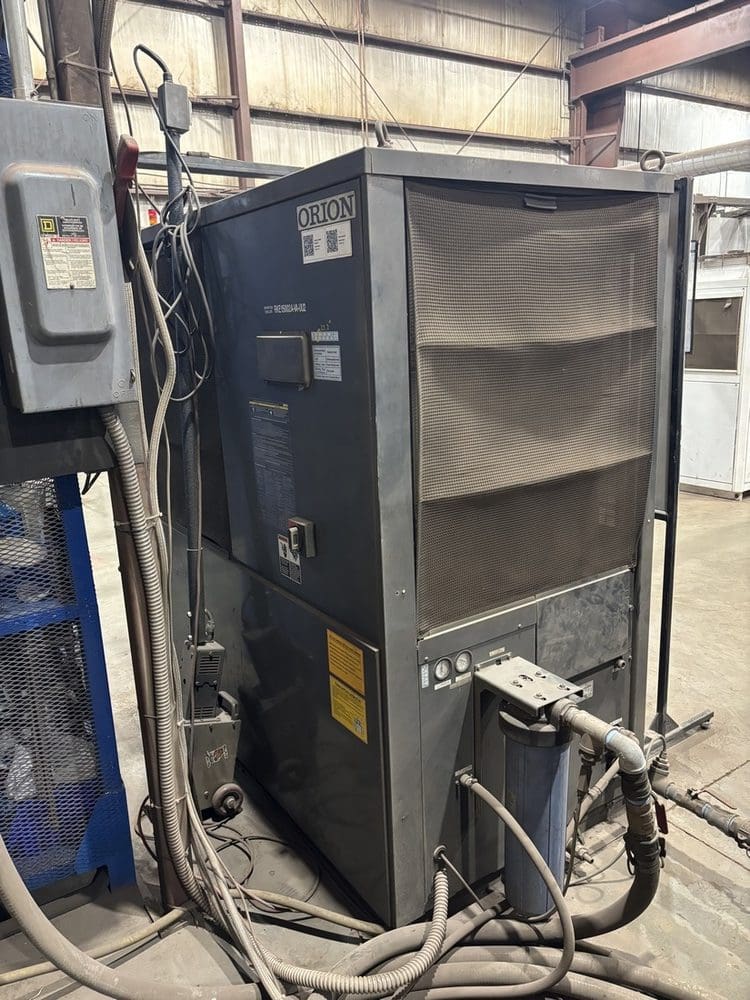

Chiller Unit |

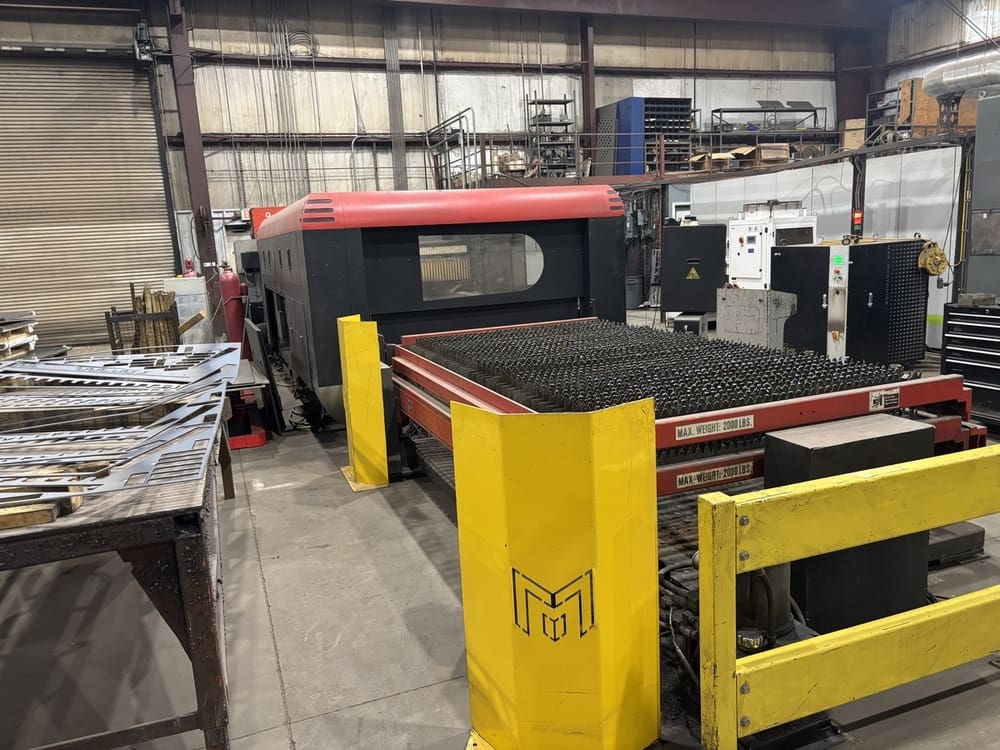

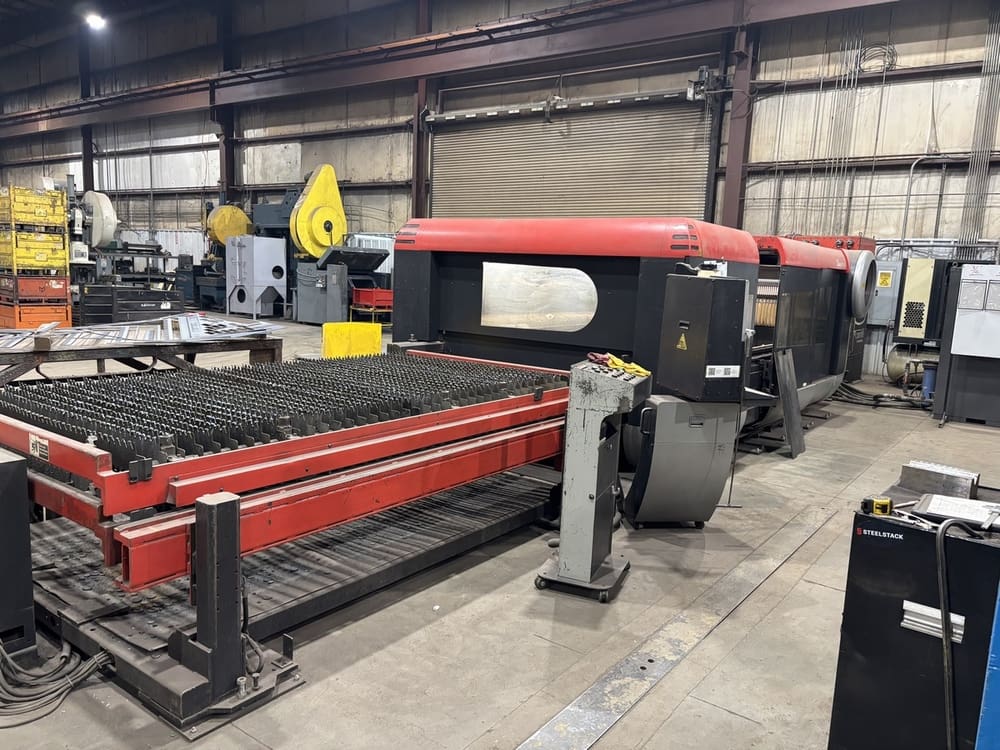

Dual Pallet Shuttle Tables |
|

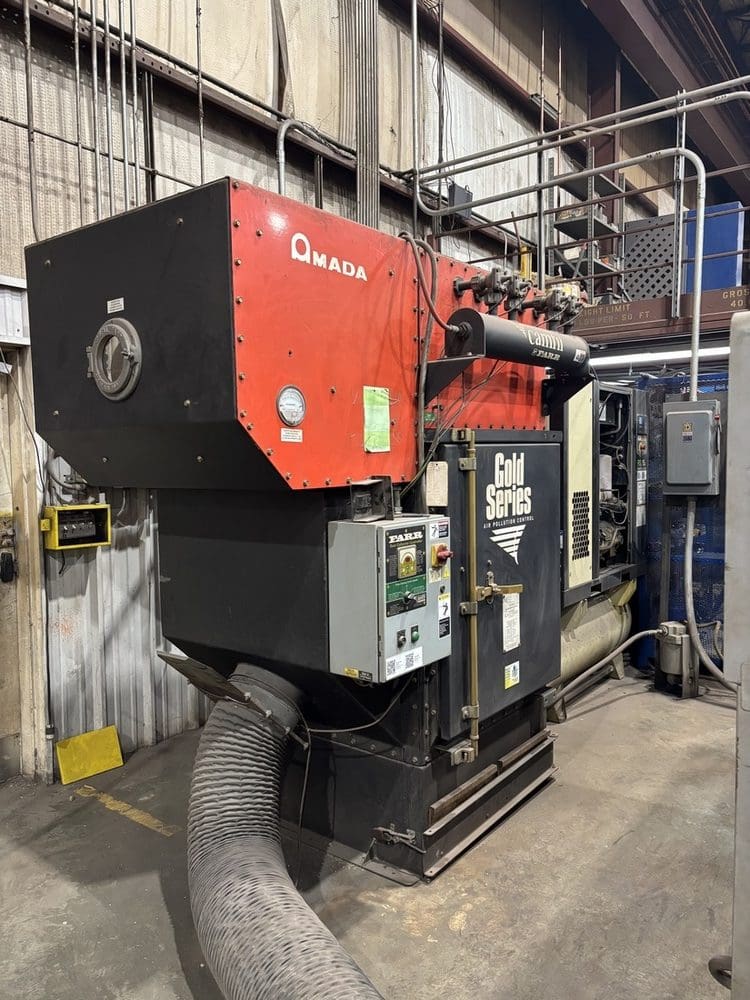

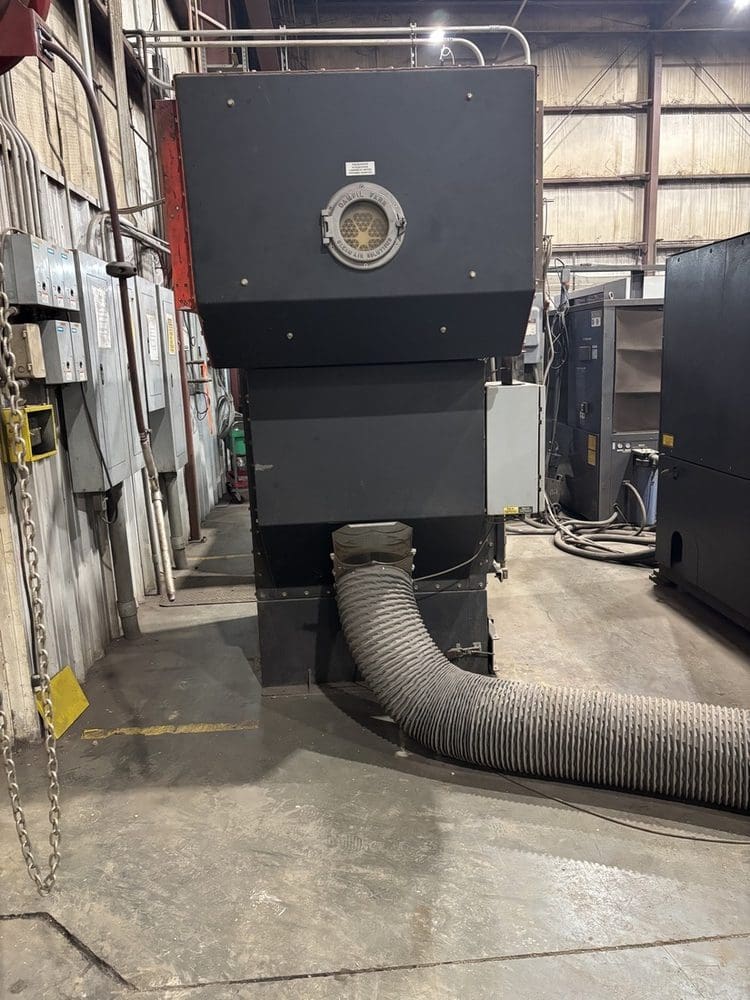

Dust Collector |

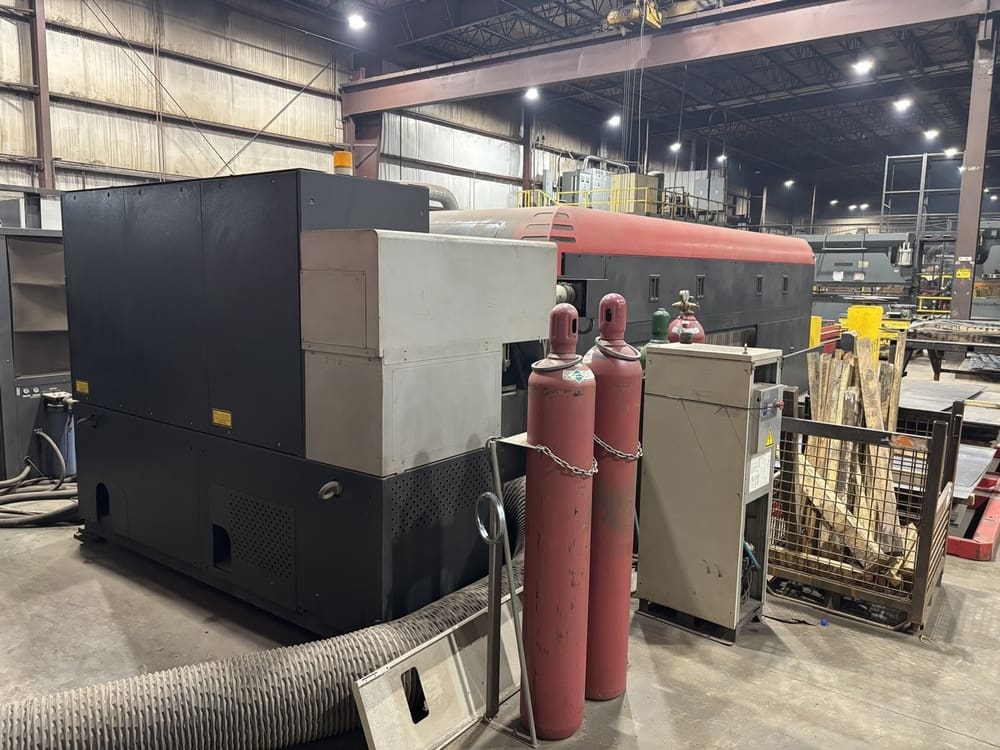

High Pressure Assist Gas |
