Year |
2019 |
|---|---|
Make |
MVD |
Model |
F6-1530 |
Description |
5' x 10' 6kW CNC Fiber Laser |
Reference # |
8075581 |
Price |
Activate Pricing |

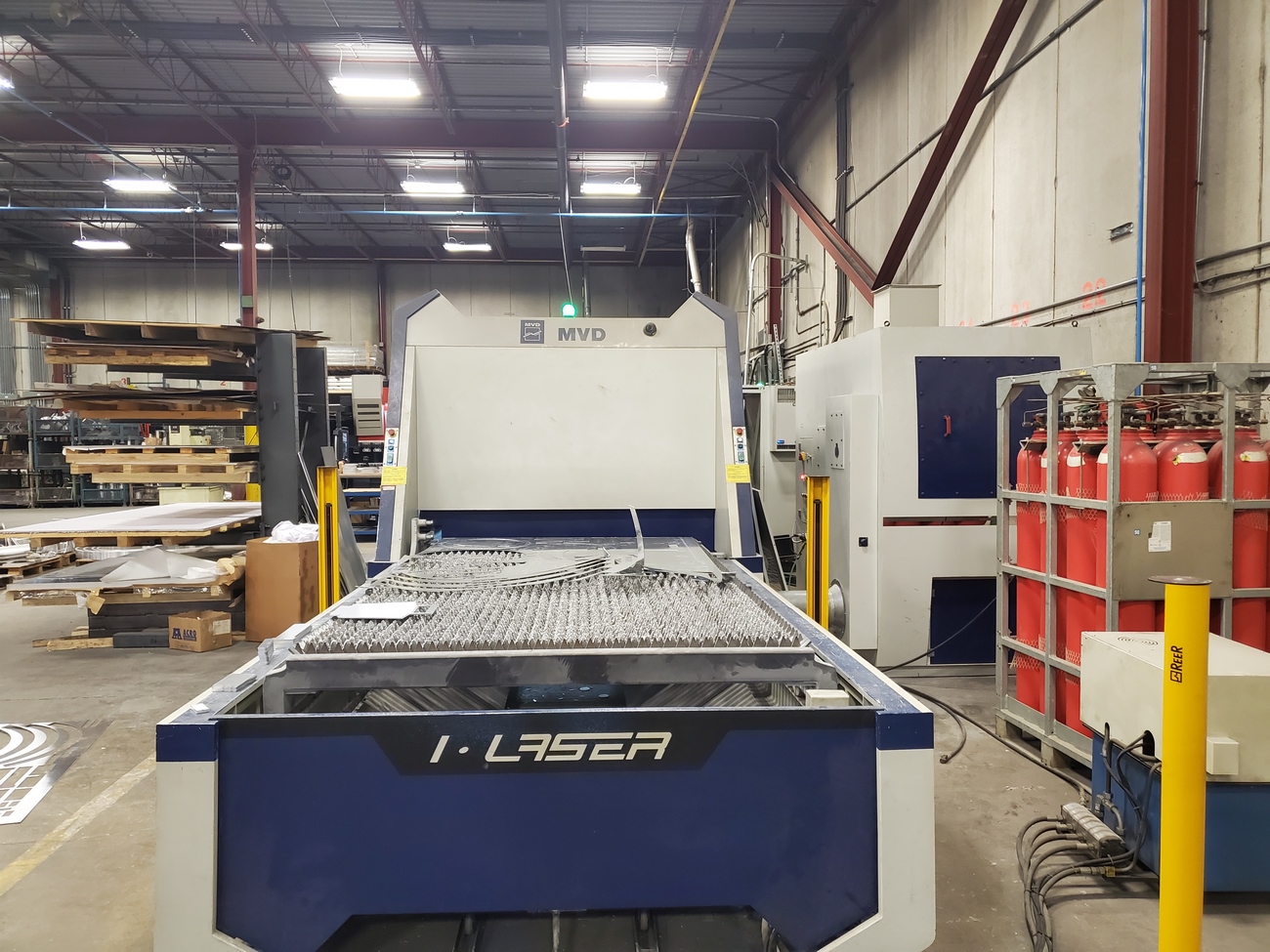

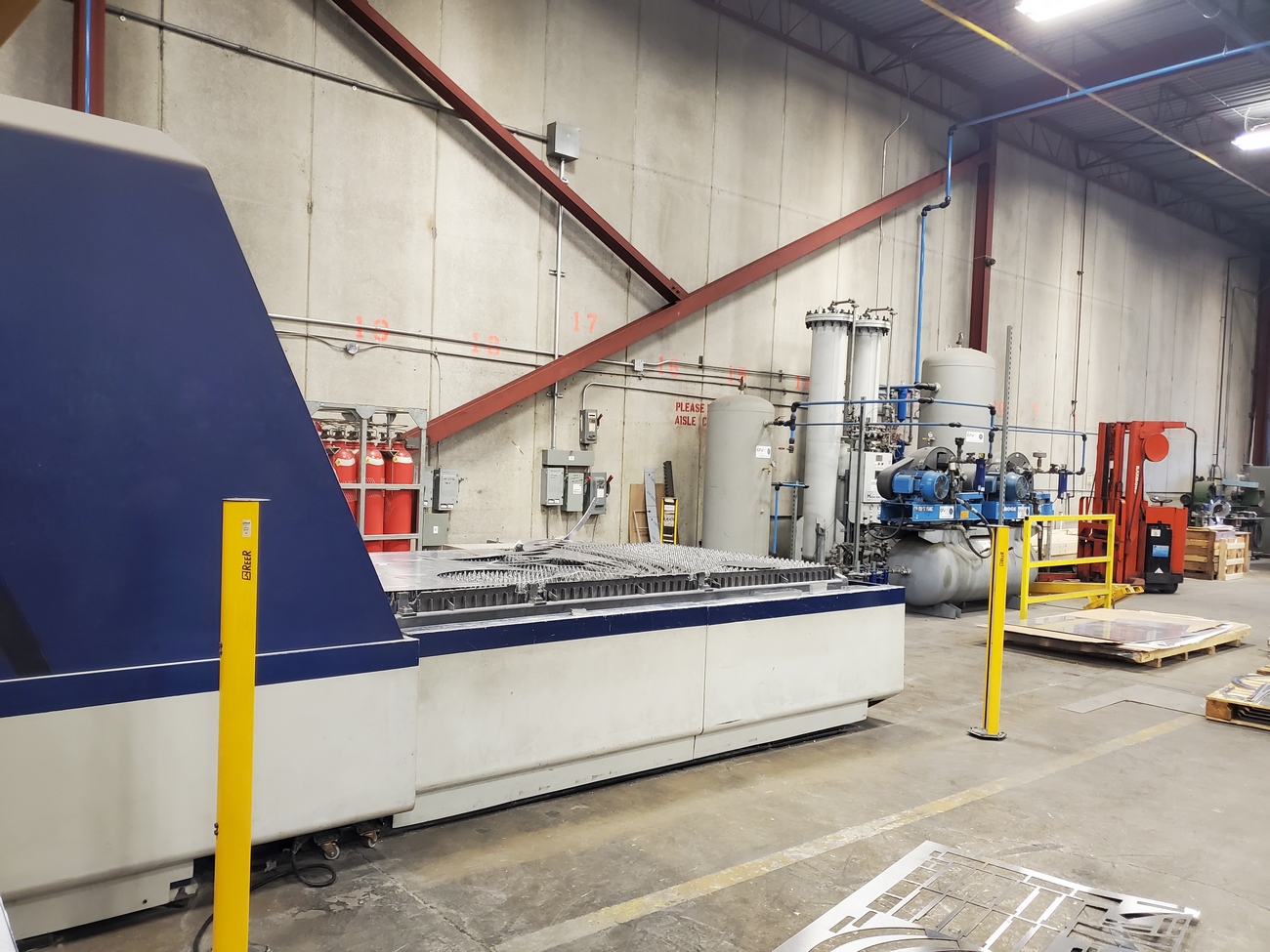

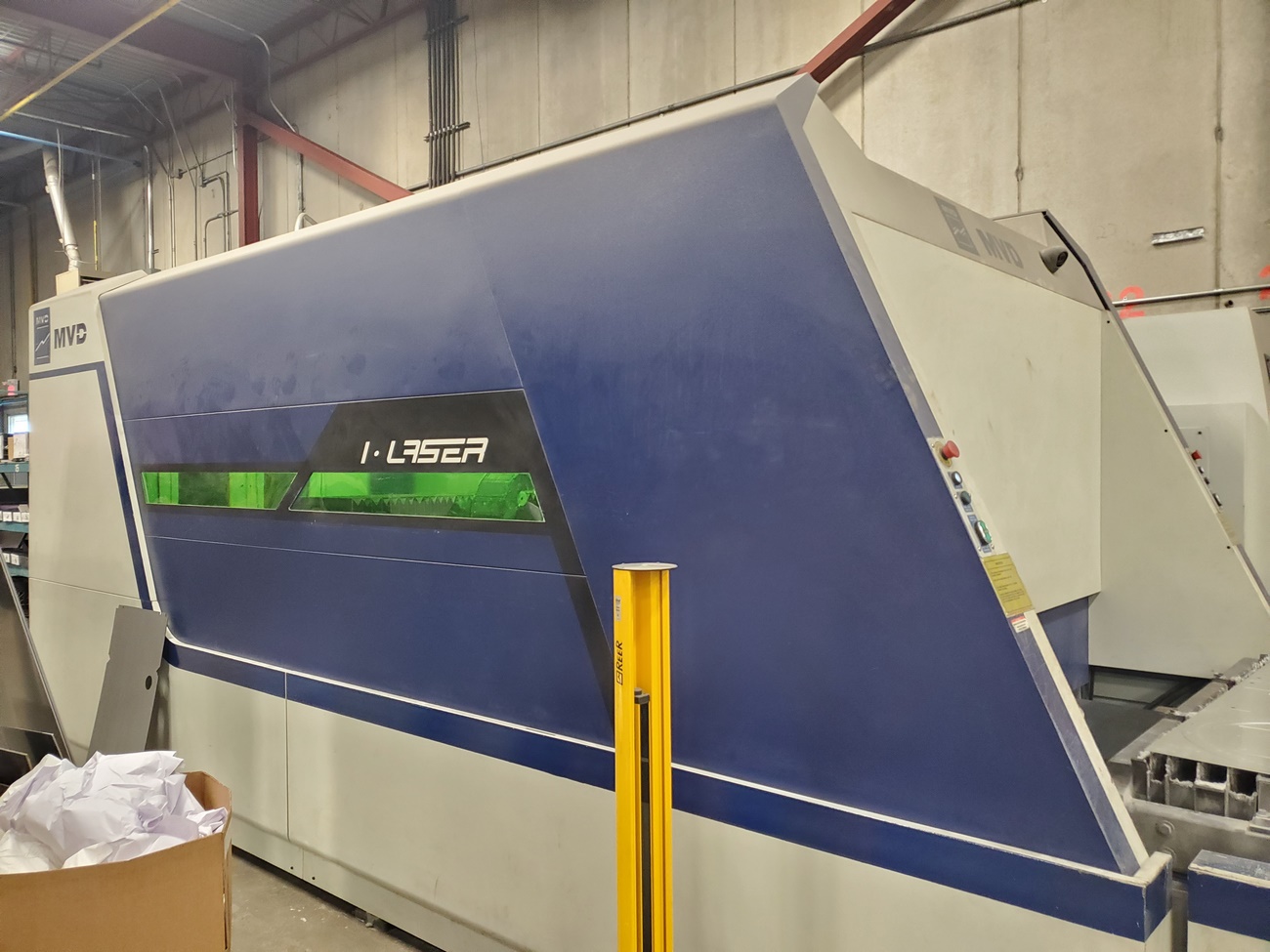

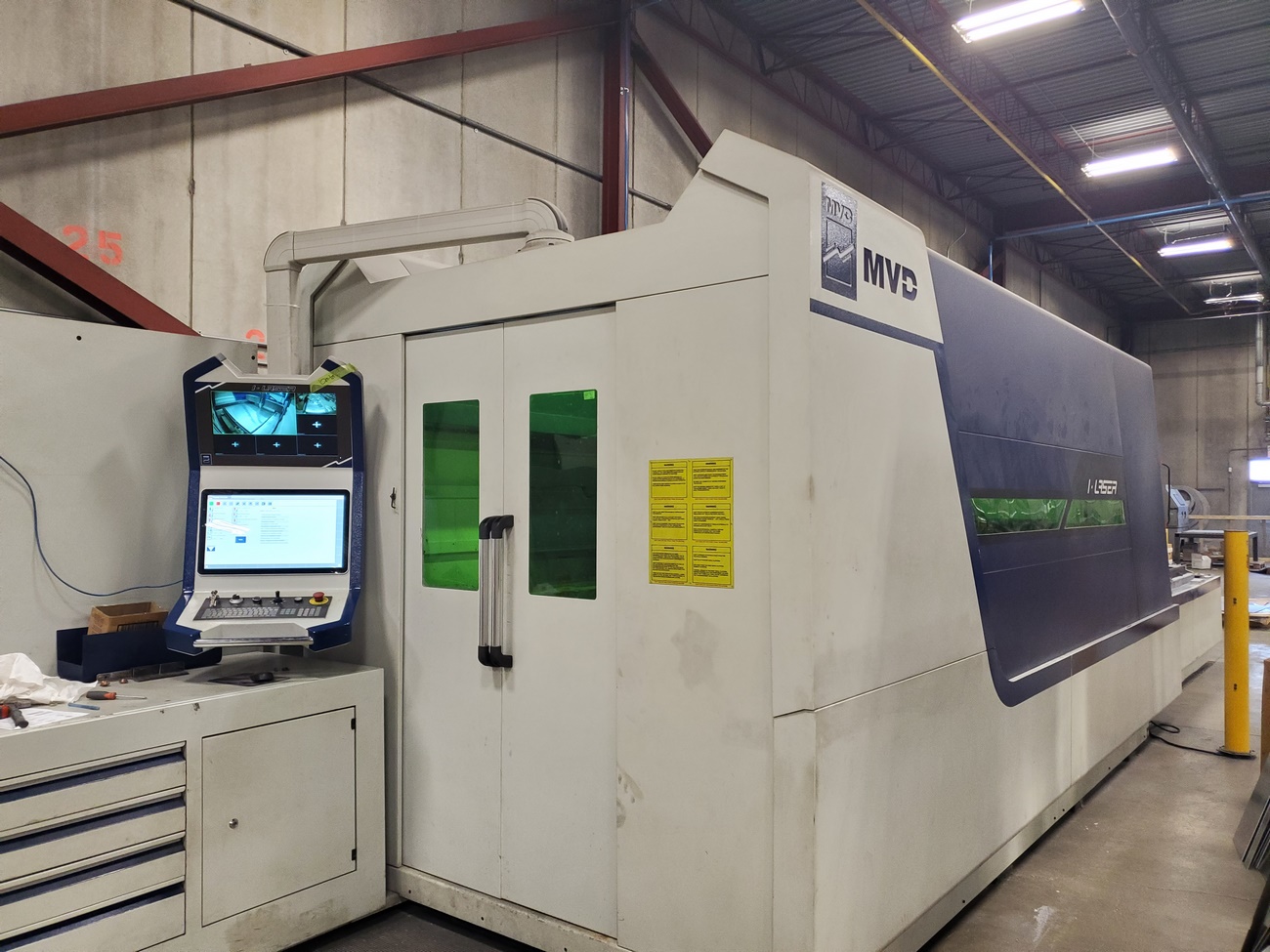

Used MVD F6-1530 (2019) Laser for Sale. This fiber laser runs a 6,000 watt nLight resonator with an ESA 660w control and 19″ touch screen, with approximately 9,600 estimated hours. The 5′ x 10′ table handles max sheet dimensions of 59″ x 118.11″ with a table loading capacity of 1,134 lbs. Travels are 11.81″ in X, 59″ in Y and 4.72″ in Z, with X-Y axis speed of 140 IPM and servo motorized rack and pinion slide way positioning. Power requirement is 380/60/3ph. Equipped with a 575V transformer, chiller unit, dual pallet shuttle tables, dust collector and dust collection filter, inside and rear camera monitoring, auto lubrication, and Libellula nesting and CAD/CAM software. Available to be seen under power for an inspection. See more used laser cutting machines, Activate Pricing, or Request a Quote. This machine is located in Canada.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
6,000 |
| Y-Axis Travel |
59" |
| Z-Axis Travel |
4.72" |
| Control |
ESA 660w |
| Hours |
9,600 EST |
| Power Requirement |
380/60/3ph |
| Max Sheet Dimensions |
59" x 118.11" |
| Axis Speed (X-Y) |
140 IPM |
| Table Loading Capacity |
1,134 Lbs |
Features
|

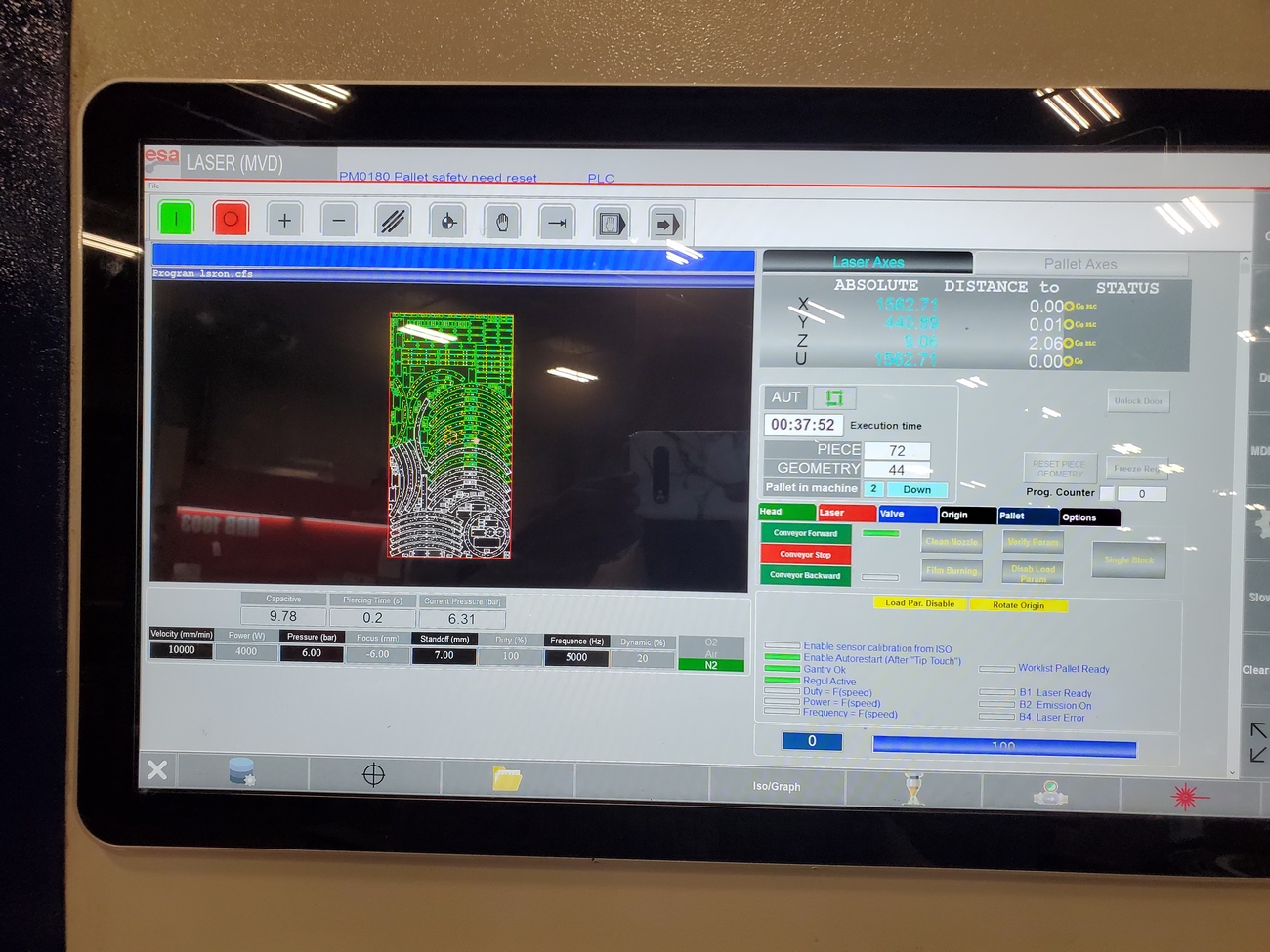

19" Touch Screen Control |
575V Transformer |
|
Dust Collection Filter |
Inside and Rear Camera Monitoring |
|
Libellula Nesting & CAD/CAM Software |

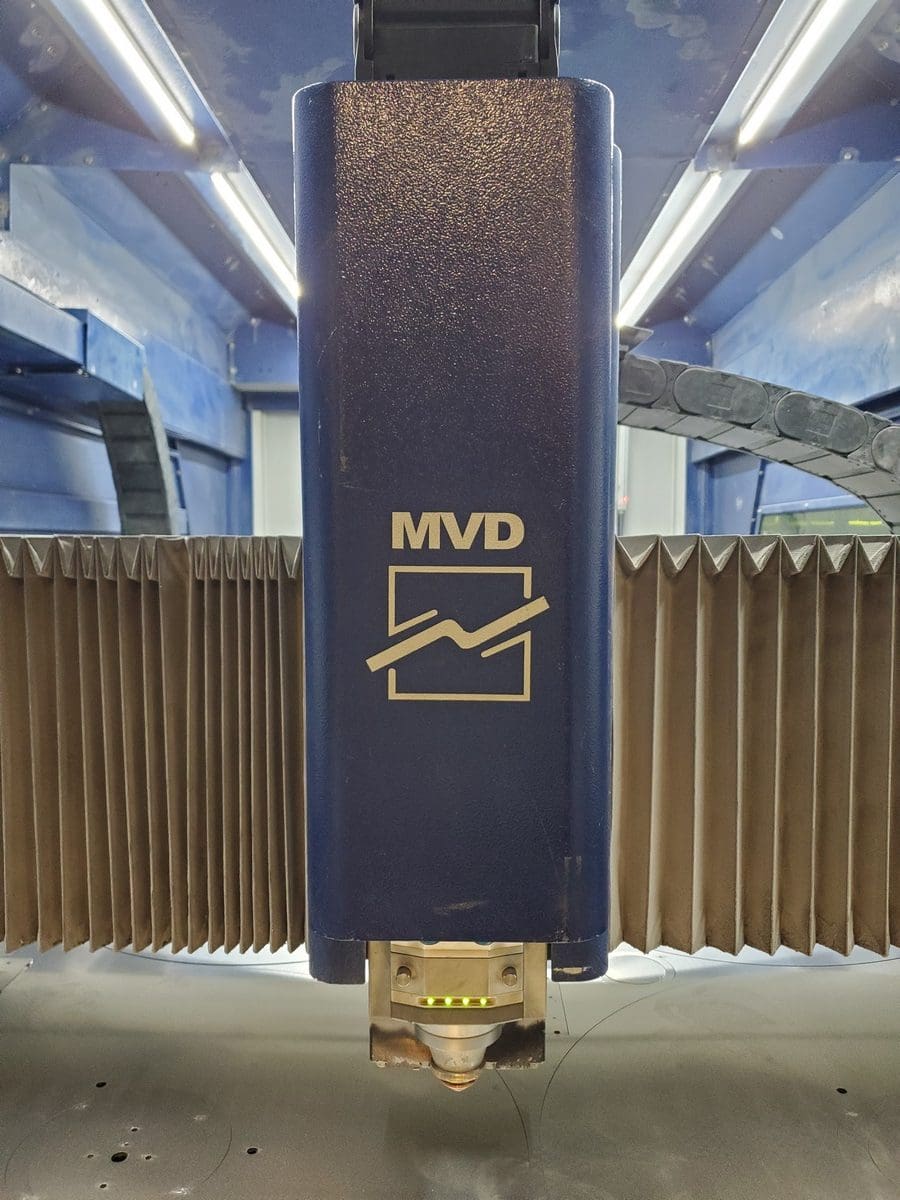

nLight 6kWatt Resonator |
|
Servo Motorized Rack & Pinion Slide Way Positioning |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Dust Collector |
|
Auto Lubrication |
