Year |
2011 |
|---|---|
Make |
Ermaksan |
Model |
Fibermak Momentum Gen-2 |
Description |
6.6' x 13.1' CNC Fiber Plate Laser |
Reference # |
8073528 |
Price |
Activate Pricing |

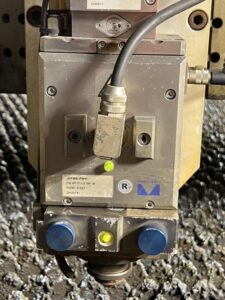

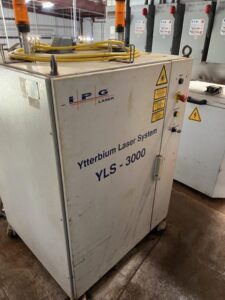

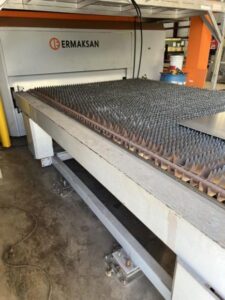

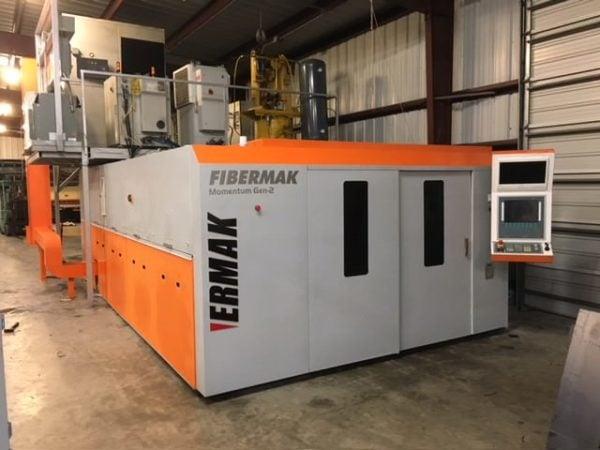

Used Ermaksan Fibermak Momentum Gen-2 (2011) Laser for Sale. This fiber laser has a 6.6′ x 13.1′ table, 3,000 watt maximum wattage, and a 2018 Beckhoff CNC control showing 5,260 hours. It runs an IPG YLS 3kW resonator with IPG chiller and a 2018 Precitec HPSSL Plus auto focus cutting head with Beckhoff control. Equipped with a magnetic linear drive system, dual pallet shuttle tables, chip conveyor, scrap conveyor, Ermaksan dust collector, chiller unit, nozzle cleaning brush, light body guard, AC in the electrical cabinet, and Lantek Expert Cut CAD/CAM software with one dongle and one seat. Dimensions are 498″ x 92″ x 147″ H at 30,000 lbs. The machine can be seen under power for an inspection. See more used laser cutting machines, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Max Wattage |
3,000 |
| Control |
2018 Beckhoff CNC |
| Hours |
5,260 |
| Dimensions |
498” x 92” x 147” H |
| Weight |
30,000 Lbs |
Features
|
AC in Electrical Cabinet |
Cutting Head 2018 Precitec HPSSL Plus Auto Focus Cutting Head & Beckhoff Control |
|
Drive System Magnetic Linear Drive |
Dust Collection Ermaksan Dust Collector |
|
IPG YLS 3kW Resonator and IPG Chiller |
Light Body Guard |
|
Nozzle Cleaning Brush |
Software Lantek Expert Cut Cad/Cam (1 Dongle and 1 Seat) |
|
Chiller Unit |
Chip Conveyor |
|
Dual Pallet Shuttle Tables |
Scrap Conveyor |
