Year

2011

Make

Amada

Model

EM2510NT

Description

22 Ton Turret Punch

Reference #

8070466

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

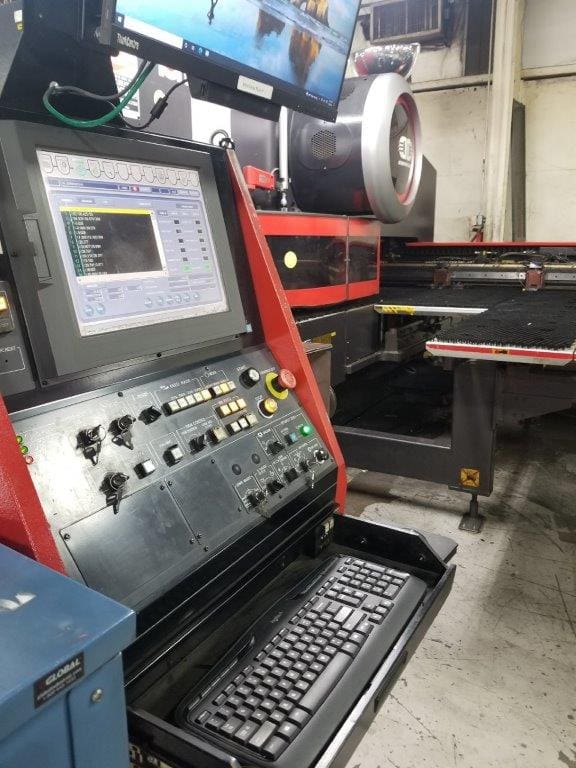

Amada EM2510NT

Specifications

Capacity

22 Ton

Sheet Width

50"

Sheet Length

100"

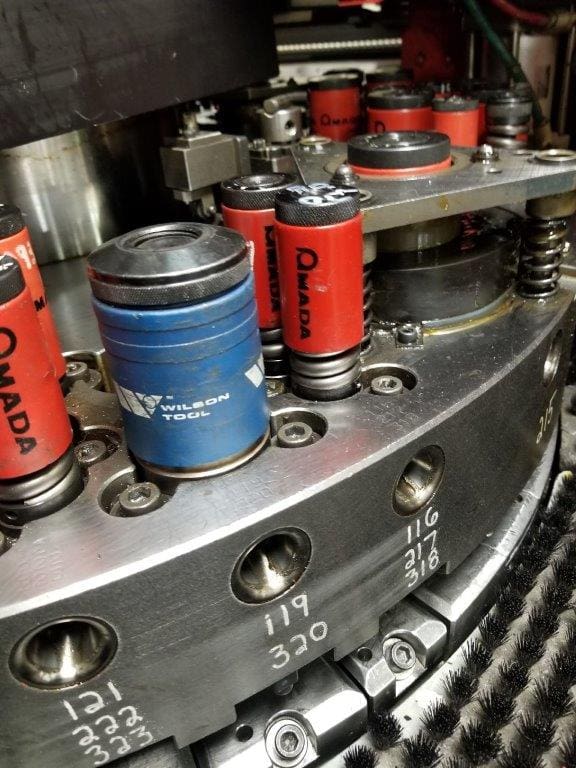

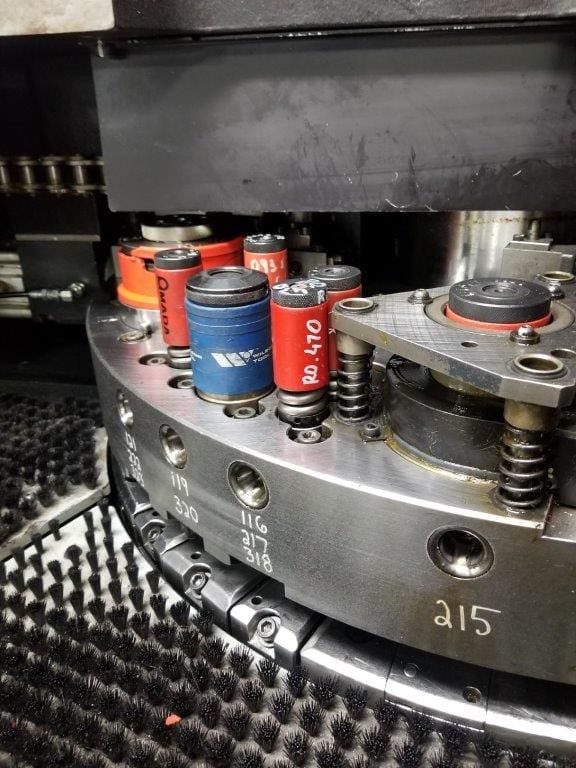

Turret Stations

45 Station with 2 Auto Indexers

Throat Depth

50"

Tooling Style

Thick

Punch/Form/Scribe Drive Type

AC Servo

Maximum Punch Stroke

1.65"

Maximum Travel w/o Reposition

50" X 98.4" (50" X 196.8" with 1 Reposition)

Maximum Feed Rate

X-Axis 3,150 IPM & Y-Axis 2,362 IPM

Maximum Material Weight

331 lbs

Maximum Hit Rate

900 HPM (at 0.019" Pitch and .055" Stroke for Marking) X-Axis 350 HPM, Y-Axis 280 HPM (on 1" Pitch @ .118" Stroke)

Number of Auto-Index Stations

2

Turret Rotational Speed

30 RPM

Auto-Index Rotational Speed

60 RPM

Table Type

Brush

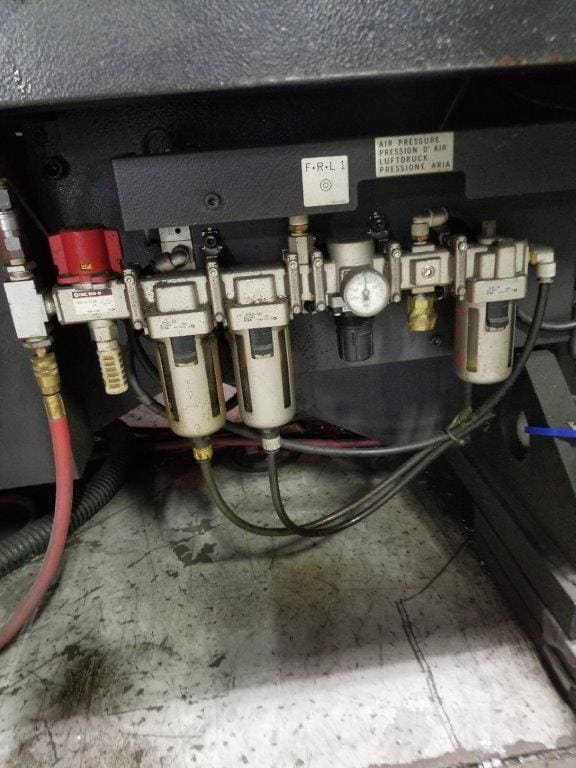

Clamping Type

Pneumatic

System Weight

28,660 lbs

Installed Dimensions

201.57" W X 163.58” L X 80.16" H

Features

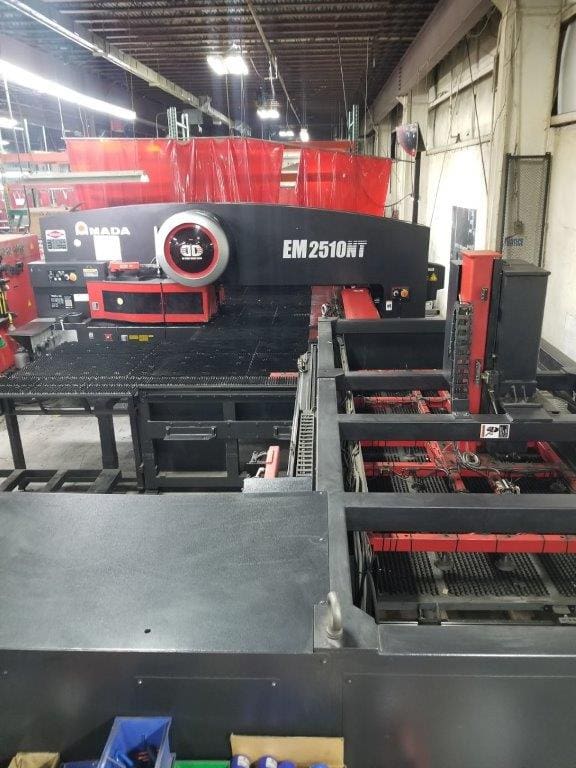

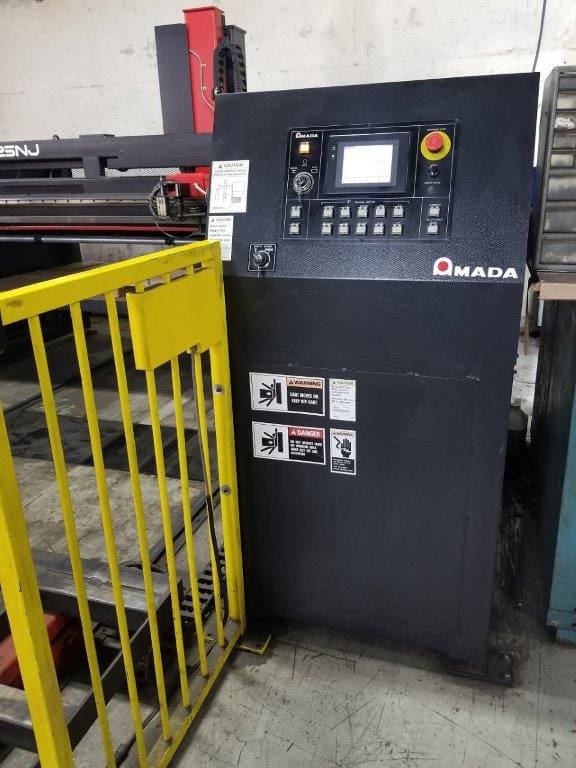

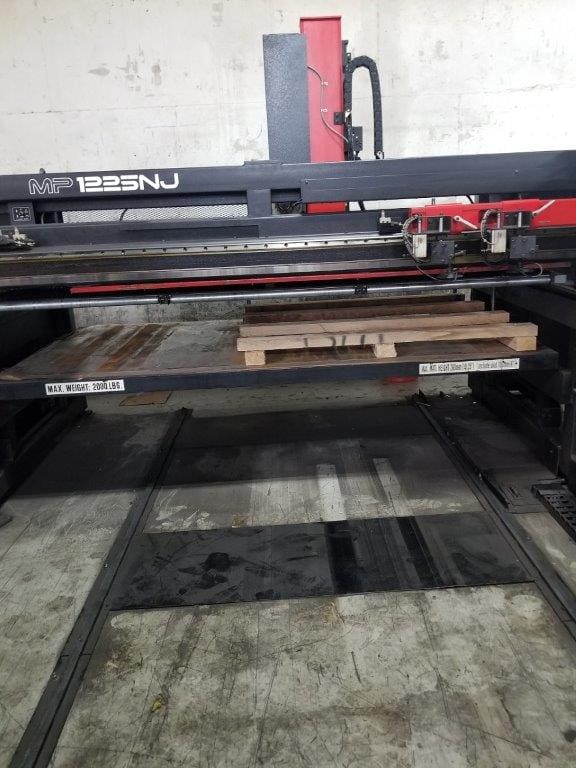

Amada MP 1225NJ Loader

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
