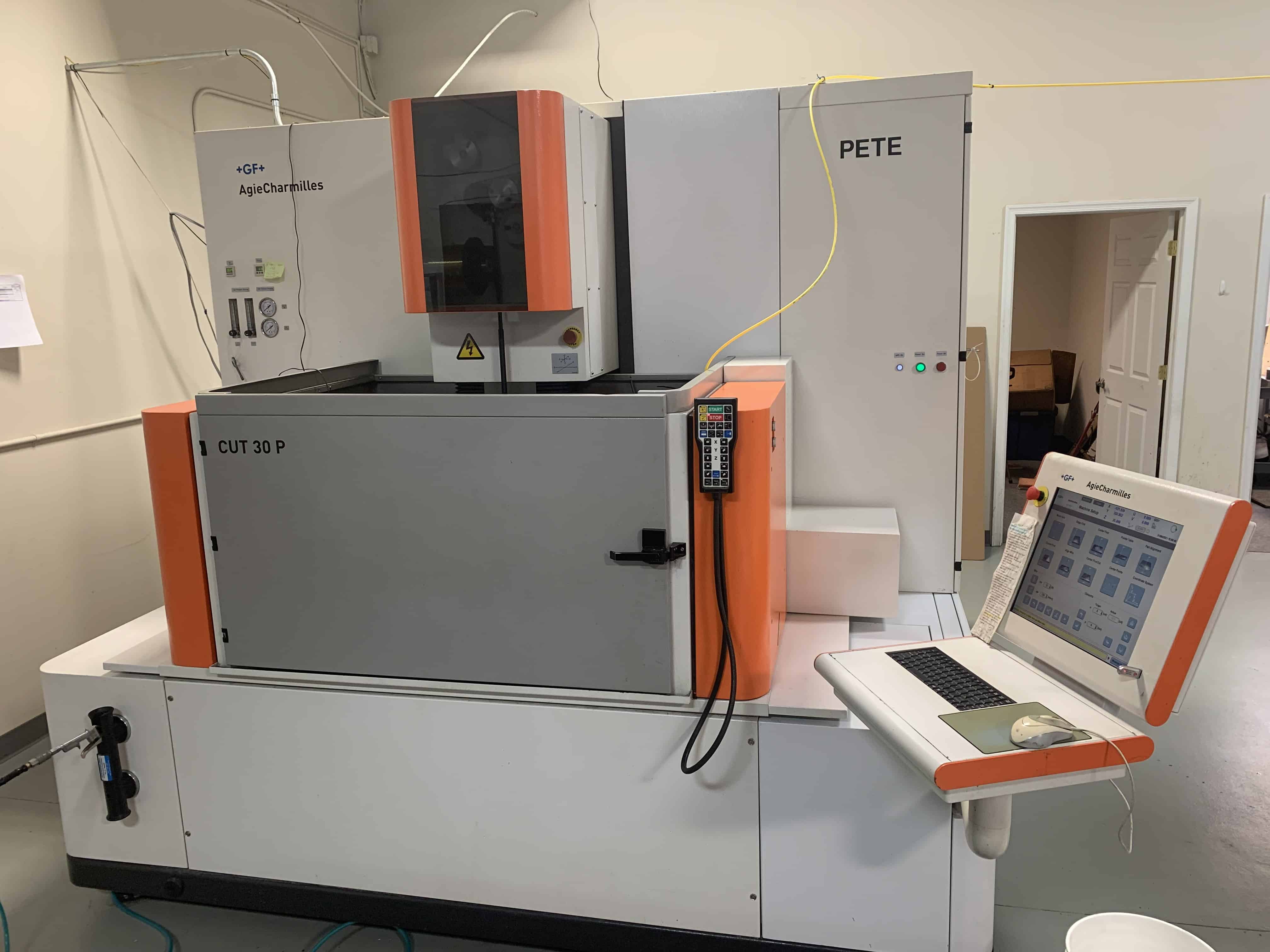

Year |
2011 |
|---|---|
Make |
AgieCharmilles |
Model |
CUT 30 P |
Description |
EDM Wire |
Reference # |
8070518 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
23.6" |
|---|---|
| Y-Axis Travel |
15.7" |
| Z-Axis Travel |
13.75" |
| Control |
Charmilles/Windows |
| U/V Axis Travel |
1.95" x 1.95" |
| Degree Taper Cutting |
25 Degrees |
| Power Requirement |
380/3/60 Transformer |
| Inside Tank Dimensions |
49.6" x 37.2" |
| Max Workpiece Size (L x W x H) |
40.55" x 31.50" x 13.75" |
| Max Submerged Cutting |
13.78" |
| Max Taper Angle |
+/- 2.24" |

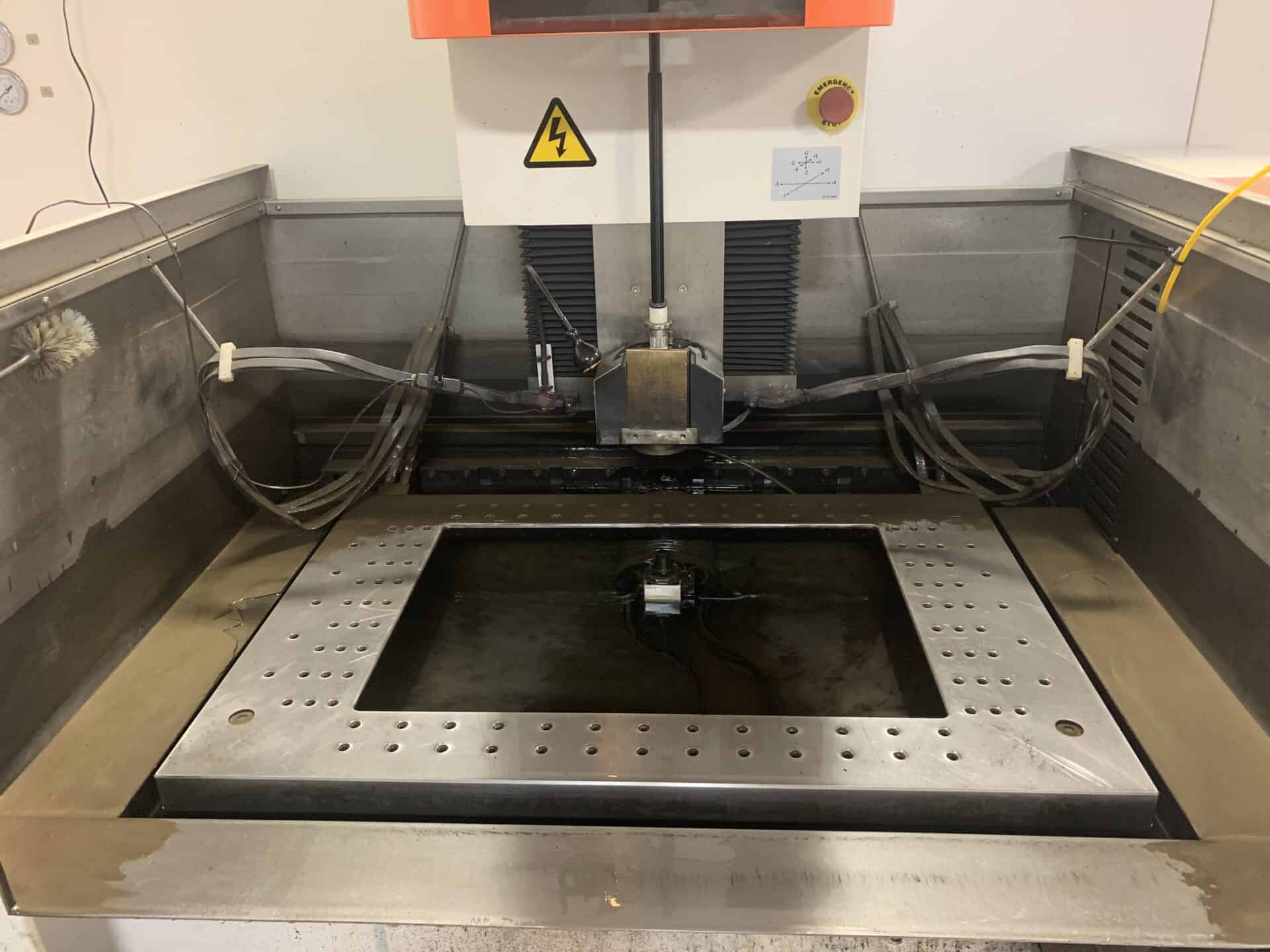

| Table Size |
37.4" x 24.8" |
| Max Workpiece Weight |
2204 Lbs. |
| Capacity of Clean Water Tank |
60.75 Gallons |
| Capacity of Deionizing Bottle |
5.3 Gallons |
| Capacity of Dirty Water Tank |
256 Gallons |
| Distance Between Table Surface and Floor |
41.7" |

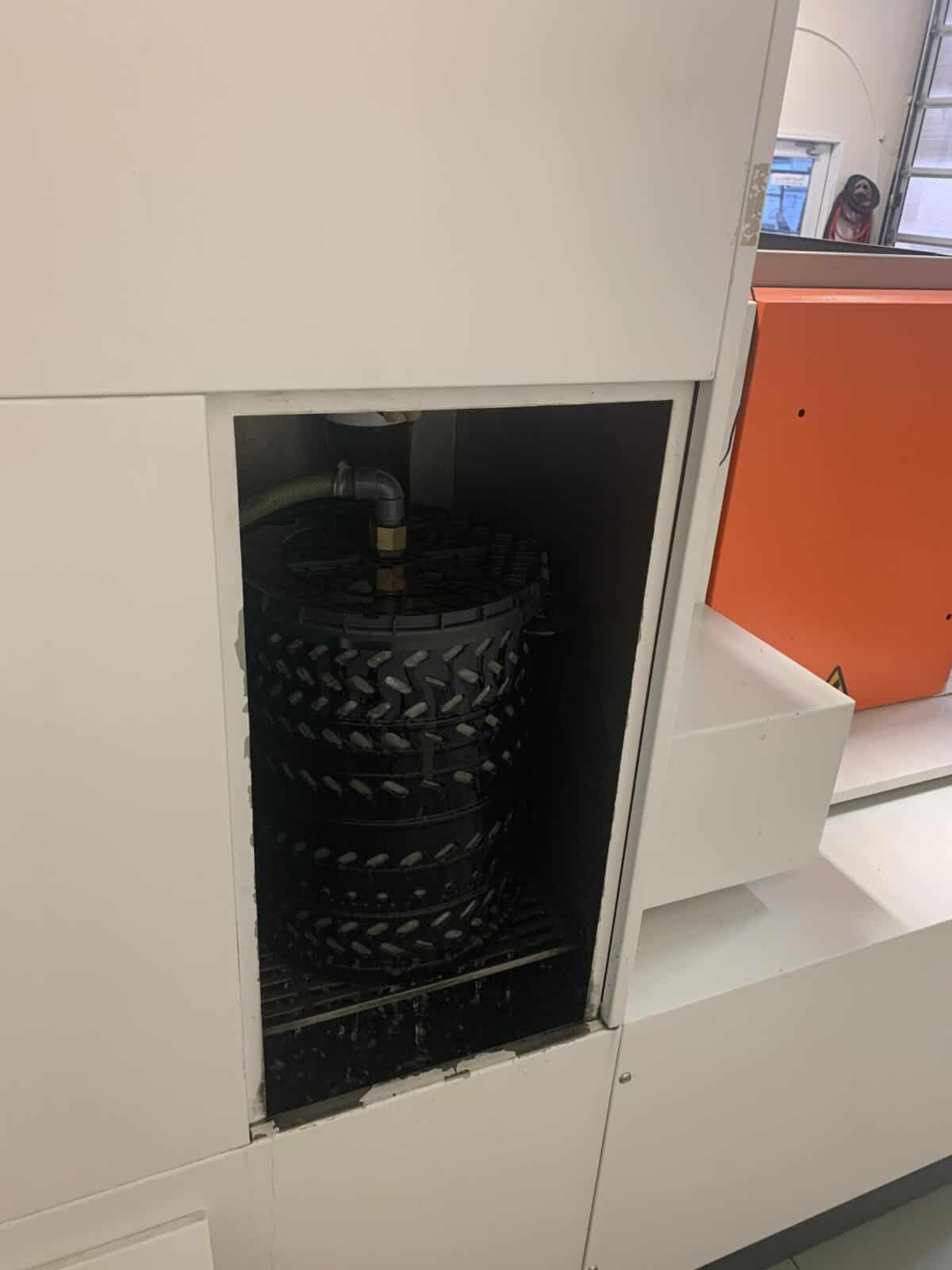

| Filer Cartridge (Height/Diameter) |
17.71" x 13.38" |
| Maximum Current |
35 Amps |
| Spool Weight |
17.6 / 55 Lbs. |
| U/V-Axis Travel |
+/- 1.95" |
| Wire Guide Diameter |
.15mm / .20mm / .25mm / .30mm |
| Wire Speed |
1.18 - 13 in/second |
| Wire Tension |
3-30N |
| Machine Dimensions (L x W x H) |
122" x 112" x 91.5" |
| Machine Weight |
11288 Lbs. |
Features
|

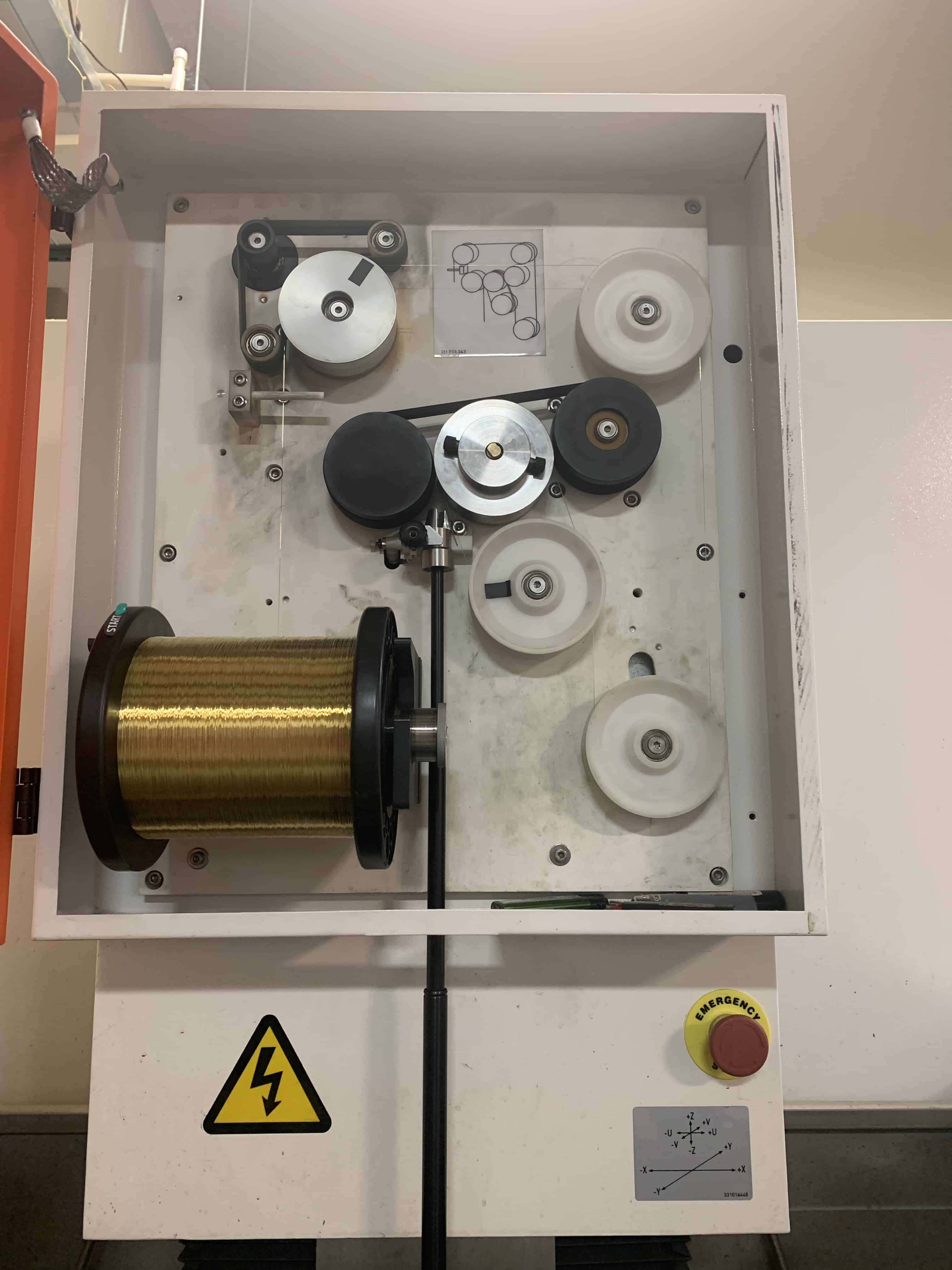

Auto Wire Threading |

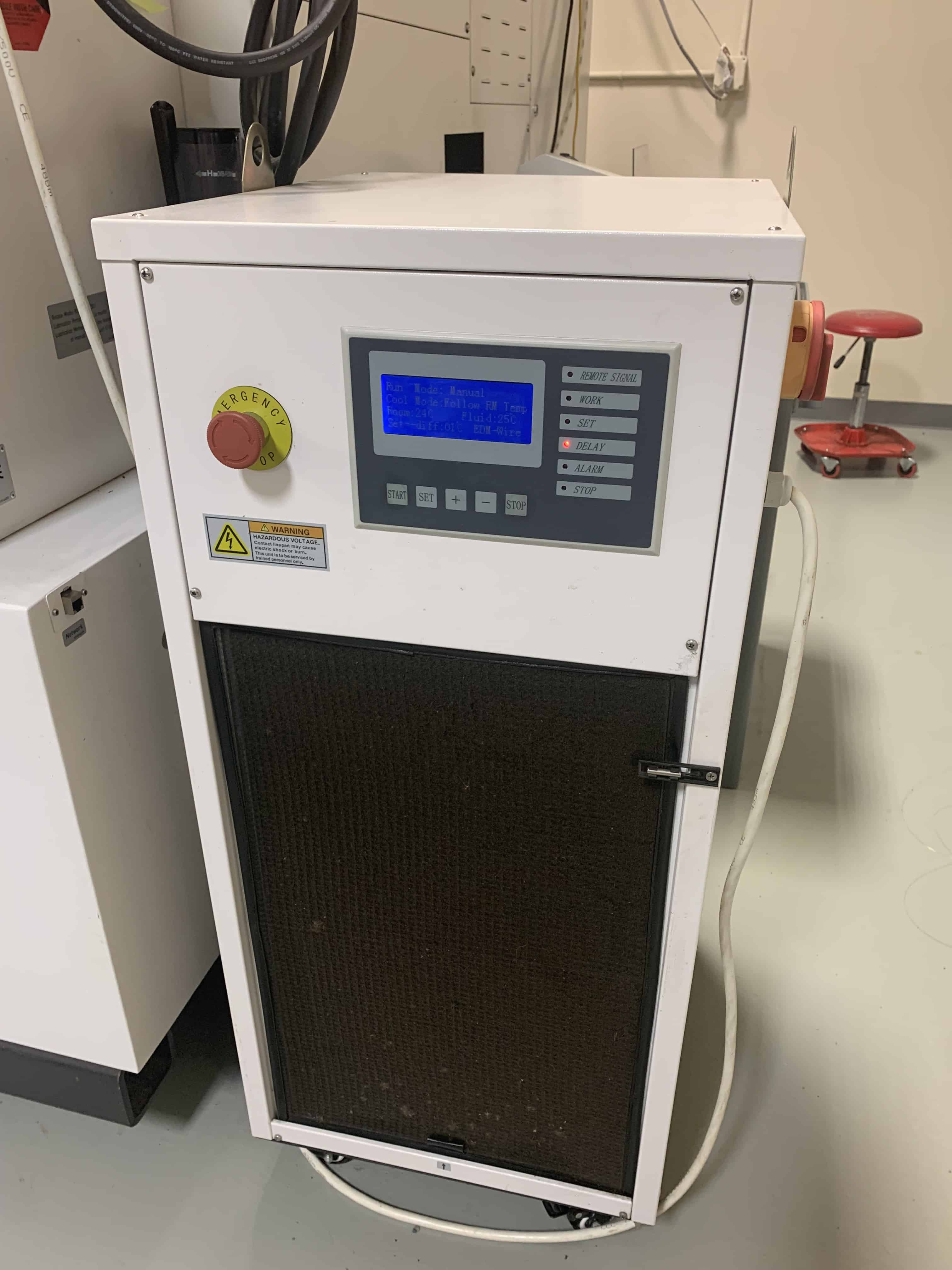

Chiller |
|

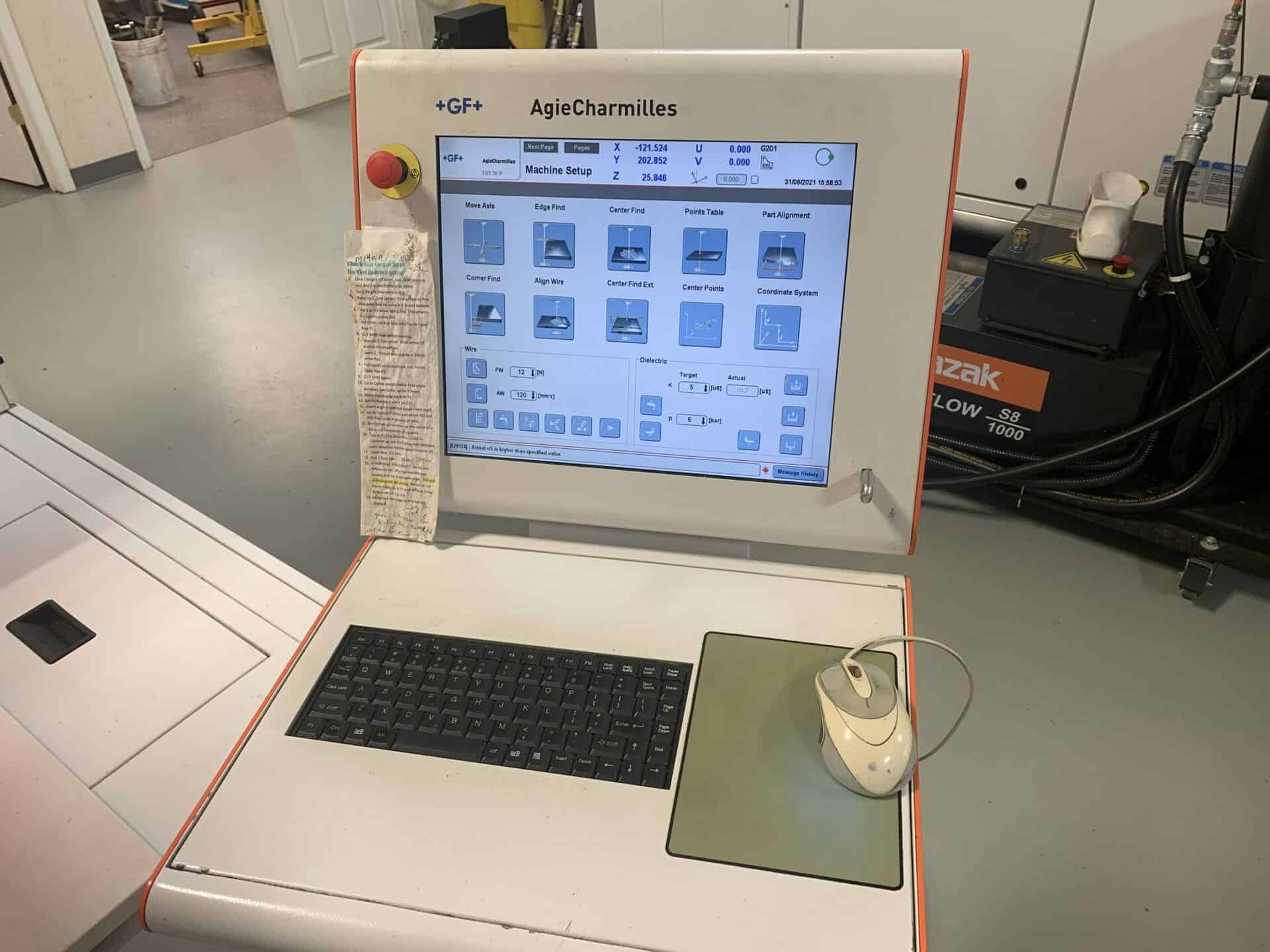

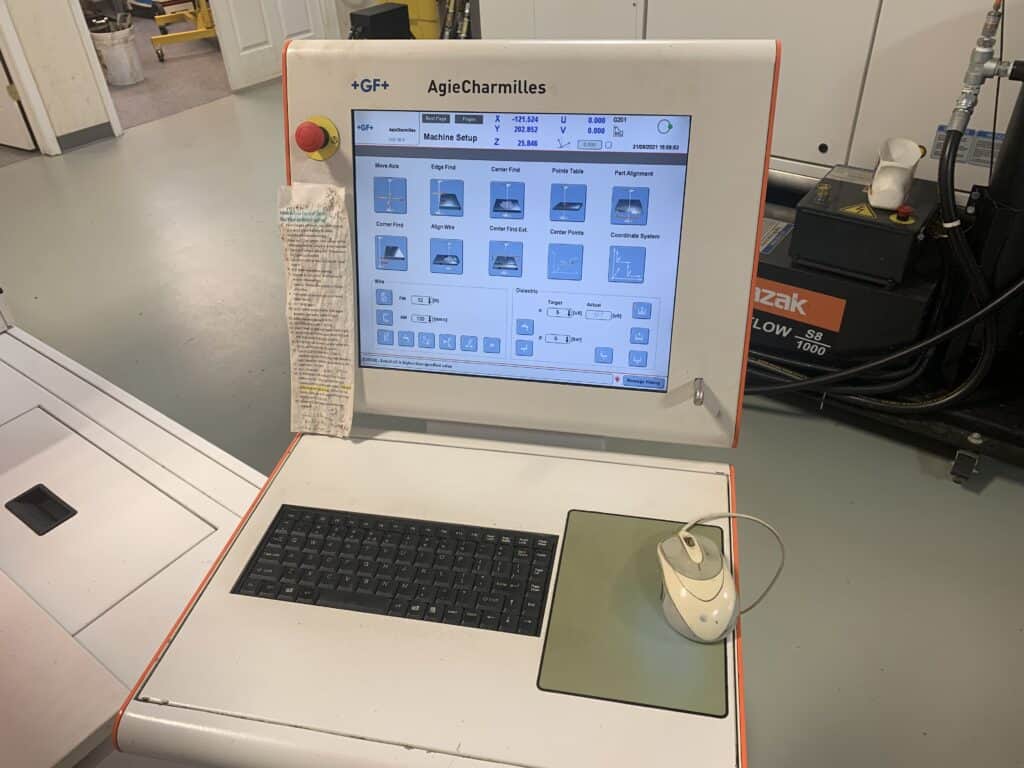

15" TFT Screen |
Wire Chopper |
|
40GB Memory Capacity |

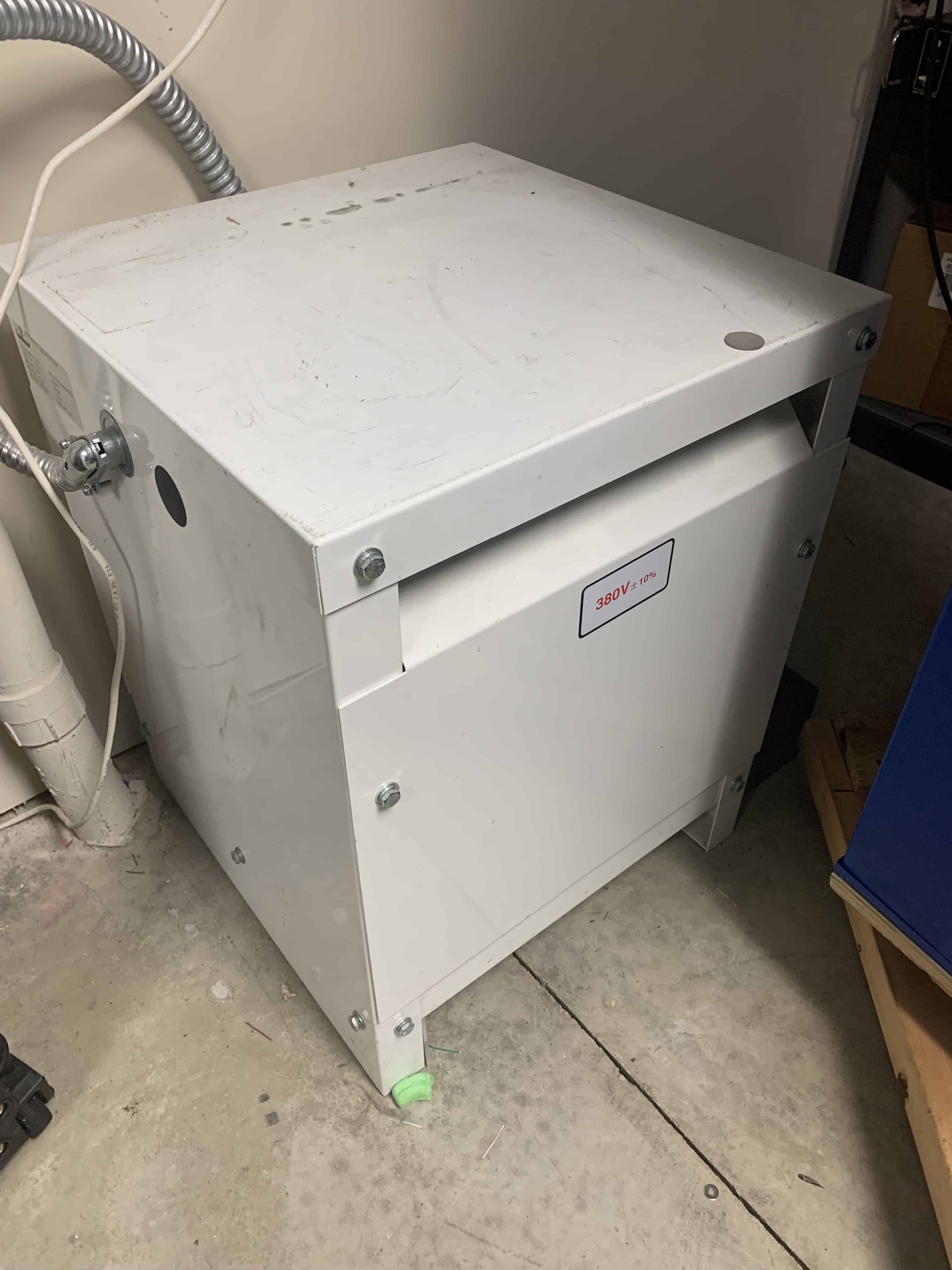

(1) Transformer |
|
USB/LAN |
Automatic Wire Alignment |
|
Glass Scale Feedback (X/Y/U/V/Z) |
Linear Glass Scales |
*
