Year |
2006 |
|---|---|
Make |
Transfluid |
Model |
DB 2060 K SPS |
Description |
Mandrel CNC Tube Bender |
Reference # |
8069546 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

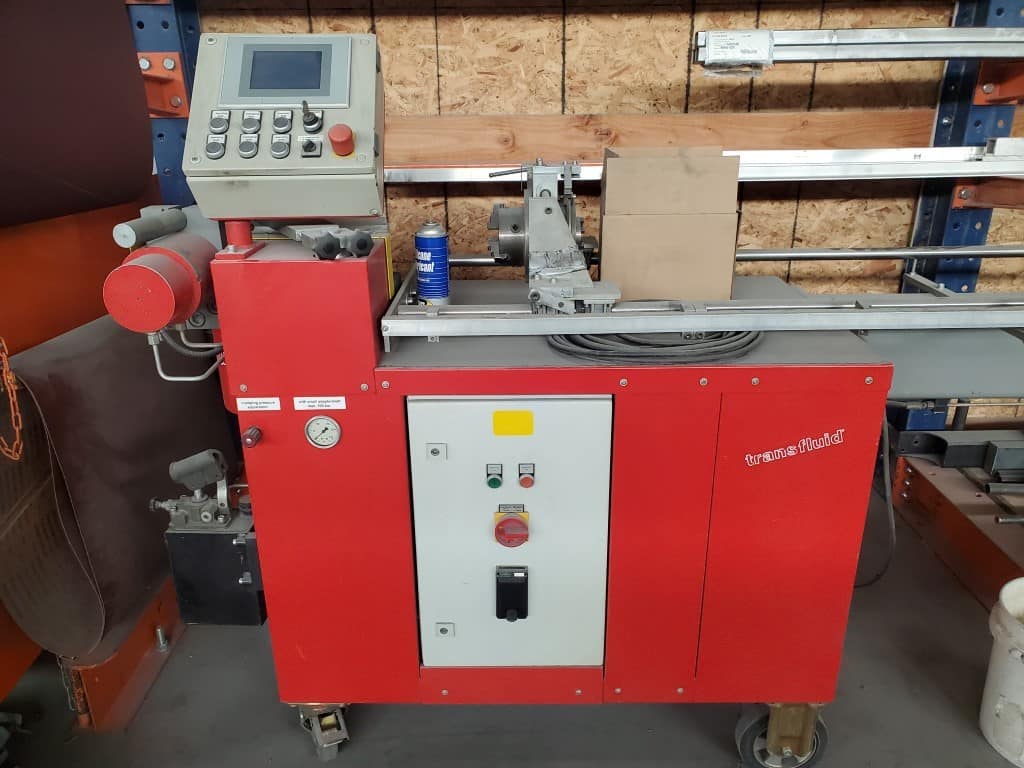

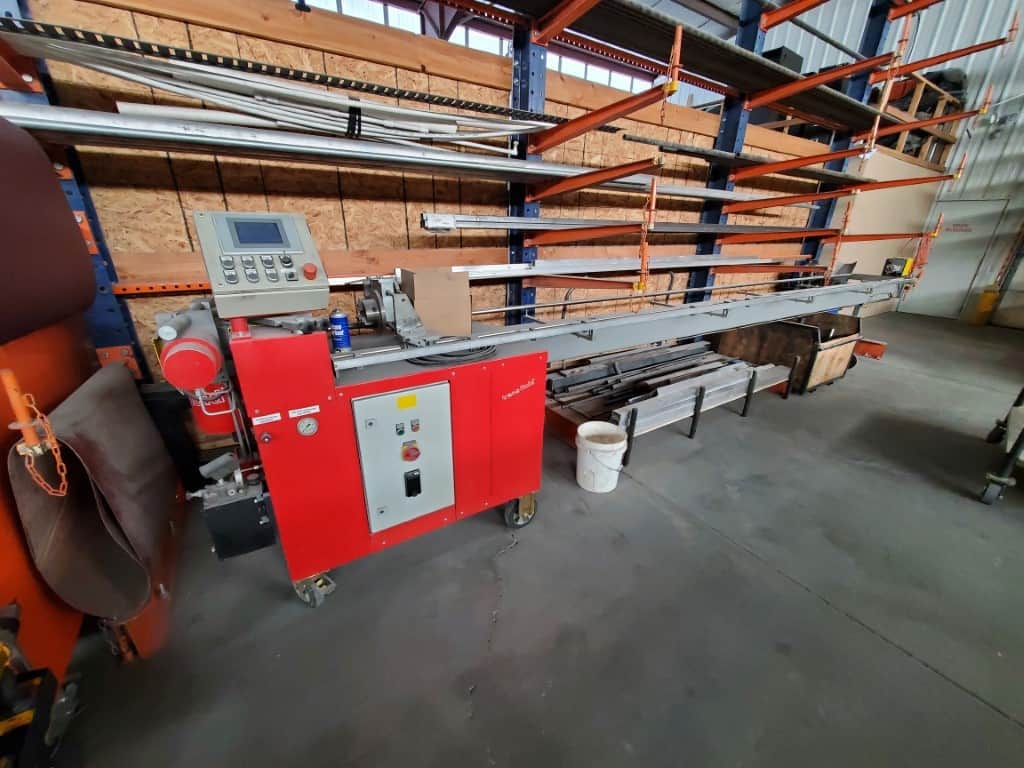

Transfluid DB 2060 K SPS
Specifications
| Mild Steel Capacity |
2-3/8” X .236” |
|---|---|
| Nominal PIPE Capacity |
2” Schedule 80 |
| Square Mild Steel Capacity |
2” X .138” |
| Solid Bar Mild Steel Capacity |
1-3/4” |
| Minimum OD |
¼” |
| Max Bending Speed |
8 Seconds To 90 Degrees |
| Bending Style |
Mandrel |
| Max Center Line Radius |
6” |
| Max Degree of Bend |
190 |
| Motor |
220/440 Volt 3 Phase |
| Control Method |
8 Bend Digital Control Standard, 500 Part / 20 Bends Per Part SPS Control Optional |
| Accuracy |
.1 Degrees |
| Maximum OD |
2-3/8” |
| Control |
SPS |
| Dimensions |
44” X 36” X 51” Less Arbor |
| Weight |
2200 Lbs |
Features
|
Programmable Mandrel |
20' Extension |
|
Tooling |
Plane of Bend Device |
|
PLC Upgrade |
Wiper Die Holders |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
