Year |
2006 |
|---|---|
Make |
Mazak |
Model |
Cybertech Turn 4500M/3000 |
Description |
CNC Lathe |
Reference # |
8071463 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

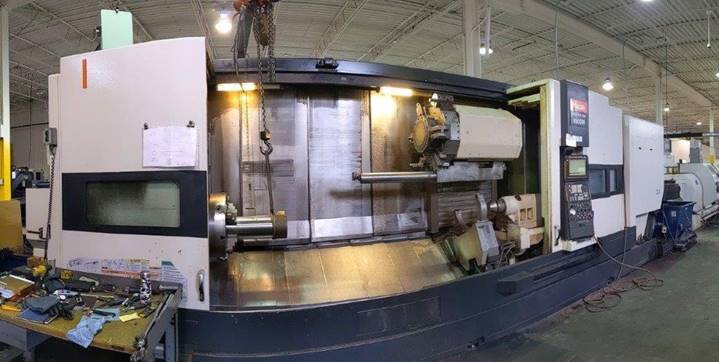

Used Mazak Cybertech Turn 4500M/3000 (2006) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
7" |
| Swing |
33.88" |
| Turning Diameter |
31.88" |
| Spindle Speed |
1,000 RPM |
| Control |

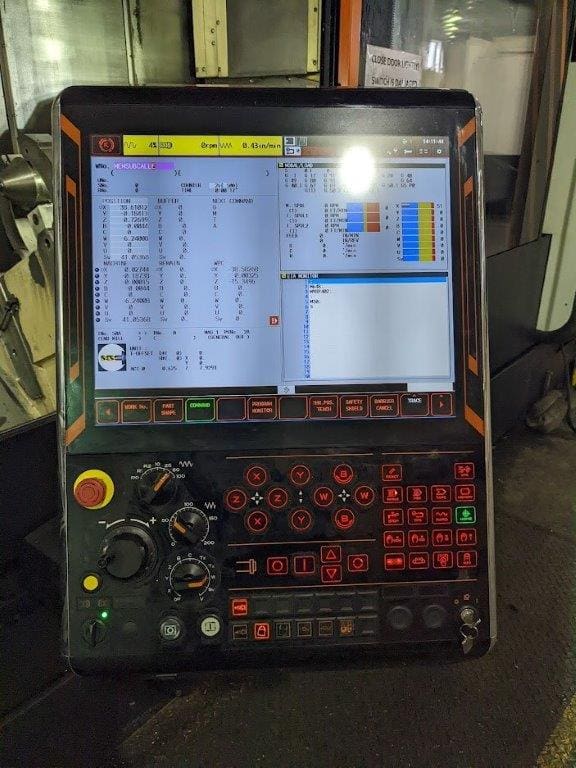

Mazatrol PC-Fusion-CNC 640HT PRO |
| Distance Between Centers |
120" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
| Rotary-Tool Spindle Speed |
3,000 RPM |
| C-Axis |
0.001 Degree Incr. |
| Spindle Bore Diameter |
275mm (10.8'')/1000 RPM |
| K5.1 Steady Rest |
3.94" - 16.1" |
Features
|
Prep for Rear Chuck & Cyl & Spin Jog Button |
Auto Tool Presetter |
|
Re-Threading |
12 Position Drum Turret |
|
12 Tool Holder Blocks (8 Installed In Turret + 4 Loose) |
12.1" Color LCD |
|
Programmable Tailstock |
SMW K5.1 Single Auto Steady Rest Prep with Bracket |
|
3.5" FDD Unit |
Thread Start Point |
|
Tool Eye (Automatic) |
Absolute Positioning System (N/A with S/F) |
|
Chip Conveyor Side Disposal (Hinge) |
Head Side Hount with Auto Lube System/Hydraulic Hose |
|
High-Power Coolant (2.2KW) |
Hydraulic Pressure Interlock |
|
Interface Set |
LNS Autoblok |
|
Long Boring Bar Holder (100mm ID) |
Long Boring Bar Stocker (2 Bar Capacity/1000mm TL) |
|
Main Spindle Motor AC 37KW (50HP) |
Milling-Spindle Synchronous Tapping |
|
Multitap Transformer |
N-EIA/ISO Option Package |
|
Network Interface (for LAN) |
Operator Door Interlock with Lock-Switch |
|
PCHCIA 1/F (2-Slot/CARDBUS) |
Windows 2000 Operating System for Mazak Machine Control |
