Year |
2011 |
|---|---|
Make |
Nakamura-Tome |
Model |
WT-300MMY |
Description |
CNC Lathe |
Reference # |
8078842 |
Price |
Activate Pricing |

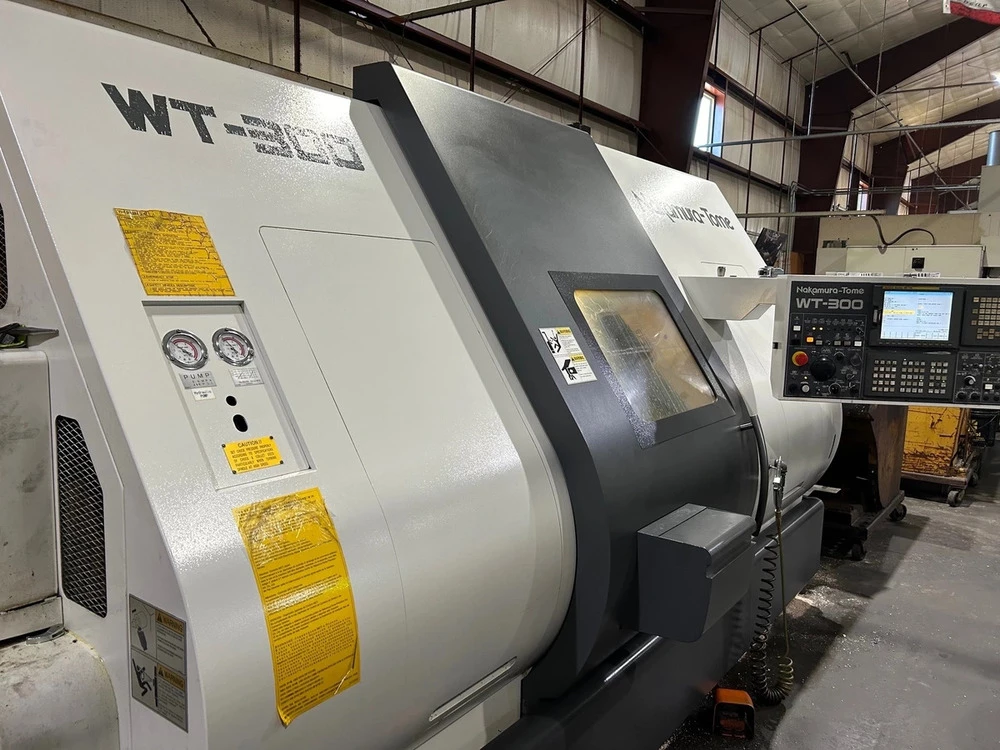

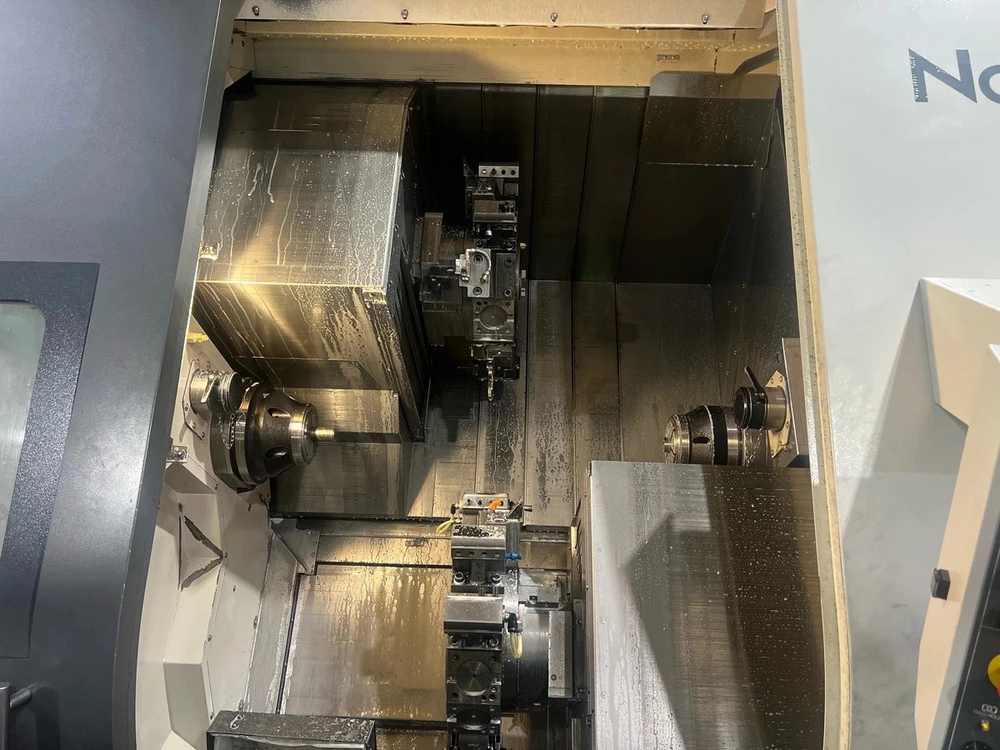

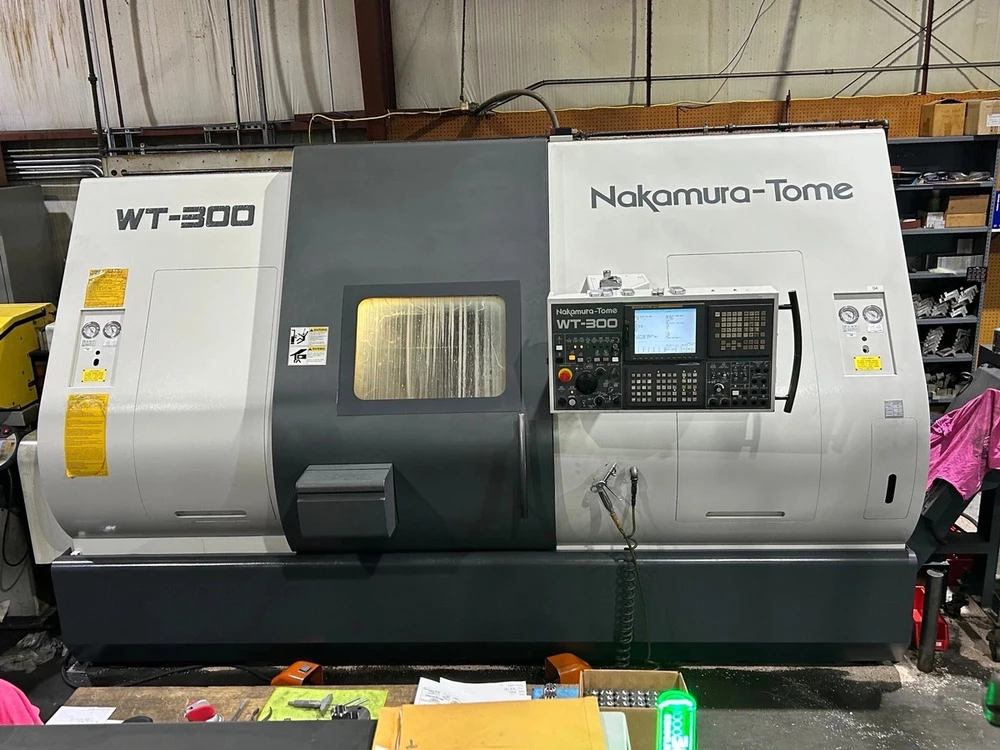

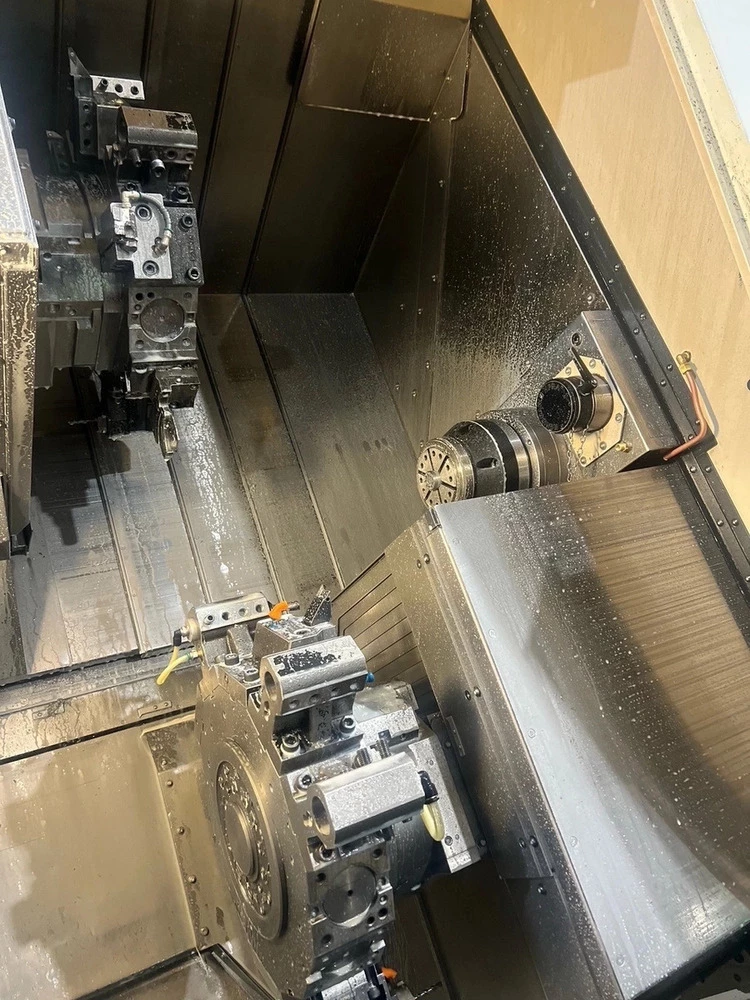

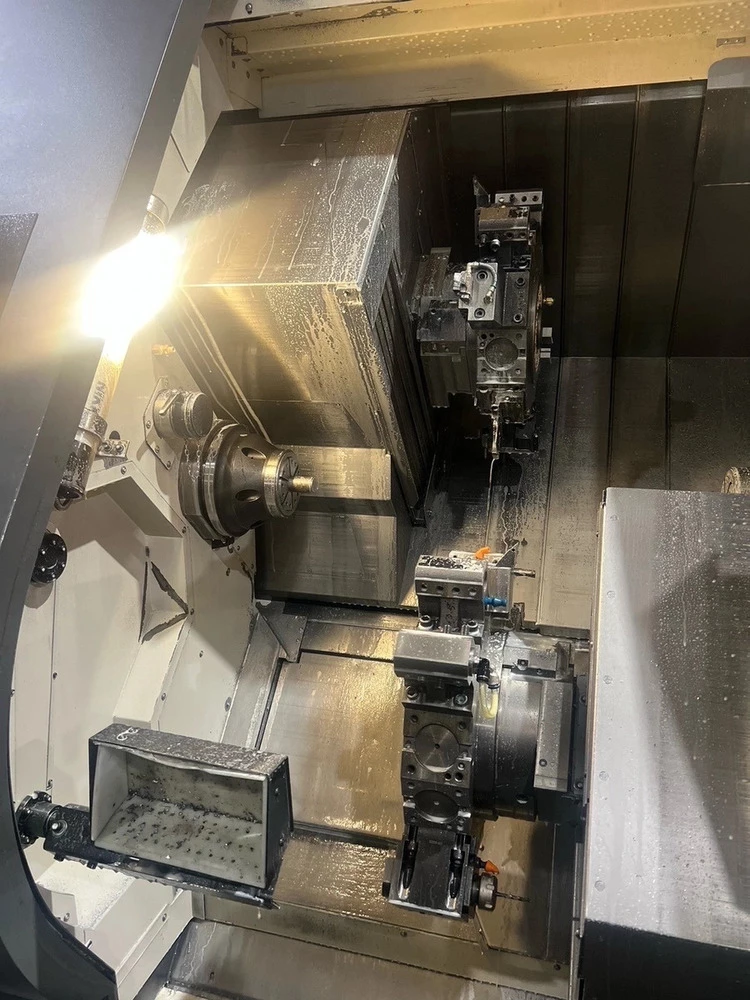

Used Nakamura-Tome WT-300MMY (2011) CNC Lathe for Sale. This 7-axis twin-spindle, dual-turret machine runs a Fanuc 18ITB CNC control, with dual 25 HP spindles rated to 4,500 RPM and milling to 3600 RPM. Capacities include an 8″ chuck, 2.5″ bar capacity, 10.63″ swing and turning diameter, and 43.31″ distance between centers. Each of the two 24-station turrets carries 12 rotary heads with C-axis live tooling and Y-axis, plus high pressure coolant on both turrets. Equipped with (2) 8″ 3-jaw hydraulic Kitagawa chucks, A2-6 spindle nose, sub-spindle, synchronized Z axes, milling spindle sync tap, thread cutting, helical, cylindrical and polar coordinate interpolation, auto tool presetter, parts catcher and chip conveyor. See more used CNC lathes and Nakamura-Tome machines. Available for inspection under power. Activate Pricing or Request a Quote.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
10.63" |
| Turning Diameter |
10.63" |
| Spindle Speed |
4,500 RPM |
| Control |

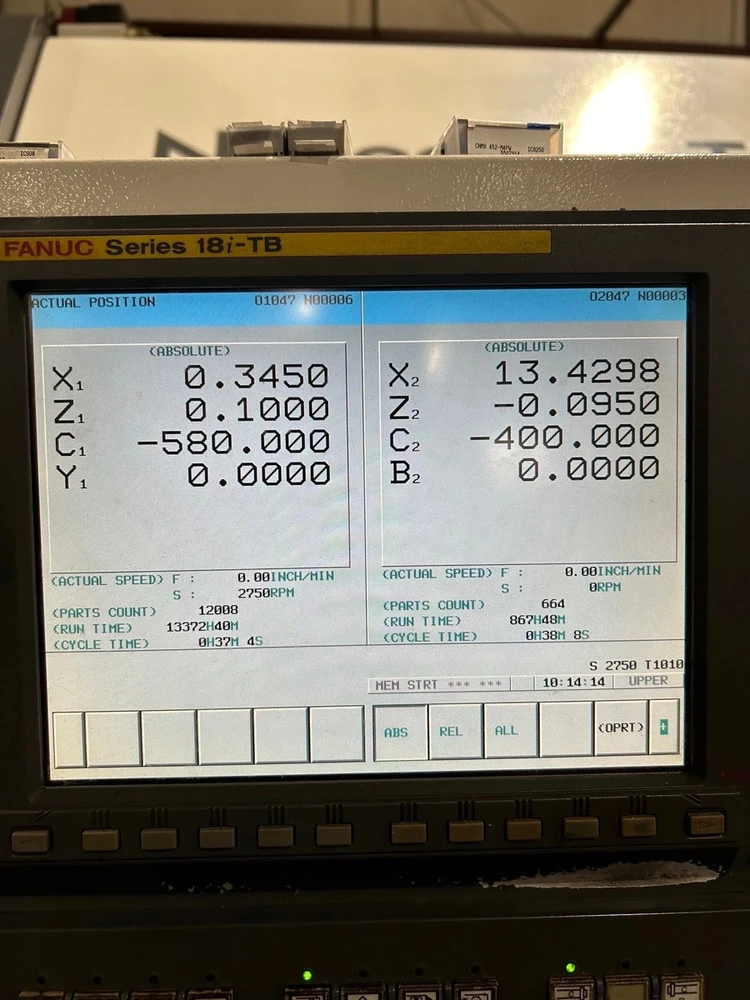

Fanuc 18ITB 7-AXIS CNC |
| Distance Between Centers |
43.31" |
| Turret |
24 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
Yes |
| Chip Removal |
Chip Conveyor |
| Max Milling Speed |
3600 RPM |
Features
|
(2) 8" 3-Jaw Hydraulic Kitagawa Chucks |
12 Rotary Heads |
|
24-Position Tool Turrets |
Dual 25 HP Spindles |
|
High Pressure Coolant (Both Turrets) |
Milling Spindle Sync. Tap |
|
Polar Coordinate Interpolation |
Synchronized Z Axes |
|
Thread Cutting |
Auto Tool Presetter |
|
Dual Turret |
Helical Interpolation |
|
Parts Catcher |
Sub Spindle |
|
A2-6 Spindle Nose |
Cylindrical Interpolation |
