Year |
2003 |
|---|---|
Make |
Mori Seiki |
Model |
SL-204MC |
Description |
CNC Lathe |
Reference # |
8075021 |
Price |
Activate Pricing |

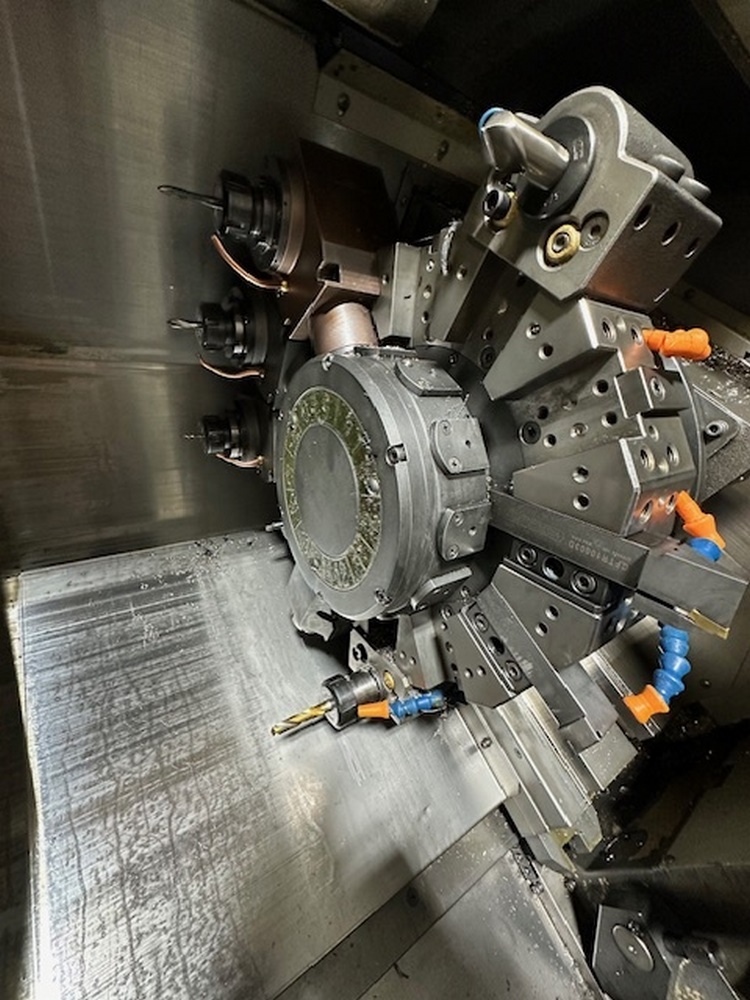

Used Mori Seiki SL-204MC (2003) CNC Lathe for Sale. This machine has an 8″ chuck, 2″ bar capacity, 26.8″ swing and 15.3″ turning diameter, with 19.5″ between centers and 19.5″ of Z-axis travel. Spindle speed is 4,500 RPM with milling speeds to 4,000 RPM, running a 12-station turret with C-axis live tooling under an MSG-805 Mitsubishi control. Equipped with an LNS Servo Load S3 barfeed, auto tool presetter, six live tool holders, tailstock, parts catcher and chip conveyor. Approximate dimensions are 92″ x 74″ x 73″ with a weight of roughly 10,000 lbs. The lathe can be seen under power for an inspection. See more used CNC lathes or other Mori Seiki equipment, Activate Pricing, and Request a Quote.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
26.8" |
| Turning Diameter |
15.3" |
| Spindle Speed |
4,500 RPM |
| Control |
MSG-805 Mitsubishi Control |
| Distance Between Centers |
19.5" |
| Turret |
12 |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
| Z-Axis Travel |
19.5" |
| Milling Speeds |
4,000 RPM |
| Approx. Machine Dimensions |
92" x 74" x 73" |
| Approx. Machine Weight |
10,000 lbs |
Features
|

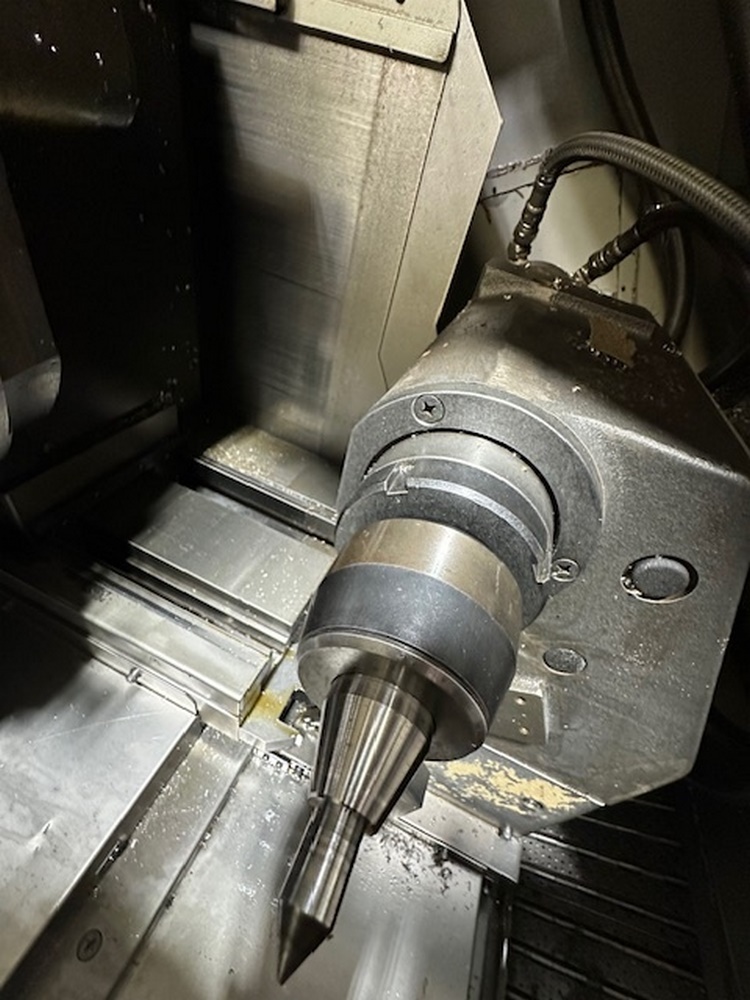

Tailstock |
LNS Servo Load S3 Barfeeed |
|
Auto Tool Presetter |
(6) Live Tool Holders Included |
|
Parts Catcher |
