Year |
2020 |
|---|---|
Make |
Haas |
Model |
ST-30 |
Description |
CNC Lathe |
Reference # |
8078547 |
Price |
Activate Pricing |

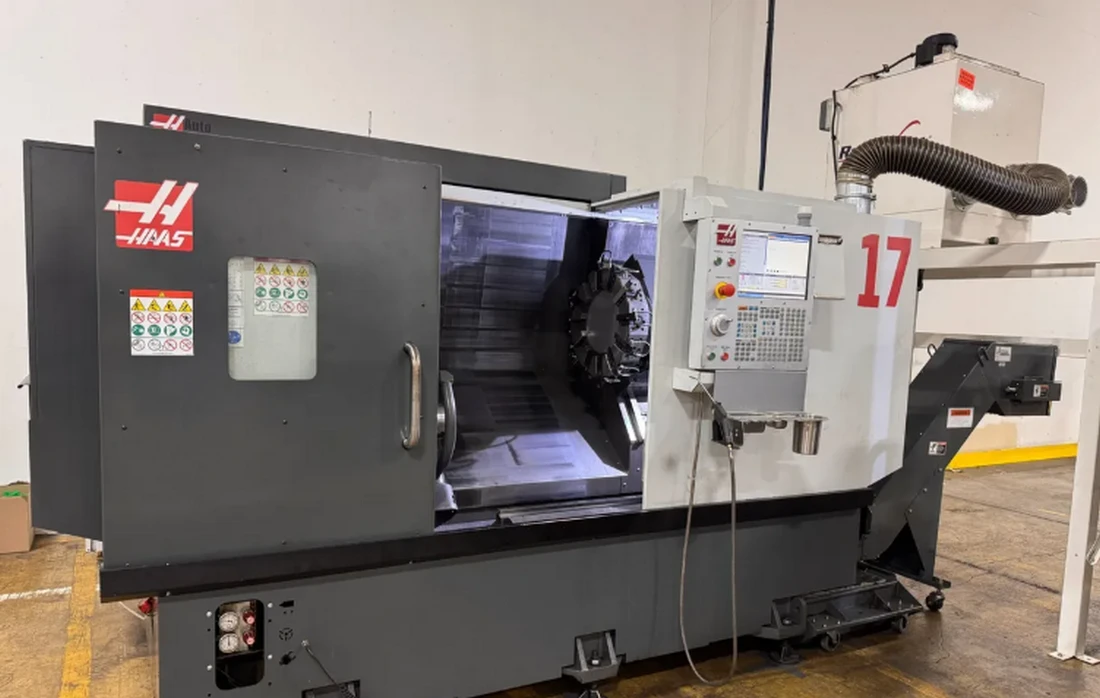

Used Haas ST-30 (2020) CNC Lathe for Sale. This turning center has a 10″ chuck, 3″ bar capacity, 21″ swing and 15″ maximum turning diameter, with 32.5″ between centers and 9.4″ of X-axis travel. Power comes from a 30 HP spindle motor rated to 3,400 RPM, and tool changes are handled by a 12 station turret. Equipment includes an auto tool presetter, a programmable hydraulic tailstock, a chip conveyor and the Haas CNC control. The machine can be seen under power for an inspection, and Activate Pricing is available on the listing page. See more used CNC lathes or browse additional Haas machines. Request a Quote for full details and availability.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3" |
| Swing |
21" |
| Turning Diameter |
15" |
| Spindle Speed |
3,400 RPM |
| Control |
Haas CNC |
| Distance Between Centers |
32.5" |
| Turret |
12 Station |
| X-Axis Travel |
9.4" |
| Spindle Motor |
30 HP |
| Chip Removal |
Chip Conveyor |
Features
|
Auto Tool Presetter |
Programmable Hydraulic Tailstock |
