Year |
2006 |
|---|---|
Make |
KMT Robotic Solutions |
Model |
M16iB/20 |
Description |
Robotic CNC Router |
Reference # |
8070388 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Number of Axis |
6 |
|---|---|
| Table Width |
N/A |
| Table Length |
N/A |
| Reach |
1667mm (65.5 inches) |
| Max Trim Area |
5' x 5' x 30" |
| Payload |
20kg (44lbs) |
| Repeatability |
+/- 0.08mm |
| Note |

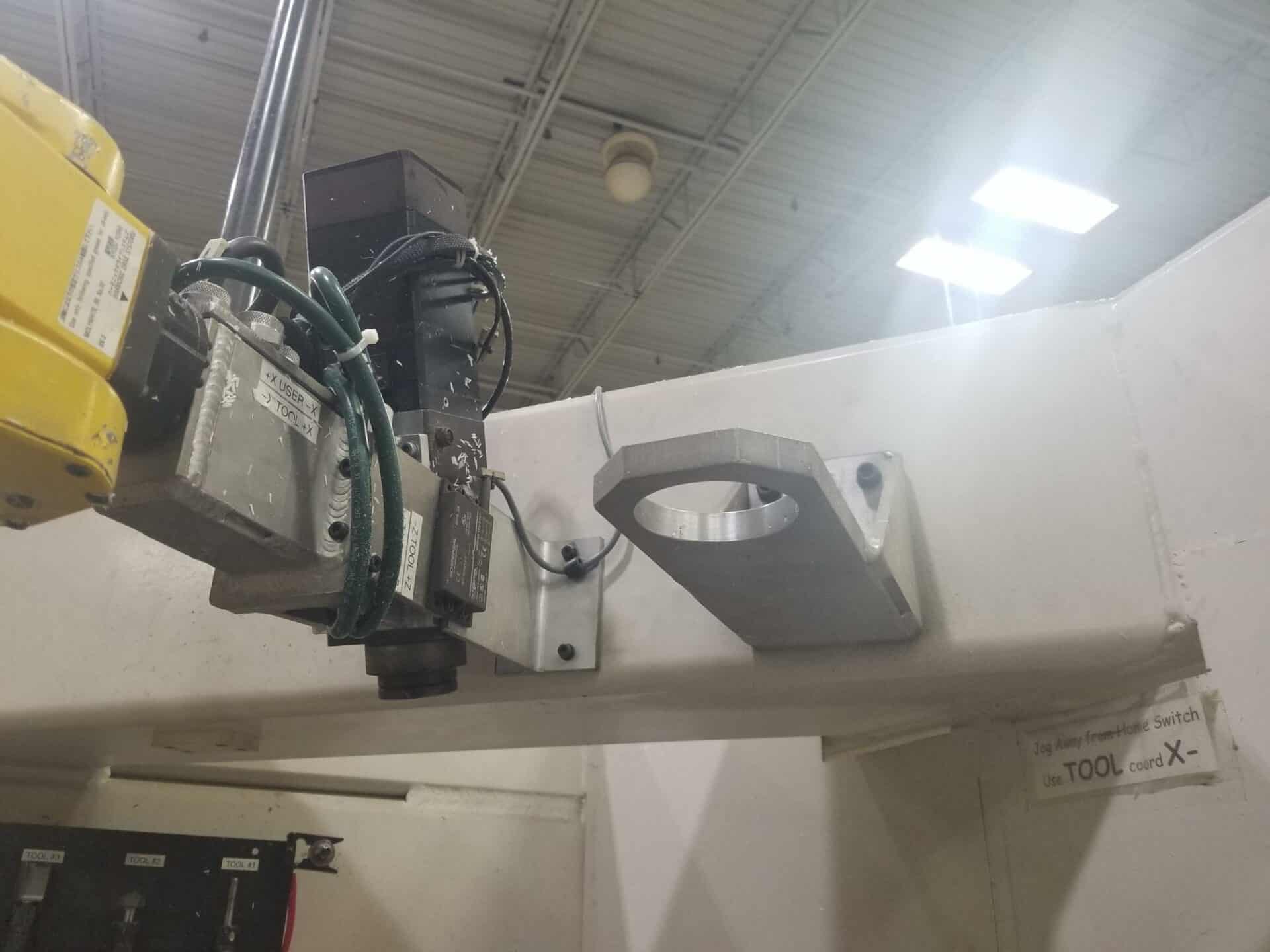

KMT Robotic Solutions is now owned by Shape Automation. KMT changed the angle of the spindle mount (end of arm tooling) so that it is now angled 19 degrees from its original build. This allows you to get into deep parts like the hoppers but you lose 6” of reach when the arm is outstretched. |
Features
|

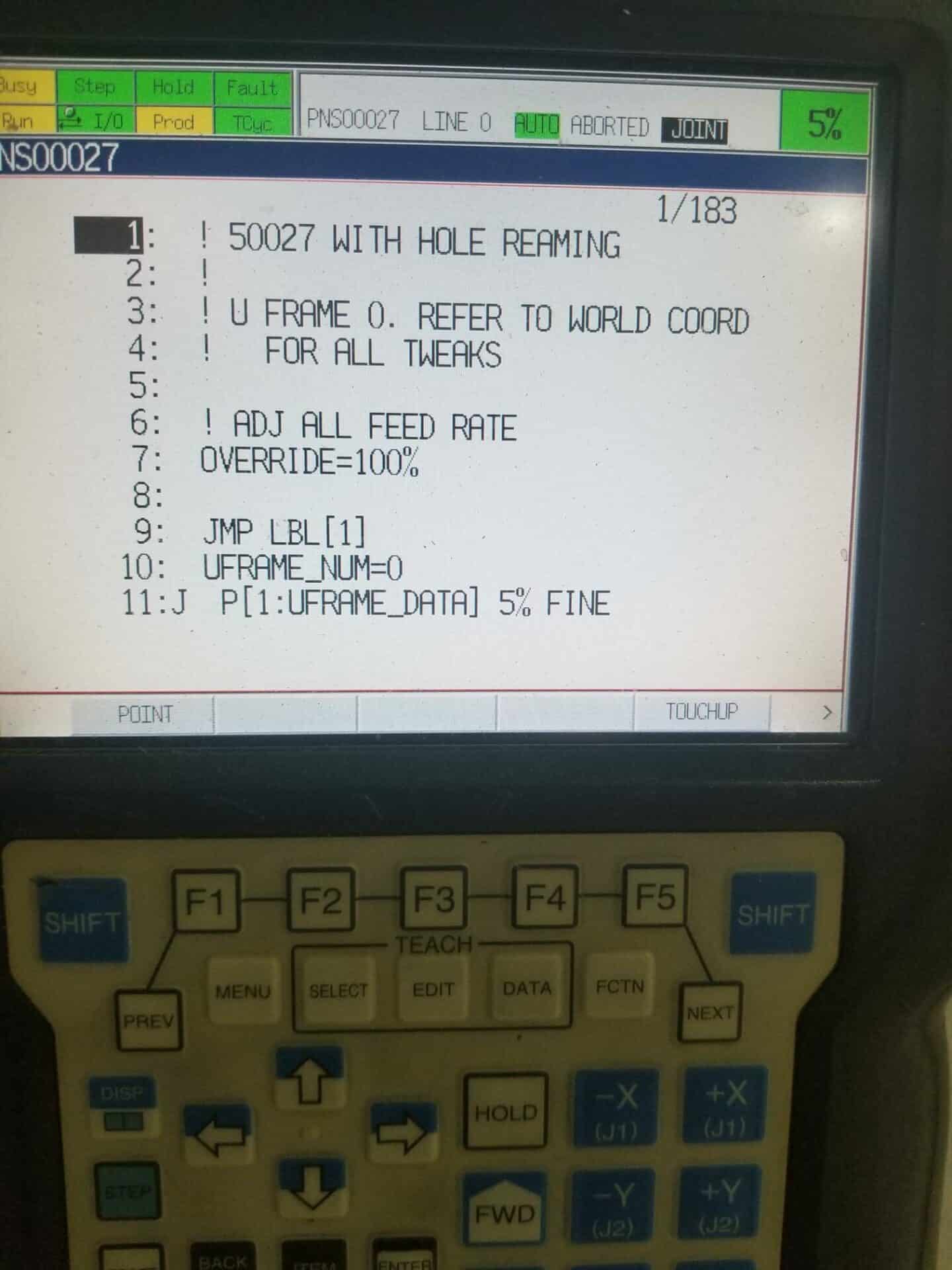

R-J3iC Controller |
