Year |
2016 |
|---|---|
Make |
SCM |
Model |
Accord 30 |
Description |
CNC Router |
Reference # |
8079076 |
Price |
Activate Pricing |

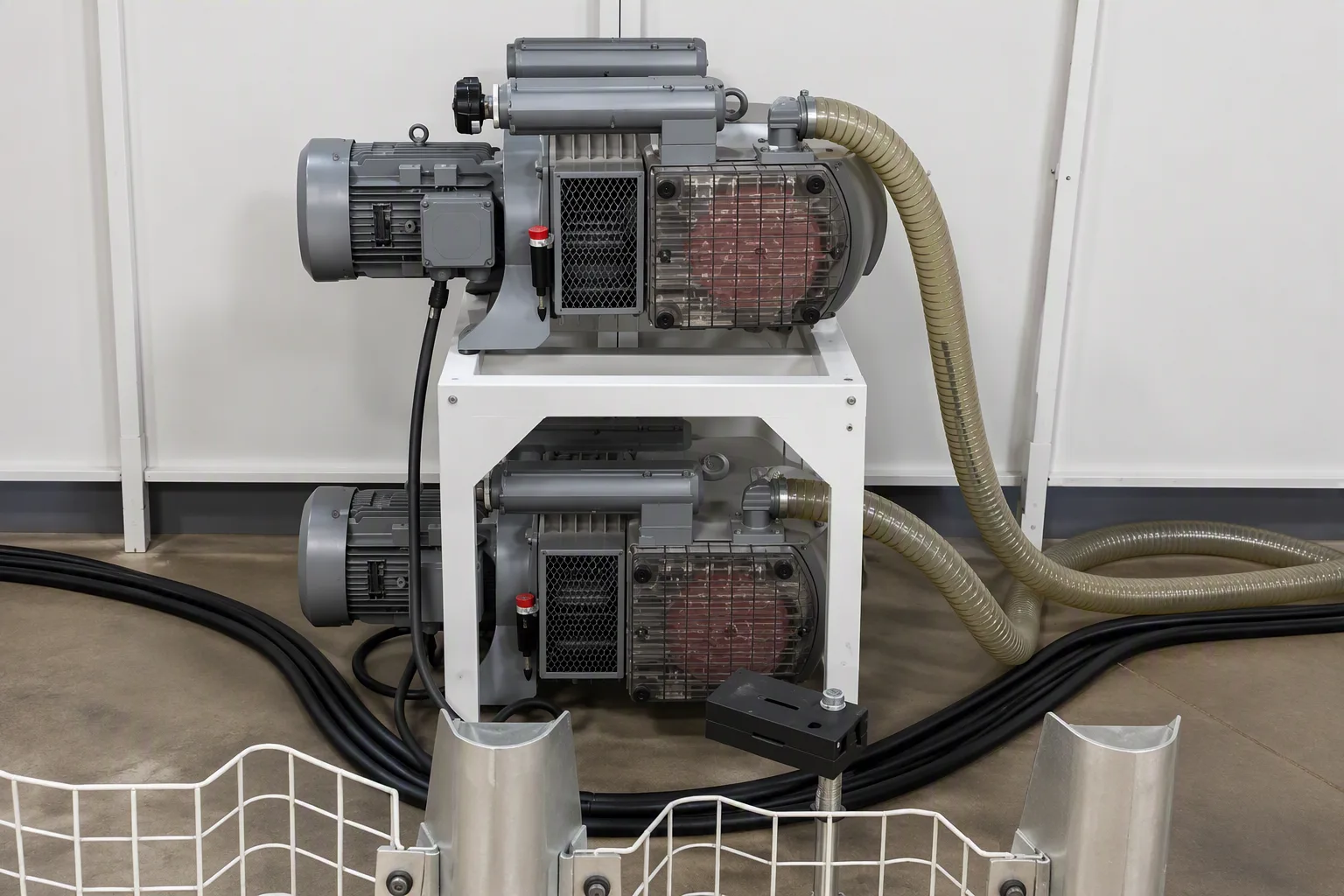

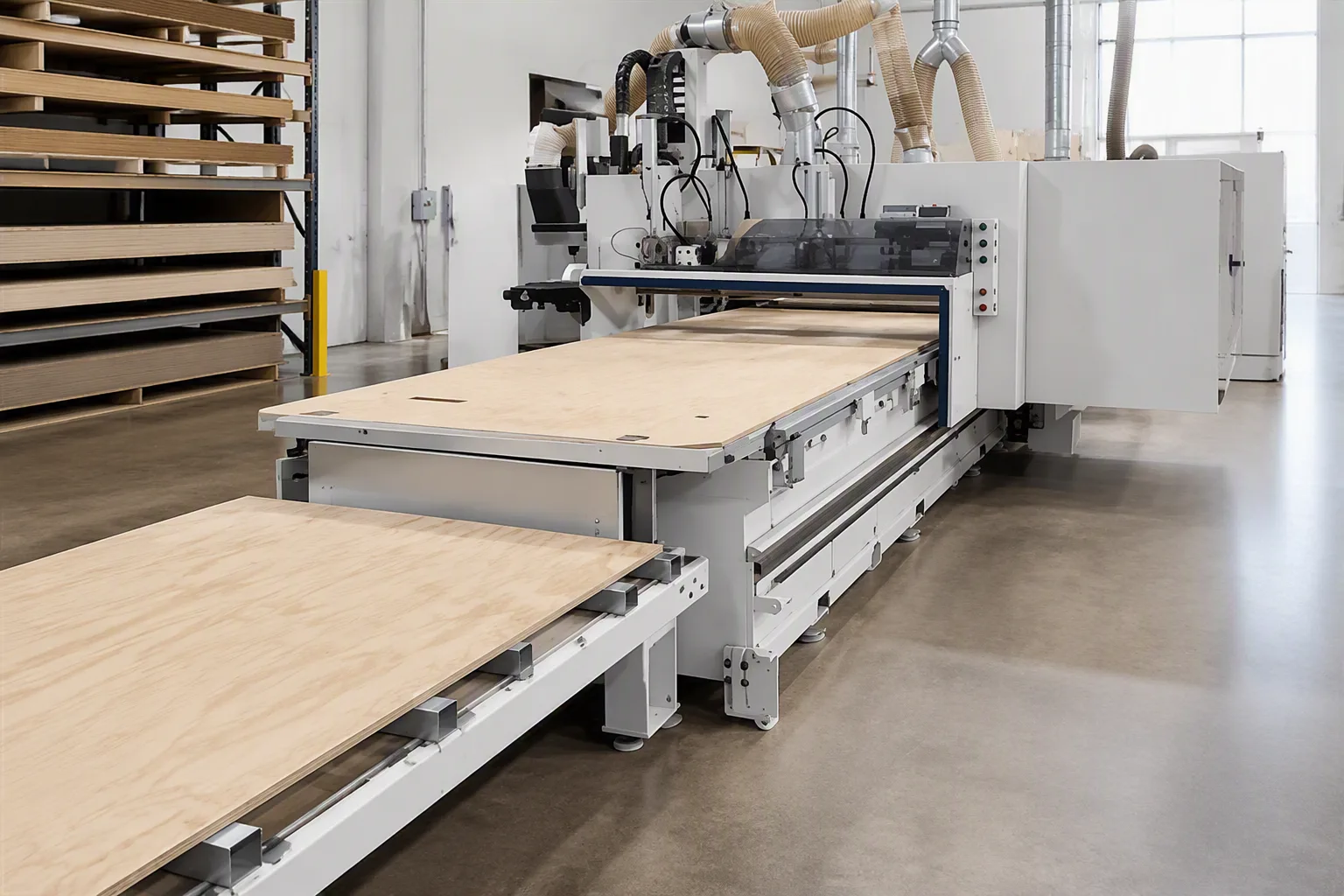

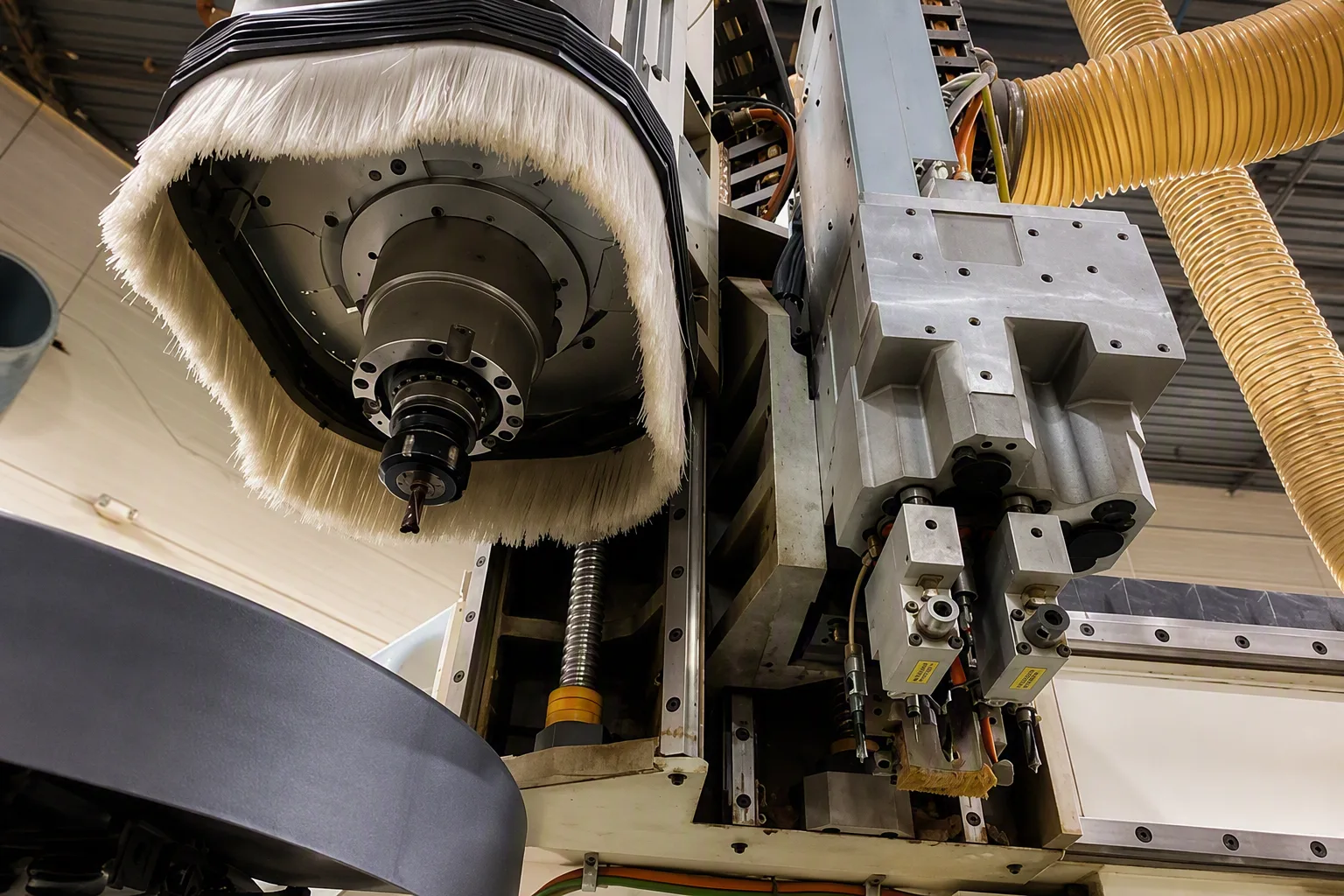

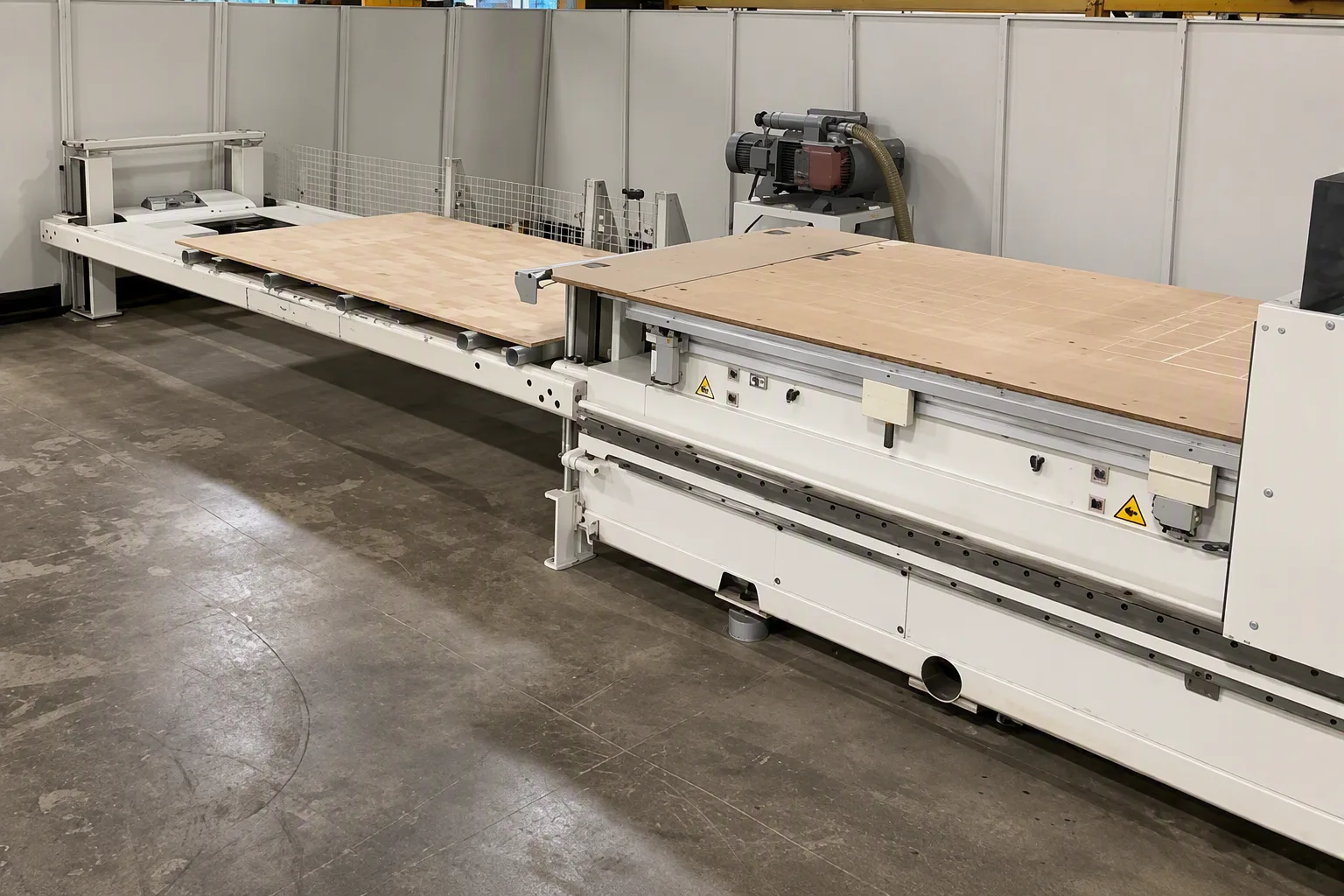

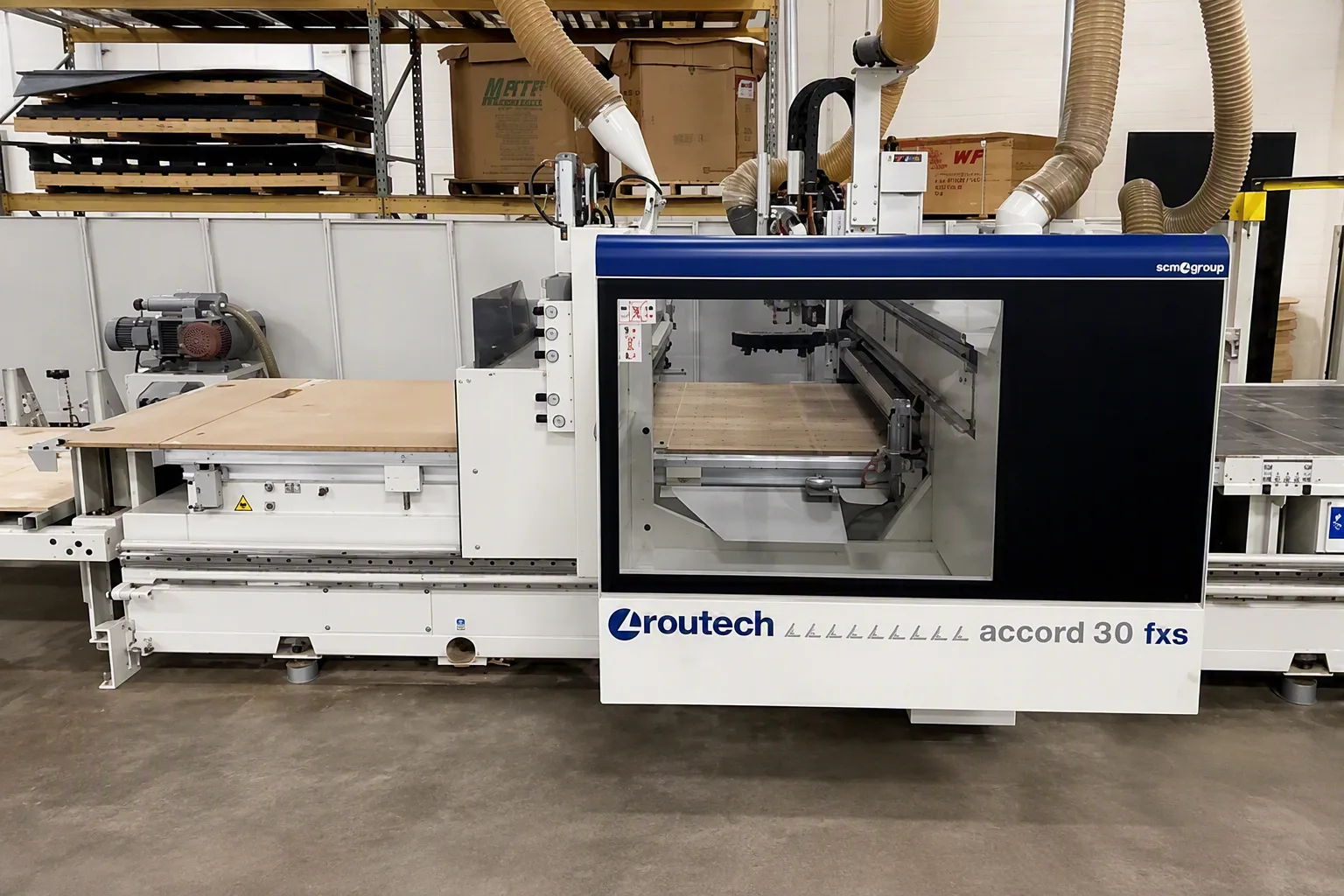

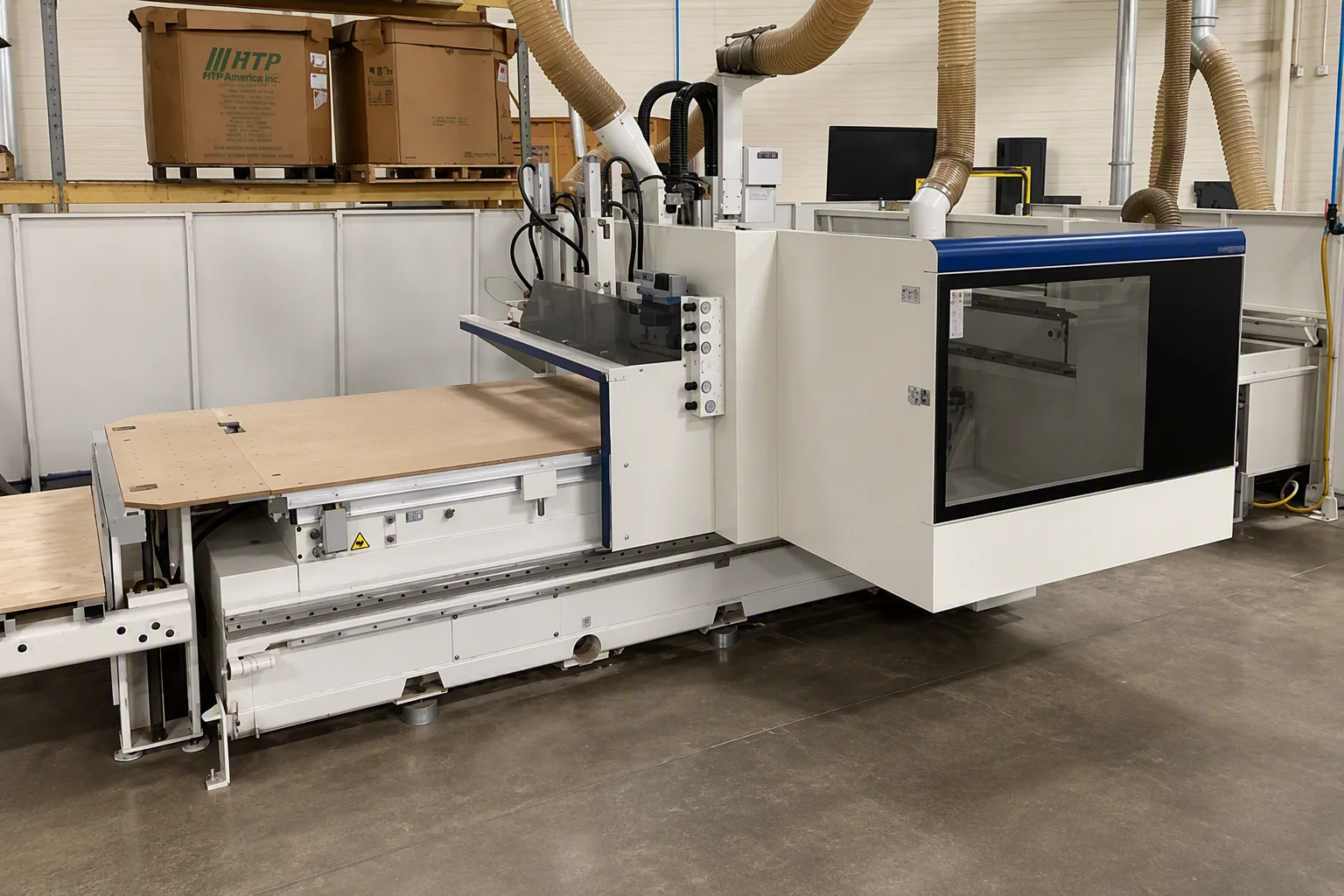

Used SCM Accord 30 (2016) CNC Router for Sale. This 3-axis machine has a 63″ x 143″ table with high flow vacuum hold down and travels of 143″ x 65.5″ x 9.84″ in X, Y and Z. Power comes from a Hiteco MAXI HS spindle rated 12 HP at 24,000 RPM with an HSK 63 taper, backed by a 16-position ATC and an F16 multi-spindle boring head with 16 vertical/horizontal spindles. Control is a Windows based CNC running Xilog Plus and Maestro Active. Equipped with a tool measure switch, roller hold-down, dual vacuum pumps, dual work areas, material load and unload station, tool length measuring devices and an extra spindle head. It is in operation and can be seen under power for inspection. Browse our other used CNC routers, then Activate Pricing or use the Inquire Now button.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
63" |
| Table Length |
143" |
| Table Hold Down |
High Flow Vacuum Hold Down |
| Travels (X, Y & Z) |
143" x 65.5" x 9.84" |
| Spindle Speed |
24,000 RPM |
| Spindle Horsepower |
Hiteco MAXI HS 12 HP @ 24,000 RPM |
| Spindle Taper |
HSK 63 |
| Auto Tool Changer |
(16) Position ATC |
| Boring Block |
F16 Multi-spindle boring head (16 spindles) Vert./Horizontal |
| Controller |

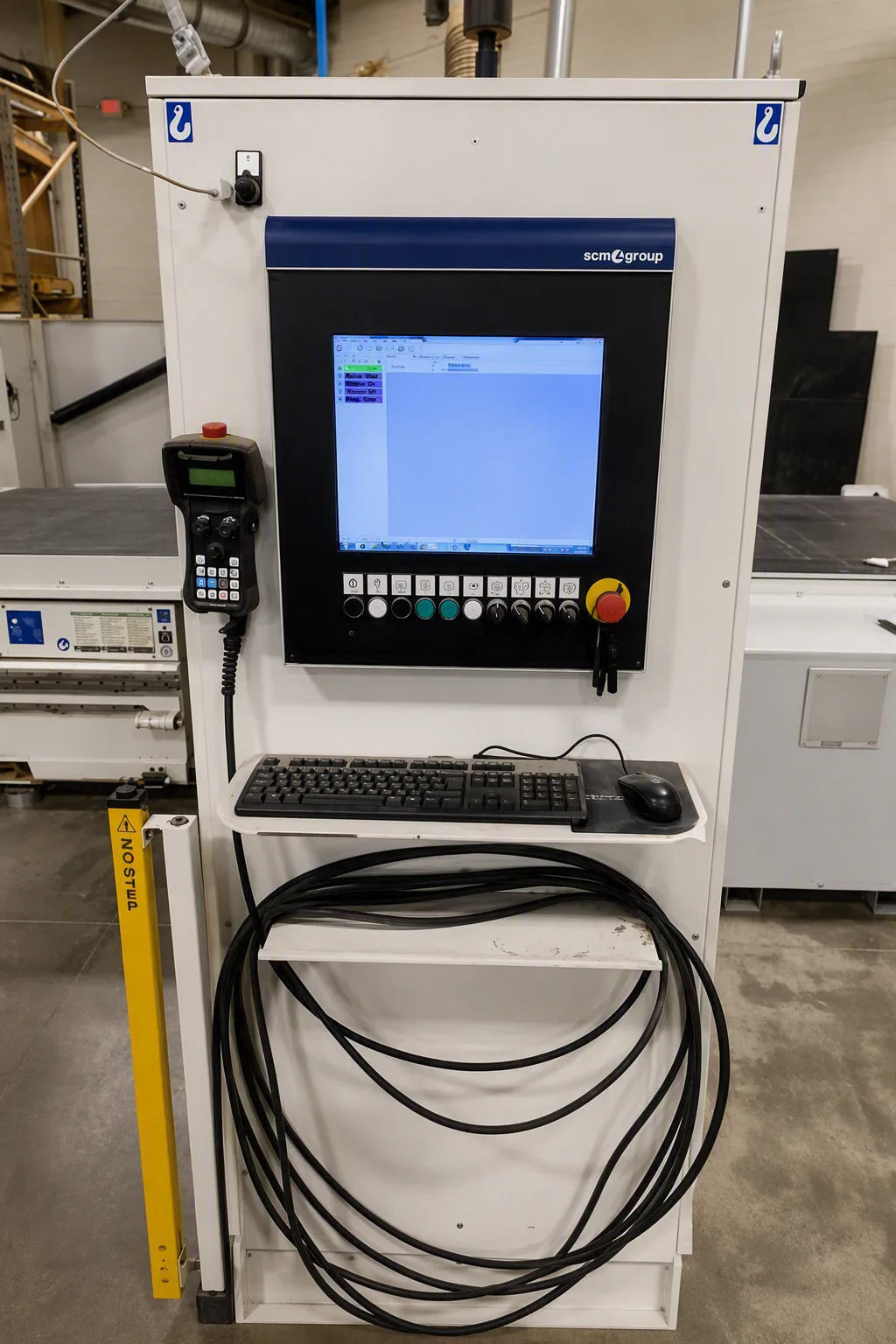

Windows Based CNC Control, Software Includes, Xilog Plus & Maestro Active |
| INCLUDES: |

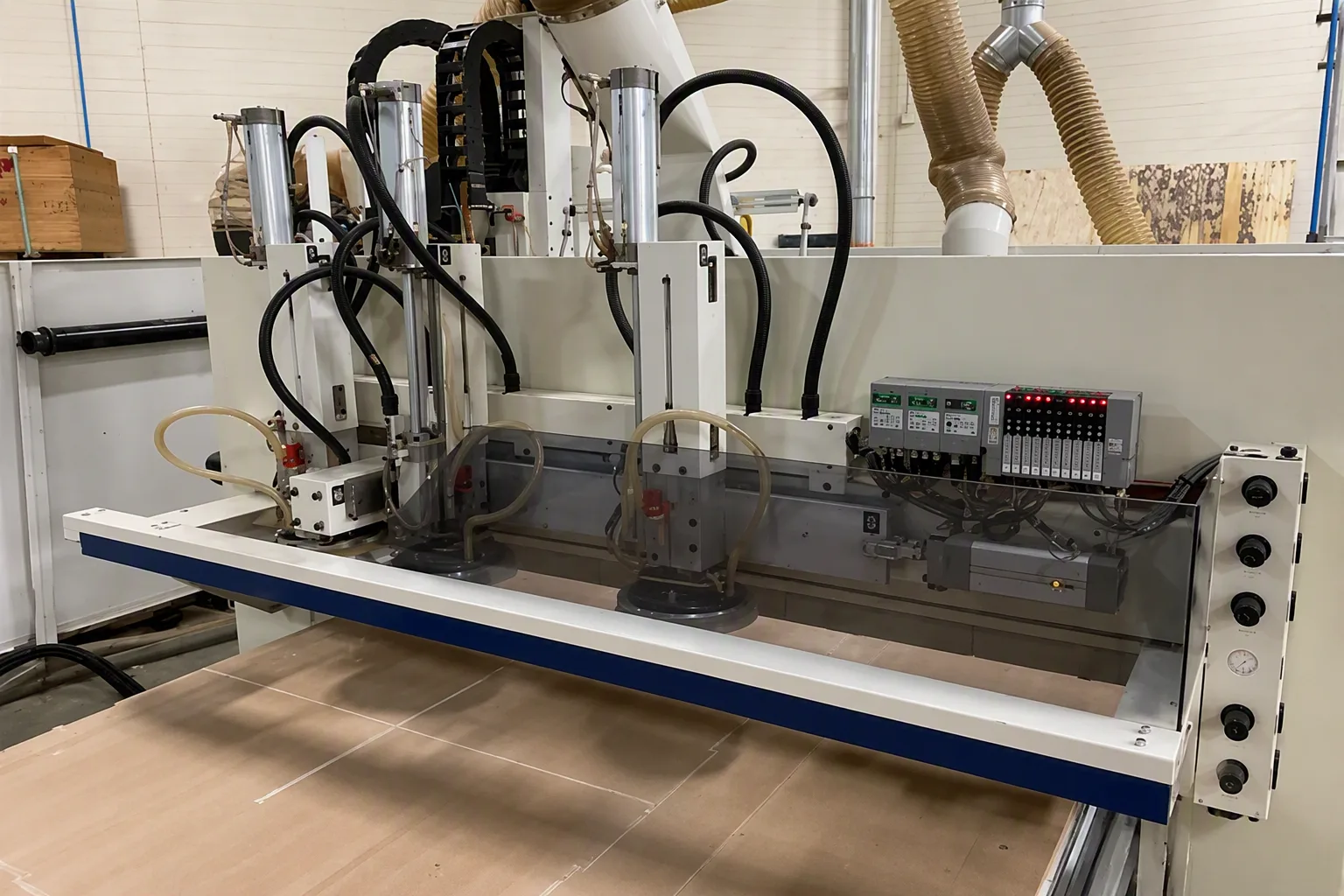

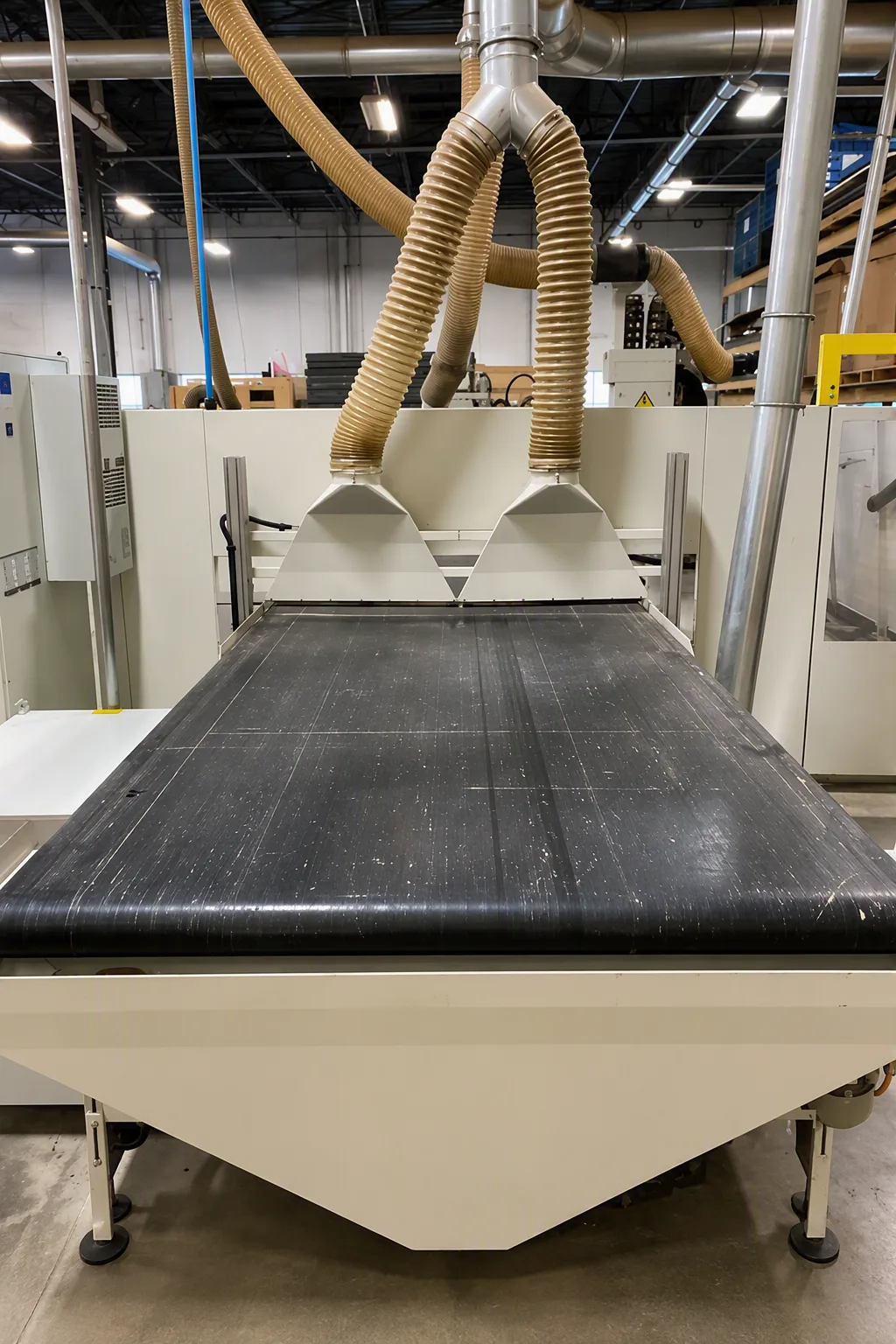

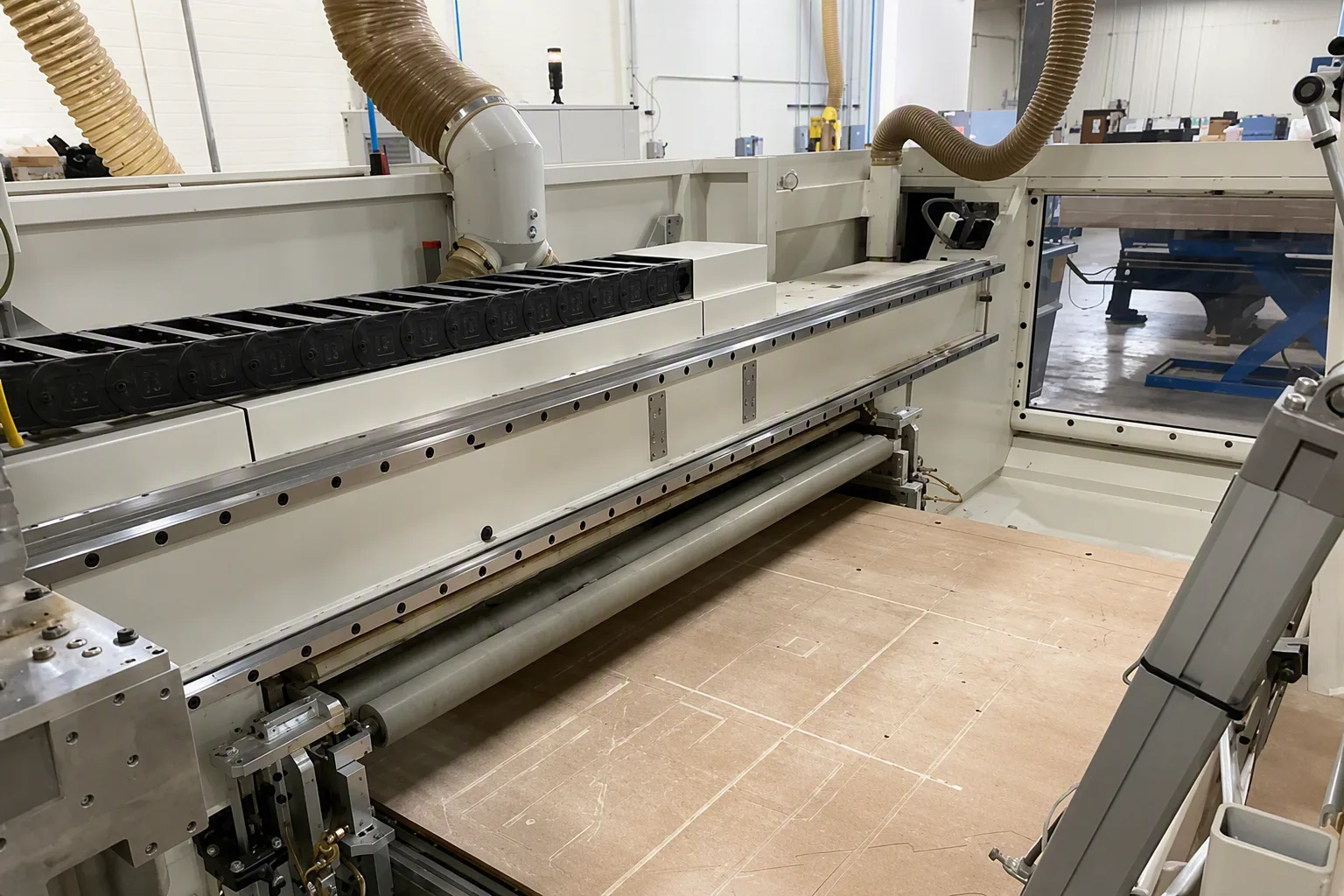

"ROLLER HOLD-DOWN", Dual Vacuum Pumps, Material Load & Unload Station, Tool Length Measuring Devices, Dual Work Areas, Tool Length Measuring, Extra Spindle Head, IN OPERATION FOR INSPECTIONS! |
Features
|
IN OPERATION FOR INSPECTIONS! |
Tool Measure Switch |
