Year

2005

Make

AVT

Model

2SPAVT

Description

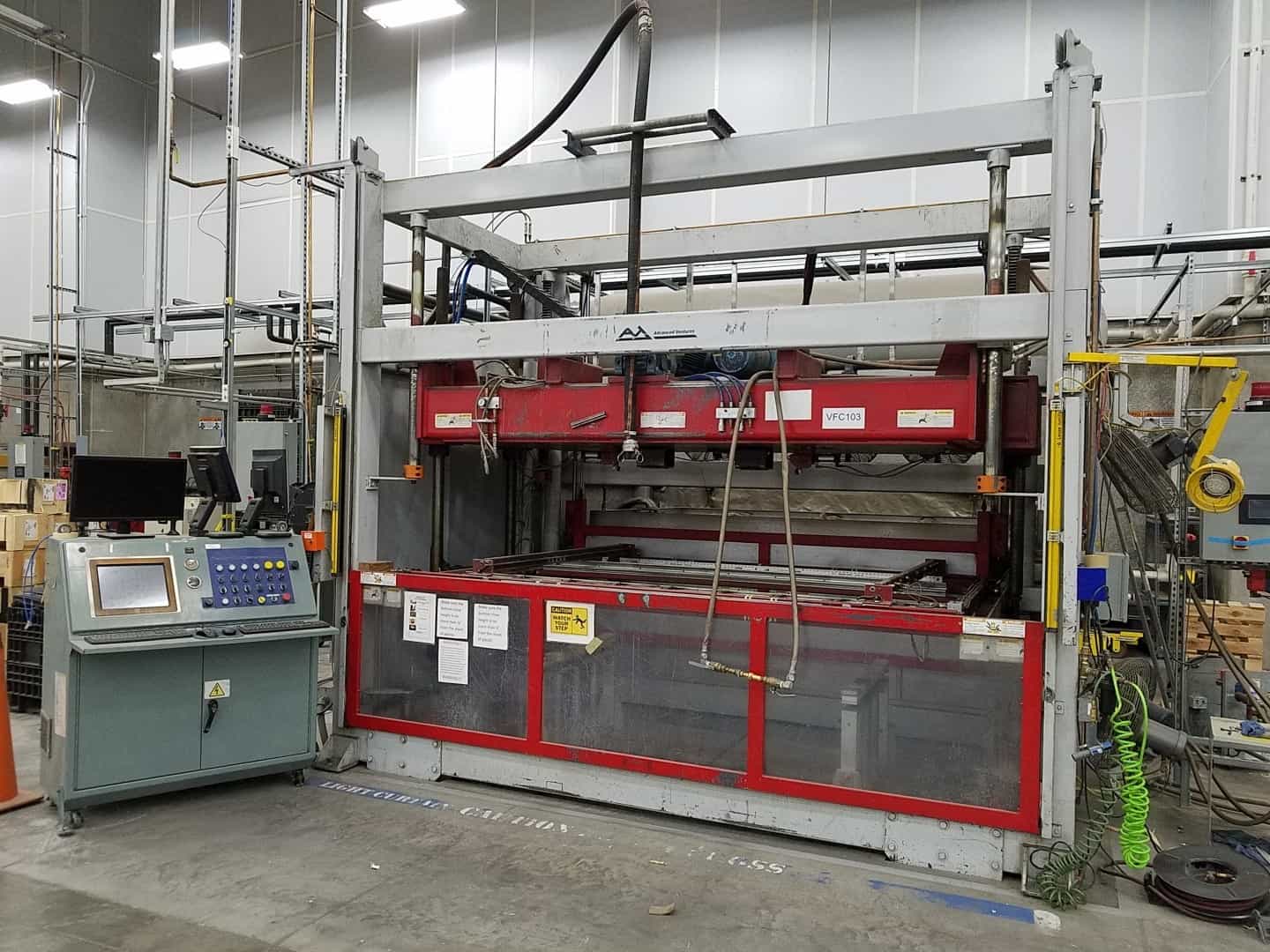

Thermoformer

Reference #

8070058

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Specifications

Max Mold Size

60" X 96" X 36" High

Max Sheet Size

63" X 99"

Top Oven

Ceramic Elements

Top Oven Zones

76

Bottom Oven

Ceramic Elements

Bottom Oven Zones

76

Upper Oven Adjustment

8" - 20" To Sheet Line

Lower Oven Adjustment

12" - 36" From Sheet Line

Top Platen Stroke

60"

Bottom Platen Stroke

60"

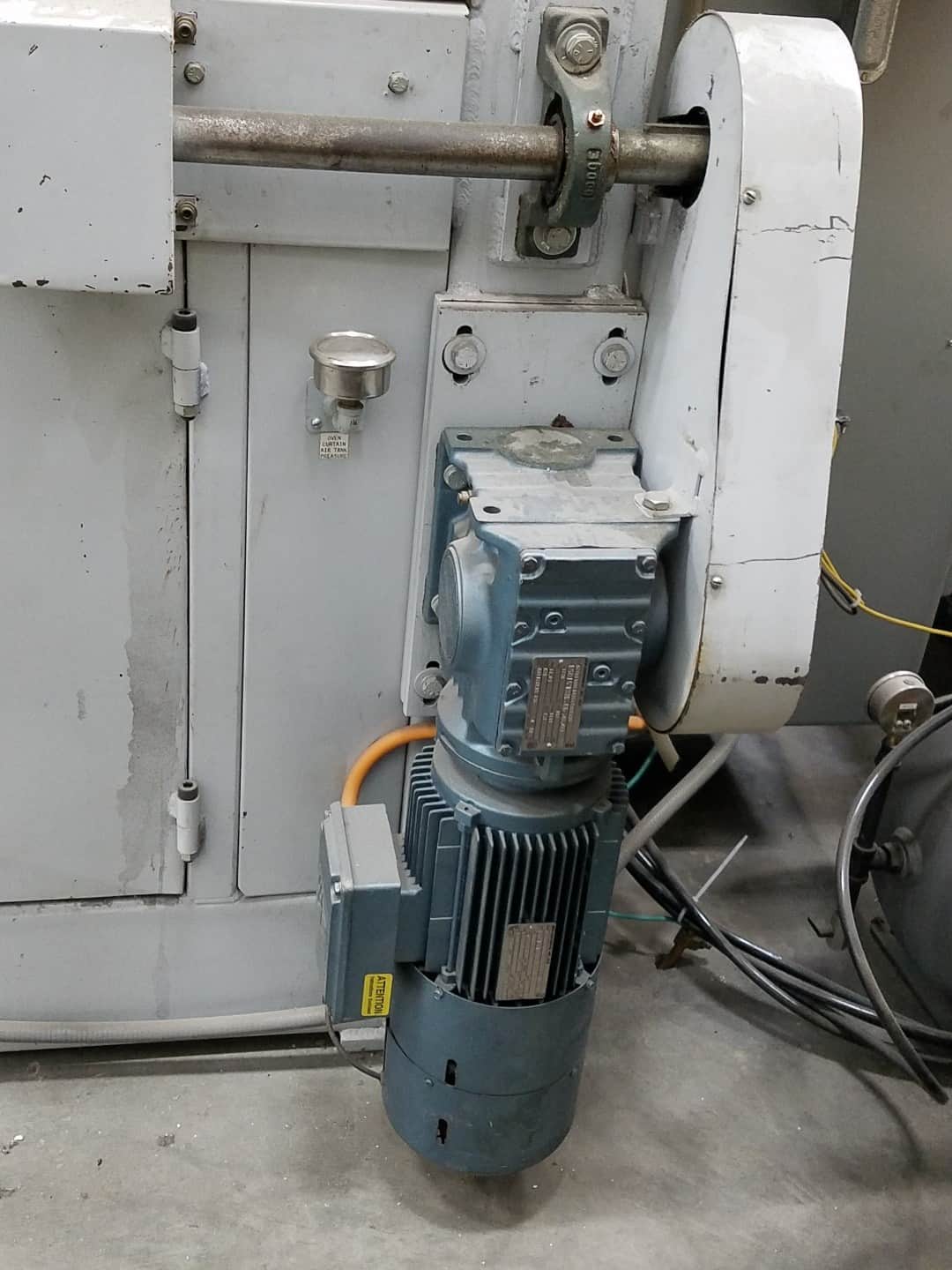

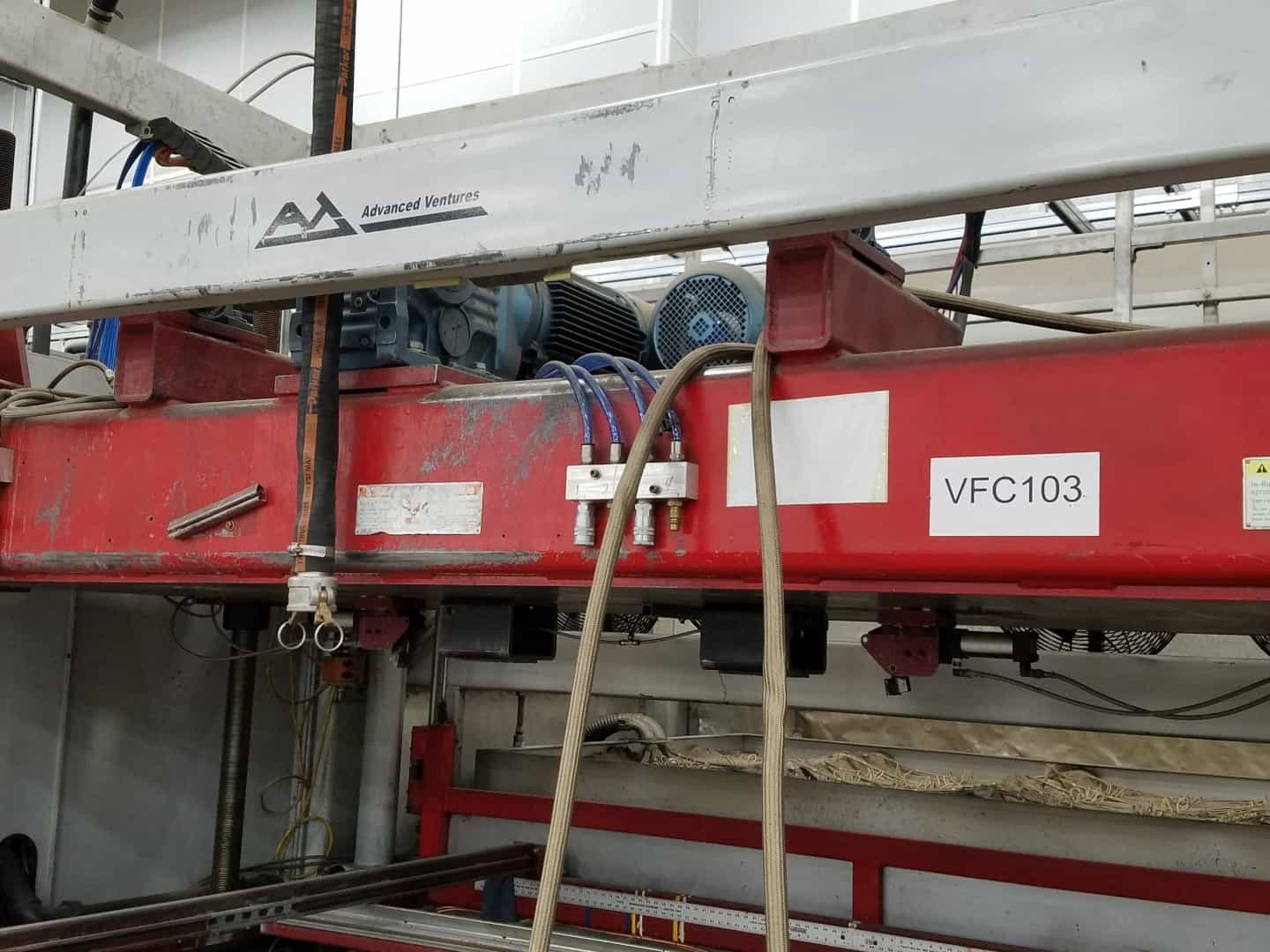

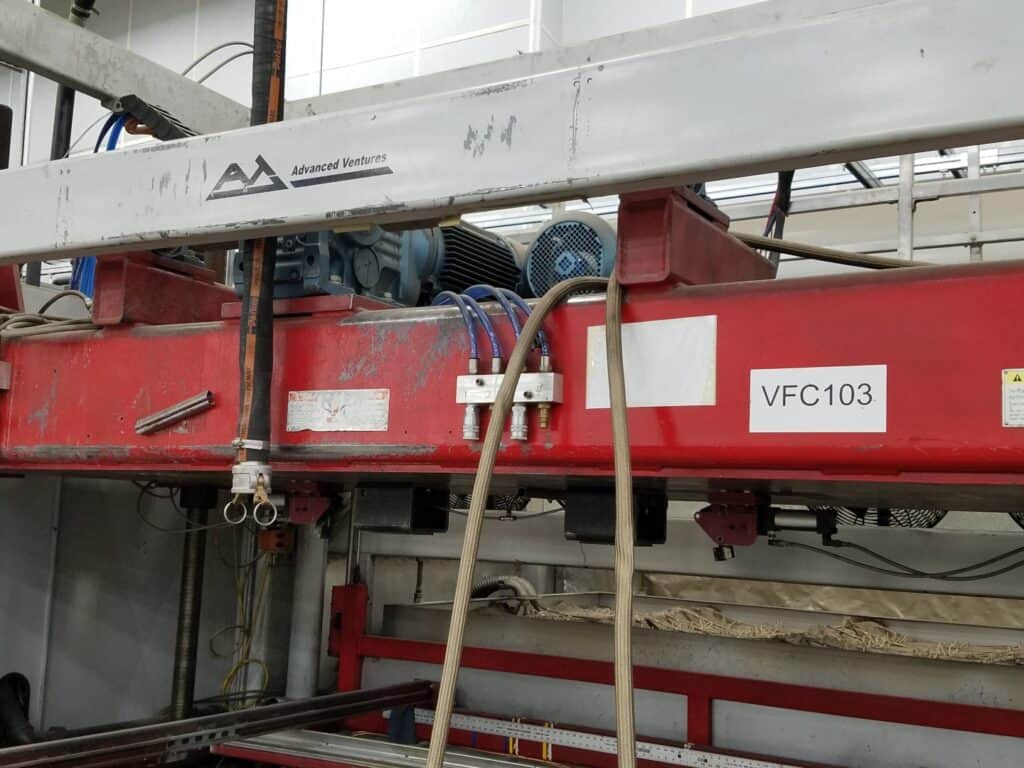

Electric Platens Top & Bottom

2 @ 12.5 Horsepower Each

Platen Lifting Capacity

4300 Lbs.

Thick Aluminum Bolster Plate

62" X 98" X 2.5" Thick, With 6" Dia. Air Bags For Pressure

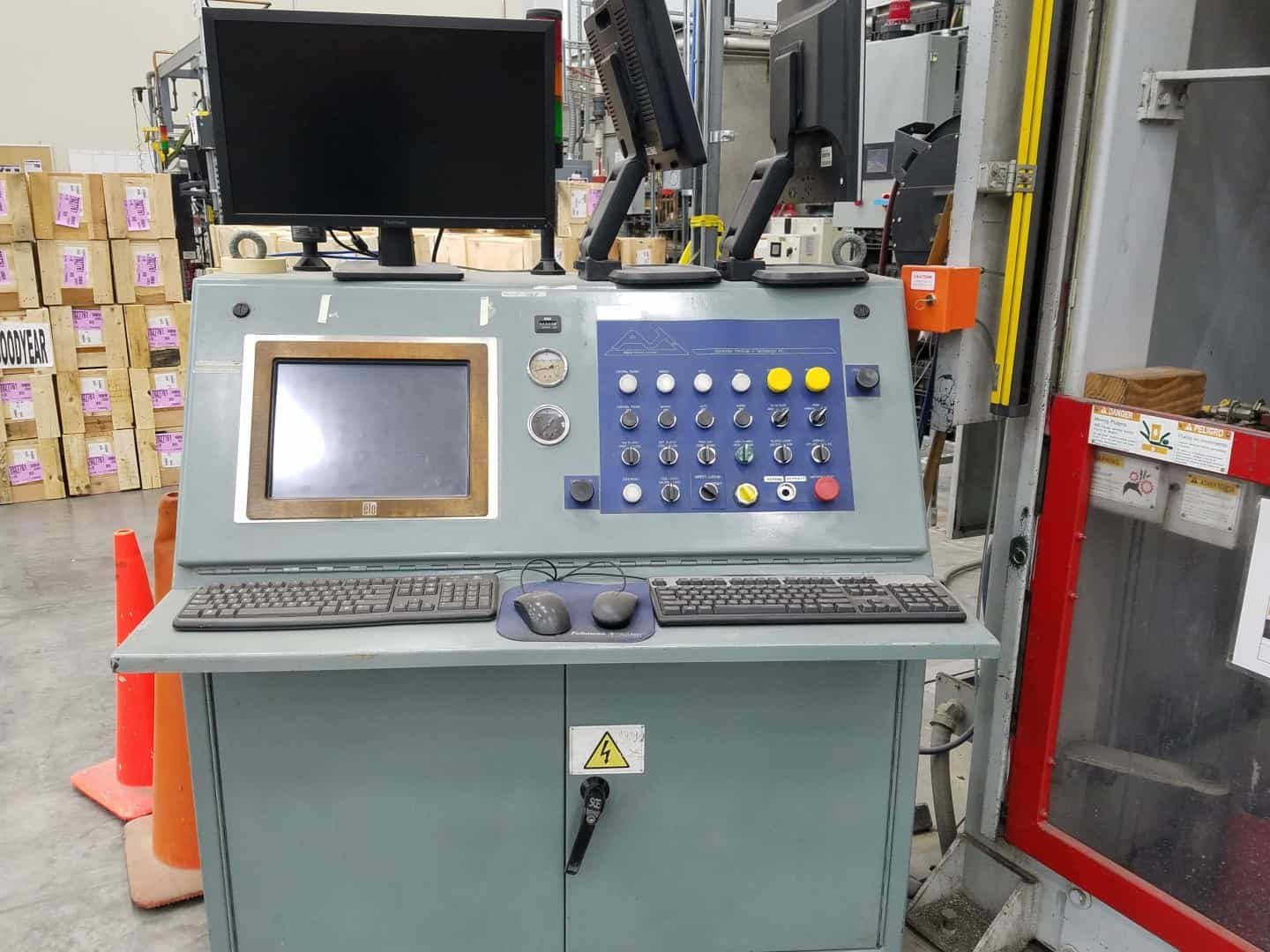

Control

PLC

Electrics

480v - 3 - 60 (500 Amps)

Features

RPM Meter

RS 232 Port Interface

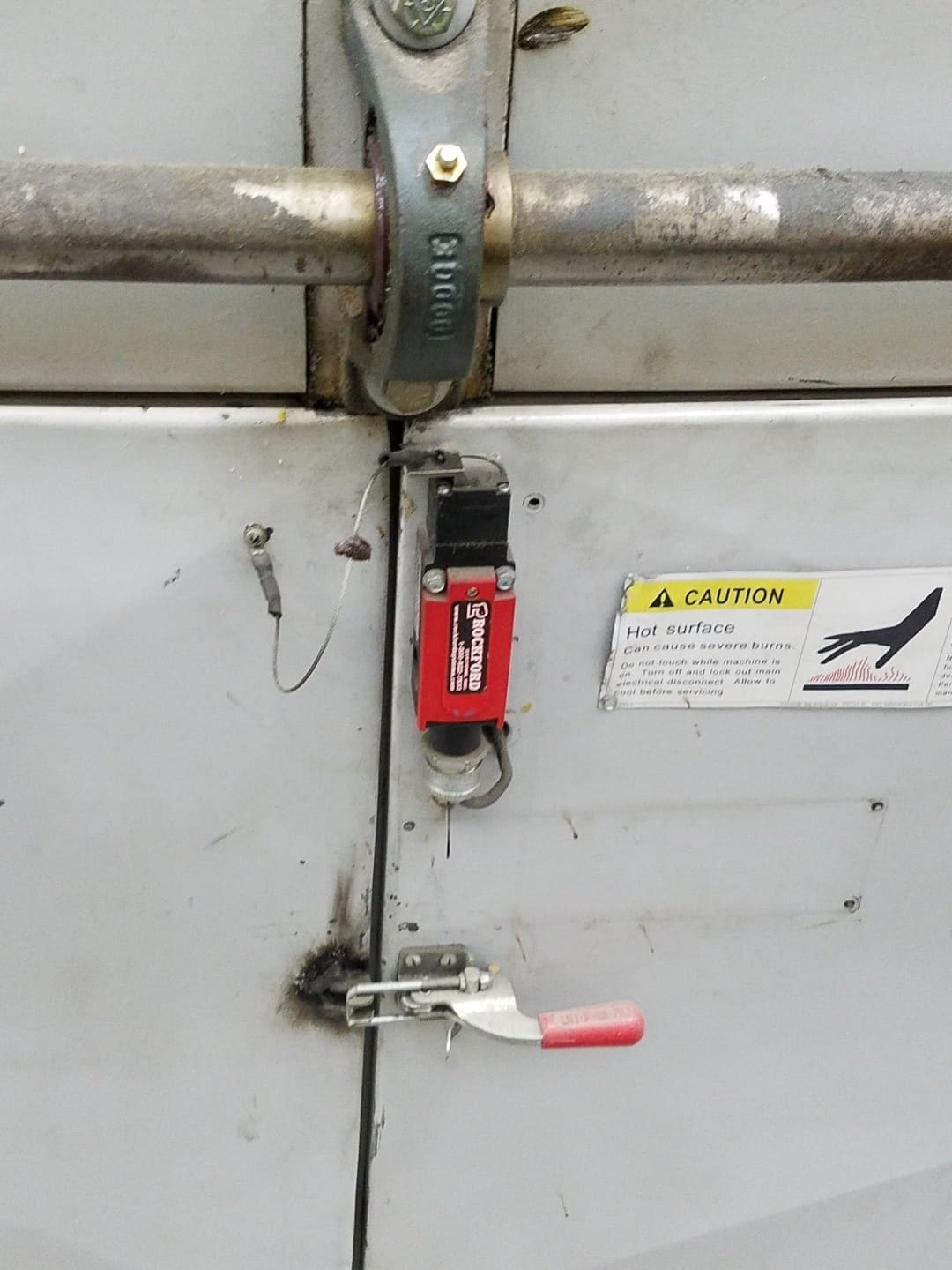

Safety Curtain

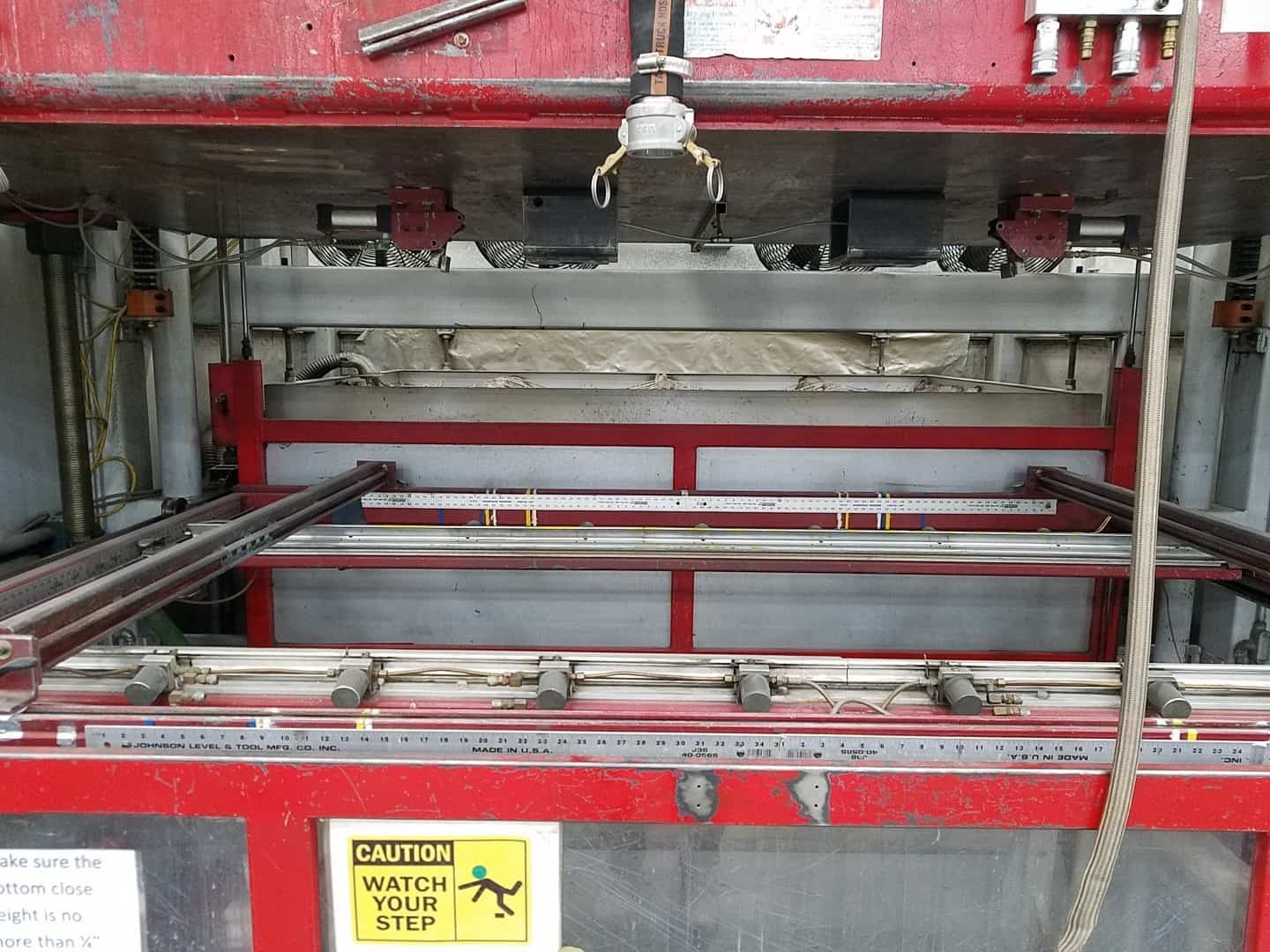

Semi Auto Loader

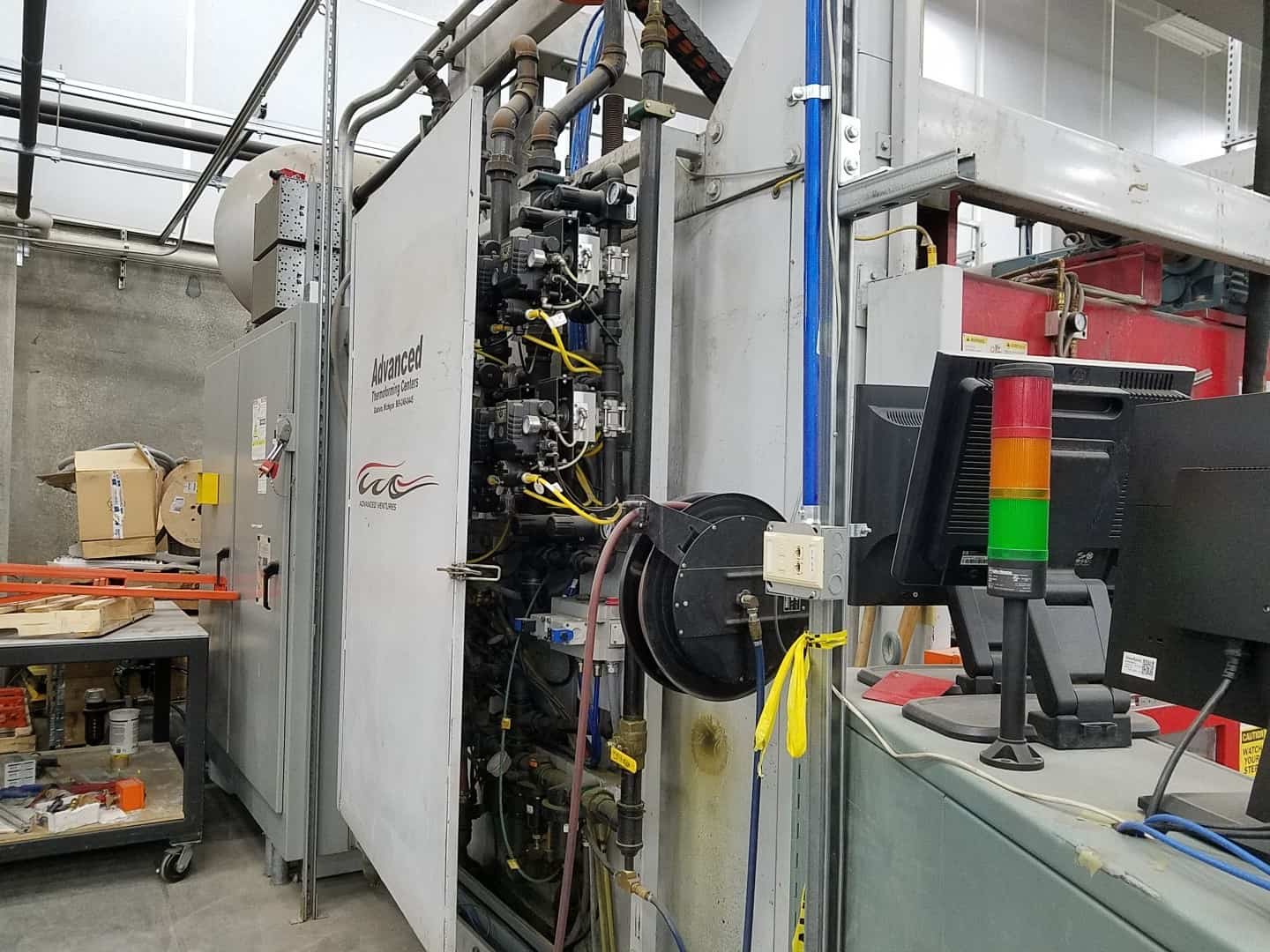

Added 2014 - Advanced Air Control System For Better Control Of Pressure

Vacuum & Eject

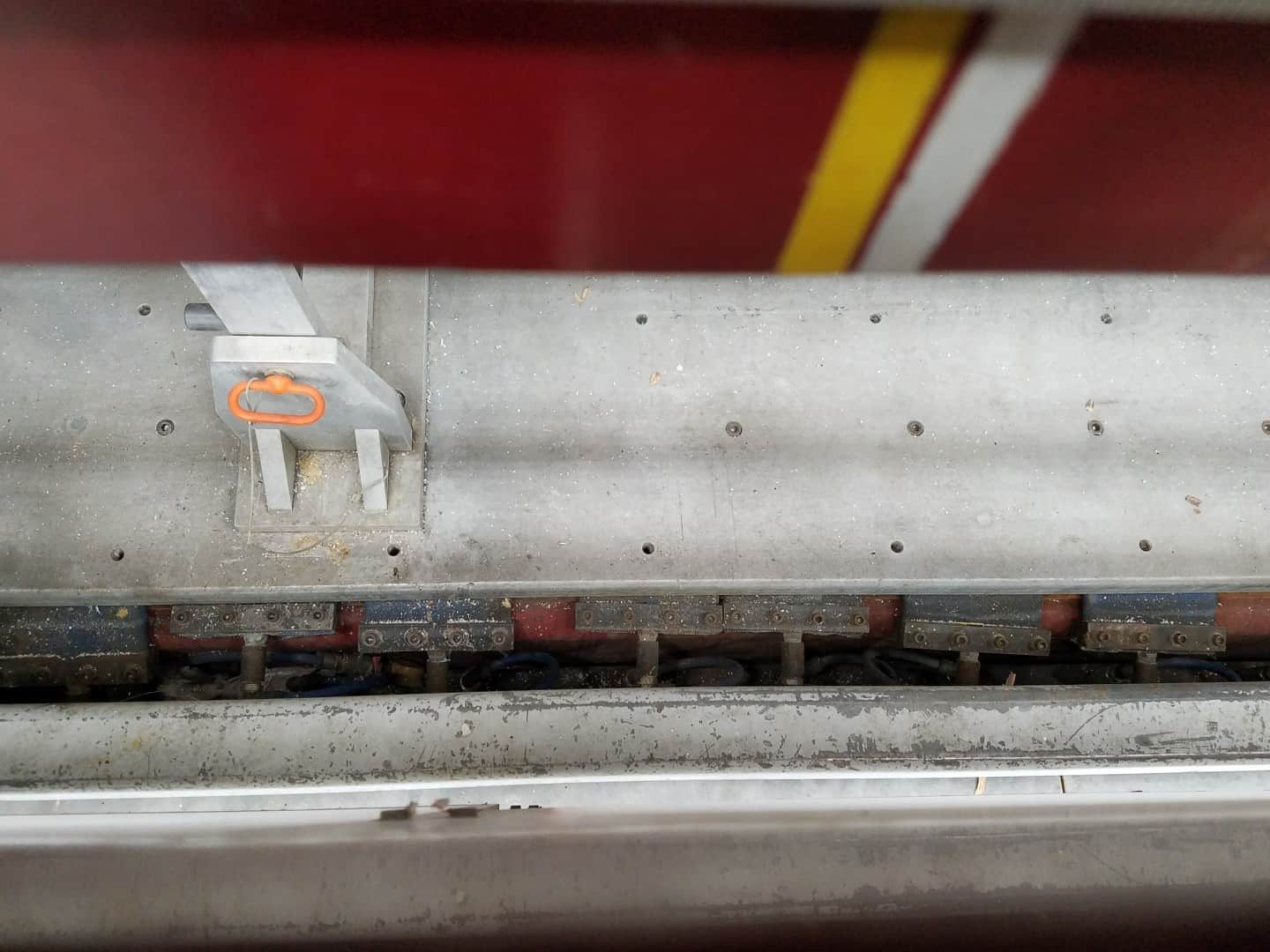

Added 2014 - Segen Quick-Change For Quicker Tool Changing & Easier/More Accurate Mold Alignment

Added 2014 - Servo Driven Cover For Lower Oven To Prevent Damage Which Is Activated By Ir Sensor

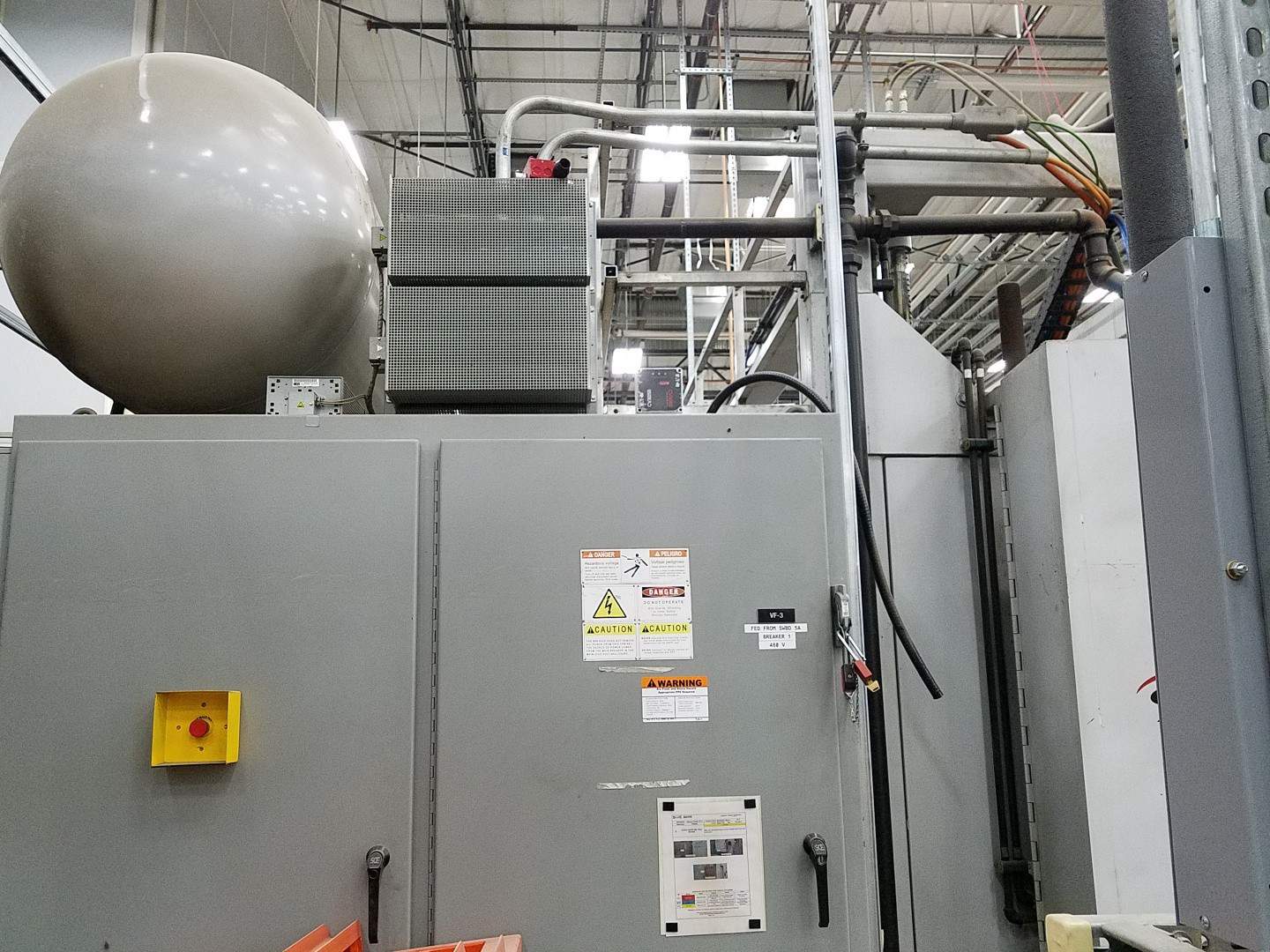

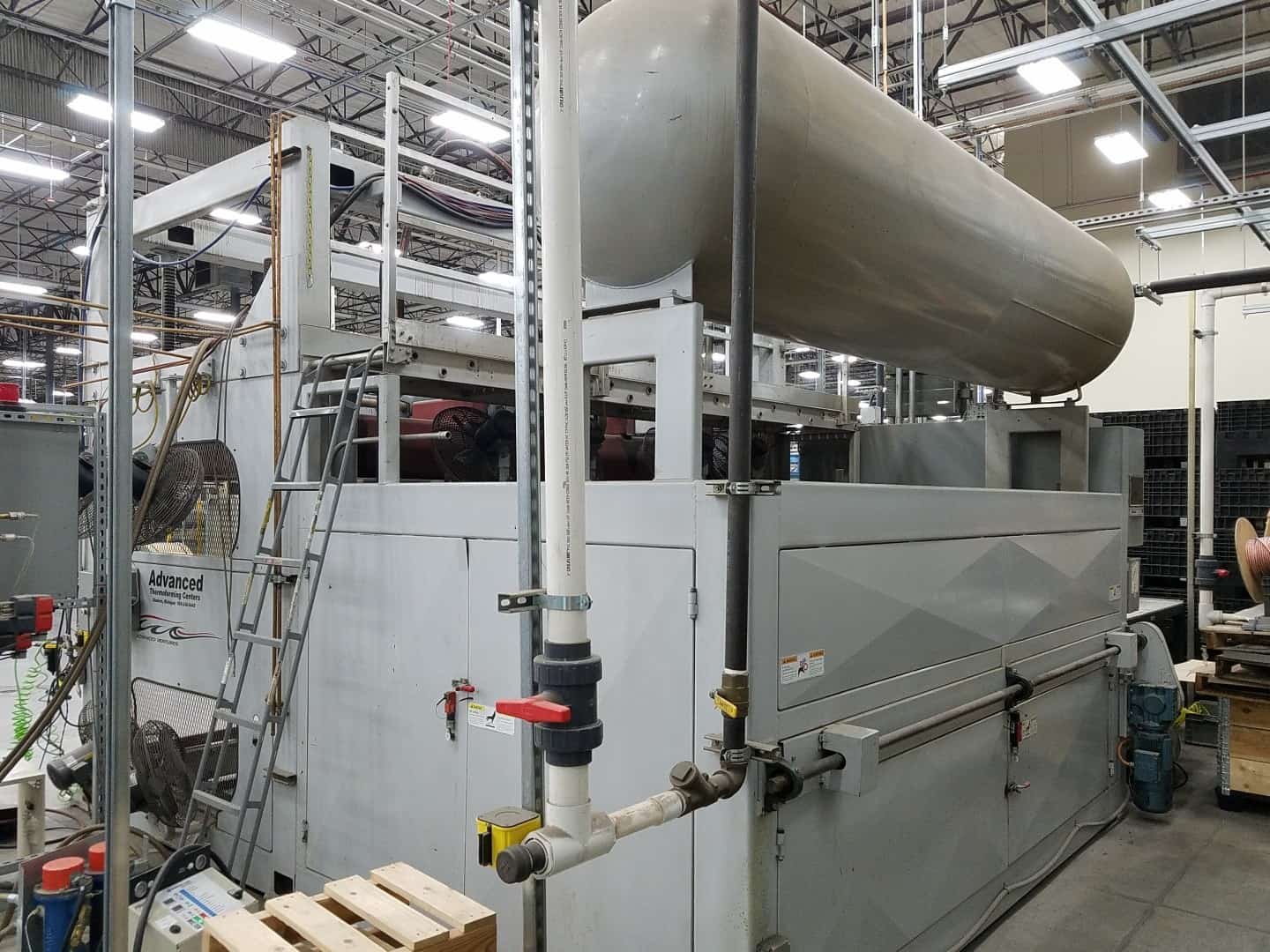

Vacuum Pump & Tank

Variable Speed Servo Platens

Disk Brake Platen Safety

Infrared Red Sensor In Lower Oven

Photo Eye To Detect Deflection

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
