Year |
2015 |
|---|---|
Make |
Modern Machinery |
Model |
2440CFT |
Description |
Roll-Fed Thermoformer |
Reference # |
7794266 |
Price |
Activate Pricing |

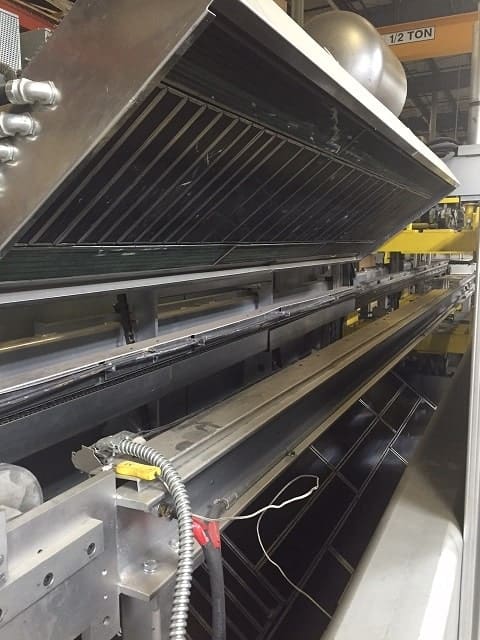

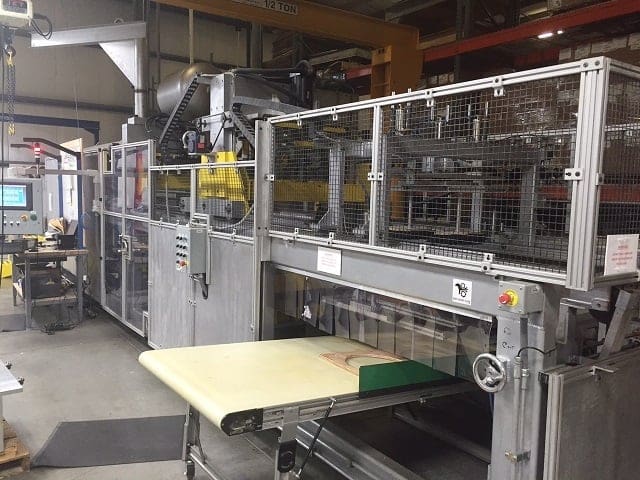

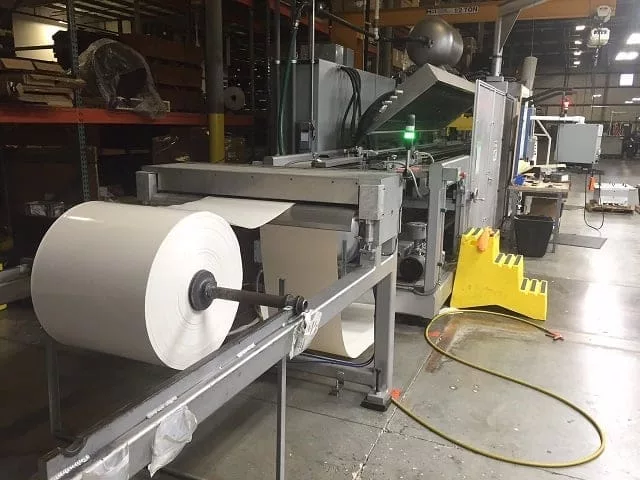

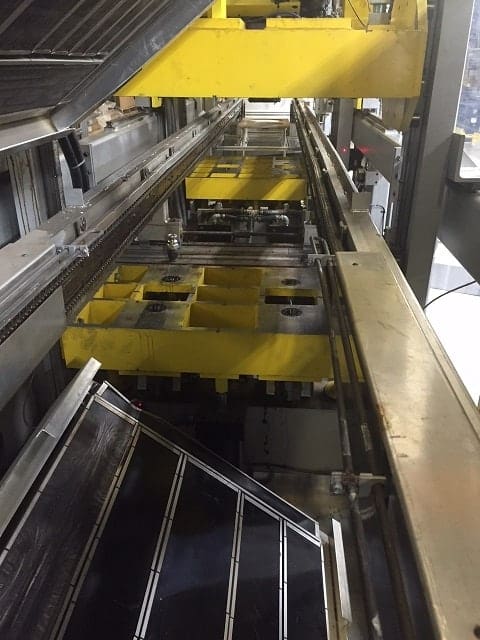

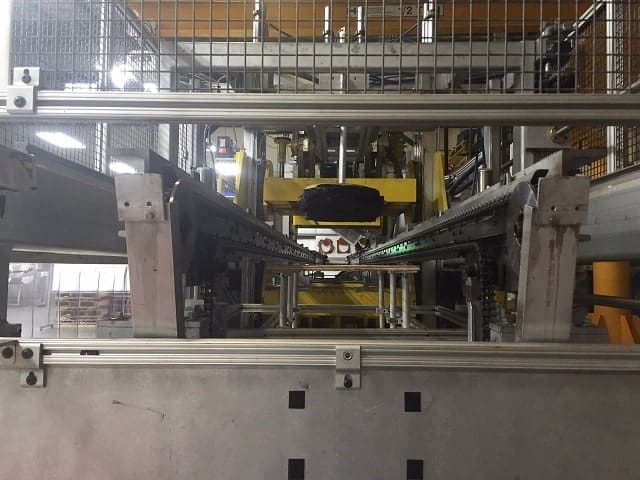

Used Modern Machinery 2440CFT (2015) Thermoformer for Sale. This roll-fed machine handles a maximum mold size of 24″ x 42″ and a maximum sheet width of 30″, with 144″ long Solar infrared ovens top and bottom, 24 zones each. Platen stroke is 7 5/8″ top and bottom with pneumatic platen drives, 80 tons platen tonnage, and 6.0″ draw depth above and below sheetline. Controls are Allen Bradley PLC with HMI operator interface and PID oven control. Vacuum system includes a 120 gallon reservoir and Busch 5 HP pump. Included is a 2015 Hosokawa Polymer Systems 1632 SPL 30 HP sheet granulator, 3 rotor blades, 480/3/60. Additional equipment listed in the specifications. The machine can be seen under power for an inspection. See more used thermoforming equipment, Activate Pricing, or Request a Quote.
Specifications
| Max Mold Size |
24" x 42" |
|---|---|
| Max Sheet Width |
30" |
| Top Oven |
Solar Infrared Ovens |
| Top Oven Zones |
24 |
| Bottom Ovens |
Solar Infrared Ovens |
| Bottom Oven Zones |
24 |
| Oven Length |
144" |
| Platen Stroke - Top / Bottom |
7 5/8" |
| Platen Drives |
Pneumatic Platen Drives |
| Draw Depth |
6.0" Above / Below Sheetline |
| Platen Tonnage |
80 Tons |
| Control |
PID Oven Control System, Allen Bradley PLC W/HMI Operator Interface |
| Vacuum Reservoir |
120 Gallons |
| Vacuum Pump |
Busch 5 Horsepower Pump |
| Rotor Blades |
3 |
| Horsepower |
30 |
| Power Requirement |
480/3/60 |

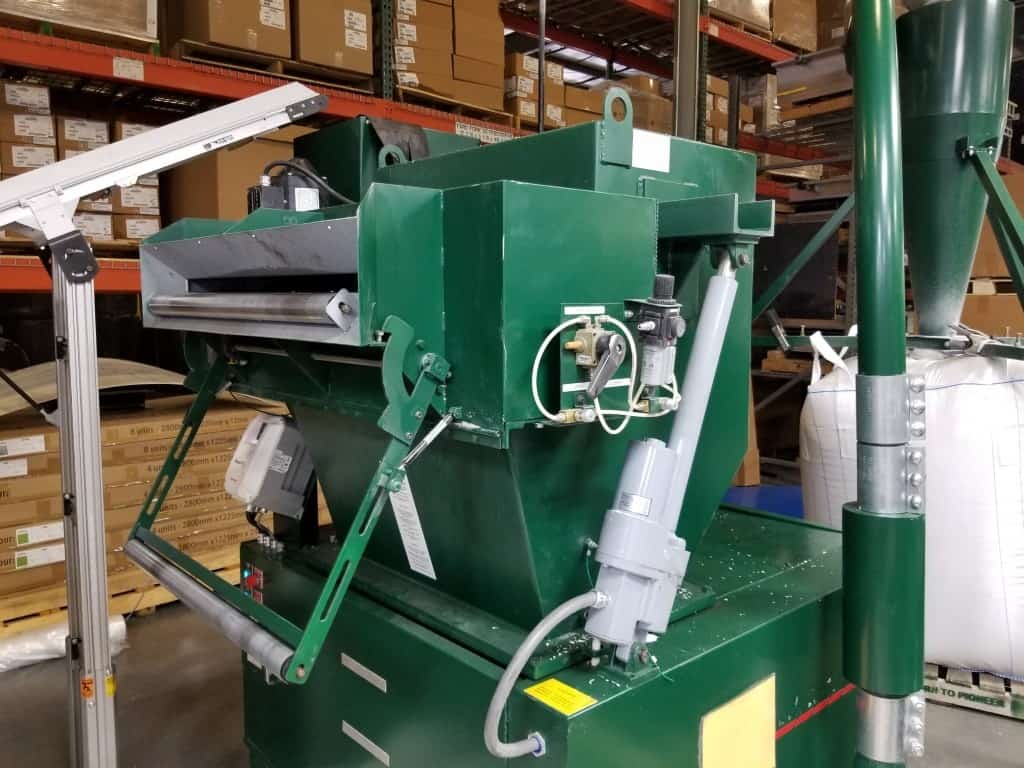

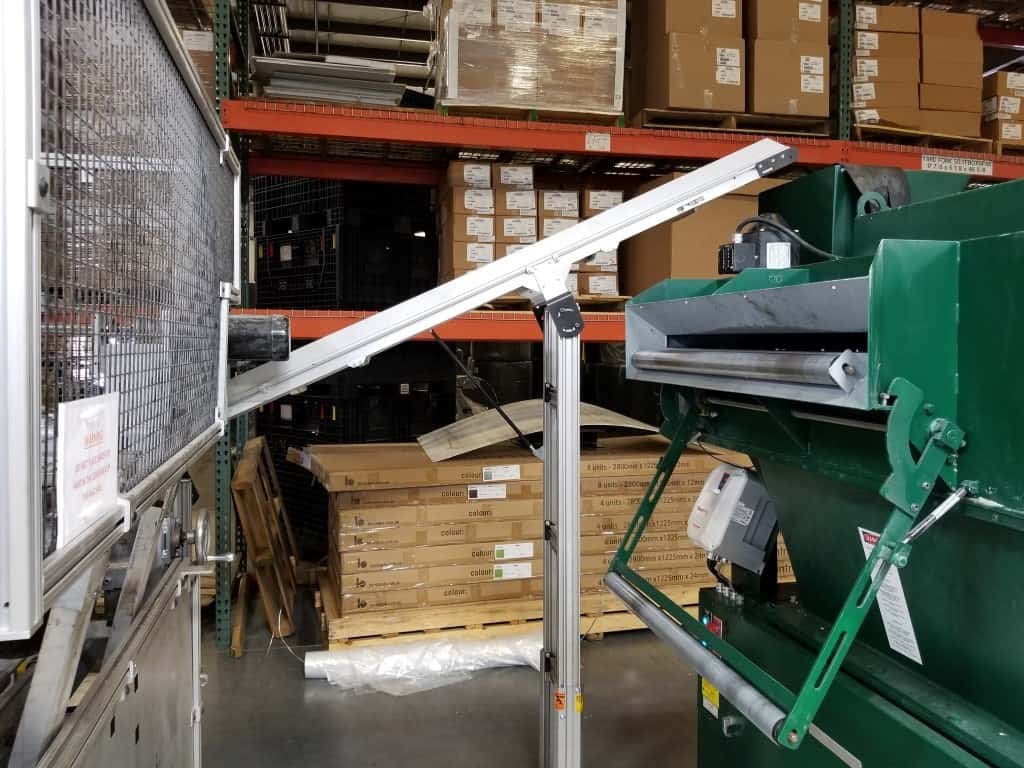

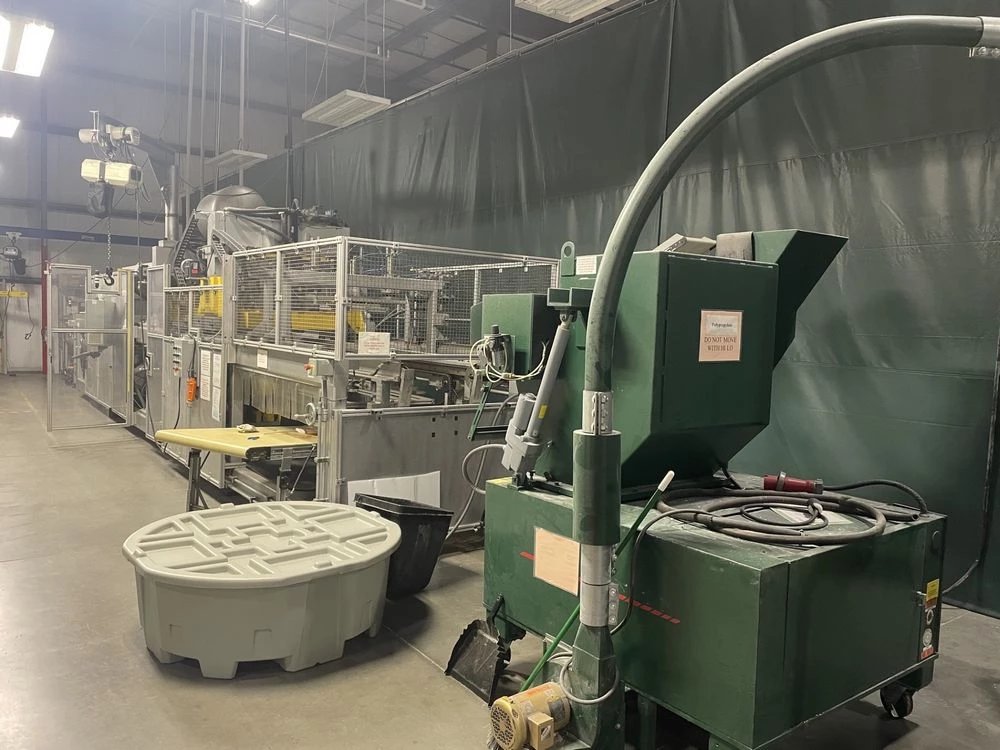

| 2015 Hosokawa Polymer Systems 1632 SPL |
30 HP Sheet Granulator |
Features
|
(4) Post Platen Guidance |

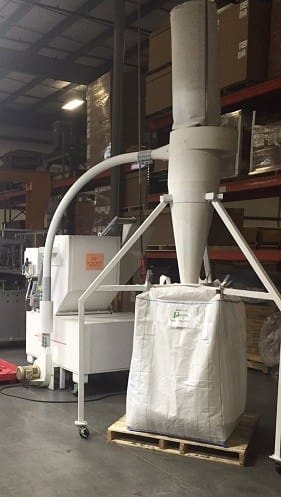

2 - Horsepower Blower W/ Cyclone & Air Separator |
|
Blower Silencer |
Cross Stabilizing System |
|
Guarding & Interlocks At All Critical Areas |
Hard-Faced Chamber |
|
Lincoln Auto Lube System |
Part Ejector - Motorized Actuated Top Assembly |
|

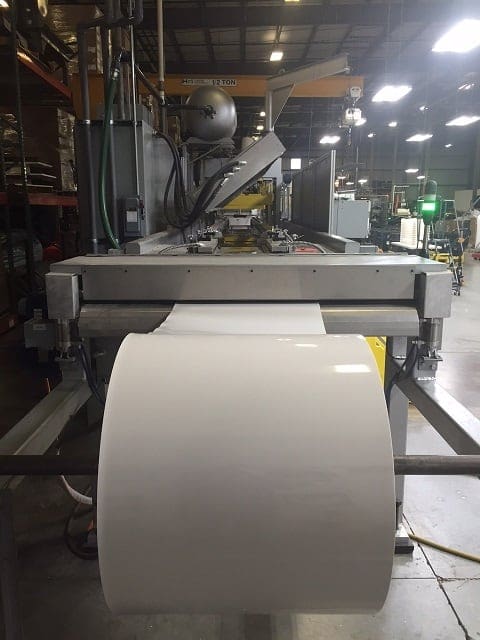

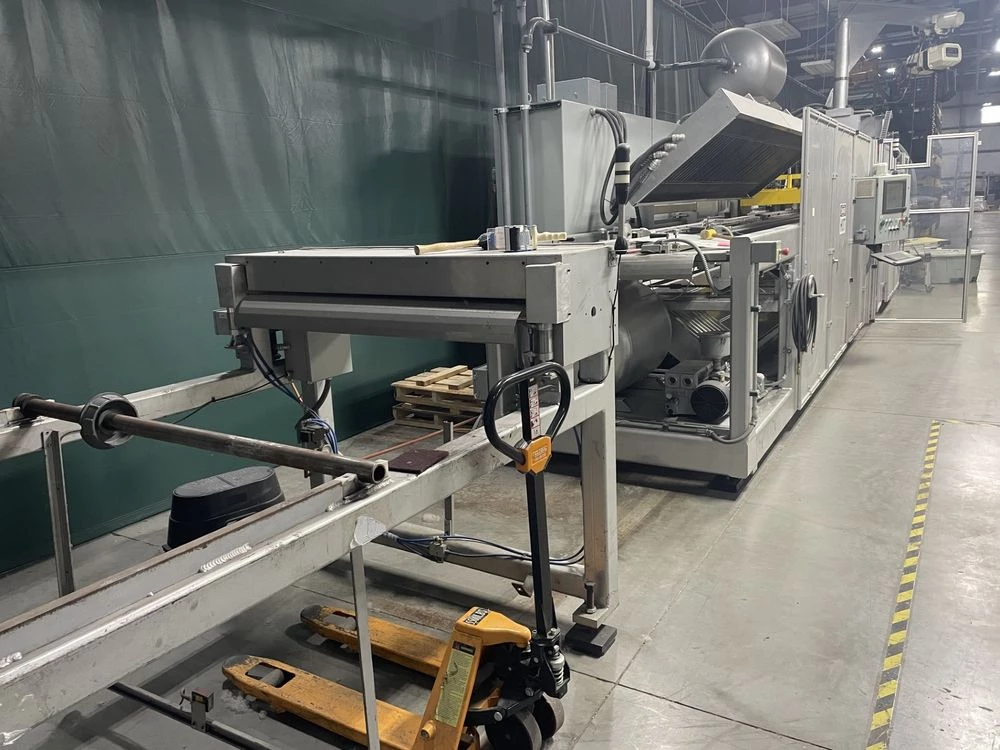

Roll Feed Assembly w/ Loop Control and Dance Roll |
Sound Enclosure for Added Sound Control |
|
Spare A/R Screens Spare Knife Set |
T/C Coated |
|

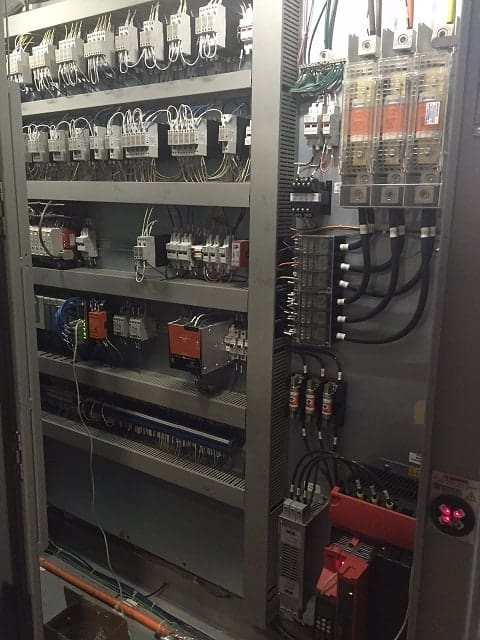

System Control Machine Mounted Nema 12 |
Z-Axis Linear |
