Year |
2014 |
|---|---|
Make |
TSL |
Model |
FT4K Low Flex |
Description |
Match Metal Roll-Fed Thermoformer |
Reference # |
8071542 |
Price |
Activate Pricing |

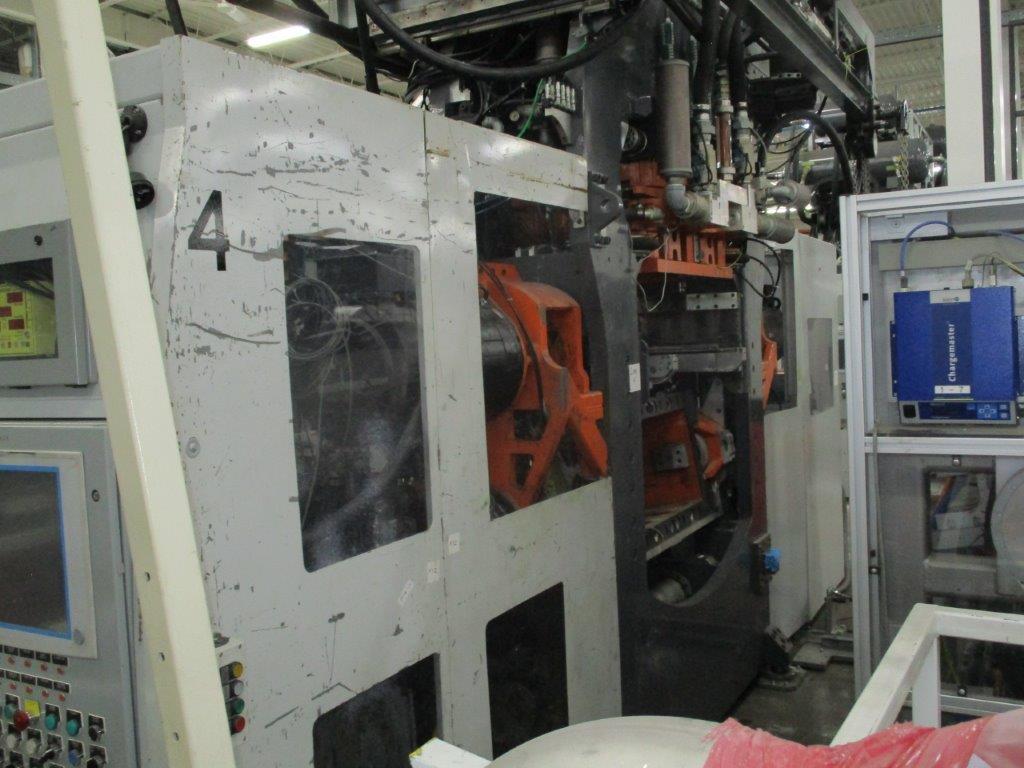

Used TSL FT4K Low Flex (2014) Thermoformer for Sale. This inline thermoformer takes a maximum mold size of 30.51″ x 17.7″, with quartz element top and bottom ovens across 50 zones over a 135″ oven length. Top and bottom platen stroke is 12″, with 120 tons top platen tonnage, shut heights of 9.45″ below and 13.58″ above, and Yaskawa servo platen drives with SASH servo adjust shut height on the top platen. Max sheet width is 35″, depth of draw 6″ below the sheet line, dry cycle speed 1 to 60 CPM, and max chain speed 97″/sec. Top mold weight to 3,000 lbs, bottom to 1,400 lbs. Ran polypropylene. Equipped with pneumatic bottom parts ejector, right hand layout, Yaskawa servo indexing, Gabler 4-ply preheat oven, Ilsemann stacker, IR temperature sensor assembly, OPTO 22 PAC system and Galil DMC-4060 motion controller. Three machines available, price per machine. Can be seen under power for an inspection. See more used thermoforming equipment or [Activate Pricing](#activate-pricing), then Request a Quote.
Specifications
| Max Mold Size |
30.51" x 17.7" |
|---|---|
| Top Oven |
Quartz Elements |
| Bottom Oven |
Quartz Elements |
| Top Platen Stroke |
12" |
| Bottom Platen Stroke |
12" |
| Platen Drives |
Servo (Yaskawa Motors/Controllers) |
| Material Ran |
Polypropylene |
| Platen Shut Height (Below and Above) |
9.45" / 13.58" |
| Top Platen Tonnage |
120 Tons |
| Dry Cycle Speed |
Max. 60 CPM / Min. 1 CPM |
| Max Sheet Width |
35" |
| Depth Of Draw |
Max 6" Below Sheet Line |
| Max Chain Speed |
97"/sec |
| Oven Zones |
50 |
| Oven Length |
135" |
| Platen Travel Distances |
Top Max. - 0" / Bottom Max. - 6.875" |
| Top Platen Servo Adjust |
SASH Servo Adjust Shut Height (Top Platen Only) |
| Top Mold Max Weight |
3,000 Lbs |
| Bottom Mold Max Weight |
1,400 Lbs |
| Note |
(3) Machines Available, Price Per Machine, (1) 2014 TSL Thermo Former, (2) 2016 TSL Thermo Formers |
Features
|
Pneumatic Driven Parts Ejector (Bottom Ejector) |
Right Hand Machine Layout |
|
Servo Indexing (Yaskawa 7.5 kw Drive System) |
Gabler 4-Play Preheat Oven |
|
Ilsemann Stacker |

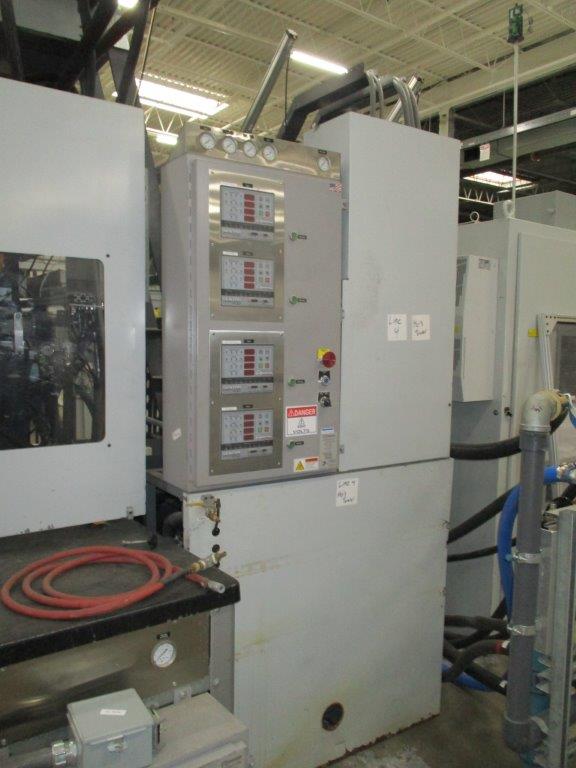

IR Temperature Sensor Assembly |
|

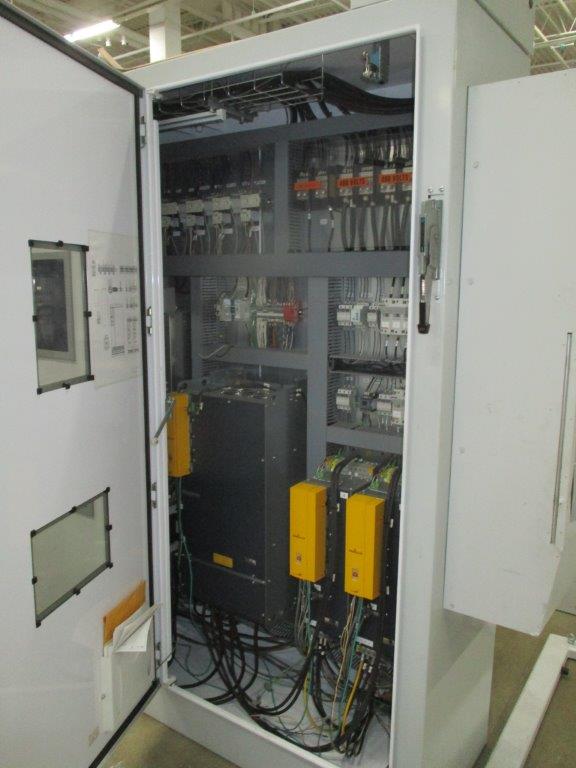

OPTO 22 PAC System and Galil DMC-4060 Motion Controller |
Yaskawa Servo Controlled Plug Drive System (Third Motion) |
