Year |
2003 |
|---|---|
Make |
Mitsubishi |
Model |
FA20V |
Description |
EDM Wire |
Reference # |
8070427 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

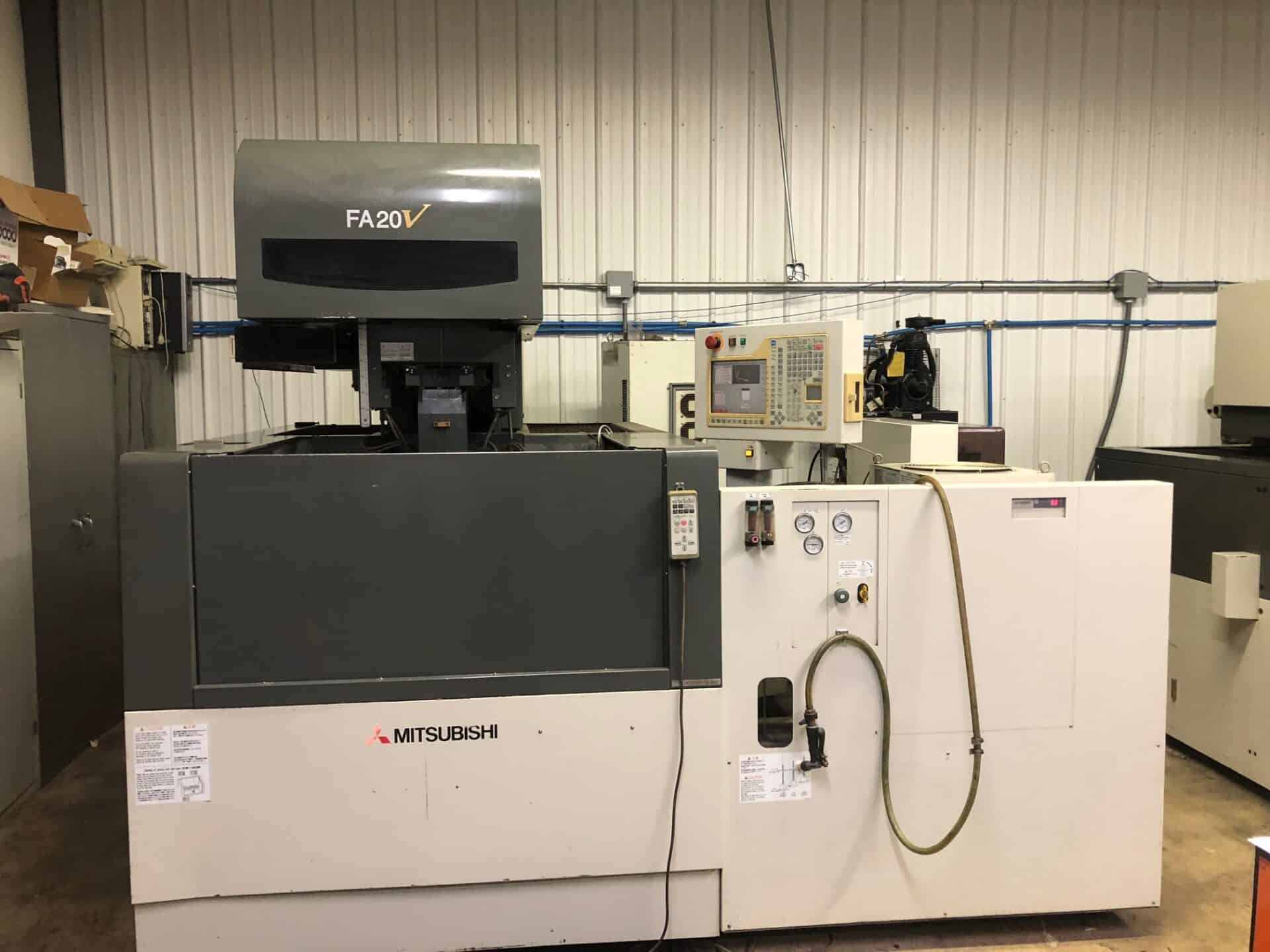

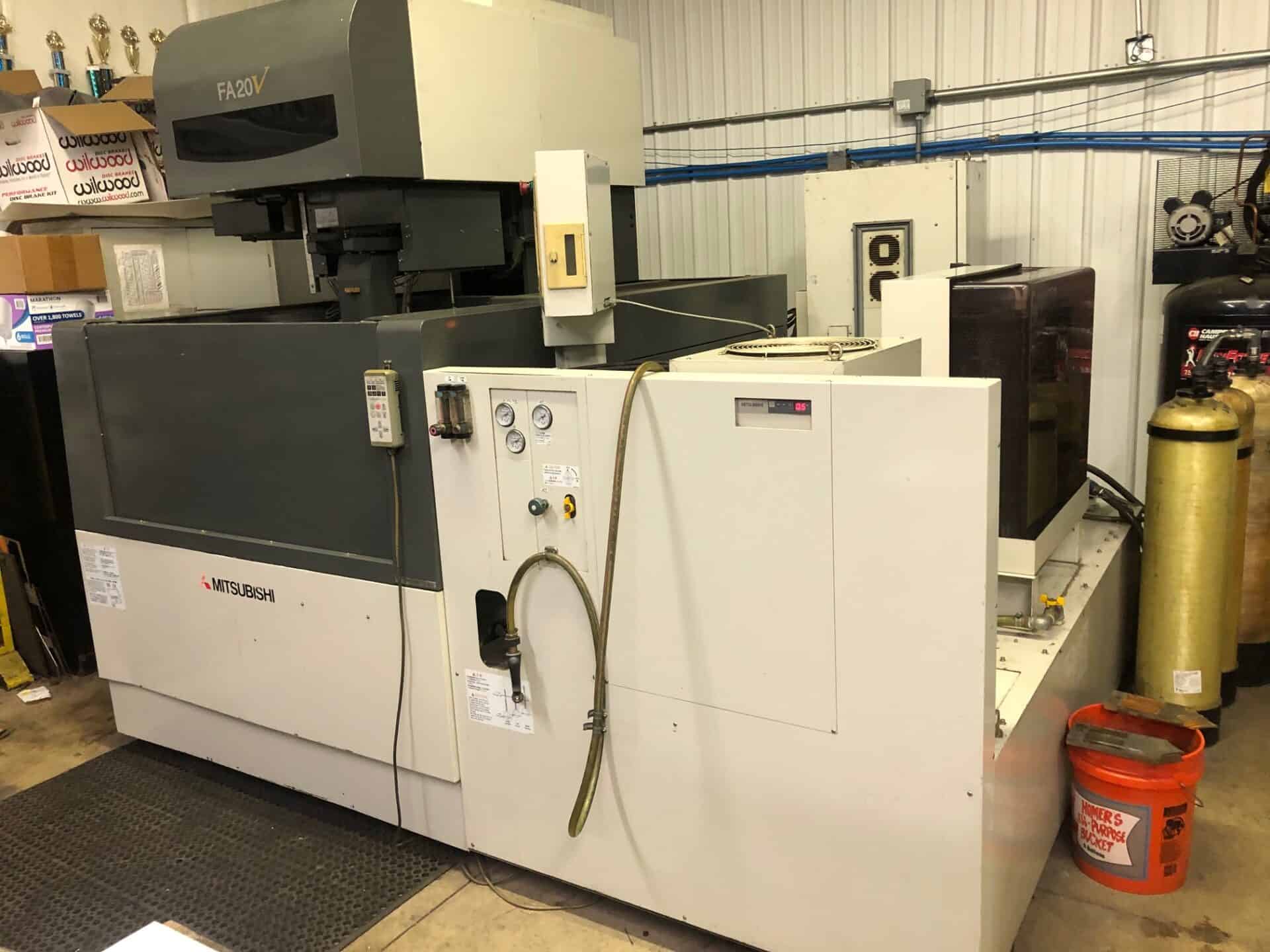

Used Mitsubishi FA20V (2003) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in The United States. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
19.7" |
|---|---|
| Y-Axis Travel |
13.8" |
| Z-Axis Travel |
17.9" |
| Control |
Mitsubishi 64-Bit CNC |
| U/V Axis Travel |
3" x 3" |
| Degree Taper Cutting |
15 Degrees @ 15.5", 45 Degrees @ 2.4" |
| Inside Tank Dimensions |
41.3" x 41.3" |
| Power Requirement |
208/3/60 |
| Max Workpiece Dimensions |
41.34" x 31.5" x 11.61" |
| Workpiece Weight |
3,300 lbs |
| Table Dimensions |
30.71" x 24.8" |
| Resolution |
.000002" |
| Wire Diameter |
.006"-.012" (0.10 Std) |
| Filter Tank Capacity |
195 Gallons |
| Machine Dimensions |
79.2" x 103.2" x 82.6" |
| Machine Weight |
7,716 lbs |
Features
|
Chiller |
Glass Scale Feedback |
|
V500 Anti-Electrolysis Power Supply - Ultra High Speed |
Extended U/V Stroke |
|
Extended Z Stroke |
Large Wire Pool Option 44 lbs |
