Year |
2002 |
|---|---|
Make |
Mitsubishi |
Model |
FA10 |
Description |
EDM Wire |
Reference # |
8075339 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

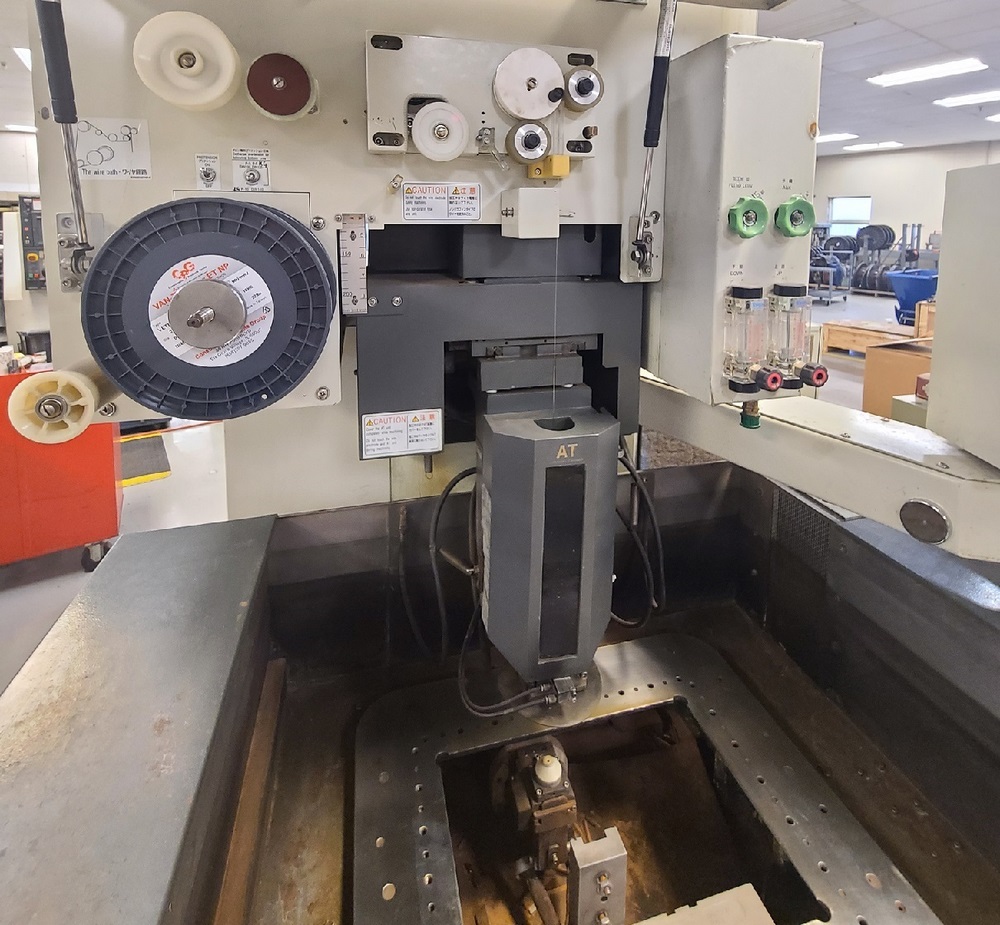

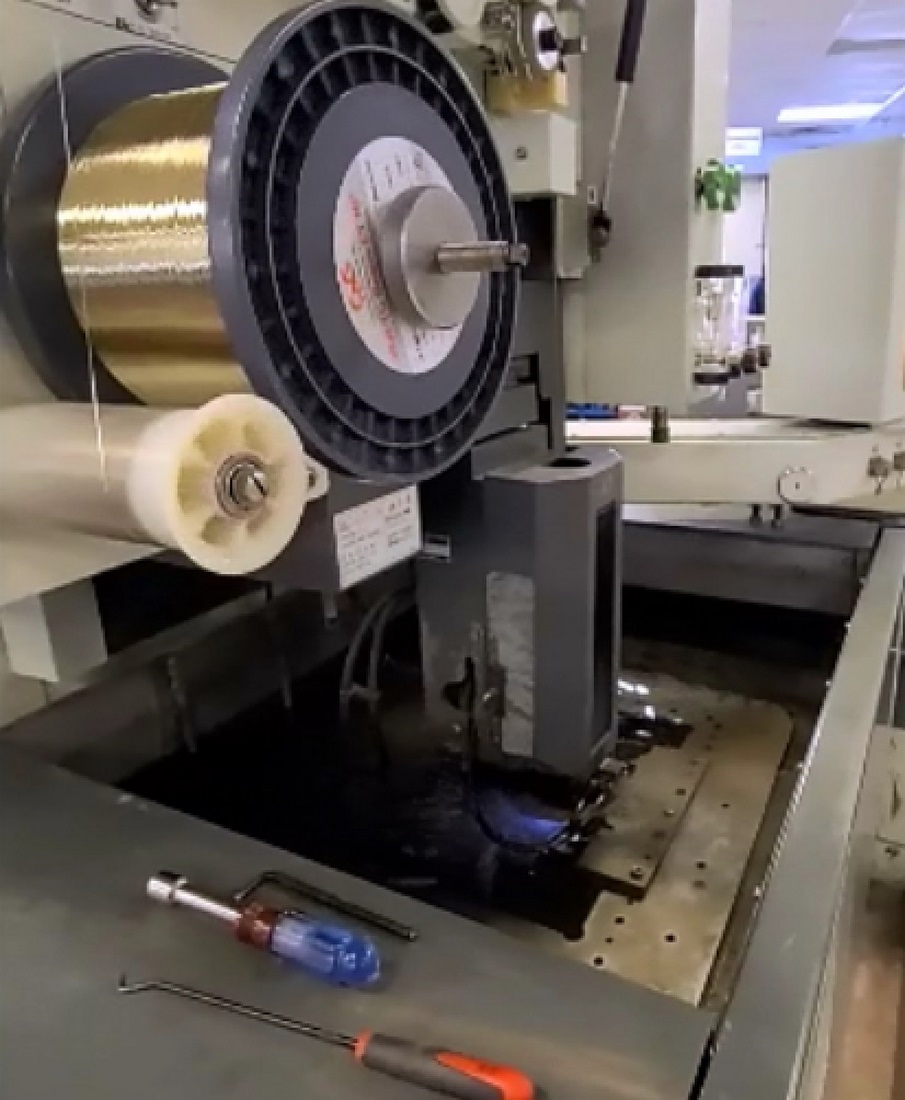

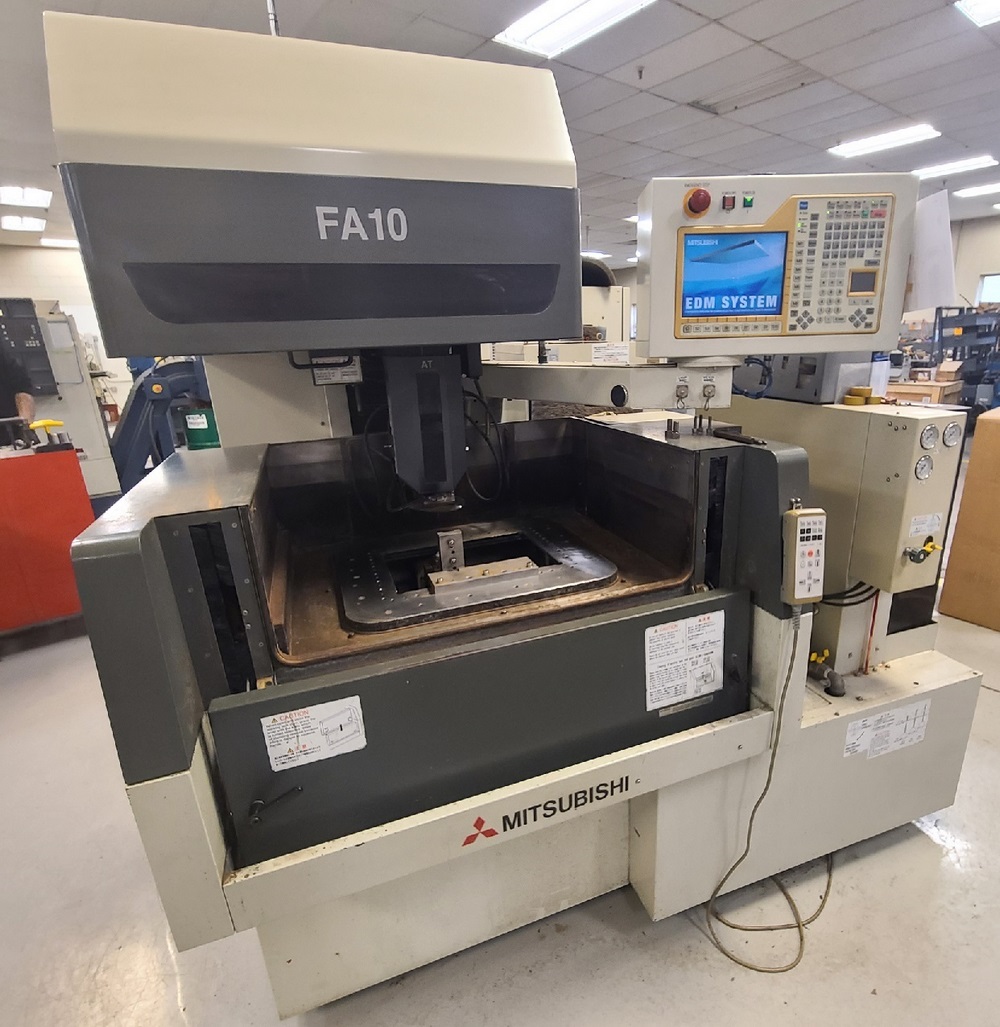

Used Mitsubishi FA10 (2002) EDM for Sale. This wire EDM machine offers 13.8″ of X-axis travel, 9.8″ of Y-axis travel and 8.6″ of Z-axis travel, with 1.25″ x 1.25″ U/V axis travel and taper cutting to +/- 30 degrees. Wire diameter range is .006″ to .012″. Control is a Mitsubishi 64 Bit PC with color CRT and 3D graphics. Equipped with linear motion guideways, auto lube system, auto wire threading, auto-lock vertical tank door mechanism, automatic fluid level control, chiller, filtration system, fine resolution encoder feedback, full 4-sided work table, hand pendant controller, moving column design, Power Master Control, submerged machining capability and wire chopper. Approximate dimensions are 77.7″ x 81.6″ x 80.71″ at roughly 4,400 lbs. This Mitsubishi can be seen under power for an inspection. Activate Pricing or Request a Quote.
Specifications
| X-Axis Travel |
13.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |

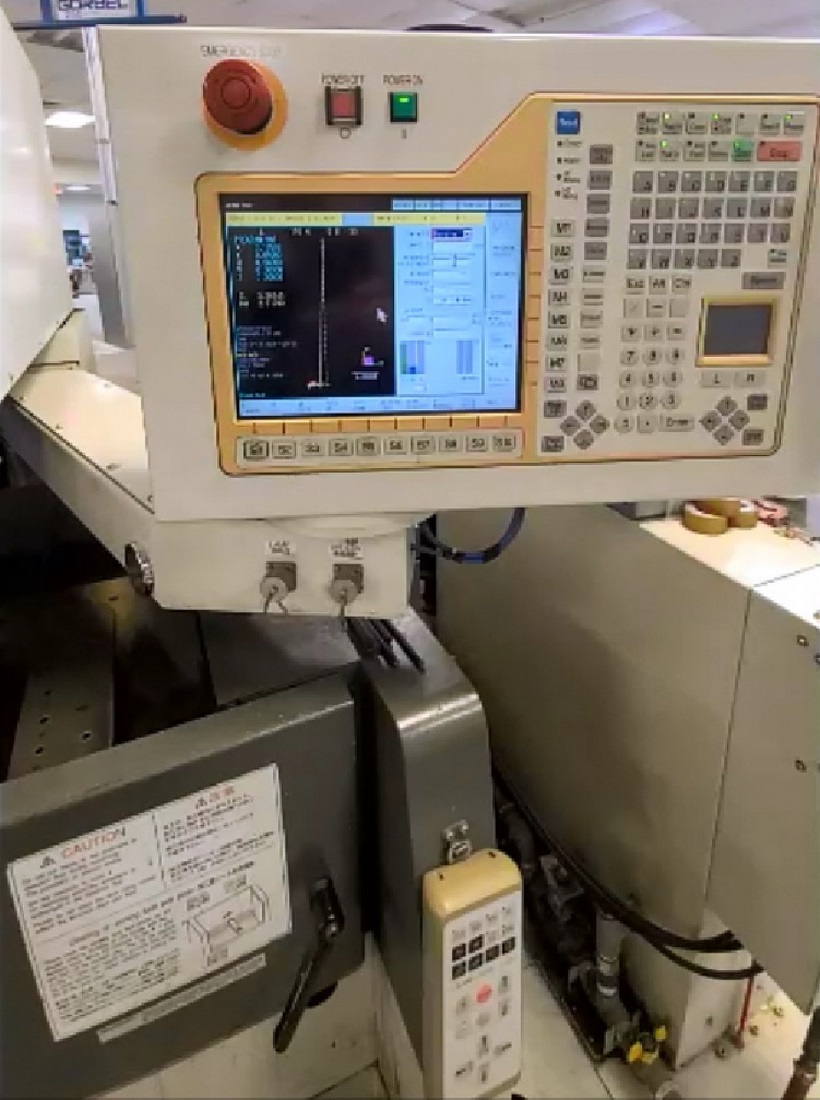

| Control |
Mitsubishi 64 Bit PC |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
+/- 30 Degree |
| Wire Diameter Range |
.006 - .012" |
| Approx Dimensions |
77.7'' x 81.6'' x 80.71'' |
| Approx Weight |
4,400 Lbs |
Features
|
Linear Motion Guideways |
Auto Lube System |
|
Auto Wire Threading |
Auto-Lock Vertical Tank Door Mechanism |
|
Automatic Fluid Level Control |

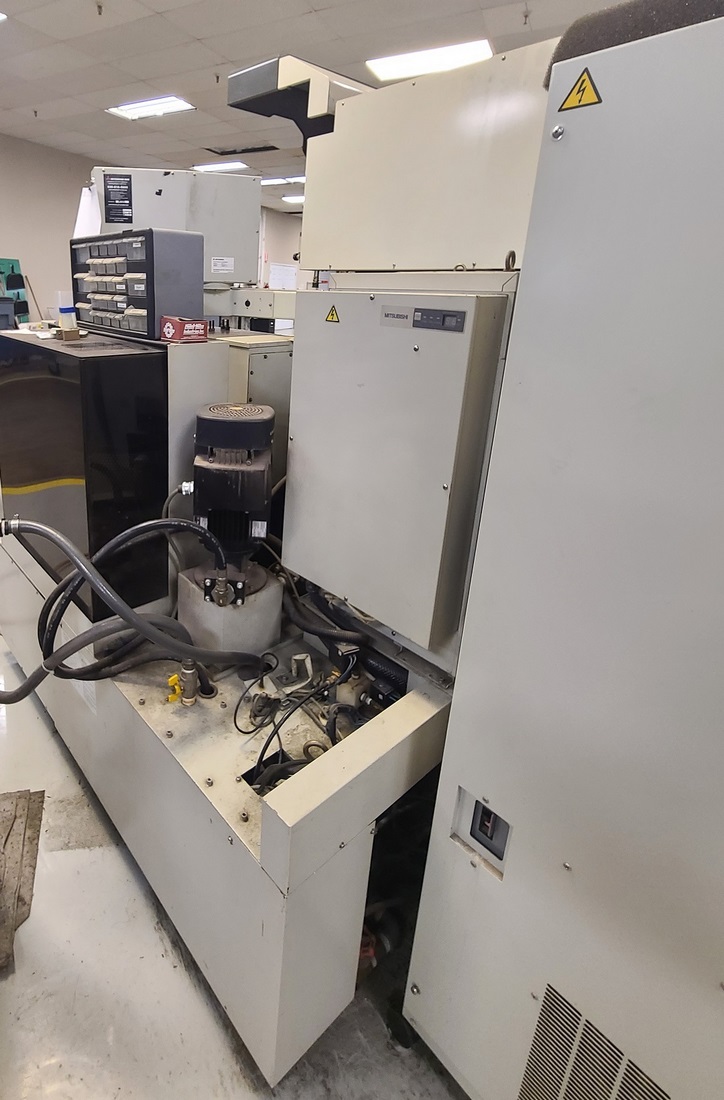

Chiller |
|
Filtration System |
Fine Resolution Encoder Feedback |
|
Full 4-Sided Work Table |
Hand Pendant Controller |
|
Moving Column Design |
Power Master Control (Automatically Adjusts Power Settings) |
|
Submerged Machining Capability |
Wire Chopper |
|
Color CRT with 3D Graphics |
