Year |
2000 |
|---|---|
Make |
Cincinnati |
Model |
T3000W-D120G-35 |
Description |
Blow Molder |
Reference # |
8077192 |
Price |
Activate Pricing |

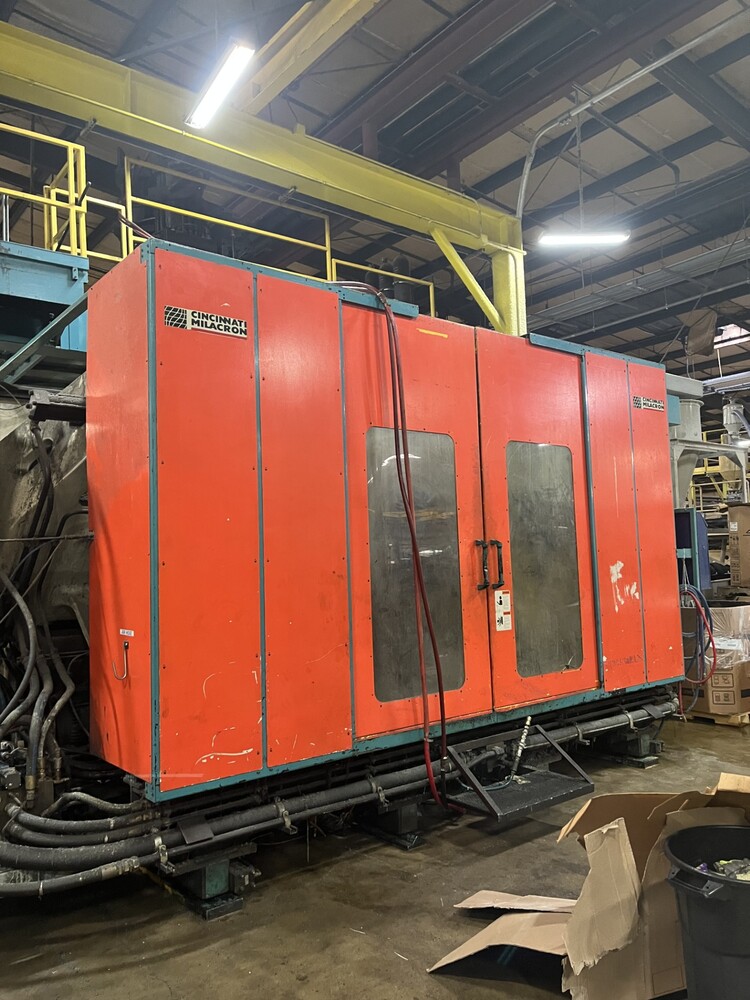

Used Cincinnati T3000W-D120G-35 (2000) Blow Molder for Sale. This two-head accumulator machine offers a shot size capacity of 35 lbs / 20 L per head, with minimum and maximum head tooling of 9.6″ to 17.7″ and daylight from 15.7″ to 74.8″. Clear platen area measures 82.6″ H x 72″ vertical, with 340 tons of clamp tonnage. Two extruders are fitted with 4.72″ grooved screws. Power requirement is 460v – 3 – 60 at 337 amps. Overall machine dimensions are 203″ H x 168″ W x 412″ L, with a clamp weight of 89,070 lbs and total platform weight of 52,000 lbs. The machine can be seen under power for an inspection. See more blow molding machines or other Cincinnati Milacron equipment, Activate Pricing, or Request a Quote.
Specifications
| Number of Heads |
2 |
|---|---|
| Shot Size Capacity Per Head |
35 Lbs / 20 L |
| Min/Max Head Tooling |
9.6" / 17.7" |
| Min/Max Daylight |
15.7" / 74.8" |
| Clear Platen Area |
82.6" H x 72" Vert. |
| Clamp Tonnage |
340 Tons |
| Extruder Screw Size |
4.72" (Grooved) |
| Number of Extruders |
(2) Two |
| Power Requirement |
460v - 3 - 60 (337 Amps) |
| Machine Dimensions |
203" H x 168" W x 412" L |
| Clamp Weight |
89,070 Lbs |
| Total Platform Weight |
52,000 Lbs |
